Removing a FortiController-5208 module from a chassis
14
To complete this procedure, you need:
• A FortiGate-5140 or FortiGate-5050 chassis with a FortiController-5208
module installed
• An electrostatic discharge (ESD) preventive wrist or ankle strap with
connection cord
Caution: The FortiController-5208 modules must be protected from static discharge and
!
physical shock. Only handle or work with FortiController-5208 modules at a static-free
workstation. Always wear a grounded electrostatic discharge (ESD) preventive wrist or
ankle strap when handling FortiController-5208 modules.
1 Attach the ESD wrist or ankle strap to your wrist or ankle and to an ESD socket or
to a bare metal surface on the chassis or frame.
2 Disconnect all cables from the FortiController-5208 module, including all network
cables, and console cables.

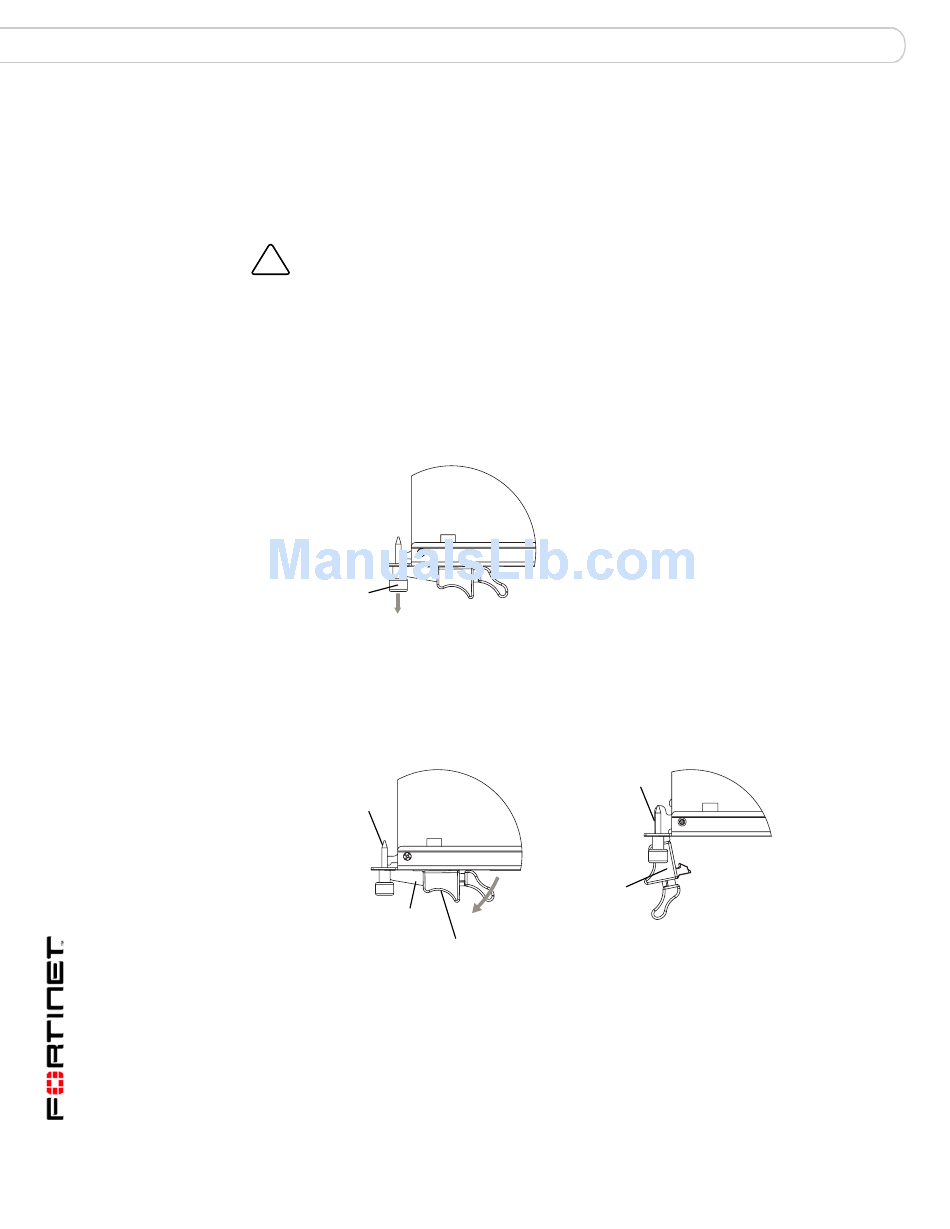

3 Fully loosen the mounting knots on the left and right sides of the
FortiController-5208 module front panel.
Mounting
Knot
Loosen
4 Unlock the left and right extraction levers by squeezing the extraction lever locks.
5 Open the left and right extraction levers to their fully open positions.
Opening the extraction levers slides the module a short distance out of the slot,
disconnecting the module from the chassis backplane.
The IPM LED turns solid blue. All other LEDs turn off.
Alignment Pin
Extraction
Lever
Lock
6 Pull the module about half way out.
All LEDs turn off.
Alignment Pin
Extraction
Lever
Open
