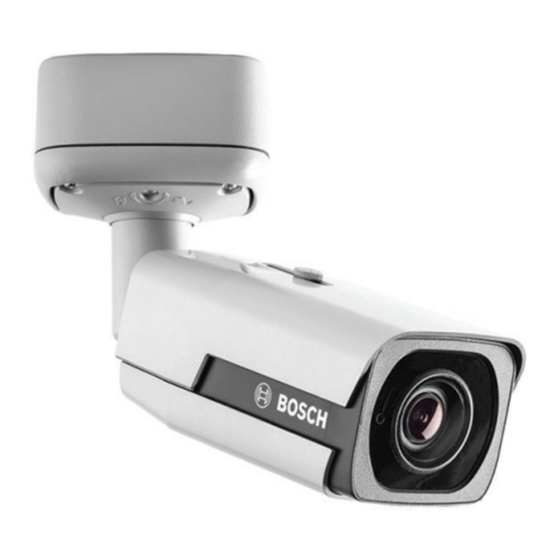

Bosch NTI-40012-A3S Quick Installation Manual

1 2
NPT¾" / M25
x4 M8 x4 T15
microSD card
(not included)
x4 T4
x4 O-ring
DINION IP bullet 4000 / DINION IP bullet 5000
NTI-40012 | NTI-50022
Safety Instructions
x4 T4 de deutsch
en english
es español
zh-CHS fr français 中国语文
CHS
6 7
CVBS
Ethernet (PoE)
Audio In
Audio Out
Alarm
Power
3
Reset
Video
out
(service)
Menu
mm (in)
8
Ethernet (PoE)
Ethernet
Power
(PoE)
RJ45
DHCP
(no DHCP: 192.168.0.1)
STP Cat5e
4
Ø6 mm
107 (4.21)
x4
49 (1.93)
49 107
(1.93) (4.21)
IP66
VDA-POMT-PTZDOME
9
PoE
Red - Audio 0ut
Black - GND
7 mm
(0.3 in)
24-28 AWG
24 VAC / +12 VDC
SELV
Class 2
Power Supply
Earth
BNC female
BNC male
(F.01U.344.031
SPP BNC Cable.
IP Bullet 4K 5K)
5
T4
x4
sealant
x4
T4
x4
VDA-CMT-PTZDOME
M8
IP66
x4
x4
10
Audio Audio
Out In
White - Audio In
Black - GND
16 Ohm typ.
10 kOhm typ.
0.707 Vrms
0.707 Vrms
Alarm
Color
Brown - Alarm NO
Yellow - Alarm COM
Blue - Alarm IN
Grey - Alarm GND
Video Out
CVBS
75 Ohm
NPT¾" / M25
sealant
