ooma Expansion Base Station Quick Start Manual

Setup Overview

Each Expansion Base Station requires a separate Ethernet connection to the router or switch in
your office. If you want to extend the range of your Linx devices, you should install the expansion
unit in a different location than the primary Base Station. For best Linx range and performance,
spread out the installations of your Base Stations and pair each Linx to the closest Base Station.
Customer Service
4
x
4
x
Accounting
NOTE: For best wireless performance, Base Stations should be separated by at
least 12 inches and should not be stacked one on top of another.
IMPORTANT: Ooma Office requires a broadband Internet connection and a minimum
of 128kbps of upstream and downstream bandwidth for each user inside the office.
Users who primarily access the system from outside the office using the mobile app or
a remote number do not need to be counted.
|
Step 2 Install Base Station
2a

Connect Base Station to Router

Connect your Base Station to the Internet
Use the included Ethernet cable to connect the
the Base Station to an open Ethernet port on your router.
2c
Power On
Plug in your Base Station
POWER
Plug the provided AC adapter into the
of the Base Station to blink amber for several minutes while the device is booting up.
The status light will turn solid blue once the system is fully functional.
If your device requires a software upgrade, it may take 15-30 minutes
!
to finish booting up the first time you plug it in. Do not unplug the
Base Station while it is upgrading. It will automatically reboot
after the upgrade is complete.
Expansion Base Station
Quick Start Guide
Sales
Router
Operations
Go to
TO INTERNET port of
port. It is normal for the status light on the front
Go to

Introduction

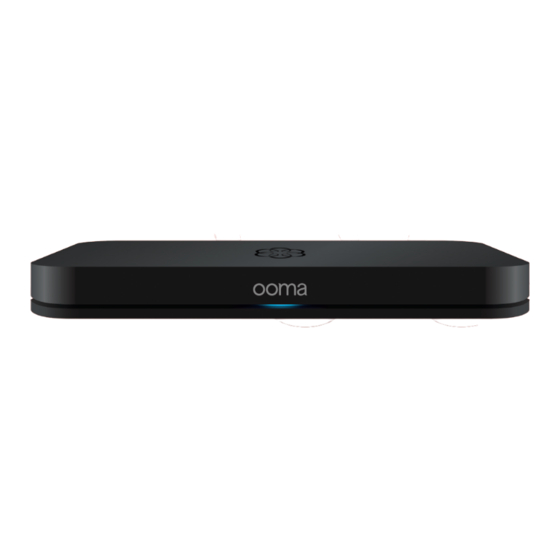

Congratulations on your purchase of an Ooma Office Expansion Base Station!
By linking this Base Station to your existing Ooma Office account, you will add capacity to support
up to five additional analog phones in your office.
One analog phone can be immediately connected into the phone jack built into the expansion unit.
Up to four more analog phones can be supported by connecting them to paired Linx devices
(sold separately).

Package Contents

Expansion Base Station
Have a Question or
Need Assistance?
We are here to help!
700-0151-100
|
Step 1 Add Base Station to Account
Before you plug in the Expansion Base Station, you must link it to your
existing Ooma Office account. Follow the instructions below:
a
Go to the following URL and log into your
Ooma Office Manager account:
4
x
http://office.ooma.com/base_stations
b
Click the Add Base Station button.
c
Enter the seven-digit activation code found on
the bottom of your new Base Station and enter
a descriptive name.
4
x
d
Click the Add button.
The Base Station is now linked to your account.
Step 1
2b
Connect Your Phone (optional)
Plug your phone into the Base Station
If you are using the phone jack in the Base Station, use your existing phone cable to plug your
analog phone into the
PHONE
base unit to the
NOTE: For best performance, fax machines should be plugged into a Base Station.
|
Assign Devices to Users
Step 3
Step 3
Ethernet Cable (7 ft)
Knowledge base
User manuals
ooma.com/userguide
24x7 Customer Care Hotline
PHONE port. If you are using a cordless phone, connect the cordless phone
port.
Log into Ooma Office Manager
You are now ready to assign the analog phone connected to the
Expansion Base Station to a new or existing user on your account.
Go to the following URL and log in:
http://office.ooma.com/extensions
Click on the user that will use the analog phone you just installed,
select the Devices tab and then click the Add device button. Follow
the directions on the screen.
Pairing Linx devices
If you have purchased additional Linx devices that you want to pair
with the Expansion Base Station, proceed to Step 4 and follow the
directions on the back of this guide.
Once you have finished installling the Linx devices, follow the
directions above to assign those devices to users on your system.
That's it. You're Done!
If you have any questions about setting up or configuring your
system, please call our customer care hotline for help:
1-866-939-OOMA (6662)
AC Adapter
ooma.com/support/office
1-866-939-6662
Step 2
Go to
