H430P Battery-free Pen Tablet
User Manual
For Windows and Macintosh OS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H430P and is the answer not in the manual?

Questions and answers

Summary of Contents for Huion H430P

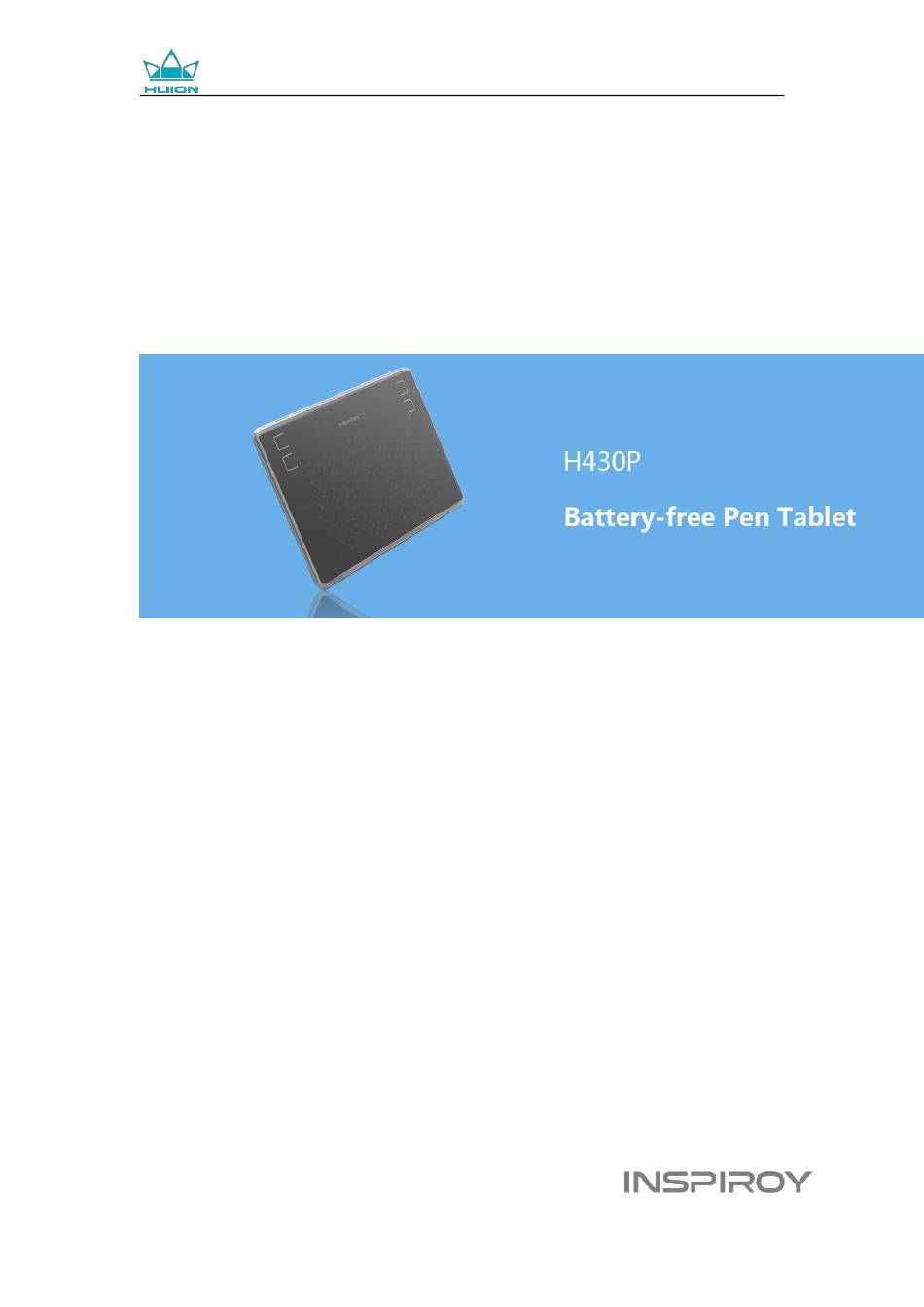

  • Page 1 H430P Battery-free Pen Tablet User Manual For Windows and Macintosh OS...
  • Page 2 H430P Battery-free Pen Tablet Precautions 1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
  • Page 3: Table Of Contents

    H430P Battery-free Pen Tablet Contents Product Overview........................3 1.1 Tablet Introduction........................3 1.2 Product and Accessories....................... 3 1.3 Tablet Connection......................... 4 1.4 Driver Installation........................4 1.5 Pen Nib Replacement......................5 2. Product Basic Operation......................... 5 2.1 Using The Pen........................6 3. Function Setting..........................7 3.1 Device Connection Prompt....................8 3.2 Working Area Setting......................
  • Page 4: Product Overview

    ® Thanks for choosing HUION INSPIROY H430P graphics tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
  • Page 5: Tablet Connection

    H430P Battery-free Pen Tablet 1.2.2 Packing List Pen Tablet Battery-free Pen Micro USB Cable Pen Nib Clip Replacement Nibs Quick Start Guide 1.3 Tablet Connection 1. Connect the tablet to your computer with USB cable. 1.4 Driver Installation 1.4.1 OS Support Windows 7 or later,macOS 10.11 or later...
  • Page 6: Pen Nib Replacement

    H430P Battery-free Pen Tablet 1.4.3 Install Driver Please download the driver from our website: www.huion.com/download After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to...
  • Page 7: Product Basic Operation

    H430P Battery-free Pen Tablet 2. Product Basic Operation 2.1 Using The Pen 2.1.1 Hold the pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
  • Page 8 H430P Battery-free Pen Tablet 2.1.3 Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. 2.1.4 Move Select the object, then slide the pen tip across the screen to move it.
  • Page 9: Function Setting

    H430P Battery-free Pen Tablet 3. Function Setting 3.1 Device Connection Prompt 1. Device disconnected: The computer does not recognize the tablet. 2. Device connected: The computer has recognized the tablet. 3.2 Working Area Setting 3.2.1 Using Multiple Monitors Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.
  • Page 10 H430P Battery-free Pen Tablet 3.2.2 Working Area Setting Define the tablet area that will be mapped to the screen area. 1. Full Area: the entire active area of the tablet. This is the default setting. 2. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.
  • Page 11: Press Keys Function Setting

    H430P Battery-free Pen Tablet 3.3 Press Keys Function Setting Default Setting:Place the cursor on the press key or click the press key to find the default values. Customized Setting:Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.
  • Page 12: Pressure Sensitivity Setting

    H430P Battery-free Pen Tablet 3.5 Pressure Sensitivity Setting The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. 3.6 Pen Pressure Testing Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level.
  • Page 13: Enable The Windows Ink Feature

    H430P Battery-free Pen Tablet 3.7 Enable the Windows Ink feature Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、 SketchBook 6 and so on. 3.8 Data Export and Import...
  • Page 14: Specifications

    H430P Battery-free Pen Tablet 4. Specifications Graphics Tablet Model H430P Battery-free Electromagnetic Resonance Touch Technology 121.9 x 76.2mm(4.8 x 3in) Working Area 186.6 x 139.2 x 6.3mm Dimension Net Weight 135g Touch Resolution 5080LPI Report Rate 233PPS Pen Sensing Height...
  • Page 15: Trouble Shooting

    Note: Information in this manual is subject to change without further notice. For more information, please contact us with our email: service@huion.com Or go to our website (www.huion.com) to get the latest driver and user manual. 14 / 14 www.huion.com...
