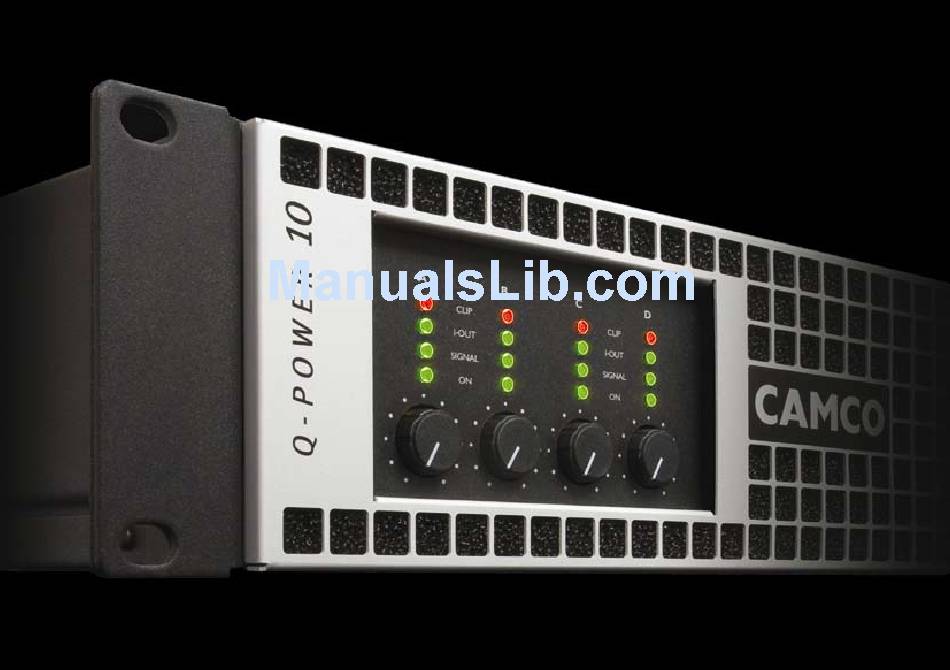

- Page 2 INFORMATION FOR USE FOR MODELS Q-POWER 6 and Q-POWER 10 QUM_GB_2008-R3_04-2008 © Copyright 2008 by CAMCO Produktions- und Vertriebs-GmbH für Beschallungs- und Beleuchtungsanlagen Fischpicke 5, D-57482 Wenden, Germany Telephone +49 (0) 2762 408-0 Q - P O W E R...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ) Read the information for use (user manual). 2) Please keep this user manual in a safe place during the lifetime of the am- plifier. The user manual forms an integral part of the amplifier. Reselling of the amplifier is only possible if the user manual is available. - Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN THE LIGHTNING FLASH WITH ARROW HEAD SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCT’S ENCLOSURE. THE EXCLAMATION MARK IS INTENDED TO ALERT THE USER TO IMPORTANT INSTRUCTIONS ALSO FOR MAINTENANCE IN THE LITERATURE ACCOMPANYING THE AMPLIFIER.
- Page 5 Please refer to your dealer/distributor. 4. Servicing and Replacement Parts All service and repair work must be carried out by a CAMCO authorised dealer. When replacement parts are required, please ensure that the dealer/distributor only uses replacement parts specified by the manufacturer. The use of un- authorized replacement parts may result in injury and/or damage through fire or electric shock or other electricity-related hazards.
- Page 6 Beschallungs- und Beleuchtungsanlagen Manufacturers Address: Fischpicke 5, D-57482 Wenden, Germany Declares that the product with the model name: CAMCO Power amplifier Q - P O W E R and Q - P O W E R Conforms to the following standards: EN60065...
-
Page 7: Table Of Contents
P. 24 7 MEASUREMENTS P. 27 8 WARRANTY INFORMATION 8. Summary Of Warranty 8.2 Items Excluded From This Warranty 8.3 What CAMCO Will Do 8.4 How To Obtain Warranty Service 8.5 CAMCO’s Product Improvement P. 28 9 SERVICE INFORMATION P. 29 0 MAINTENANCE INFORMATION / DECOMISSIONING P. -
Page 8: Welcome To Camco
If damage is found, notify the transportation company immediately. Only you the consignee may initiate a claim for shipping damage. CAMCO will be happy to cooperate fully as needed. Please save the shipping carton as evidence of damage for the shipper’s inspection. -
Page 9: .3 The Amplifier
,5 kW peak per channel @ 4 Ω, using a Bipolar class H (2-step) high efficiency power ampli- fier output stage 2,5 kW peak per channel @ 4 Ω, Q-POWER 10 using a MOSFET class D high efficiency power amplifier output stage 2 Facilities 2. Q-POWER –... -
Page 10: Q-Power - The Rear
Q-POWER 6 120 / 230 V ~ 50 / 60 Hz 1600 W 1000 W / 4 Ohm 45800 2.2 Q-POWER – The Rear 3 Rating Plate 4 Cooling Air Outlet Vents 5 SPEAKON Outlet Channel A/B 6 SPEAKON Outlet Channel C/D 7 Barrier Strip Outlets Channel A B C D... -
Page 11: Factory Settings
2.3 Factory settings Q-POWER amplifiers are delivered with the following factory settings: Front panel: On/Off Switch The amplifier is switched off. 5 - 8 Volume Control The volume is set to minimum. Q-POWER 6 120 / 230 V ~ 50 / 60 Hz 1600 W ... -
Page 12: On/Off Switch
Q-POWER 6 20 / 230 V ~ 50 / 60 Hz Q-POWER 10 20 / 230 V ~ 50 / 60 Hz NOTE: Only fixed 20 V or 230 V operation is possible. The amplifier should not be permanently operated at voltages not within the specified range (rated volt- age ±0 %), as this might affect the overall performance. -
Page 13: Mounting
3.3 Mounting Use four screws and washers when mounting the amplifier to the front rack rails. For mobile use, the amplifier should also be secured using the 9” mounting elements on the rear panel. P. 2 USER MANUAL Q - P O W E R S E R I E S 0,50 mm 465,00 mm 433,00 mm... -
Page 14: Cooling
3.4 Cooling Under normal operation of the power amp, overheating should never be a problem. The air is taken in from the front and out through the back. It is of course essential that while the power amp is running air is able to circulate around it freely. - Page 15 Channel D - Channel C - Channel B - Channel A SPEAKON connectors Barrier Strip connectors The Q-POWER 6 and Q-POWER 10 amplifiers are optimised for a loudspeaker impedance of 4 Ω . Attaching lower impedances might affect audio quality and overall performance of the amplifier.
-
Page 16: Indicators 4.. On Leds
4. Indicators 4.. On LEDs Under normal operation, after the amp has started, the green power LEDs are permanently lit. 4..2 Signal / Protect LEDs (multifunctional) The green Signal LEDs are illuminated when the voltage level at the output reaches approx. 4 V; this corresponds to a power of approx. 4 W into a 4 Ohm load. -
Page 17: Controls 4.2. Volume Control
(Q-POWER 6) or limit the maximum load current in the power transistors (Q-POWER 10). 4.3.3 DC Protection Each output of the power amp is constantly monitored for persistent DC voltage levels. -
Page 18: Mains Protections 4.4. Inrush Current Limitation
4.4 Mains Protections 4.4. Inrush Current Limitation Within approximately 2 seconds of the Q-POWER Amplifier being switched on, the inrush current limiter will increase mains current smoothly from nearly zero to nominal value. This value depends on program material, output level and speaker loads. -
Page 19: Filter Cleaning
4.7 Filter Cleaning The air intake on the front of your Q-POWER Amplifier is fitted with a removable filter system. If the filter becomes clogged, the unit will not cool as efficiently as it should and may result in reduced output levels. Q-POWER Filter Assembly Foam Filter 2 Front Frame... -
Page 20: Mounting The Volume Control Security Cover
4.8 Mounting the Volume Control Security Cover It is possible to install a solid protection over the volume controls to prevent intentional or unintentional changes of the amplifier volume settings. WARNING: Disconnect the amplifier from the mains before installing the cover. -
Page 21: Problem: No Sound
Q - P O W E R NOTE: For other LED indications than described above or if the problem persists please unplug the amplifier from the mains supply and refer to your authorised CAMCO dealer/distributor or repair workshop. 5.2 Problem: Distorted Sound Indication:... -
Page 22: Problem: Hiss
5.3 Problem: Hiss / Noise Unplug the amplifier input to confirm that the hiss is coming from the source or from a device upstream. Erratic or popping noises indicate an electronic fault in the offending unit. To keep the noise floor low, operate the primary signal source at full level without clipping. -
Page 23: Output Power
>5 dB 0 Hz - 20 kHz ± 0,5 dB Q - P O W E R S E R I E S Q-POWER 10 620 W @ 6 Ω 00 W @ 8 Ω 800 W @ 4 Ω... - Page 24 SPEAKON-connectors and barrier-strip-connector terminals for channel A - D 0,6 kg 2,6 kg We reserve the right to make technical alterations without prior notice. Q - P O W E R Q-POWER 10 < 0,05 % > 600 45 Vp / 290 Vpp 5 kΩ balanced...
-
Page 25: Measurements
+0.75 +0.5 +0.25 -0.25 -0.5 -0.75 -1.0 -1.25 -1.5 -1.75 -2.0 -2.25 -2.5 -2.75 -3.0 Figure 7. Gain vs. frequency (Q-POWER 6, (Measurements of a typical performance) -100 Figure 7.2 THD @ kHz, 8 Ω vs. input voltage (Q-POWER 6, (Measurements of a typical performance) P. - Page 26 -100 -110 -120 Figure 7.5 Channel separation vs. frequency @ 0 W / 4 Ω (Q-POWER 6, (Measurements of a typical performance) -100 Figure 7.6 DIM intermodulation distortion @ 8 Ω vs. input level (Q-POWER 6, (Measurements of a typical performance) P.
- Page 27 1000 4 Ohm 8 Ohm Impedance Figure 7.0 Q-POWER 10 (Measurements of a typical performance) P. 26 USER MANUAL Q - P O W E R S E R I E S Q-POWER 6 Peak Power Q-POWER 6 Distortion Limited...
-
Page 28: Summary Of Warranty
(6) years from the date of sale. When a defect occurs under normal installation and use, CAMCO will repair the product under this warranty. In this event, please return the amplifier to your dealer/dis- tributor together with a copy of your sales reciept as proof of purchase. - Page 29 To transport the amplifier, the original packing materials must be used. Please return the amplifier to the following address or your nearest CAMCO appointed distributor. CAMCO Produktions- und Vertriebs-GmbH für Beschallungs- und Beleuchtungsanlagen, Fischpicke 5, D-57482 Wenden, Germany P. 28 USER MANUAL...
- Page 30 0 Maintenance Information Cleaning and servicing the inside of the amplifier must never carry out by un- qualified personnel. The amplifier must never be opened by unqualified person- nel. Cleaning and servicing work on the inside of the amplifier must only be carried out by qualified personnel.
- Page 31 Mailing Address: CAMCO Produktions- und Vertriebs-GmbH für Beschallungs- und Beleuchtungsanlagen Fischpicke 5 D-57482 Wenden Germany Telephone: +49 (0) 2762 408-0 Facsimile: +49 (0) 2762 408-0 Internet: www.camcoaudio.com Email: postmaster@camcoaudio.com P. 30 USER MANUAL Q - P O W E R S E R I E S...
- Page 32 Q - P O W E R S E R I E S P. 3 USER MANUAL Q - P O W E R S E R I E S...
- Page 33 Q - P O W E R S E R I E S P. 32 USER MANUAL Q - P O W E R S E R I E S...
- Page 34 www.camcoaudio.com...
