User's Gui d e
Shop online at
omega.com
e-mail: info@omega.com
For latest product manuals:
www.omegamanual.info

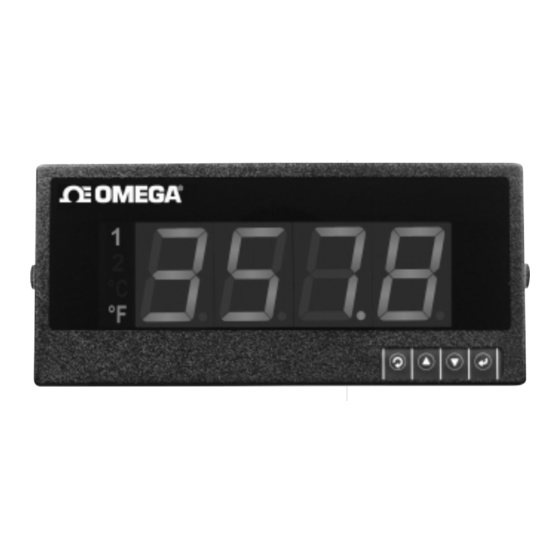

ILD24-UTP, ILD44-UTP BIG DISPLAY
Universal Temperature & Process
Controller Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILD24-UTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omega ILD24-UTP

  • Page 1 User’s Gui d e Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info ILD24-UTP, ILD44-UTP BIG DISPLAY Universal Temperature & Process Controller Manual...
  • Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Part 1: Introduction....................2 Description .................2 Safety Considerations ...............3 Before You Begin ...............4 Part 2: Setup.......................5 Mounting ..................5 Rear Panel Connections............7 Electrical Installation ..............8 2.3.1 Power Connections............8 2.3.2 Thermocouple - Input Connection........9 2.3.3 Two / Three / Four Wire RTD-Hookups .......10 2.3.4 Process Current - Wiring Hookup.......11 2.3.5 Process Voltage - Wiring Hookup .......11 2.3.6 Wiring Outputs - Wiring Hookup.........12...
  • Page 4 LIST OF FIGURES: Figure 2.1 Mounting ....................5 Figure 2.2 Rear Panel Power and Output Connector Labels......7 Figure 2.3 Rear Panel Input Connector Labels............7 Figure 2.4 Main Power Connections..............8 Figure 2.5 Inside Cover Rear View................8 Figure 2.6 Thermocouple Wiring Hookup ............9 Figure 2.7 Two/Three/Four-wire RTD a) RTD-1000 ohm and 500 ohm Wiring Hookup ......10...
  • Page 5 NOTES, WARNINGS and CAUTIONS Information that is especially important to note is identified by following labels: • NOTE • WARNING or CAUTION • IMPORTANT • TIP NOTE: Provides you with information that is important to successfully setup and use the Programmable Digital Meter. CAUTION or WARNING: Tells you about the risk of electrical shock.
  • Page 6: Part 1: Introduction

    PART 1 INTRODUCTION 1.1 Description This device can be purchased as monitor (read process value only) or as a controller. • The iLD Big Display controller offers unparalleled flexibility in process measurement. Each unit allows the user to select the input type, from 10 thermocouple types (J, K, T, E, R, S, B, C, N and J DIN), Pt RTDs (100, 500 or 1000 , with either 385 or 392 curve), DC voltage, or DC current.
  • Page 7: 1.2 Safety Considerations

    1.2 Safety Considerations This device is marked with the international caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility). This instrument is protected in accordance with Class I of EN 61010 (110/240 AC power connections).
  • Page 8: 1.3 Before You Begin

    1.3 Before You Begin Inspecting Your Shipment: Remove the packing slip and verify that you have received everything listed. Inspect the container and equipment for signs of damage as soon as you receive the shipment. Note any evidence of rough handling in transit.
  • Page 9: Part 2: Setup

    PART 2 SETUP 2.1 Mounting Figure 2.1 Mounting...
  • Page 10: Table 2.1 Front Panel Annunciators

    Mounting iLD Big Display Through Panel: 1. Using the panel cutout diagram shown in your Quick Start Manual, cut an opening in the panel. 2. Remove six (or eight) screws at the back of iLD Big Display to remove back cover. 3.
  • Page 11: 2.2 Rear Panel Connections

    2.2 Rear Panel Connections The rear panel connections are shown in Figures 2.2 and 2.3. Figure 2.2 Rear Panel Power and Output Connections Figure 2.3 Rear Panel Input Connections Table 2.2 Rear Panel Connector POWER AC Power Connector: All models INPUT Input Connector: TB7 &...
  • Page 12: 2.3 Electrical Installation

    2.3 Electrical Installation 2.3.1 Power Connections Caution: Do not connect power to your device until you have completed all input and output connections. Failure to do so may result in injury! Connect the main power connections as shown in Figure 2.4. Figure 2.4 Main Power Connections REMOTE COMMUNICATION...
  • Page 13: Thermocouple - Input Connection

    2.3.2 Thermocouple The figure below shows the wiring hookup for any thermocouple type. For example, for Type K hookup, connect the yellow wire to the TB7(+) terminal and the red wire to the TB8(-) terminal. When configuring your controller, select Thermocouple and Thermocouple Type in the Input Type menu (see Part 3).
  • Page 14: Two / Three / Four Wire Rtd-Hookups

    2.3.3 Two/Three/Four-Wire RTD The figures below show the input connections and input connector jumpers (shown in bold lines) required to hookup a 2-, 3- or 4-wire RTD. Figure 2.7 a) RTD-1000 ohm and 500 ohm b) RTD-100 ohm Wiring Hookup Wiring Hookup The two-wire connection is simplest method, but does not compensate for lead-wire temperature change and often requires calibration to cancel lead-wire...
  • Page 15: Process Current - Wiring Hookup

    2.3.4 Process Current The figure below shows the wiring hookup for Process Current 0 – 20 mA. Figure 2.8 Process Current Wiring Hookup (Internal and External Excitation) When configuring your instrument, select Process Type in the Input Type Menu (see Part 3). 2.3.5 Process Voltage The figure below shows the wiring hookup for Process Voltage 0 –...
  • Page 16: Wiring Outputs - Wiring Hookup

    2.3.6 Wiring Outputs This meter has two, factory installed, outputs. The SPDT Mechanical Relay, SPST Solid State Relay, Pulse and Analog Output Connection are shown below. Figure 2.10 a) Mechanical Relay and SSR b) Pulse and Analog Outputs Wiring Hookup Outputs Wiring Hookup This device may have a programmable communication output.
  • Page 17: Figure 2.12 Excitation Output

    This device may also have an excitation output. Figure 2.12 Excitation Output Excitation is not available if communication option is installed. This device has snubber circuits designed to protect the contacts of the mechanical relays when it switches to inductive loads (i.e. solenoids, relays).
  • Page 18: Part 3: Operation: Configuration Mode

    PART 3 OPERATION: Configuration Mode 3.1 Introduction The instrument has two different modes of operation. The first, Run Mode, is used to display values for the Process Variable, and to display or clear Peak and Valley values. The other mode, Menu Configuration Mode, is used to navigate through the menu options and configure the controller.
  • Page 19: Buttons Functions In Configuration Mode 3.2 Menu Configuration

    3.2 Menu Configuration It is recommended that you put the controller in the Standby Mode for any configuration change other than Setpoints & Alarms. Figure 3.1 Flow Chart for ID and Setpoints...
  • Page 20: Id Number

    3.2.1 ID Number SEE ID MENU SELECTION IN CONFIGURATION SECTION FOR ENABLE/DISABLE OR CHANGE ID CODE. If ID Code is Disabled or set as Default (0000) the menu will skip ID step to Setpoint Menu. If ID Code is set to Full Security Level and user attempts to enter the Main Menu, they will be prompted for an ID Code.
  • Page 21: Setpoints

    3.2.2 Set Points SETPOINT 1: Press a 1) Press a, if necessary until SP1 prompt appears. Press d 2) Display shows previous value of “Setpoint 1”. Press b & c 3) Press b and c to increase or decrease Setpoint 1 respectively.
  • Page 22: Configuration Menu

    3.2.3 Configuration Menu Figure 3.2 Flow Chart for Configuration Menu Enter Configuration Menu: Press a 1) Press a, if necessary, until CNFG prompt appear. Press d 2) Display advances to INPT Input Menu. Press a 3) Pressing and releasing a to scroll through all available menus of Configuration section.
  • Page 23: Input Type (Thermocouple)

    Input Type (Thermocouple) ENTER INPUT TYPE MENU: Press a 1) Press a, if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu. Press d 3) Display flashes T.ç , RTD or PROC (Thermocouple, RTD or Process).
  • Page 24: Input Type (Rtd)

    Input Type (RTD) ENTER INPUT TYPE MENU: Press a 1) Press a, if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu. Press d 3) Display flashes T.ç , RTD or PROC (Thermocouple, RTD or Process).
  • Page 25: Input Type (Process)

    Input Type (Process) ENTER INPUT TYPE MENU: Press a 1) Press a, if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu. Press d 3) Display flashes T.ç , RTD or PROC (Thermocouple, RTD or Process).
  • Page 26 ENTER READING CONFIGURATION MENU: Press a 1) Press a , if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu. Press a 3) Display advances to RDG Reading Configuration Menu. Press d 4) Display advances to DEC Decimal Point. DECIMAL POINT SUBMENU: Press d 5) Display flashes previous selection for Decimal location.
  • Page 27 Reading Configuration (If Process was selected) INPUT/READING (SCALE AND OFFSET) SUBMENU: Input Voltage or Current can be converted or scaled into values appropriate for the process or signal being measured. So, a reading may be displayed, for example, in units of weight or velocity instead of in amperes or volts. The instrument determines Scale and Offset values based on two user-provided input values entered with the corresponding readings.
  • Page 28: Table 3.2 Conversion Table

    Conversion number is a coefficient of conversion between input values and real full display range (10000 counts, shown as 9999). See Table 3.2 below for proper conversion number. Table 3.2 Conversion Table RANGE CONVERSION NUMBER 100 mV 10000 / (100 x 1) = 100 10000 / (1000 x 1) = 10 10 V 10000 / (1000 x 10) = 1...
  • Page 29: Alarm 1 Menu

    3.2.6 Alarm 1 This unit is equipped with two physical outputs that can only be configured as follows: Alarm 1 & Alarm 2, Alarm 1 & Output 2, Output 1 & Alarm 2, Output 1 & Output 2, Analog Out 1 & Alarm 2, Analog Out 1 & Output 2. Analog Out available only if Analog Output Option board is factory installed.
  • Page 30 ALARM 1 ENABLE/DISABLE SUBMENU: Press b 5) Scroll though the available selection until ENBL displays to use Alarm 1. Press d 6) Display shows STRD stored message momentarily and then advances to ABSo only if it was changed, otherwise press a to advance to ABSo Alarm 1 Absolute/Deviation Submenu.
  • Page 31 CONTACT CLOSURE SUBMENU: Press d 11) Display flashes previous selection. Press b to N.ç. Normally Closed or N.o. Normally Open. Press d 12) Display shows STRD stored message momentarily and then advances to AçTV only if it was changed, otherwise press a to advance to AçTV Active Submenu.
  • Page 32 ALARM ENABLE/DISABLE AT POWER ON: Press d 15) Display flashes previous selection. Press b to ENBL enable or DSBL disable. Press d 16) Display shows STRD stored message. momentarily and then advances to ALR.L only if it was changed, otherwise press a to advance to the ALR.L Alarm 1 Low Value Submenu.
  • Page 33: Analog Output (Retransmission) Menu

    3.2.7 Analog Output (Retransmission) Analog Output can be configured as Retransmission or Control outputs. In this section we will discuss Retransmission Output. This unit is equipped with two physical outputs that can only be configured as follows: Alarm 1 & Alarm 2, Alarm 1 & Output 2, Output 1 & Alarm 2, Output 1 &...
  • Page 34 ANALOG OUTPUT ENABLE/DISABLE SUBMENU: Press b 5) Scroll though the available selection until ENBL displays to use Analog Output Retransmission (output proportional to the input signal). Press d 6) Display shows STRD stored message momentarily and then advances to CURR or VoLT Submenu only if it was changed, otherwise press a to advance to CURR or VoLT Current/Voltage Submenu.
  • Page 35 Accuracy of Analog Output board is +/-1% of FS (Full Scale) when following conditions are satisfied: 1. The input is not scaled below 1% of Input FS (10 mV @ 1 V or 0.2 mA @ 20 mA input ranges). 2.
  • Page 36: Alarm 2 Menu

    3.2.8 Alarm 2 This unit is equipped with two physical outputs that can only be configured as follows: Alarm 1 & Alarm 2, Alarm 1 & Output 2, Output 1 & Alarm 2, Output 1 & Output 2, Analog Out 1 & Alarm 2, Analog Out 1 & Output 2. Analog Out available only if Analog Output Option board is factory installed.
  • Page 37: Loop Break Time Menu / Field Calibration

    ALARM 2 ENABLE/DISABLE SUBMENU: Press d 5) Display flashes previous selection. Press b until ENBL displays to use Alarm 2. Press d 6) Display shows STRD stored message momentarily and then advances to ABSo only if it was changed, otherwise press a to advance to ABSo Absolute/Deviation Submenu.
  • Page 38 LOOP BREAK TIME VALUE SUBMENU: Press d 7) Display flashes 1 digit of previous Loop Value. Press b & c 8) Press b and c buttons to enter a new Loop Value (0 to 99.59). Press d 9) Display shows STRD stored message momentarily and then advances to R.ADJ Reading Adjust Submenu.
  • Page 39 THERMOCOUPLE FIELD CALIBRATION SUBMENU: CAUTION: Do not perform the following steps until you fully understand this entire section. RTD and Process are perfectly calibrated. This section is applicable to Thermocouple (TC) calibration only. Be sure that the TC being used to calibrate the meter is of the type selected in the TC submenu.
  • Page 40: Output 1 Menu

    3.2.10 Output 1 Alarm 1 and Output 1 or Analog Output (Retransmission) share the same contacts on the rear panel connector. If Alarm 1 or Analog Output (Retransmission) is Enabled, Output 1 is automatically Disabled. It is recommended that you put the controller in the Standby Mode for any configuration change other than Setpoints &...
  • Page 41 ENTER OUTPUT 1 MENU: Press a 1) Press a , if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu. Press a 3) Press a , if necessary, until Display advances to OUT1 Output 1 Menu. Press d 4) Display advances to SELF Self Submenu.
  • Page 42 MAXIMUM/PERCENT HIGH SUBMENU: Specify in percent, the maximum value (99) for control output. If the output is analog proportional (Current or Voltage), then the maximum voltage or current, in percent, is specified. If the output is time proportional (Relay, SSR, or Pulse), then the maximum duty-cycle, in percent, is specified.
  • Page 43 ACTION TYPE SUBMENU: The error that results from the measurement of the Process Variable may be positive or negative since it may be greater or smaller than the Setpoint. If a positive error should cause the instrument output to increase (i.e. cooling), it would be called Direct Acting.
  • Page 44 If Anti Integral (Anti Windup) Submenu “Enabled”, this feature allows the error term outside the proportional band to be calculated and accumulated for integration. This may be an important feature in applications where fast response time is desirable. START AUTO TUNE PID: Press d 27) Display flashes ENBL or DSBL .
  • Page 45 RESET SETUP SUBMENU: Press d 33) Display flashes 1 digit of the previous I REST Reset value. Press b & c 34) Press b and c buttons to enter a new “Reset” value. Press d 35) Display shows STRD stored message momentarily and then advances to RATE only, if it was changed, otherwise press a to advance to RATE Rate Setup Submenu.
  • Page 46 DAMPING FACTOR SUBMENU: Press d 42) Display flashes the previous “Damping Factor” selection. Press b 43) Scroll through the available selections: 0000 , 0001 , 0002 , 0003 , 0004 , 0005 , 0006 , 0007 . Press d 44) Display flashes STRD stored message and then advances to OUT2 only, if it was changed, otherwise press a to advance to OUT2 Output 2 Menu.
  • Page 47: Output 2 Menu

    3.2.11 Output 2 Output 2 and Alarm 2 share the same contacts on the rear panel connector. If Alarm 2 is Enabled, Output 2 is automatically Disabled. It is recommended that you put the controller in the Standby Mode for any configuration change other than Setpoints &...
  • Page 48 ACTION TYPE SUBMENU: The error that results from the measurement of the Process Variable may be positive or negative since it may be greater or smaller than the Setpoint. If a positive error should cause the instrument output to increase (i.e. cooling), it would be called Direct Acting.
  • Page 49 CYCLE TIME SUBMENU: Press d 15) Display flashes 1 digit of the previous “Cycle Time” value. Press b & c 16) Press b and c buttons to enter a new “Cycle Time” value (1 to 199 seconds). Press d 17) Display shows STRD stored message momentarily and then advances to RAMP only, if it was changed, otherwise press a to advance to RAMP Ramp Value Submenu.
  • Page 50: Ramp And Soak Menu

    3.2.12 Ramp & Soak It is recommended that you put the controller in the Standby Mode for any configuration change other than Setpoints & Alarms. Alarm must be DISABLED if Ramp is ENABLED. Figure 3.11 Flow Chart for Ramp and Soak ENTER RAMP AND SOAK MENU: Press a 1) Press a , if necessary, until CNFG prompt appears.
  • Page 51 Ramp & Soak provides users with the flexibility to slowly bring the Process Variable (PV) to the desired setpoint. Ramp & Soak values are specified in HH.MM format. The Ramp value indicates the time specified to bring the process variable to Setpoint 1 (SP1). Once the set point is reached, the PID takes over and the Process Variable will be controlled at the desired set point indefinitely.
  • Page 52: Id Code Menu

    3.2.13 ID CODE Figure 3.12 Flow Chart for ID Code ENTER ID CODE MENU: Press a 1) Press a , if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu. Press a 3) Press a , if necessary, until Display advances to ID ID Code Menu.
  • Page 53 ENTERING OR CHANGING YOUR (DEFAULT) ID CODE: Enter ID menu (Repeat steps from 1 to 3). Press d 10) Display advances to CH.ID Change ID Code Submenu. Press d 11) Display shows 0000 message with flashing 1 digit. If you want to change your default “ID Code” you can do it now, otherwise press a and menu will skip to FULL Full Security Submenu.
  • Page 54: Communication (Options) Menu

    3.2.14 COMMUNICATION OPTION Purchasing the controller with Serial Communications permits an instrument to be configured or monitored from an IBM PC compatible computer using software available from the website or on the CD-ROM enclosed with your shipment. For complete instructions on the use of the Communications Option, refer to the Serial Communications Reference Manual.
  • Page 55 ENTER COMMUNICATION OPTION MENU: Press a 1) Press a , if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu. Press a 3) Press a , if necessary, until Display advances to COMM Communication Options Menu. Press d 4) Display advances to C.PAR Communication Parameters Submenu.
  • Page 56 STOP BIT SUBMENU: Press d 15) Display flashes previous selection for “Stop Bit”. Press b 16) Scroll through the available selections: 1-BIT , 2-BIT . Press d 17) Display shows STRD stored message momentarily and then advances to BUS.F only, if it was changed, otherwise press a to advance to BUS.F Bus Format Submenu.
  • Page 57 Press d 25) Display flashes previous selection for “Echo”. Press b 26) Scroll through the available selections: NO, YES. Press d 27) Display flashes STRD stored message momentarily and then advances to STND only if it was changed, otherwise press a to advance to STND Communication Standard Submenu.
  • Page 58 DATA FORMAT SUBMENU: Preformatted data can be sent automatically or upon request from the controller. Use the Data Format Submenus to determine what data will be sent in this preformatted data string. Refer to the iSeries Communications Manual for more information about the data format.
  • Page 59 TEMPERATURE UNIT SUBMENU: Includes a byte in the data string to indicate whether reading is in Celsius or Fahrenheit. Press d 50) Display flashes previous selection for UNIT . Press b 51) Scroll through the available selections: NO, YES. Press d 52) Display shows STRD stored message momentarily and then advances to ADDR only, if it was changed, otherwise press a to advance to ADDR Address Setup Submenu.
  • Page 60: Display Color Selection Menu

    3.2.15 DISPLAY COLOR SELECTION This submenu allows the user to select the color of the display. Figure 3.14 Flow Chart for Display Color Selection ENTER DISPLAY COLOR SELECTION MENU: Press a 1) Press a , if necessary, until CNFG prompt appears. Press d 2) Display advances to INPT Input Menu.
  • Page 61 ALARM 2 DISPLAY COLOR SUBMENU: Press d 11) Display flashes previous selection for “Alarm 2 Color Display”. Press b 12) Scroll through the available selections: GRN , RED or AMBR . Press d 13) Display shows STRD stored message momentarily and then momentarily shows the software version number, followed by RST Reset, and then proceeds to the Run Mode.
  • Page 62 Example 3: Output 1 = Analog Output (Alarm 1 disabled), Setpoint 1 = 300, Output 2 = Relay, Setpoint 2 = 200 Alarm 1 & 2 Setup: Deviation, Band, “ALR.H” = 10 Color Display Setup: “N.CLR” = Green, “1.CLR” = Amber, “2.CLR” = Red Display Colors change sequences: GREEN •➤...
  • Page 63: Part 4: Specifications

    PART  4 SPECIFICATIONS Current  Input 0  to  20  mA (5  ohm  load) Accuracy  at  25ºC Configuration ±0.5°C  temp  nominal Single-­ended 0.03%  rdg  ±0.03%  range  process Polarity and  strain Unipolar Resolution Step  Response 1°/0.1°;;  10  µV  process 0.7  sec  for  99.9% Temperature  Stability Decimal  Selection 1)  RTD:  0.04°C/°C...
  • Page 64 CONTROL OUTPUT 1 & 2 EXCITATION Relay (optional in place of 250 Vac or 30 Vdc @ 3 A Communication) (Resistive Load); configurable for 24 Vdc @ 25 mA on/off, PID and Ramp and Soak Output 1: SPDT type, can be INSULATION configured as Alarm 1 output Power to Input/Output...
  • Page 65: Table 4.1 Input Properties

    #,-./012304567809:;6/:8</= > ? #$%&'(%&)*+&*+& ',"-.*%./!-0( -120( '32!.*%."2--04 -1/04 ',/-.*%.'"!-0( "1-0( " (56789:; '"!-.*%."3/,0( -120( < ;=789:; '2>2.*%.',>!04 "1?04 < ',>!.*%.,>-,04 -1/04 ',/-.*%.'"@-0( "1-0( (%AAB$'(%&)*+&*+& '"@-.*%.2--0( -120( '2>2.*%.'3"-04 "1?04 '3"-.*%./>,04 -1/04 ',/-.*%.',,-0( "1-0( (56789:;' ',,-.*%."---0( -120( (%&)*+&*+& '2>2.*%.'3!204 "1?04 '3!2.*%."?3,04 -1/04 '>-.*%.2-0( "1-0( C*D"3E6F'C*...
  • Page 66: Part 5: Factory Preset Values

    "$%&'()*+(,-./0(123.'204'5(673-04-/'89 " > " ( < .)%%$"+$/0%12$3 7%&052$ !"# !"#$%&%%'()#$*%%$+,- .')/$"+$*04)56 7%&)8$9:; .)%%$"+$/0%52$3 !"# !"#$%&%%'()#$0%%$+,- 7%&/852 .')/$"+$*40)56 .)%%$"+$/0%52$3$ 7%&/852 !"# !"#$%&%%'()#$*%%%$+,- 7%&*8$9:; .')/$"+$*40)56 %$"+$*%%$-?#$%$"+$*$?# !9+<=>> ?+@"A;= %&%'8$9:;$7%&%'8$9AC;=$ %$"+$*%$?:< %&%'8$9:;$7%&%'8$9AC;=$ !9+<=>> 2B99=C" %$"+$)%$-D#$E$"+$)%$-D %&%'8$9:;...
  • Page 67 PART 5 FACTORY PRESET VALUES Table 5.1 Factory preset value MENU ITEMS FACTORY PRESET VALUES NOTES Set Point 1 (SP1) 000.0 Set Point 2 (SP2) 000.0 Input: Input Type (INPT) TC, type K Reading Configuration (RDG): Decimal Point (DEC.P) FFF.F Temperature unit (TEMP) °F Filter value (FLTR)
  • Page 68 MENU ITEMS FACTORY PRESET VALUES NOTES Ramp & Soak (RAMP) : Ramp (RAMP) Disable (DSBL) Soak (SOAK) Disable (DSBL) Ramp Value (RAMP) 00:00 Soak Value (SOAK) 00:00 ID : ID Value 0000 Full ID (FULL) Disable (DSBL) Set Point ID (ID.SP) Disable (DSBL) Communication Parameters: Baud Rate (BAUD)
  • Page 69: Approval Information

    APPROVAL INFORMATION 1. Electromagnetic Compatibility (EMC) This device conforms with requirements of EMC Directive 89/336/EEC, amended by 93/68/EEC. This instrument complies with the following EMC Immunity Standards as tested per EN 61326-2:1998 (Industrial Locations) Phenomena Test Specification Basic Standard Electrostatic +/- 4 kV contact discharge IEC 1000-4-2 Discharge...
  • Page 70 NOTES...
  • Page 71 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
