Yamaha 2011 YZ250F Owner's Service Manual page 50

1. Throttle cable
2. Clamp
3. Hot starter cable
4. Clutch cable
5. Engine stop switch lead
6. Cable guide
7. Brake hose
8. Hose guide
A. Fasten the engine stop switch
lead to the handlebar.
B. Pass the clutch cable and hot
starter cable through the cable
guide.
C. Pass the engine stop switch
lead behind the CDI unit.
2-24

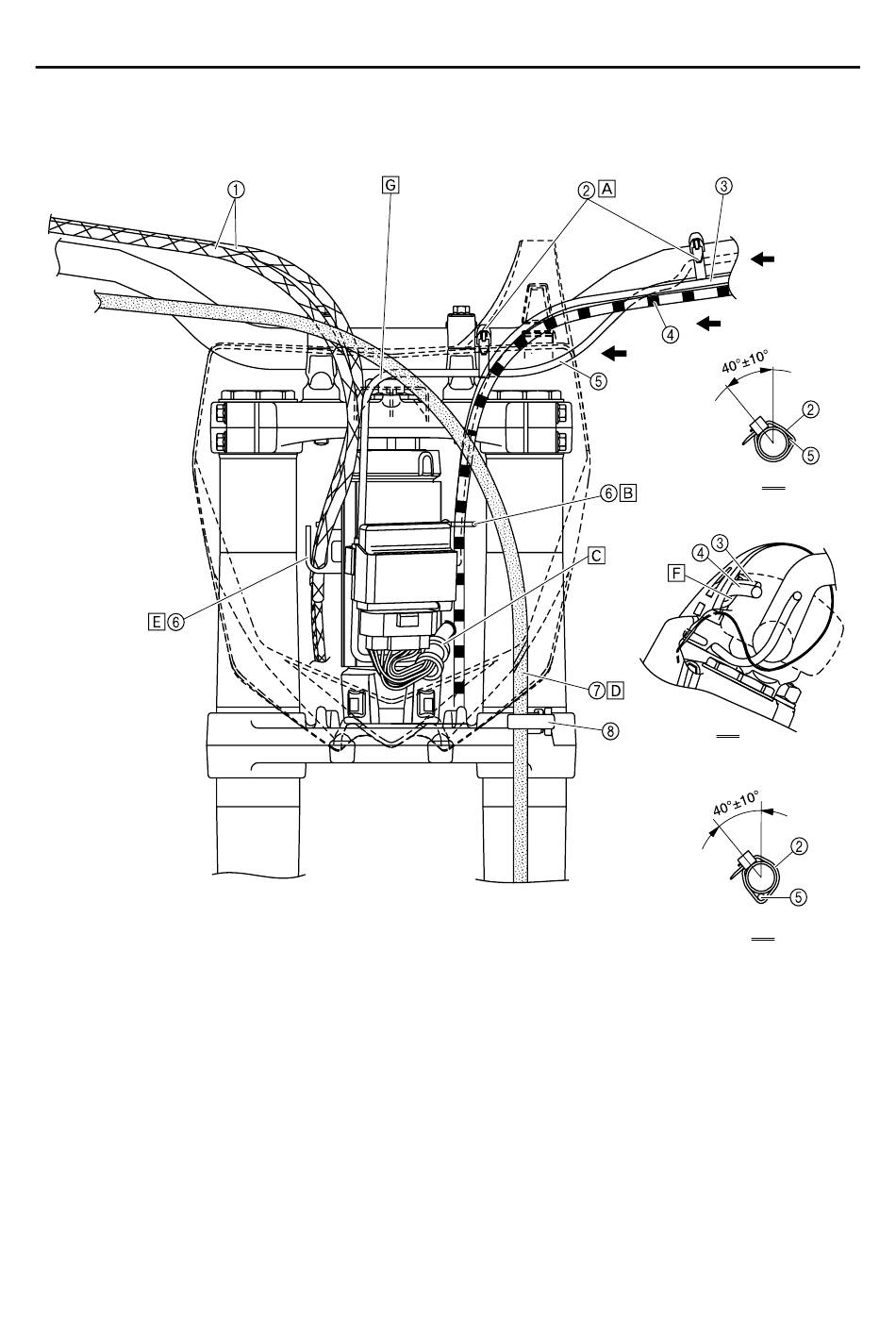

CABLE ROUTING DIAGRAM
C
D. Pass the brake hose in front of
the number plate.
E. Pass the throttle cables through
the cable guide.
F. Pass the clutch cable and hot
starter cable through the cable
guide on the number plate.
G. Pass the engine stop switch
lead over the number plate
mounting location.
A
B
A
B
C
