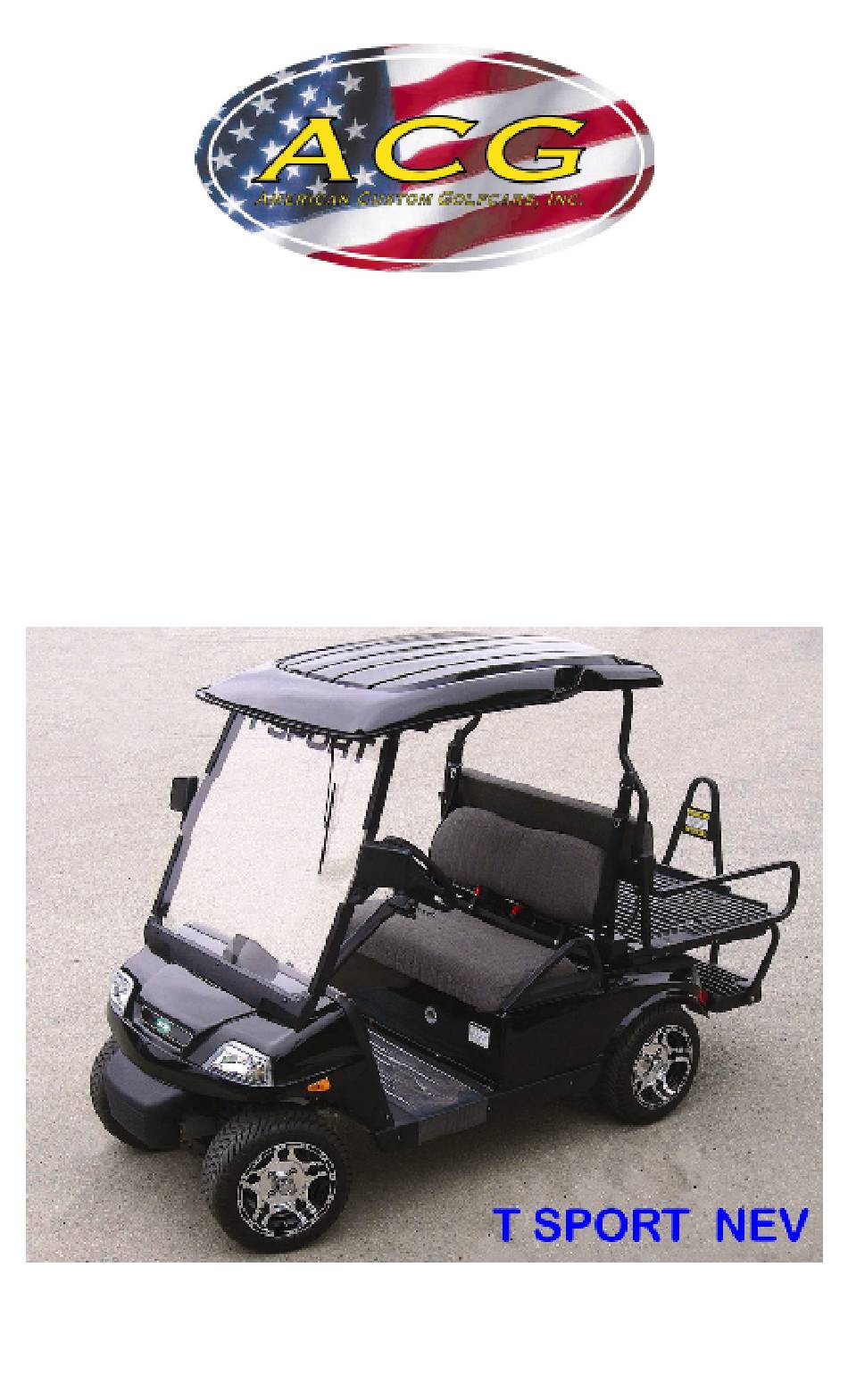

- Page 1 ® 2013 T-SPORT Quick Reference Guide...
- Page 2 All information in this Quick Reference Guide is current at the time of printing. ACG reserves the right to make changes at any time without notice. The latest version of both the Owner’s Manual and this Quick Reference Guide is posted on ACG website: www.acgcars.com...
-
Page 3: Table Of Contents
INDEX OVERVIEW Instrument panel & Main controls Drive Direction Switch Light Switch Indicator symbols Instrument cluster Vehicle maintenance Battery Percent Charge Information FEATURES/OPERATION Drive Direction Switch Main Key Switch Parking Brake Accelerator Pedal Brake Pedal Lights & turn signals Multi-Information Display Horn Button Power outlet Glove &... -
Page 4: Overview
OVERVIEW Instrument panel & Main controls Main Key Switch (OFF-ON) Power outlet 12V DC Headlight Switch (ON-OFF) Dive Direction Switch (D-N-R) Steering column Cup Holders Glove Box Display Screen Display Screen Control Buttons Turn Signal Telltale LED Lights... -
Page 5: Indicator Symbols
OVERVIEW Instrument cluster Drive Switch position indicator Battery Charge % Multi-Information Display Battery Charge Bar Graph See page 6 for Speedometer IMPORTANT INFORMATION Service indicator and reminder Turn Signal Telltale LED Lights UP button DOWN button Trip meter MODE button Odo meter Total miles traveled Indicator symbols For details, refer to Owner’s Manual. -
Page 6: Battery Percent Charge Information
OVERVIEW IMPORTANT INFORMATION Battery Percent Charge Information on SEVCON Display The Battery charge level indicates the relative state of charge of the Traction Battery and NOT the remaining driving range of the vehicle. Its algorithm is based on the PEAK Traction Battery Pack Voltage, which in turn calculates the APPROXIMATE charge of the Traction Battery. -
Page 7: Features/Operation
FEATURES/OPERATION Drive Direction Switch Reverse Neutral* Drive Drive Switch position will be indicated on the Display. * The Drive Direction Switch must be in “N” and the brake pedal depressed before the Main Key Switch is turned “ON”. After the Display energizes and shows “N” push the switch to “D” for FORWARD travel or “R”... -
Page 8: Accelerator Pedal
FEATURES/OPERATION Accelerator Pedal Depress the GO Pedal to control the vehicle speed. Refer to the Owner’s Manual for more details. Brake Pedal Depress the STOP Pedal to reduce the vehicle speed, slight pedal depression will activate the Electronically controlled Regenerative Braking. Further depression of the STOP Pedal will activate the Hydraulic Braking System on both Front and Rear wheels. -
Page 9: Lights & Turn Signals
FEATURES/OPERATION Lights & turn signals Headlights & Taillights Headlights ON Taillights ON Lights OFF Turn signals Right turn Left turn Windshield Wiper Front Wipe ON Wiper lever switch Wiper lever switch is located at the top center of the Windshield frame. -
Page 10: Horn Button
FEATURES/OPERATION Horn button The Horn Button is located to the Left of the Brake Pedal (STOP/PARK) and is operated by the Left foot if audio warning is required during vehicle operation (see above). The switch is labeled “HORN”. It is also identified by SAE/ISO “Horn” icon. -
Page 11: Multi-Information Display
FEATURES/OPERATION Power outlet Instrument panel Designed for car accessories. Glove & Storage Boxes Right Side Left Side Cup holders... -
Page 12: Safety And Emergency Features
SAFETY AND EMERGENCY FEATURES Seat belts Take up slack Too high Keep as low on hips as possible If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely. - Page 13 NOTES...
- Page 14 (ACG) 15740 El Prado Rd. Chino, CA 91710 USA (909) 597-2885 (909) 597-7183 fax www.acgcars.com Copyright © 2012-2013 American Custom Golf Cars, Inc. ACG Logo T-SPORT® Are registered trademarks of American Custom Golf Cars, Inc. Printed in the USA 1/13...
