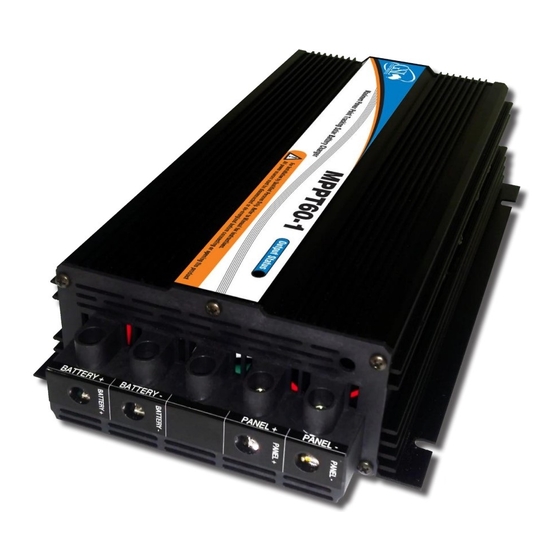

1700W Solar Battery Charger
Model:
MPPT60-1
Maximum Power Point Tracker
Page 1 of 8
Operating Instructions
Please read these instructions before use
A simple, compact low cost MPPT to efficiently charge lead acid and lithium iron
batteries from a wide range of photovoltaic panels.
PATENT APPLIED FOR - 2010901565
MPPT60-1-R10
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
More information https://www.caravansplus.com.au
Advertisement
Related Manuals for GSL MPPT60-1
Summary of Contents for GSL MPPT60-1
- Page 1 1700W Solar Battery Charger Model: MPPT60-1 Maximum Power Point Tracker Page 1 of 8 Operating Instructions Please read these instructions before use A simple, compact low cost MPPT to efficiently charge lead acid and lithium iron batteries from a wide range of photovoltaic panels.
- Page 2 Model: MPPT60-1 Maximum Power Point Tracker Page 2 of 8 Operating Instructions Please read these instructions before use MPPT60-1 Specifications Efficiency typical Input voltage 16V to 84V Float - 13.5V / 27V Output voltage Absorption – Vented 14.5V / 29V Lead Acid Batteries –...
-
Page 3: Setting Procedure
Battery - * Optional Diode Panel + The MPPT60-1 is designed to charge lead acid and lithium batteries from photovoltaic panels. Silicon based panels such as monocrystalline, polycrystalline and amorphous are suitable. MPPT60-1 General Information: • Green LED On – Battery Ok. - Page 4 • This equipment must be installed by qualified personnel only and incorrect wiring can cause fire, injury or death – GSL will accept no responsibility for MPPT misconnection or misuse. • Use only 12V or 24V Lead Acid or Lithium batteries and confirm the MPPT settings, charge voltages and currents are correct for your battery system –...
- Page 5 1700W Solar Battery Charger Model: MPPT60-1 Maximum Power Point Tracker Page 5 of 8 Operating Instructions Please read these instructions before use Changing Battery Type Setting Procedure 1.Ensure all the MPPT wires are disconnected. Disconnecting PV first. 2.Remove the 5 front panel screws and the move the front panel ajar. Then remove 1 middle rear screw on the back panel (bottom middle below fan) then slide out bottom cover –...
- Page 6 1700W Solar Battery Charger Model: MPPT60-1 Maximum Power Point Tracker Page 6 of 8 Operating Instructions Please read these instructions before use Figure 2 (Left): Vented Battery Setting Figure 3 (Right): Sealed Battery Setting Figure 4 (Left): Lithium Battery Setting...
- Page 7 GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a period of two (2) years from the date of the original purchase by the customer as marked on the customer’s original invoice. Please refer to our website for full warranty and return information which can be found at http://www.gsl.com.au/faq.html...
- Page 8 Model: 1700W Solar Battery Charger MPPT60-1 Maximum Power Point Tracker Page 8 of 8 Operating Instructions Please read these instructions before use For optimal performance from panel and MPPT please use the following table to determine the best setup for your situation.
