Model:
REC – 1240C
REC – 1260C
Page 1 of 4
Congratulations on purchasing your new GSL Electronics 3 stage 24V to 12V Battery Charger. This product
utilises Switchmode and Microprocessor technology for the charging of 12Volt Lead Acid batteries. The charger
provides a safe and fast method of restoring discharged batteries and maintaining them. This is achieved via
precisely controlled Bulk, Absorption and Float charging states. Both models are fully protected against overload,
short circuit, over temperature, reverse polarity connection, over voltage and with a bulk charge timeout for
additional safety. The models are built in a compact and strong aluminium extrusion which can be easily secured
to both vertical and horizontal surfaces. Before starting the charge cycle the battery voltages are evaluated to
detect faulty batteries.
Bulk Mode – This mode of the battery charger delivers bulk charging current regulated to 40 / 60 Amps into
the battery being charged. After the battery voltage rises to approximately 70% charge. The charger will switch
automatically into Absorption Mode.

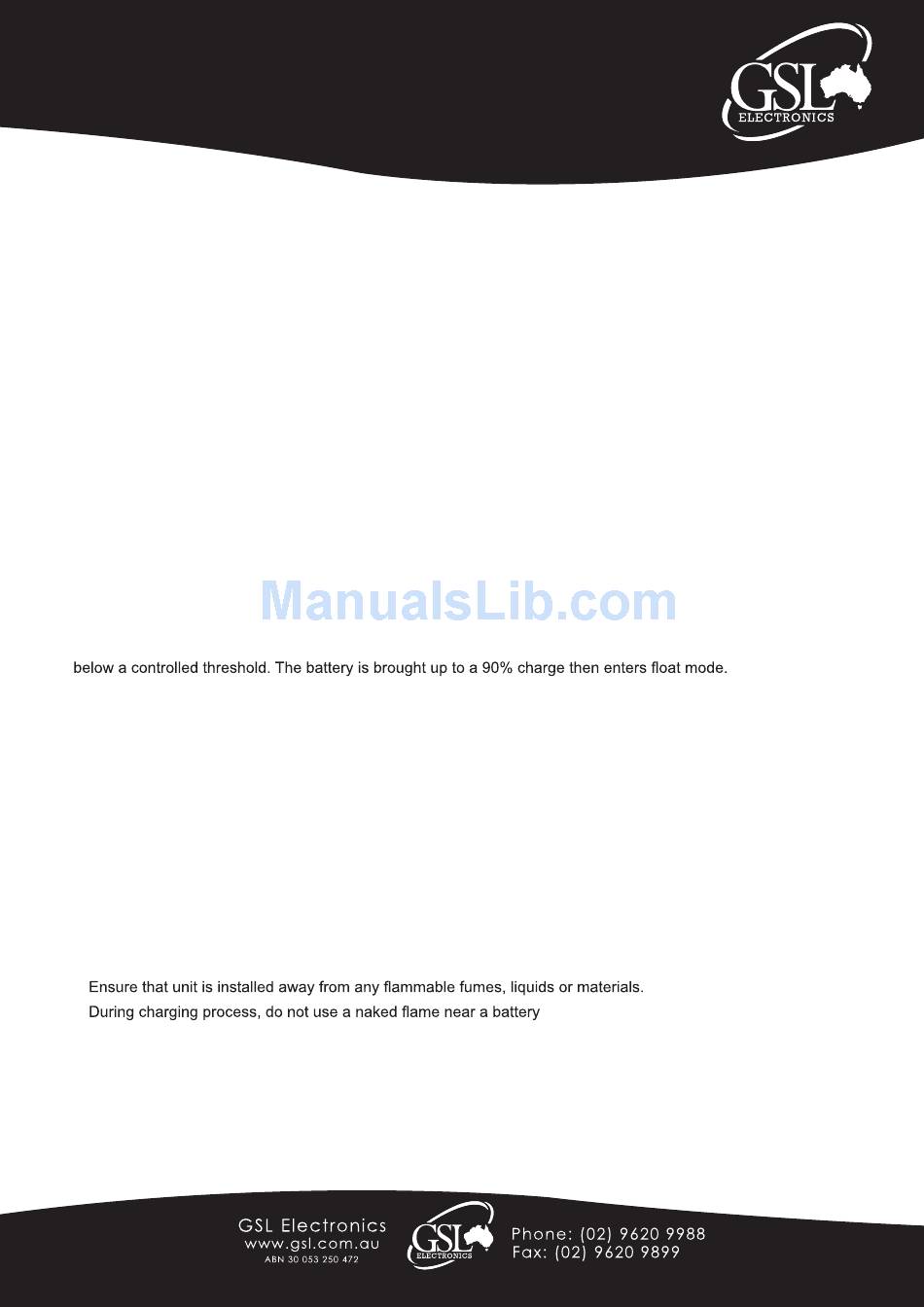

Absorption Mode – In this mode the battery charger output voltage is maintained at 14.5V until the current drops
Float Mode - The voltage is reduced to 13.5V and maintained at that level with the charger supplying just enough
current to maintain the battery at full capacity.
Installation & Safety Precautions:
1. The following connection sequence is to be followed:
Ground (BLACK), Input (BLUE), Output (RED) and Control (WHITE).
2. Preferably mount the unit inside the vehicle. Avoid locations where external heat is produced e.g. exhaust
system or where the batteries are located.
3. Choose a position with good ventilation where air can pass freely around the unit.
4. Ensure the unit is protected from water spray and other sources of contamination e.g. oil, grease and dust.
5.
6.
which may ignite and explode.
Switchmode Battery Chargers
Please read these instructions before use
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
24V to 12V
Operating Instructions
, due to gases emitted from the battery,
REC-C-R1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GSL REC-1240C
Summary of Contents for GSL REC-1240C
- Page 1 Operating Instructions Please read these instructions before use Congratulations on purchasing your new GSL Electronics 3 stage 24V to 12V Battery Charger. This product utilises Switchmode and Microprocessor technology for the charging of 12Volt Lead Acid batteries. The charger provides a safe and fast method of restoring discharged batteries and maintaining them. This is achieved via precisely controlled Bulk, Absorption and Float charging states.
- Page 2 - Output Over Voltage: If the output over voltage protection has been tripped then there will be no operation from the unit. Contact supplier or GSL Electronics for Warranty Advice. - Thermal Protection: For your safety and for the longevity of your purchase, the unit will shut down to protect itself and your batteries when the unit exceeds it nominal operating temperature.
- Page 3 Model: 24V to 12V REC – 1240C Switchmode Battery Chargers REC – 1260C Page 3 of 4 Operating Instructions Please read these instructions before use Battery Charging Times: The question of “how long will my battery take to re-charge” is always asked. Firstly, the charge rate (CR) of a battery is rated in Amps and the battery capacity (C) in Amp Hours.
- Page 4 Model: 24V to 12V REC – 1240C Switchmode Battery Chargers REC – 1260C Page 4 of 4 Operating Instructions Please read these instructions before use REC – 1240C REC – 1260 C Input Voltage [ VDC ] 23VDC to 30VDC 23VDC to 30VDC Output Voltage (Absorption/Float) [ VDC ] 13.5VDC ±...
