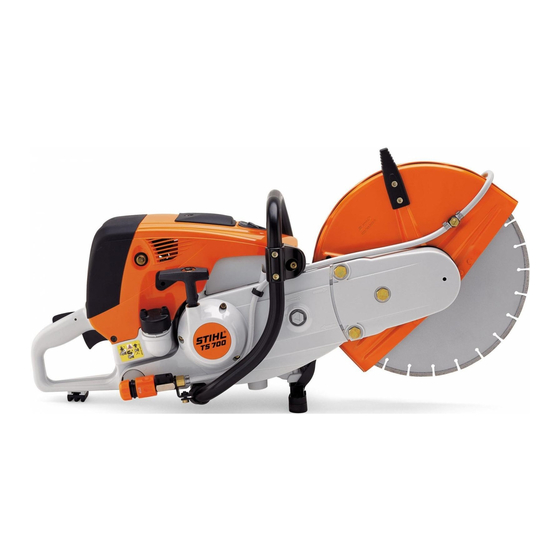

Stihl Cutquik TS 700 Safety Manual
  1. Manuals
  2. Brands
  3. Stihl Manuals
  4. Cut-off machine
  5. Cutquik TS 700
  6. Safety manual

Stihl Cutquik TS 700 Safety Manual

Hide thumbs Also See for Cutquik TS 700:

Advertisement

Quick Links

Download this manual
STIH)
Cut-off-Machine Safety Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cutquik TS 700 and is the answer not in the manual?

Questions and answers

Related Manuals for Stihl Cutquik TS 700

Summary of Contents for Stihl Cutquik TS 700

  • Page 1 STIH) Cut-off-Machine Safety Manual...

  • Page 2: Table Of Contents

    You should therefore always refer to the instruction manual of your particular cut-off machine model. Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in this manual.

  • Page 3: Safety Precautions And Working Techniques

    Because a injury. influence of any substance (drugs, cut-off machine is a high- Have your STIHL dealer show you how alcohol, etc.) which might impair vision, speed, fast-cutting power tool, special to operate your cut-off machine. dexterity or judgment. Do not operate a...
  • Page 4 English – Most STIHL cut-off machine models Warning! Warning! are available with an anti-vibration ("AV") system designed to reduce Prolonged use of cut-off machines (or The ignition system of your unit the transmission of vibrations other machines) exposing the operator...
  • Page 5 NIOSH/MSHA for the fabrics will ignite at higher temperatures. material being cut to To reduce the risk of burn injury STIHL Warning! reduce the risk of serious or fatal recommends wearing clothing made of Loose objects may be thrown toward the respiratory illness.
  • Page 6 For example: Warning! Unauthorized wheels may be more likely to shatter or break. Use only STIHL wheels or other authorized wheels with approved RPM ratings. Read and follow any addional safety precautions that accompany the wheel.
  • Page 7 Steel Warning! longer life. Water attachments are Can be used for all ferrous metal included with your STIHL cut-off Always stop the engine before putting a cutting. machine. See the appropriate section of cut-off machine down or carrying it. The your instruction manual.
  • Page 8 Adjust the wheel guard so Fuel machine to prevent turnover, fuel that sparks, dust and cut Your STIHL power tool uses an oil- spillage and damage to the cut-off material are deflected gasoline mixture for fuel (see the chap- machine. Never transport with cutting away from the operator, ter on “Fuel”...
  • Page 9 English Select bare ground for fueling and move Different cut-off machines may be Warning! at least 10 feet (3 m) from the fueling equipped with different fuel filler caps: spot before starting the engine. Wipe off Never attempt to force the cap open by Bayonet filler cap any spilled fuel before starting your using a tool.
  • Page 10 English Starting Do not drop start. This method is very Working Conditions dangerous because you may lose Operate the cut-off machine under good control of the cut-off machine. visibility and daylight conditions only. Place the cut-off machine on firm ground Wearing of hearing protection reduces or other solid surface in an open area.
  • Page 11 In addition, California your employer, the material and some other authorities have listed Your STIHL cut-off machine is designed manufacturer/supplier, governmental respirable crystalline silica as a sub- for hand-held use or operation on a cut- agencies such as OSHA and NIOSH stance known to cause cancer.
  • Page 12 English Operating Instructions Warning! Warning! Never operate the cut-off machine with the starting-throttle lock engaged as this The wheel guard is adjustable. It is does not permit proper control of the extremely important that the wheel speed of the unit and may lead to guard is in place and set to suit the type serious injury.
  • Page 13 To achieve a clean and efficient cut, pull STIHL recommends the use of the cart cut as this may produce a high torsional the abrasive wheel across the work or for longer cuts in a straight line.
  • Page 14 Have lose control of a cut-off machine, your STIHL dealer check your cut-off allowing the rotating wheel to come into machine and make proper adjustments contact with the operator. Severe or repairs.
  • Page 15 English Reducing the Risk of Kickback Injury Warning! Use only cutting attachments authorized by STIHL. Never use chipped abrasive wheels, circular saw blades, carbide- tipped blades, rescue blades or wood- cutting or toothed blades of any nature on a cut-off machine. The use of such...
  • Page 16 English Do not cut above shoulder height. 13. Release the pressure on the cut-off Do not cut wood or any other machine as you reach the end of the material for which the abrasive cut. Too much pressure may cause wheel is not authorized.
  • Page 17 STIHL. Always press spark plug boot For any maintenance please refer to the completely or securely assembled. snugly onto spark plug terminal of the...

  • Page 18: Application Examples

    Helpers must not be put at risk of injury when the part is broken off or out. – A pressurized 10 liter water tank is available from STIHL for dust suppression. – A water tank for mounting on the Cutquik cart is also available for dust suppression.
  • Page 19 English Cutting in several passes Cutting slabs Place the slab securely on a non- slip surface. Thick-walled workpieces should be cut with a uniform swinging A = Mark cutting line movement, back and forth. A = Cut a guiding groove along the marked line.
  • Page 20 English Cutting round and hollow Cutting shapes on pipes workpieces Curves must be cut in several straight passes, taking care to Mark the cutting line. ensure that the cutting wheel does Pipes and round objects, etc. must not become wedged. be secured so that they cannot roll.

  • Page 21: Stihl Composite Resin Cutting Wheels

    (table with – on the packaging (table with recommended uses) recommended uses) can help to ensure the correct choice. can help to ensure the correct choice. STIHL composite resin cutting wheels cannot be used to cut railway tracks. Cut-off-Machine Safety Manual...
  • Page 22 Stone (rock) core or to softening of individual segments. The numerals indicate the Axial run-out or wobble (B) results in performance class of the STIHL higher thermal stress and wider cuts. diamond cutting wheel. Cut-off-Machine Safety Manual...
  • Page 23 Undercutting Cutting in a material for which the wheel is Use a new cutting wheel; note the not rated different cutting layers in different materials STIHL recommends that a STIHL servicing dealer be consulted. Cut-off-Machine Safety Manual...
  • Page 24 English Undercut Built-up edges, dressing Diamond cutting wheels must be "dressed" at the first sign of built-up edges. For this purpose, briefly cut a more abrasive material, such as sandstone, aerated concrete or asphalt. Wet cutting helps to prevent the formation of built-up edges.

  • Page 25: Main Parts Of The Machine

    English Main parts of the machine 1= Fastener for filter cover 2= Air filter 3= Fuel pump 4= Starter grip 5= Carburetor adjusting screws 6= Fuel filler cap 7= Water attachment 8= Tensioning nut (V-belt tensioner) 9= Guard 10= Adjusting lever of wheel guard 11= Abrasive wheel Machine no 12= Front thrust washer (Flange)
  • Page 26 English Definitions Fastener for filter cover: 10. Adjusting lever of wheel guard: 18. Choke lever: For removing filter cover to permit To adjust the wheel guard in a way Eases engine starting by enriching that sparks, dust, cutting debris or mixture.

  • Page 27: Maintenance Chart

    Have them replaced by servicing dealer Inspect Abrasive wheel Replace Inspect Supports / bars / rubber buffers (underneath the machine) Replace Safety label Replace STIHL recommends that this work be done by a STIHL servicing dealer see "Guide to using this manual" Cut-off-Machine Safety Manual...
  • Page 28 English Cut-off-Machine Safety Manual...
  • Page 29 English Cut-off-Machine Safety Manual...
  • Page 30 ! WARNING! The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. ! WARNING! Some dust created by power grinding and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
