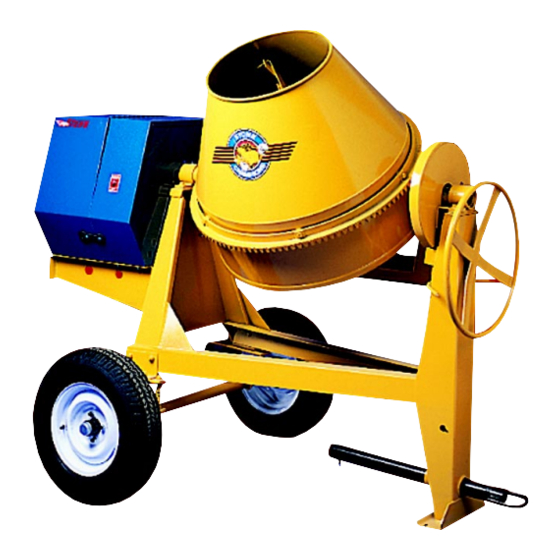

Concrete mixer
Hide thumbs Also See for 65CM:

Advertisement

OPERATOR MANUAL
MODELS: 65CM, 75CM, 95CM, 105CM
CONCRETE MIXER
REVISION: B 2/2002
P/N 56394

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65CM and is the answer not in the manual?

Questions and answers

Summary of Contents for Stone 65CM

  • Page 1 OPERATOR MANUAL MODELS: 65CM, 75CM, 95CM, 105CM CONCRETE MIXER REVISION: B 2/2002 P/N 56394...
  • Page 2 Discount Equipment Rental is your online resource for commercial and industrial quality equipment sales and rentals. We sell worldwide for the brands Genie, Terex, Stihl, JLG, Multiquip, Mayco, Stone, Diamond Products, Airman, Mustang, Power Blanket. We have complete rental locations throughout Florida.
  • Page 3: Table Of Contents

    Table of Contents 65CM, 75CM, 95CM, 105CM FOREWORD ........................... 4 LIMITED WARRANTY ......................... 5 TECHNICAL DATA ........................6 - 8 Specifications ..........................6 Imperial Torque Chart ......................... 7 Metric Torque Chart ........................8 HEALTH & SAFETY ........................9 - 13 OPERATIONS ..........................
  • Page 4: Foreword

    Location of above information: Stone Construction Equipment, Inc. is not liable 1. Information on S/N tag. for the function of the machine when used in an improper manner or for other than the 2.
  • Page 5: Limited Warranty

    NOTE PAGE...
  • Page 6: Technical Data

    Technical Data Specifications Stone 65CM, 75CM, 95CM, 105CM Mixer – Specifications Model Operating Batch Batch Total L x W x H Power Source Capacity Capacity Volume (bags) 65CM 690 lbs. 1/2 - 1 6 cu. ft. 9.0 cu. ft. 78 x 46 x 58 (in) 1 hp / .75 kW Electric...
  • Page 7: Imperial Torque Chart

    Technical Data Imperial Torque Chart SAE GRADE 5 SAE GRADE 8 Coarse Thread, Zinc-Plated Coarse Thread, Zinc-Plated SIZE TORQUE SIZE TORQUE ft. lbs. ft. lbs. 1/4 - 20 (.250) 1/4 - 20 (.250) 5/16 - 18 (.3125) 5/16 - 18 (.3125) 3/8 - 16 (.375) 3/8 - 16 (.375) 7/16 - 14 (.4375)
  • Page 8: Metric Torque Chart

    Technical Data Metric Torque Chart Property Class 8.8 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. Property Class 10.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. 1000 Property Class 12.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft.
  • Page 9: Health & Safety

    Health & Safety Safety Precautions Before using this equipment, study this entire manual When warning decals are destroyed or missing, contact to become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially replacement.
  • Page 10: Operations

    Health & Safety Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •...
  • Page 11 Health & Safety Safety Precautions • Never perform any work on the mixer while it is running. • Before working on the mixer, stop the engine and disconnect the spark plug wire(s) to prevent accidental starting. On electric models, disconnect the electric cord at the mixer. •...
  • Page 12 Health & Safety Safety Precautions Warning-Eye Protection Always wear splash goggles when operating mixer. • Warning-Towing Warning: Do not tow the mixer with the drum in the dump position. • Mixer may become unstable and tip over when hitting a curb, pothole, or other obstruction.
  • Page 13 Health & Safety Safety Precautions PRACTICE SAFE MAINTENANCE • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service or adjust machine while it is moving. Keep hands, feet, and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure.
  • Page 14: Before Starting

    Before Starting/Safety Chain/Oil Operation Levels and Lubrication/To Start 0 BEFORE STARTING WARNING Mixers are shipped completely assembled and ready BEFORE WORKING ON MACHINE, MAKE for operation except for installation of the safety chain. SURE ENGINE SPARK PLUG WIRE IS DISCONNECTED, OR IF ELECTRIC, THAT THE SAFETY CHAIN INSTALLATION ELECTRIC CORD IS DISCONNECTED, TO PREVENT ANY ACCIDENTAL STARTING.
  • Page 15: To Stop The Engine/Motor

    Gas Hot Start/Electric Motors/To Operation Start and Stop/Operation GASOLINE ENGINE HOT START - Open the valve OPERATION under the gas tank all the way if it has been shut off. Open the throttle approximately half way. Do not Start the engine / motor as previously instructed and apply the choke.
  • Page 16: Capacities

    Keep mixer clean. Before cleaning, shut off the engine or motor and CAPACITIES disconnect the spark plug wire or electric cord to prevent accidental starting. Spray the mixer with 65CM 75CM 95CM 105CM water before the mix dries to remove any accumulations.
  • Page 17: Towing

    Tire size 4.80 x 12 @ 60 P.S.I. (65CM & 75CM) 1. Hitch attached to the towing vehicle Tire size 6.50 x 13 @ 35 P.S.I. (95CM & 105CM) securely.
  • Page 18: Maintenance Schedule

    Maintenance Schedule E. YEARLY - Repack (4) tapered roller bear- ings in wheel hubs and replace wheel seals. Install washer and nut. Torque to 20 ft. lbs. back off one turn, torque to 7 ft. lbs. back off to first slot in nut and insert cotter key. F.
