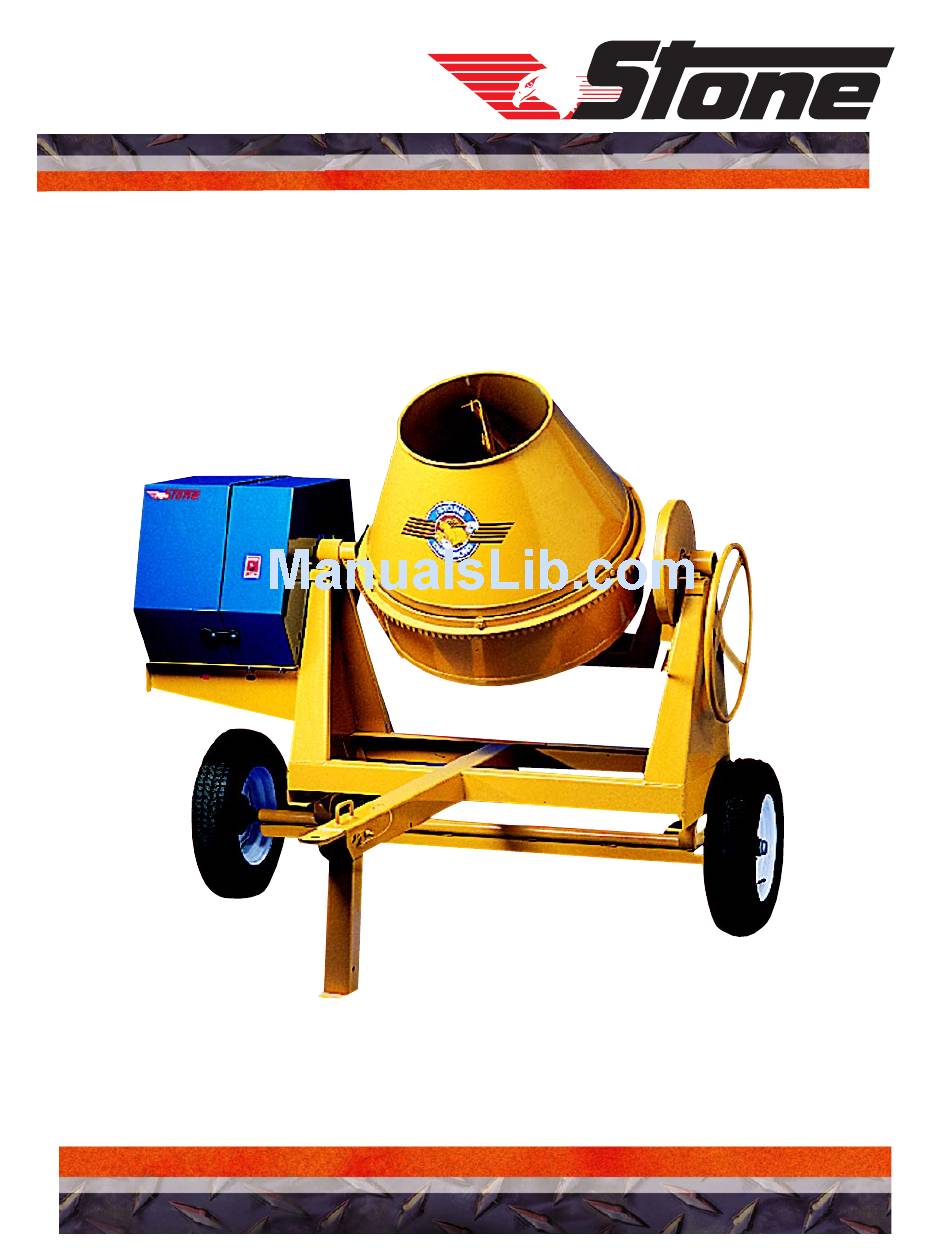

OPERATOR MANUAL
MODELS: 65CMED & 95CMED
CONCRETE MIXER
A 100% employee-owned American manufacturer
REVISION: B 03/2002
P/N 56378

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65CMED and is the answer not in the manual?

Questions and answers

Summary of Contents for Stone 65CMED

  • Page 1 OPERATOR MANUAL MODELS: 65CMED & 95CMED CONCRETE MIXER A 100% employee-owned American manufacturer REVISION: B 03/2002 P/N 56378...
  • Page 3: Table Of Contents

    Table of Contents 65CMED & 95CMED FOREWORD ........................4 Limited WARRANTY ..................... 5 TECHNICAL DATA ......................6 - 8 Specifications ....................... 6 Imperial Torque Chart ....................7 Metric Torque Chart ....................8 HEALTH & SAFETY ...................... 9 - 13 OPERATIONS ........................14 - 18 Before Starting ......................
  • Page 4: Foreword

    Battery Type: ________________________________ the prevention of accidents. Battery S/N: _________________________________ Stone Construction Equipment, Inc. is not liable for the function of the machine when Location of above information: used in an improper manner or for other than the intended purpose.
  • Page 5: Limited Warranty

    No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective September 2001. Stone Construction Equipment, Inc. Phone: 1-800-888-9926 • 1-716-229-5141 Bred Tough, Technology Born To Work.
  • Page 6: Technical Data

    TECHNICAL DATA Specifications Stone 65CMED & 95CMED Mixer – Specifications 65CMED 95CMED Dimensions Operating Wt. 740 lbs. (w/ 8 hp Honda) 875 lbs. (w/ 8 hp Honda) 335.7 kg 396.9 kg Batch Capacity 1/2 - 1 bags 1 - 1 1/2 bags...
  • Page 7: Imperial Torque Chart

    TECHNICAL DATA Imperial Torque Chart SAE GRADE 5 SAE GRADE 8 Coarse Thread, Zinc-Plated Coarse Thread, Zinc-Plated SIZE TORQUE SIZE TORQUE ft. lbs. ft. lbs. 1/4 - 20 (.250) 1/4 - 20 (.250) 5/16 - 18 (.3125) 5/16 - 18 (.3125) 3/8 - 16 (.375) 3/8 - 16 (.375) 7/16 - 14 (.4375)
  • Page 8: Metric Torque Chart

    TECHNICAL DATA Metric Torque Chart Property Class 8.8 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. Property Class 10.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. 1000 Property Class 12.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft.
  • Page 9: Health & Safety

    HEALTH & SAFETY Safety Precautions Before using this equipment, study this entire manual When warning decals are destroyed or missing, contact to become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially replacement.
  • Page 10: Operations

    HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •...
  • Page 11 HEALTH & SAFETY Safety Precautions • Never perform any work on the mixer while it is running. • Before working on the mixer, stop the engine and disconnect the spark plug wire(s) to prevent accidental starting. On electric models, disconnect the electric cord at the mixer. •...
  • Page 12 HEALTH & SAFETY Safety Precautions Warning-Eye Protection Always wear splash goggles when operating mixer. • Warning-Towing Warning: Do not tow the mixer with the drum in the dump position. • Mixer may become unstable and tip over when hitting a curb, pothole, or other obstruction.
  • Page 13: Health & Safety

    HEALTH & SAFETY Safety Precautions PRACTICE SAFE MAINTENANCE • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service or adjust machine while it is moving. Keep hands, feet, and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure.
  • Page 14: Before Starting

    OPERATION 65CMED & 95CMED BEFORE STARTING HARDWARE - Check all hardware on mixer and engine / motor before starting. Consult the TORQUE Mixers are shipped completely assembled and ready CHART section of this manual and tighten any loose for operation except for installation of the safety chain.
  • Page 15: To Stop The Engine/Motor

    OPERATION 65CMED & 95CMED By adding the water and gravel first the drum will be ELECTRIC MOTORS - Use the proper size (3) wire kept clean and a good tumbling action will be added. (grounded) extension cord, conforming to the National To discharge concrete, grasp handwheel firmly with Electric Code and Local Ordinances.
  • Page 16: Sample Mix

    OPERATION 65CMED & 95CMED SAMPLE MIX WARNING NEVER PUT HANDS OR ANY OBJECT INTO Volume relationship of 1:2-1/4:3 (cement : sand : THE DRUM WHILE THE ENGINE OR MOTOR gravel) mix. The mix volume may vary depending on aggregate used.
  • Page 17 OPERATION 65CMED & 95CMED 5. Main axle springs and small snubber springs and bolts not broken or cracked. 6. Tires in good shape and at proper inflation as follows: Tire size B78 x 13 @ 35 P.S.I. Refer to FRAME AND DRUM ASSEMBLY and AXLE ASSEMBLY sections of the Service/Parts Manual for parts identification and location.
  • Page 18: Maintenance Schedule

    MAINTENANCE Schedule NOTE: Cowl removed for clarity. Do not operate mixer with cowl removed. A. ENGINE--Daily check the oil levels in the engine and engine reduction unit. The engine warranty is VOID if run without oil . Since there are many engine options available on this mixer, consult the ENGINE MANUAL for specific recommendation as to oil level, oil type required and frequency of oil changes required.
  • Page 19: California Proposition 65 Warning

    CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
  • Page 20 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 716-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 1987 Stone Construction Equipment, Inc. Printed in U.S.A. GP1M...
