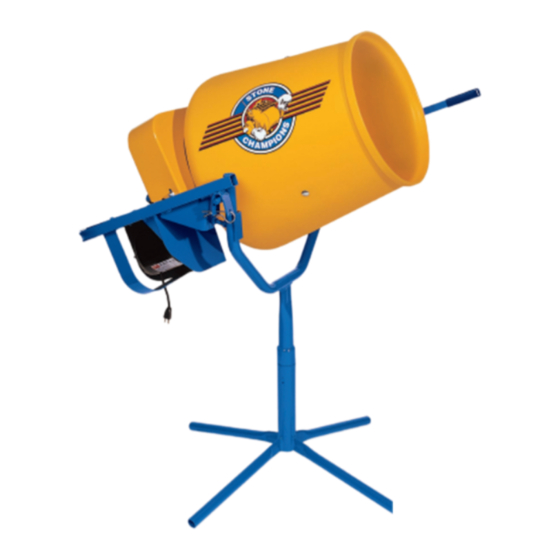

Wheelbarrow/pedestal/combination plastic concrete mixer

Advertisement

OPERATOR & SERVICE MANUAL
MODEL:
25CMP Wheelbarrow, 25CMPT Pedestal &
25CMPC Combination
REVISION:
D 01/2005
CHAMPION
PLASTIC CONCRETE MIXER
A 100% employee-owned American manufacturer
®
PN 56517

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAMPION 25CMP and is the answer not in the manual?

Questions and answers

Summary of Contents for Stone CHAMPION 25CMP

  • Page 1 OPERATOR & SERVICE MANUAL MODEL: 25CMP Wheelbarrow, 25CMPT Pedestal & 25CMPC Combination CHAMPION ® PLASTIC CONCRETE MIXER A 100% employee-owned American manufacturer REVISION: D 01/2005 PN 56517...
  • Page 3: Table Of Contents

    25CMPT/25CMP/ Table of Contents 25CMPC FOREWORD ........................4 LIMITED WARRANTY ....................5 TECHNICAL DATA ......................6-9 Specifications ........................ 6 25CMPT Pedestal Dimensions ..................7 25CMP Wheelbarrow Dimensions ................7 25CMPC Combination Dimensions ................7 Imperial Torque Chart ....................8 Hardware Identification ....................9 HEALTH &...
  • Page 4: Foreword

    Battery Type: _______________________________ operation and the pertinent regulations for the prevention of accidents. Battery S/N: ________________________________ Stone Construction Equipment, Inc. is not Location of above information: liable for the function of the machine when used in an improper manner or for other 1.
  • Page 5: Limited Warranty

    No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective January 2004. Stone Construction Equipment, Inc. • 8662 Main Street, P. O. Box 150 •...
  • Page 6: Technical Data

    TECHNICAL DATA Specifications 25CMPT/25CMP/25CMPC Mixer – Specifications 25CMPT 25CMP 25CMPC (Pedestal) (Wheelbarrow) (Combination) Operating Weight (lbs.) ¼ bag ¼ bag ¼ bag Batch Capacity (bags) 3.5 cu. ft. 3.5 cu. ft. 3.5 cu. ft. Batch Capacity: Total Volume of empty drum Capacity: Concrete 2 cu.
  • Page 7: 25Cmpt Pedestal Dimensions

    TECHNICAL DATA Dimensions 25CMP Wheelbarrow Dimensions 25CMPT Pedestal Dimensions 50.00 25CMPC Combination 62.50 Wheelbarrow/Pedestal Dimensions 48.00 (27.50 Dump Position) 25.50 - 7 -...
  • Page 8: Imperial Torque Chart

    TECHNICAL DATA Imperial Torque Chart SAE GRADE 5 SAE GRADE 8 Coarse Thread, Zinc-Plated Coarse Thread, Zinc-Plated SIZE TORQUE SIZE TORQUE ft. lbs. ft. lbs. 1/4 - 20 (.250) 1/4 - 20 (.250) 5/16 - 18 (.3125) 5/16 - 18 (.3125) 3/8 - 16 (.375) 3/8 - 16 (.375) 7/16 - 14 (.4375)
  • Page 9: Hardware Identification

    TECHNICAL DATA Hardware Identification - 9 -...
  • Page 10: Health & Safety

    HEALTH & SAFETY Safety Precautions Before using this equipment, study this entire manual to When warning decals are destroyed or missing, contact become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially children, replacement.
  • Page 11: Operation

    HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •...
  • Page 12 HEALTH & SAFETY Safety Precautions • Never perform any work on the mixer while it is running. • Before working on the mixer, stop the engine and disconnect the spark plug wire(s) to prevent accidental starting. On electric models, disconnect the electric cord at the mixer. •...
  • Page 13 HEALTH & SAFETY Safety Precautions Warning-Eye Protection Always wear splash goggles when operating mixer. • • Starting fluid (ether) is highly flammable, do not use or an explosion or fire may result. • Never operate unit in a poorly ventilated or enclosed area. •...
  • Page 14: Health & Safety

    HEALTH & SAFETY Safety Precautions PRACTICE SAFE MAINTENANCE • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service or adjust machine while it is moving. Keep hands, feet, and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure.
  • Page 15: Before Starting

    Before Starting/Hardware/Start OPERATION & Stop Electric Motor BEFORE STARTING TO STOP THE ELECTRIC MOTOR The 25CMP mixer is shipped completely assembled • Turn motor off. • and ready for operation. Disconnect the power cord. OPERATION Start the motor as instructed. WARNING With drum operating between 25-30 RPM, the mixer TO PREVENT ANY ACCIDENTAL...
  • Page 16: How To Mix Concrete/How To Mix Sand & Gravel

    4. Put in 2 gallons of water Adjust belt as required by loosening the (4) motor 5. Add 6 shovels full of gravel or round stone mount bolts and moving motor as necessary. 6. Add 2 shovels full of Portland Cement Retighten these bolts after adjustment.
  • Page 17: Pedestal Model Assembly

    Maintenance 25CMPT Pedestal Assembly PEDESTAL MODEL ASSEMBLY WARNING KEEP HANDS AND CLOTHING WARNING AWAY FROM MOVING JACKSHAFT AND GEAR. WHENEVER ASSEMBLING, Place Thrust Washer (25) onto Drum Shaft (15) and LUBRICATING OR ADJUSTING ANY lightly grease the shaft. Using two people, carefully PART OF THE MIXER, DISCONNECT slide the Drum assembly with shaft into the tube THE POWER PLUG.
  • Page 18: 25Cmp Wheel & Frame Assembly

    25CMP Wheelbarrow-- Maintenance Wheel & Frame Assembly - 18 -...
  • Page 19: 25Cmp--Electric Motor Assembly

    25CMP Wheelbarrow-- Maintenance Electric Motor Assembly - 19 -...
  • Page 20: 25Cmp--Pulley & Ring Gear Assembly

    25CMP Wheelbarrow-- Maintenance Pulley & Ring Gear Assembly - 20 -...
  • Page 21: 25Cmp--Drum & Ring Gear Assembly

    25CMP Wheelbarrow---- Maintenance Drum & Ring Gear Assembly - 21 -...
  • Page 22: 25Cmp--Drum Installation Assembly

    25CMP Wheelbarrow-- Maintenance Drum Installation Assembly - 22 -...
  • Page 23: 25Cmp--Wheelbarrow Final Assembly

    25CMP Wheelbarrow-- Maintenance Final Assembly * Grease two (2) fittings before every use. - 23 -...
  • Page 24: 25Cmpc--Combination Final Assembly

    25CMPC Combination-- Maintenance Final Assembly Pedestal Stand Assembly 1. Tip mixer, as if dumping contents, and place squarely on opening of drum. The pivot 1. Place two halves of the support legs together mount plate will rotate freely about the wheel and insert pivot tube through the center of the axle from its wheelbarrow stowed position.
  • Page 25 25CMPC Combination-- Maintenance Final Assembly 3. Insert pivot tube of pedestal stand assembly 5. Once mixer has been tilted upright onto the through pivot mount and tighten thumbscrew. stand, the mixer should be tipped back into mixing position before operating. (Figure 4) (Figure 6) WARNING...
  • Page 27: California Proposition 65 Warning

    CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
  • Page 28: 25Cmpt Frame, Drum, & Motor Assembly
