2. Changing NEC logo plate position.

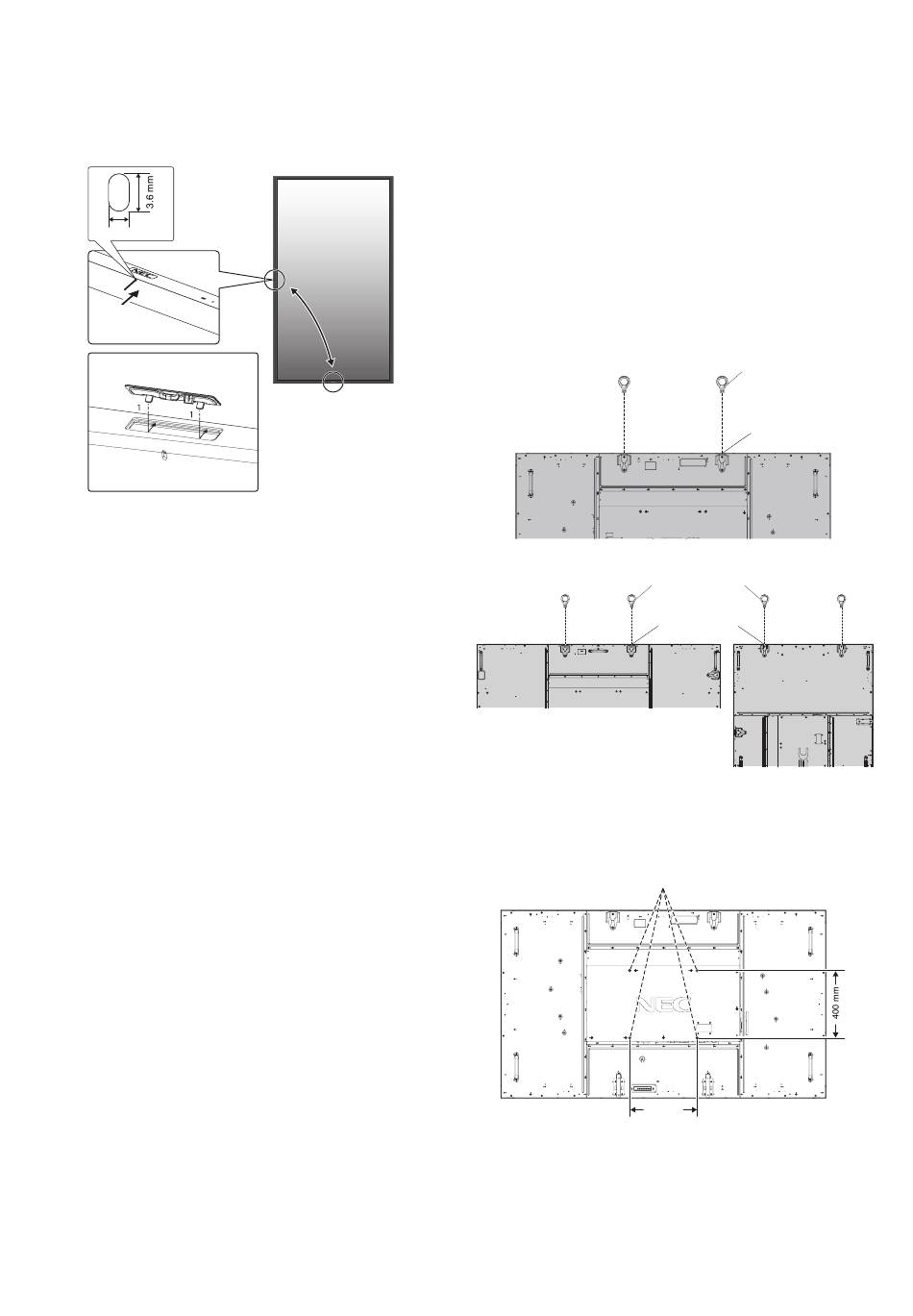

Removing the logo plate: Insert a thin stick (less than 2 mm
diameter) into the hole in the bottom of logo plate and
remove the logo plate by pushing it up from the bottom.
Attaching the logo plate: Hook the part (1) of logo plate into
the bezel and press in.
2 mm
Mounting location
•
The ceiling and wall must be strong enough to support the
monitor and mounting accessories.
•
DO NOT install in locations where a door or gate can hit
the unit.
•
DO NOT install in areas where the unit will be subjected
to strong vibrations and dust.
•
DO NOT install near where the main power supply enters
the building.
•
Do not install in where people can easily grab and hang
onto the unit or the mounting apparatus.
•
When mounting in a recessed area, as in a wall, leave at
least 4 inches (100 mm) of space between the monitor
and the wall for proper ventilation.
•
Allow adequate ventilation or provide air conditioning
around the monitor, so that heat can properly dissipate
away from the unit and mounting apparatus.
Mounting on ceiling
•
Ensure that the ceiling is sturdy enough to support the
weight of the unit and the mounting apparatus over time,
against earthquakes, unexpected vibrations, and other
external forces.
•
Be sure the unit is mounted to a solid structure within
the ceiling, such as a support beam. Secure the monitor
using bolts, spring lock washers, washer and nut.
•
DO NOT mount to areas that have no supporting internal
structure. DO NOT use wood screws or anchor screws for
mounting. DO NOT mount the unit to trim or to hanging
fi xtures.
Maintenance
•
Periodically check for loose screws, gaps, distortions,
or other problems that may occur with the mounting
apparatus. If a problem is detected, please refer to
qualifi ed personnel for service.
•
Regularly check the mounting location for signs of
damage or weakness that may occur over time.
Attaching Mounting Accessories
The monitor is designed for use with the VESA mounting
system.
1. Attach eyebolts (not included) for
mounting
This model is equipped with attachable eyebolts to aid in
mounting.
•
Screw the eyebolts into eyebolt holes as shown in the
picture.
•
Be sure eyebolts are secure.
•
In order to move the monitor into position, use a lifting
device attached to the eyebolts.
DO NOT mount the monitor using only the eyebolts.
X841UHD:
X981UHD:
Landscape
2. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
VESA Mounting Interface (M8)
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
English-6
Eyebolt (M10) (not included)
Eyebolt Hole
Eyebolt (M10) (not included)
Eyebolt Hole
Portrait
400 mm
