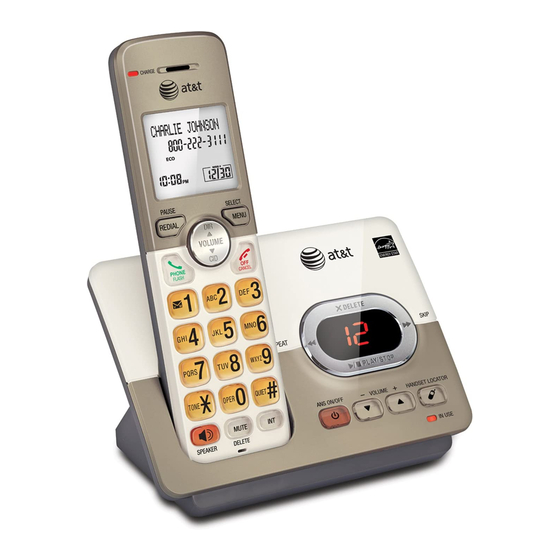

AT&T EL52103 Quick Start Manual
Dect 6.0 cordless telephone/answering system with
caller id/call waiting
Hide thumbs
Also See for EL52103:
- User manual (103 pages) ,
- Quick start manual (35 pages) ,
- Quick start manual (18 pages)
Related Manuals for AT&T EL52103
Summary of Contents for AT&T EL52103
- Page 1 Quick start guide EL52103/EL52113/EL52203/ EL52213/EL52253/EL52303/ EL52313/EL52333/EL52353/ EL52403/EL52503 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting TONE TONE...
-
Page 2: Table Of Contents
This quick start guide provides you with basic installation and operation instructions. A limited set of features are described in abbreviated form. Please refer to the complete online EL52103/EL52113/EL52203/EL52213/ EL52253/EL52303/EL52313/EL52333/EL52353/EL52403/EL52503 DECT 6.0 cordless telephone/answering system with caller ID/call waiting user’s manual for a full set of installation and operation instructions at http://telephones.att.com/manuals... -
Page 3: Parts Checklist
Quick start guide Telephone base Power adapter for telephone base TONE Cordless handset Charger for cordless handset Wall mount bracket (1 for EL52103/EL52113) with power adapter installed (2 for EL52203/EL52213/ (1 for EL52203/ EL52253) EL52213/EL52253) (3 for EL52303/EL52313/ (2 for EL52303/EL52313/... -
Page 4: Installation
Installation Install the telephone base and charger, as shown below. If you subscribe to high-speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter on the DSL line. If you want to mount your telephone on a wall, use the included wall mount bracket and refer to Wall mount installation in the online user’s manual for details. -
Page 5: Battery Installation
Battery installation Install the battery, as shown below. Plug the battery Insert the supplied Align the cover flat connector securely battery with the label against the battery into the socket inside ThIs sIDE uP facing compartment, then the handset battery up, as indicated. -
Page 6: Battery Charging
Battery charging Once you have installed the battery, the screen indicates the battery status (see the following table). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. -
Page 7: Handset Overview
handset overview ChargE light CID/voLumE On when the handset is • Press to scroll down while charging in the telephone in menus. base or charger. • Press to decrease the listening volume. DIr/voLumE • Press to show the caller ID log when the handset is not •... -
Page 8: Telephone Base Overview
Telephone base overview /rEPEaT • Press to repeat a message. • Press twice to play the previous message. message window Displays the number of messages or other answering system information. x/DELETE • Press to delete the message currently playing. • Press twice to delete all old messages when the telephone is not in use. -
Page 9: Menu Overview
menu overview Use the menu to change the telephone settings. Press mEnu/ in idle mode (when the handset is not in use) to enter the sELECT main menu. Press to scroll through menu items. Press /sELECT to select or save the indicated item. mEnu -or- /CanCEL to cancel an operation, back up to the previous menu or exit... -
Page 10: Telephone Settings
Telephone settings Use feature summary on page 7 to find and set features. The following are a few examples of common features to set. Refer to handset settings and answering system settings in the online user’s manual for detailed instructions on setting all telephone features. -
Page 11: Making, Answering And Ending Calls
making, answering and ending calls making a call PhonE/ /sPEaKEr and then dial the number Press fLash using the dialing keys. -or- Enter the number using the dialing keys and then press PhonE/ /sPEaKEr to dial. fLash While pre-dialing a number, you can: TONE •... -
Page 12: Options While On Calls
options while on calls volume control /voLumE to increase or press /voLumE to decrease While on a call, press the listening volume. note: The handset volume setting and speakerphone volume setting are independent. Changing one does not affect the other. Join a call in progress If a handset is already on a call and you would like to join the call, press PhonE/... -
Page 13: Handset Locator
handset locator Use the handset locator to find misplaced handset(s). To start the paging tone: • Press /hanDsET LoCaTor at the telephone base to start the paging tone on all handsets for 60 seconds. To stop the paging tone: PhonE/ /sPEaKEr, •... -
Page 14: Intercom
Intercom make and answer an intercom call Intercom to You can make an intercom call between handsets. Press InT on your handset when not in use. • If you have 2 handsets, your originating handset screen shows Calling hs x, and the other handset screen shows hs x is calling. - Page 15 Call transfer using intercom You can transfer an outside call to another system handset. Transferred During an outside call, press InT and proceed just as you would make a normal intercom call. Once the other party has answered the intercom call, you have the following options: •...
-
Page 16: Directory
Directory Directory overview The directory is stored in the telephone base and shared by all handsets. It stores up to 50 entries. Changes made to the directory on any one handset apply to all. Only one handset can review the directory at a time. Create directory entries Press mEnu/ in idle mode. -
Page 17: Speed Dial
Dial a directory number When the desired directory entry displays, press PhonE/ /sPEaKEr fLash to dial. Edit a directory entry When the desired directory entry displays on the screen, press /sELECT. mEnu /sELECT. Edit the telephone number, then press mEnu Edit the name. -
Page 18: Caller Id
Caller ID This product supports caller ID services offered by most telephone service providers. Caller ID allows you to see the name, number, date and time of calls. The available caller ID information will appear after the first or second ring. missed (new) call indicator The telephone base stores the last 50 incoming calls as the caller ID information. -
Page 19: Answering System And Voicemail
answering system and voicemail Your telephone has separate indicators for two different types of voice messages: those left on its built-in digital answering system and those left on your service provider’s voicemail (fees may apply). Your telephone’s built-in answering system messages and voicemail messages are separate. -
Page 20: Number Of Rings
number of rings You can set the answering system to answer an incoming call after 6, 5, 4, 3, or 2 rings. You can also select Toll saver. If toll saver is selected, the answering system answers a call after two rings when you have new messages, and after four rings when there are no new messages. -
Page 21: Delete All Old Messages
Delete all old messages You can delete all old messages in idle mode. Once deleted, you cannot retrieve them. You cannot delete messages until you have listened to them. On the telephone base: Press x/DELETE twice. • • On a handset: Press mEnu/ in idle mode. -
Page 22: Adding And Registering Handsets
1, and so forth. You can purchase additional handset AT&T EL50003 or AT&T EL50013 to expand your telephone system. EL50003 (silver) is for use with EL52103/EL52203/EL52253/ EL52303/EL52353/EL52403/EL52503. EL50013 (champagne) is for use with EL52113/EL52213/EL52313/EL52333. -
Page 23: Deregistering Handsets
Deregistering handsets If you want to replace a handset, or reassign the designated handset number of a registered handset, you must deregister all handsets that are registered to the telephone base, and then register each handset individually. To make deregistration easier, read all of the instructions on this page before you begin. Deregister all handsets from the telephone base: Press and hold /hanDsET LoCaTor on the telephone base for about 10 seconds... -
Page 24: Troubleshooting
If changing the telephone line cord does not help, the wall jack (or the wiring to this wall jack) may be defective. Try using a different wall jack in your home to connect your EL52103/EL52113/EL52203/EL52213/EL52253/EL52303/EL52313/EL52333/ EL52353/EL52403/EL52503 telephone, or contact your telephone service provider (charges may apply). - Page 25 • Eliminate any background noise. Noise from a television, radio or other appliances may cause the telephone not to dial out properly. If you cannot eliminate the background noise, first try muting the cordless handset before dialing, or dialing from another room with less background noise.
- Page 26 The charge light is off. • Make sure the power cord is plugged in correctly and securely. • Make sure the battery is installed correctly in the handset. Follow the instruction in Battery installation on page 3 to install the battery. •...
- Page 27 I hear other calls while using my telephone. • Disconnect the telephone base from the telephone wall jack, and plug in a different telephone. If you still hear other calls, the problem is probably in your wiring or telephone service. Call your telephone service provider (charges may apply). I’ve set my LCD language to spanish or french and I don’t know how to change it back to English.
-
Page 28: Important Safety Information
Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. safety information •... - Page 29 Especially about cordless telephones • Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and the handset by radio waves, so there is a possibility that your cordless telephone conversations could be intercepted by radio receiving equipment within range of the cordless handset.
- Page 30 Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients •...
-
Page 31: For C-Ul Compliance
for C-uL compliance In compliance with the bilingual requirements for safety, caution, and warning markings of Canadian Federal and Provincial/Territorial statutes and regulations, the French version of Important safety information is included. mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. - Page 32 mIsEs En garDE: • N’utilisez que les adaptateurs inclus avec ce produit. Pour obtenir une pièce de rechange, visitez www.telephones.att.com notre site Web au ou composez le 1-800-222-3111 1-866-288-4268 . Au Canada, composez le • N’utilisez que la pile de rechargeable incluse ou une pile de rechange (modèle BT162342/ www.telephones.att.com BT262342).
- Page 33 mesures préventives pour les utilisateurs de stimulateurs cardiaques implantés dans l’organisme stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) : L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche indépendante, a mené une évaluation pluridisciplinaire des interférences entre les téléphones sans fil portatifs et les stimulateurs cardiaques implantés dans l’organisme.
-
Page 34: Fcc Part 68 And Acta
fCC Part 68 and aCTa This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This identifier must be provided to your telephone service provider upon request. -
Page 35: Fcc Part 15
Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone. -
Page 36: Limited Warranty
Limited warranty The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to our website at www.telephones.att.com 1 (800) 222-3111 or call . In Canada, dial 1 (866) 288-4268 What does this limited warranty cover? The manufacturer of this AT&T branded product warrants to the holder of a valid proof of purchase (“CONSUMER”... - Page 37 how do you get warranty service? To obtain warranty service in the United States of America, visit www.telephones.att.com 1 (800) 222-3111 or call . In Canada, dial 1 (866) 288-4268 NOTE: Before calling for service, please review the user’s manual. A check of the PRODUCT’s controls and features might save you a service call.
-
Page 38: Technical Specifications
Technical specifications RF frequency band 1921.536MHz — 1928.448MHz Channels Operating temperature 32ºF — 122ºF 0ºC — 50ºC Telephone base voltage 96 — 130Vrms (AC voltage, 60Hz) Telephone base voltage DC6V @ 400mA (DC adapter output) Handset voltage 2.4VDC — 3.2VDC Charger voltage AC6V @ 300mA (AC adapter output) - Page 39 www.telephones.att.com © 2012-2014 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Issue 4.1 AT&T 06/14.
Need help?
Do you have a question about the EL52103 and is the answer not in the manual?
Questions and answers
How do you program an EL52103 phone to display incoming calls?
The AT&T EL52103 phone has Caller ID functionality, which allows it to display incoming calls. To ensure this feature works:
1. Subscribe to Caller ID Service – Contact your telephone service provider to activate Caller ID.
2. Check Phone Setup – The phone is designed to display Caller ID information automatically when a call is received.
3. Ensure Proper Connection – Make sure the phone line is properly connected and functioning.
4. Verify Display Settings – The Caller ID should appear on the screen when an incoming call is received if the service is active.
No additional programming is required on the phone itself beyond ensuring Caller ID service is enabled.
This answer is automatically generated
How to delete "Missed Message"
The provided context does not mention deleting "Missed Message" specifically. However, to delete all old messages on the AT&T EL52103 answering system:
1. On the telephone base:
- Press x/DELETE when the system is not in use.
- The system announces, “To delete all old messages, press delete again.”
- Press x/DELETE again to confirm. The system announces, “All old messages deleted.”
2. On the handset:
- Press MENU/SELECT in idle mode.
- Scroll to Answering sys using CID or DIR, then press MENU/SELECT.
- Scroll to Delete all old, then press MENU/SELECT.
- The screen shows Delete all msg?, press MENU/SELECT to confirm.
- The screen displays Deleting... and then confirms deletion with a tone.
If "Missed Message" refers to missed call notifications, clearing the caller ID log may help.
This answer is automatically generated
