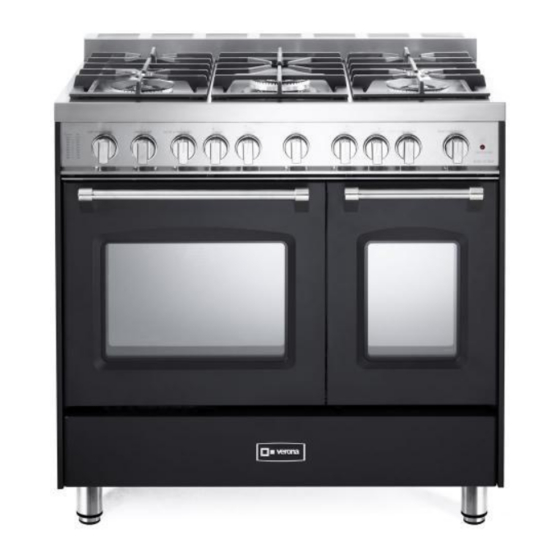

Double oven gas range
Hide thumbs Also See for VEFSGG 365 D series:
Table of Contents

Advertisement

Quick Links

Download this manual
DOUBLE OVEN GAS RANGE
for residential use only
VEFSGG 365 D..
Model:
• INSTALLATION INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
IMPORTANT - PLEASE READ AND FOLLOW
✓ Before beginning, please read these instructions completely and carefully.
✓ Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
✓ Please observe all local and national codes and ordinances.
✓ Please ensure that this product is properly grounded.
✓ The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
✓ The electrical plug should always be accessible.
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition. Electrical installation must be in accordance
with the National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN
CANADA: Installation must be in accordance with the current CAN/CGA-B149.1 National
Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280
[formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
(Part 280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
shut-off valve must be installed in an accessible location in the gas line external to the appli-
ance for the purpose of turning on or shutting off gas to the appliance (In Massachusetts
such shutoff devices should be approved by the Board of State Examiners of Plumbers &
Gas Fitters).
If an external electrical source is utilized, the appliance, when installed, must be electri-
cally grounded in accordance with local codes or, in the absence of local codes, with the
national Electrical Code, ANSI/NFPA 70.
This range is supplied with a protective film on
This film must be removed before installing/using the appliance.
FOR INSTALLER ONLY
THIS RANGE IS FOR RESIDENTIAL USE ONLY
steel and aluminium parts.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEFSGG 365 D series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verona VEFSGG 365 D series

Summary of Contents for Verona VEFSGG 365 D series

  • Page 1 DOUBLE OVEN GAS RANGE for residential use only VEFSGG 365 D.. Model: • INSTALLATION INSTRUCTIONS IMPORTANT - PLEASE READ AND FOLLOW IMPORTANT - PLEASE READ AND FOLLOW ✓ Before beginning, please read these instructions completely and carefully. ✓ Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

  • Page 2: What To Do If You Smell Gas

    WARNING • ALL RANGES CAN TIP • INJURY TO PERSON COULD RESULT • INSTALL ANTI-TIP DEVICE PACKED WITH RANGE • SEE INSTALLATION INSTRUCTIONS WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
  • Page 3 DATA PLATE CONVERSION LABEL This appliance is designed and manufactured solely for the cooking of domestic (household) food and in not suitable for any none domestic application and therefore should not be used in a commercial environmement. The appliance guarantee will be void if the appliance is used within a none domestic environnement i.e.

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS WARNING! THIS APPLIANCE HAS TO BE INSTALLED BY A QUALIFIED INSTALLER. Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a qualified installer, service agent, or the gas supplier. IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling, installing of this appliance. TOOLS NEEDED FOR INSTALLATION (NOT SUPPLIED WITH THE APPLIANCE) T-handle Tape...

  • Page 5: General Information

    GENERAL INFORMATION WARNING!! 1. Installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1-Latest Edition. ELECTRICAL GROUNDING INSTRUCTIONS The range must be electrically grounded in accordance 2. Installation in manufactured (mobile) home: installation with local codes or, in the absence of local codes, with the must conform with the Manufactured Home Construction National Electrical Code, ANSI/NFPA No.
  • Page 6 installation  PROXIMITY TO SIDE CABINETS 2. The range CANNOT be installed directly adjacent to side- 1. This range may be installed directly adjacent to existing 36" walls, tall cabinets, tall appliances, or other side vertical (914 mm) high base cabinets. surfaces above 36”...
  • Page 7  GAS AND ELECTRIC CONNECTION Rif. inch 7” 15/32 15” 5” 7” 130 ÷ 180 1/8 ÷ 3/32 20” * : Depending on feet regulation Dotted line showing the position of the range when installed Area for ELECTRICAL connection Area for GAS connection Fig. 1.2...
  • Page 8  ( 3 3 0 m m ) 1 3 " m a x . PROXIMITY TO SIDE CABINETS RANGE WITH BACKGUARD Fig. 1.3a 1 3 " m a x . ( 3 3 0 m m ) Fig. 1.3b...
  • Page 9  1 3 " m a x . ( 3 3 0 m m ) PROXIMITY TO SIDE CABINETS RANGE WITH ISLAND TRIM Fig. 1.3c ( 3 3 0 m m ) 1 3 " m a x . Fig. 1.3d...

  • Page 10: Fitting The Adjustable Feet

     Fig. 1.5 Fig. 1.4 FITTING THE ADJUSTABLE FEET The adjustable feet must be fitted to the base of the cooker before use. Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for the fitting of the feet. ATTENTION: Most important! Pay special attention not to damage the range dur- ing this operation.
  • Page 11  ASSEMBLING THE BACKGUARD OR THE ISLAND TRIM It is mandatory to install the backguard or the island trim • Assemble the backguard or the island trim as shown in figure 1.8 or 1.9 and fix it by screw- ing the 5 screws “A” (which are already fixed on the back of the cooktop).
  • Page 12  ANTI-TIP STABILITY DEVICE INSTALLATION INSTRUCTIONS YOU MUST USE STABILITY ANTI TIP BRACKET TO 1. The anti-tip bracket has to be attached as shown on figure below, it has to be fixed on the rear wall by no. 2 (two) suitable screws (supplied with the anti-tip kit). PREVENT UNIT FROM TIPPING.
  • Page 13 gas connection  All gas connections must be made according to national and local codes. This gas supply (service) line must be the same size or greater than the inlet line of the appliance. Sealant on all pipe joints must be resistant to te action of LP/Propane gas. The range is equipped for the use with NATURAL gas.
  • Page 14  PRESSURE REGULATOR INSTALLATION STEP 1 Mount the 1/2” NPT (conical) male connector to the pressure regulator and tighten by using a wrench. Do not over tighten the connector. Over tightening may crack regulator. LOCK Arrow Fig. 2.2a STEP 2 Assemble the 1/2” NPT connector + pressure regulator group to the extension pipe interposing the gasket supplied.
  • Page 15  STEP 3 Insert the extension pipe + pressure regulator group in the “A” bracket. Fig. 2.2c STEP 4 Assemble the extension pipe + pressure regulator group to the range manifold interposing the gasket supplied. The regulator cover must be ordiented toward the front side of the range. IMPORTANT: use two spanners to tighten the connection.
  • Page 16  STEP 5 Fix the “B” bracket on the back of the range by the 2 (two) screws supplied with the kit for gas connection. The regulator cover must be ordiented toward the front side of the range. Fig. 2.2e...
  • Page 17  PRESSURE REGULATOR INSTALLATION To range Range manifold Manifold male pipe fitting 1/2” G cylindrical (ISO 228-1) male Gasket 1/2” G cylindrical (ISO 228-1) female Extension pipe female f i t pipe fitting To mains connection Extension pipe Pressure Extension Gasket regulator pipe male...
  • Page 18  c) Any conversion required must be performed by your dealer or a qualified licensed plumber or gas service company. Please provide the service person with this manual before work is started on the range. (Gas conversions are the responsibility TEST POINT ADAPTER of the dealer or end user.) The Test Point adapter is available from...

  • Page 19: Conversion To Lp/Propane Gas

     CONVERSION TO LP/PROPANE GAS Every range is provided with a set of injectors for the various types of gas. Select the injectors to be replaced according to the “INJECTORS TABLE”. The nozzle diameters, expressed in hundredths of a millimetre, are marked on the body of each injector.

  • Page 20: Injectors Table

     INJECTORS TABLE LP/PROPANE NATURAL GAS 11" W.C.P. 4" W.C.P. NOMINAL POWER REDUCED POWER BURNERS BTU/hr BTU/hr Ø injector Ø injector [1/100 mm] [1/100 mm] Semi-rapid (SR) 6000 1500 Triple ring (TR) 12000 5000 2800 for NATURAL GAS (*) Inner crown 1000 (*) 3500 (no.
  • Page 21  SETTING THE BURNER MINIMUM When switching from one type of gas to another, the minimum flow rate must also be correct: the flame should not go out even when passing suddenly from maximum to minimum flame. To regulate the flame follow the instructions below: Semirapid and triple ring burners –...
  • Page 22  OPERATIONS TO BE EXECUTED FOR THE REPLACEMENT OF THE INJECTORS OF THE OVEN AND BROIL BURNERS (LEFT and RIGHT OVEN) Oven Burner – Lift and remove the lower panel inside the oven. – Remove the burner securing screw (fig. 2.9). –...

  • Page 23: Adjustment Of The Oven Burner Minimum

     ADJUSTMENT OF THE OVEN BURNER MINIMUM (LEFT and RIGHT OVEN) This needs to be done only for the oven burner (the broil is a fixed capacity) by acting on the thermostat in the following way: – Turn on the burner by setting the thermostat knob on position –...
  • Page 24  electrical connection If codes permit and a separate ground wire is used, it is recommended that a WARNING qualified electrician determine that the ground path is adequate. Check with a qualified electrician if you are not sure whether the range is properly grounded.

  • Page 25: Wiring Diagram

     WIRING DIAGRAM...
  • Page 28 The manufacturer cannot be held re spon sible for possible inaccuracies due to printing or transcription errors in the present booklet. The manufacturer re serves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the es sential functional and safety characteristics of the appliances.
