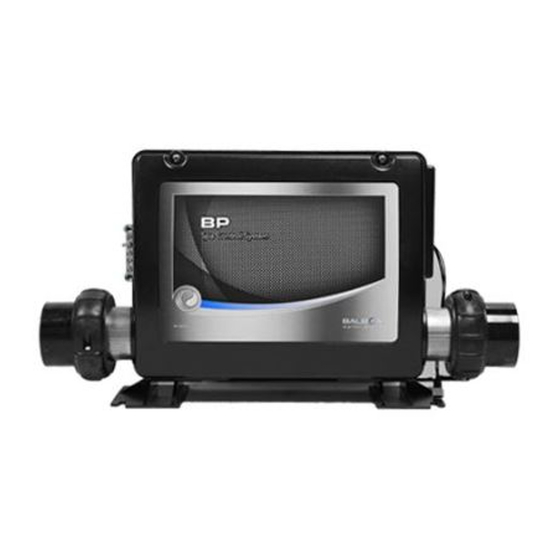

spaT ouch BP System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spatouch bp501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viking spas Spatouch bp501

Summary of Contents for Viking spas Spatouch bp501

  • Page 1 2018 Owner’s Manual spaT ouch BP System...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS • Important Safety Instructions Personal Safety Precautions Installation and Set-Up Instructions Electrical Requirements (BP501) GFCI Wiring Installation (220v) Electrical Specifications • Spa Startup Directions • Operation Instructions Topside Control Instructions Features found on various Viking models Spa Jets and ir Controls •...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precau- tions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
  • Page 4 DANGER: Risk of Electric Shock. Do not permit any electrical appliance, such as a light, telephone, radio or television within 5 feet (1.5m) of a spa. WARNING: To Reduce the Risk of Injury: a) Before using your spa you should check the water temperature with a thermometer that is known to be accurate.

  • Page 5: Personal Safety Precautions

    • Fetal injury in pregnant women • Physical inability to exit the spa or hot tub • Unconsciousness resulting in the potential of drowning WARNING: The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia. If you suspect hyperthermia, immediately get medical help, lay the victim on their back with the head slightly elevated for easier breathing, cover the body with a blanket and apply ice packs to the...

  • Page 6: Installation And Set-Up Instructions

    INSTALLATION AND SET-UP INSTRUCTIONS SURFACE AND PAD REQUIREMENTS • Your new portable spa must be placed on a uniformly firm, flat and level surface. concrete pad 4 inches thick is best. • In order to prevent flooding of the electrical equipment, the pad must be such that water will drain away from the spa.
  • Page 7 220-VOLT (BP501 Power System) WHITE BL CK GROUND* * GROUND - Ground connection located on left side of con- trol box.

  • Page 8: Gfci Wiring Installation (220V)

    GFCI WIRING INSTALLATION (220V) (BP501 Power System)

  • Page 9: Electrical Specifications

    SPA STARTUP DIRECTIONS ll Viking Spas require a solid, flat surface.* This is to ensure that the spa cabinet is not exposed to a pressure stress condition that may result in cabinet damage and shell cracking.

  • Page 10: Operation Instructions

    OPERATION INSTRUCTIONS BP501 BP501 System nstalled in: urora 3, Royale, Regal, Royale ETS, Regal ETS, ll Legacy, Legend, Heritage and Tradition It is very important to make sure that the spa is filled at least 3/4 way up the skimmer opening. Make sure the gate valves are in the open or up position.

  • Page 11: Topside Control Instructions

    TOPSIDE CONTROL INSTRUCTIONS Operating Instructions: For operating instructions please type the following into your web browser: http://vikingspas.com/ftp/2018spatouchmanual.pdf OR click on the QR code below.

  • Page 12: Features Found On Various Viking Models

    LED LIGHTING FEATURE The urora PSL, Royale PSL, Regal PSL, urora 3, Royale, Royale ETS, Regal, Regal ETS, Legacy, Legend, Heritage & Tradition Series models are also equipped with an LED light system. This lighting, which encompasses the interior of the spa, is also incorporated into the light in the foot well of these models.
  • Page 13 SPA JETS djustable Spa Jets may be turned off and on by rotating jet faceplate left or right. Note DO NOT TURN LL SP JETS OFF T THE S ME TIME. THIS M Y C USE D M GE TO THE PUMP ND MOTOR.
  • Page 14 VOLCANO Jet (Heritage & Tradition only) The Turbo jet is located on the filter cavity wall is the Turbo jet. This jet is a combina- tion valve and high capacity jet. To turn the Turbo jet on, simply turn the face count- er-clockwise to the first stop position.

  • Page 15: Vibrosonic Jet Operation

    STEREO INFORMATION If you spa is equiped with a radio you will find the operating instructions in the warranty package. VIBROSONIC JET SYSTEM If your spa is equiped with a Vibrosonic you will find the operating instructions in the warranty package. FILL THE SPA WITH WATER a.

  • Page 16: Skimmer Side Filter

    SKIMMER SIDE FILTER ll Viking spas have a skimmer side filter that does not require “air bleeding” on initial startup. If an air lock develops, loosen the union on return side of pump. See Diagram ( ) below. Let small amount of water drain from connection while the pump is running.

  • Page 17: Maintenance

    MAINTENANCE SPA DRAINING Every 90 days, depending upon water condition, you may need to renew the spa water. To drain your spa, power must be disconnected at the circuit breaker. Locate the drain faucet inside the spa cabinet (for Viking IP, 2P & 3 models) or on the corner near the bottom of the side panel next to the equipment (for all other models).

  • Page 18: Spa Surface Care

    SPA SURFACE CARE Do not use abrasive solvents or cleaners to clean spa surfaces. Only use the following: Lemon Juice, Amonia, Vinegar or Soap and Water. LONG-TERM STORAGE (90 days or more) We strongly urge you to contact your dealer to winterize your spa.

  • Page 19: Filter Cleaning

    • lways leave the cover open for 15 minutes every 30 days to pre- vent off gas from damaging your spa pillows, cover and other critical components. Signs of off gas damage include but are not limited to pil- low peeling and bubbling, discoloration, cover failing prematurely, plastics or jet inserts failing.

  • Page 20: Spa Cabinet Maintenance

    SPA CABINET MAINTENANCE Your Viking spa cabinet is designed to be maintenance free. However, if dirt or grime should appear simply use a mild soap solution and clean with a rag. OZONATOR If your spa is equipped with an ozonator, it is factory set to filter dur- ing the filter cycles only.

  • Page 21: Gallon Specifications

    GALLON SPECIFICATIONS Model Gallons urora 3 210 Gallons Royale & Royale ETS 270 Gallons Regal & Regal ETS 290 Gallons Legacy 320 Gallons Legend 300 Gallons Heritage 370 Gallons Tradition 390 Gallons...

  • Page 22: Spa Situations & Solutions

    SPA SITUATIONS & SOLUTIONS Situation Cause or Result Product to use Solution Calcium deposits Hard water Stain n Scale dd 1oz. of Stain n Scale on surfaces of heater, fittings pH/total alkalinity pH Up Test water - adjust with or plumbing out of adjustment pH Down pH Up or pH Down.

  • Page 23: Trouble Shooting

    TROUBLE SHOOTING Caution: Viking Spas have slide type water shut off valves referred to as Gate Valves. The spa should never be operated with the Gate Valves in the closed position, as this will cause severe damage to the pump and/or heater.
  • Page 24 “Warning: Children should not use spas or hot tubs without adult supervision” and “ vertissement: Ne pas laisser les enfants utiliser une cuve de relaxation sans surveillance” “Warning: Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment”...
  • Page 25 Viking Spas, Inc. 2725 Prairie St SW • Wyoming, Mi 49519 www.vikingspas.com • Email:info@vikingspas.com 2018 Viking Spas, Inc...
