Keating Of Chicago MIRACLEAN PRE-2000 Series Manual

Gas griddle
Hide thumbs Also See for MIRACLEAN PRE-2000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

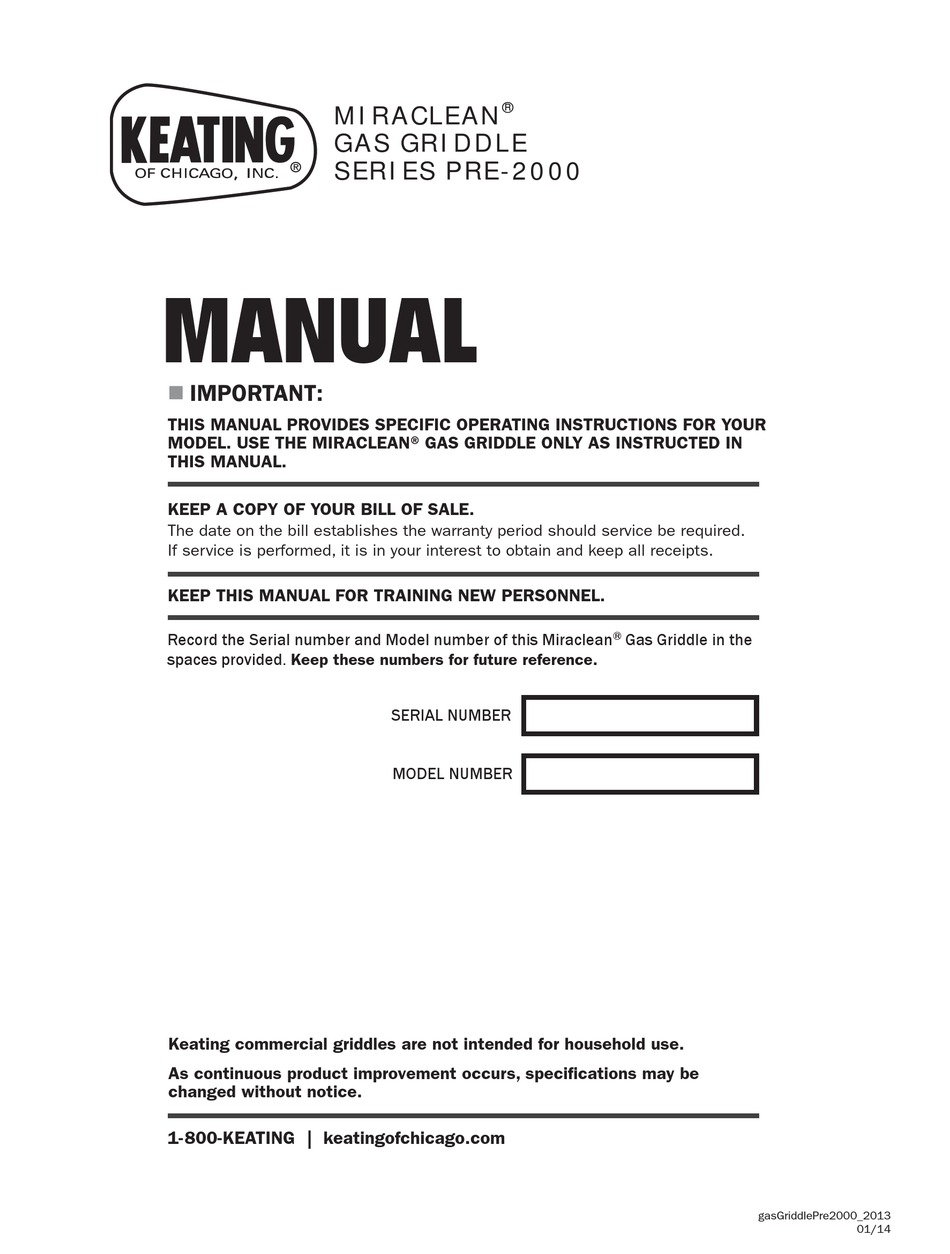

MIRACLEAN
GAS GRIDDLE
SERIES PRE-2000
MANUAL
IMPORTANT:
THIS MANUAL PROVIDES SPECIFIC OPERATING INSTRUCTIONS FOR YOUR
MODEL. USE THE MIRACLEAN® GAS GRIDDLE ONLY AS INSTRUCTED IN
THIS MANUAL.
KEEP A COPY OF YOUR BILL OF SALE.
The date on the bill establishes the warranty period should service be required.
If service is performed, it is in your interest to obtain and keep all receipts.
KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL.
Record the Serial number and Model number of this Miraclean
spaces provided. Keep these numbers for future reference.
Keating commercial griddles are not intended for household use.
As continuous product improvement occurs, specifi cations may be
changed without notice.
1-800-KEATING | keatingofchicago.com
®
SERIAL NUMBER
MODEL NUMBER
®
Gas Griddle in the
gasGriddlePre2000_2013
01/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIRACLEAN PRE-2000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Keating Of Chicago MIRACLEAN PRE-2000 Series

Summary of Contents for Keating Of Chicago MIRACLEAN PRE-2000 Series

  • Page 1 ® MIRACLEAN GAS GRIDDLE SERIES PRE-2000 MANUAL  IMPORTANT: THIS MANUAL PROVIDES SPECIFIC OPERATING INSTRUCTIONS FOR YOUR MODEL. USE THE MIRACLEAN® GAS GRIDDLE ONLY AS INSTRUCTED IN THIS MANUAL. KEEP A COPY OF YOUR BILL OF SALE. The date on the bill establishes the warranty period should service be required. If service is performed, it is in your interest to obtain and keep all receipts.
  • Page 2 PURCHASER SHOULD POST IN A PROMINENT LOCATION INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS. THIS INFORMATION SHALL BE OBTAINED BY CON- SULTING THE LOCAL GAS SUPPLIER. WARNING Burns Shock Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.

  • Page 3: Table Of Contents

    GAS GRIDDLE - SERIES PRE-2000  TABLE OF CONTENTS Shutdown ............... 4 Important Safety Instructions ..........i Cooking ................5 INTRODUCTION .............. 1 INSTALLATION Cleaning ................. 6 Damage During Shipment ..........1 PREVENTATIVE MAINTENANCE ........7 FIRST STEPS ..............2 Preventive Maintenance Cleaning Chart ......

  • Page 4: First Steps

     Keating equipment is designed and manufactured to FIRST STEPS operate only on the type of gas specifi ed by the user and indicated on the serial plate located inside the POSITIONING door. The gas may be natural, propane or manufac- Keep appliance area free and clear of any combus- tured.

  • Page 5: Flexible Gas Connection & Quick Disconnect Devices

    GAS GRIDDLE - SERIES PRE-2000 The appliance must be isolated from the gas LEVELING supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.45 kPa).

  • Page 6: Placing Your Keating Griddle In Operation

    STAND ASSEMBLY A. Gas pressure at manifold NATURAL GAS – 4.0 in. W.C. B. Gas pressure at manifold LP GAS – 10 in. W.C. (2.49kPa) C. Maximum incoming gas pressure NATURAL GAS – 7 in. W.C. (2.01kPa) D. Maximum incoming gas pressure LP GAS –...

  • Page 7: Cooking

    GAS GRIDDLE - SERIES PRE-2000 COOKING WITH YOUR MIRACLEAN® GRIDDLE becomes thicker. It becomes more of a meat cake than a hamburger. Therefore, the hamburger spatula You will fi nd that your new Miraclean® Griddle has has a strong cutting edge. superb heat transfer.

  • Page 8: Cleaning

    MIRACLEAN® TEMPERATURE GUIDE TOP VIEW SHOWING PLACEMENT OF BURNERS UNDER MIRACLEAN® GRIDDLE PLATE PRODUCT TEMP Bacon 325°F Chicken Breasts (skinless) 350°F Eggs, basted (with cover) 250° - 275°F Eggs, scrambled 250° - 275°F French Toast 350°F Grilled Cheese 325°F Hamburgers 325°...

  • Page 9: Preventive Maintenance Cleaning Chart

    GAS GRIDDLE - SERIES PRE-2000 3. Sprinkle with Keating CARE OF THE MIRACLEAN® SURFACE Klenzer. Polish with a The Miraclean® surface is very hard. With proper care, soft cloth (towel). It will the Miraclean® surface and its unique cooking proper- sparkle like new in just ties will last for many years.

  • Page 10: Preventative Maintenance

    Following ranty, needs repairs other than routine cleaning, you are preventive maintenance procedures will help keep your requested to contact KEATING OF CHICAGO, INC. Miraclean® Griddle working effi ciently. Proper care and (1-800 KEATING).

  • Page 11: Service Parts Ordering

    GAS GRIDDLE - SERIES PRE-2000  SERVICE PARTS ORDERING Parts may be ordered by part number by calling Keating at 1-800-KEATING or your service company. You may also order on-line at Keating’s part store, www.keatingofchicago.com. Refer to the Keating Miraclean® Griddle Limited Warranty for complete service and ordering information. The model/serial plate is located inside the cabinet.

  • Page 12: Thermostat Removal And Replacement

    SERVICE ON/OFF SWITCH REMOVAL AND REPLACEMENT Servicing should only be performed by qualifi ed & 1. Lower the control panel by removing the screws. licensed service companies. 2. Disconnect the wires on the switch and remove switch. GAS VALVE REGULATOR ADJUSTMENT 3.
  • Page 13 GAS GRIDDLE - SERIES PRE-2000 THERMOSTAT BULB PLACEMENT DETAIL (REFER TO CHART BELOW) A. BURNER COIL CHECK (“A” Reading. Thermostat contacts CLOSED - Gas Valve knob “ON”. Main burner should come ON.) 1. If the reading is more than 100 millivolts and the automatic valve still does not come one, replace the valve.
  • Page 14 MILLIVOLT CONTROL VALVE To check Resistance of the gas valve, connect one wire to the valve as shown. 1. Resistance between the THTP & TH terminals must be 11.5V±0.2V 2. Resistance between the THTP & TP terminals must be 10.0V±0.2V If resistance is outside of specifi...

  • Page 15: Parts List

    GAS GRIDDLE - SERIES PRE-2000  PARTS LIST - MIRACLEAN GRIDDLE MIRACLEAN GRIDDLE ASSEMBLY CONTROL PANEL ASSEMBLY Figure 6-2 Figure 6-1 ITEM DESCRIPTION CONTROL PANEL 1-800-KEATING THERMOSTAT "ON/OFF" SWITCH WITH WIRES 009345 THERMOSTAT 250° - 400°F 017370 THERMOSTAT 150° - 550°F 023897 THERMOSTAT REPLACEMENT KIT ITEM...
  • Page 16  PARTS LIST - MIRACLEAN GRIDDLE (cont.) Natural and Propane Gas Heating Systems Figure 6-3 ITEM DESCRIPTION SPARK IGNITION ASSEMBLY SEE ITEM 6, Figure 6-2 THERMOPILE 022770 PILOT TUBE (1/4") 007998 PILOT ASSEMBLY 029769 ALL NATURAL GAS, 24" - 30" LP, 24"...

  • Page 17: Wiring Diagram

    GAS GRIDDLE - SERIES PRE-2000  WIRING DIAGRAM GAS GRIDDLE WIRING DIAGRAM 1-800-KEATING...
  • Page 19 CUSTOM PASTA FILTER SYSTEM TOP-SIDE COOKER HOTPLATE I HAVE READ THE INSTALLATION AND OPERATING INSTRUCTIONS. SIGNED: DATE: KEATING OF CHICAGO, INC. 1-800-KEATING 8901 West 50th Street PHONE: 708-246-3000 McCook, IL 60525-6001 FAX: 708-246-3100 Serving Those Who Serve the Very Best...
