OWC Mercury Elite-AL Pro Dual Chapter 2 - System Setup

2.2 Drive Installation

(Versions with FireWire & USB)
Begin drive installation by
setting your hard drive into the
chassis, towards the front of
the chassis and slide the drive
onto the black connector on the
green logic board.

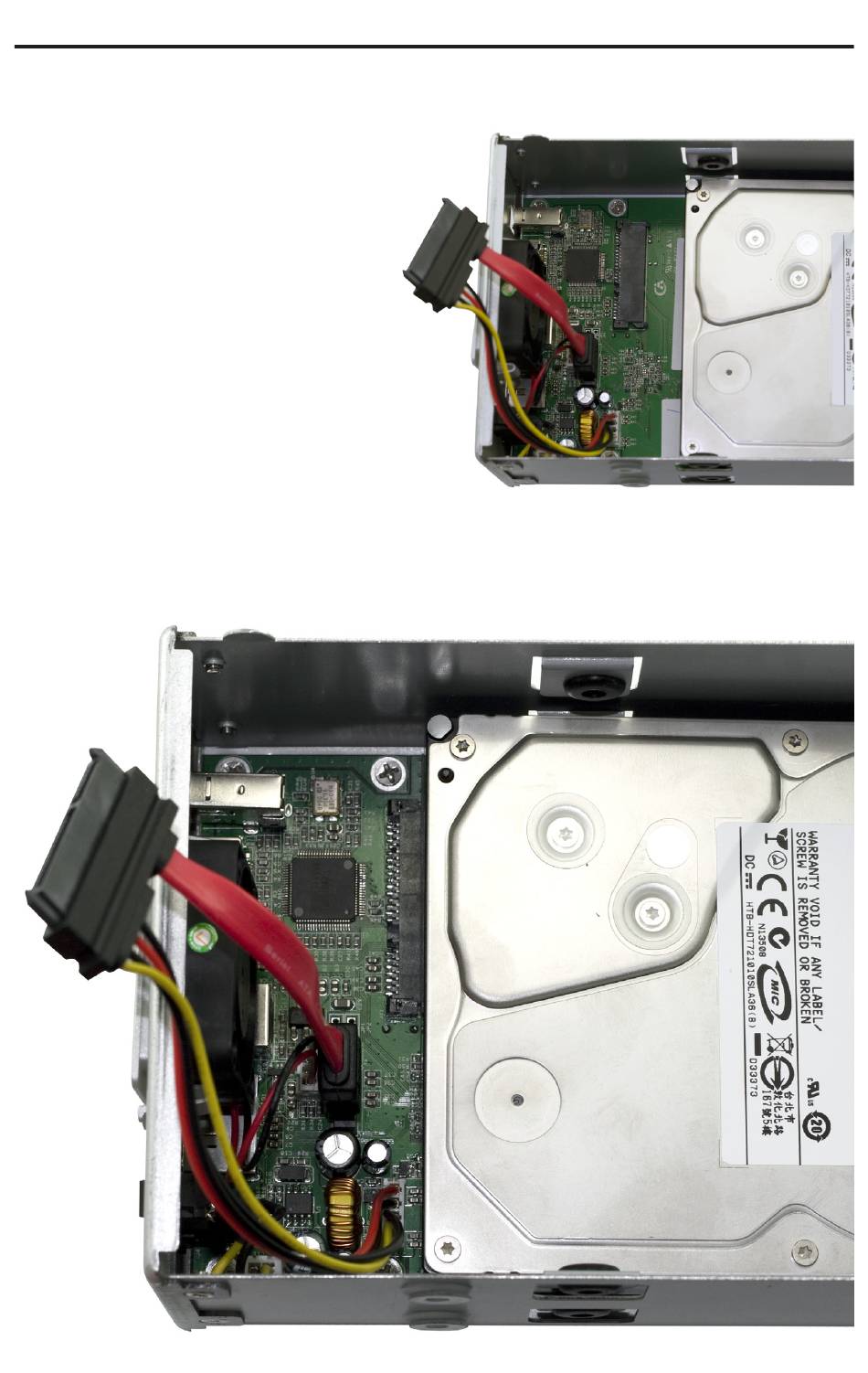

(Versions with eSATA ONLY)
Connect one of the multicolored
power cables to the hard drive
you are installing in the lower
drive position, and connect one of the red SATA cables to the hard drive
you are installing in the lower position, and place the hard drive into the
chassis.
