1.4 Port View & Cable Connections
➀ ➁

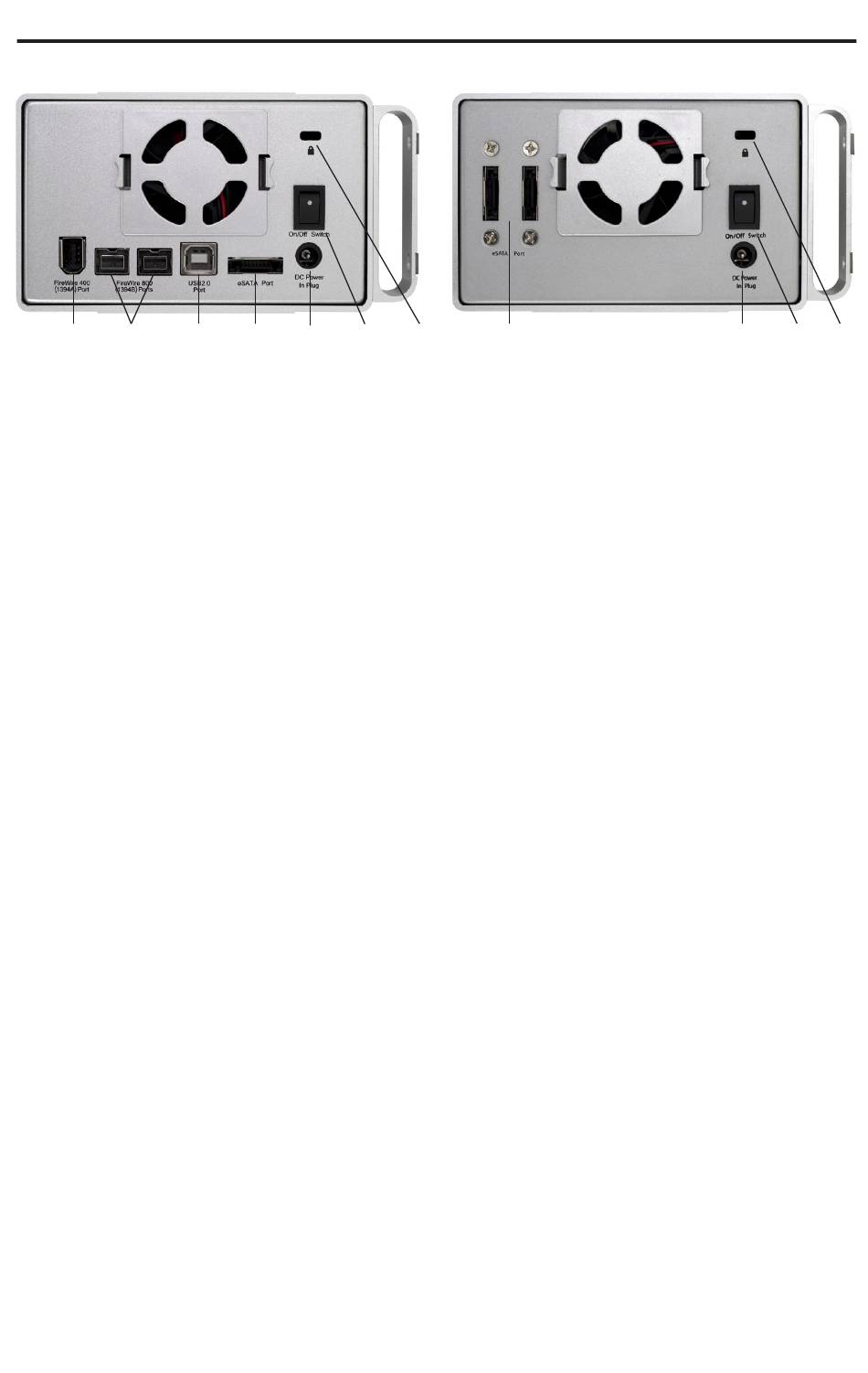

Cable Connections:
The OWC Mercury Elite-AL Pro family has multiple interfaces to work
with any computer system.
➀ FireWire 400 (1394A) Port - Connect one FireWire 400 port to your
computer using the included cable.
➁ FireWire 800 (1394B) Ports - Connect one FireWire 800 port to your
computer using the included cable and have an extra FireWire 800 port
to add peripherals with!
➂ USB Port - Connect one of your computer's USB ports to the OWC
Mercury Elite-AL Pro here using the included cable.
➃ eSATA Port - The utmost in speed. If you're trying to make your OWC
Mercury Elite-AL Pro the fastest it can be, attach an eSATA cable to this
port.
➄ On/Off Switch - Turn the OWC Mercury Elite-AL Pro on and off here.
➅ DC IN port - Connect the include external power supply to the OWC
Mercury Elite-AL enclosure here.
➆ Security Lock - Attach a security cable to your OWC Mercury Elite-AL
enclosure here and tether it to your desk for theft prevention.

1.5 Detailed View

1.5.1 LED Indicator
The OWC Mercury Elite-AL Pro has a single cool blue LED at the front of
the hard drive enclosure. It will illuminate blue when powered on, and
flash on drive activity (both reading and writing).
➂ ➃ ➄
➃
➅ ➆
