Summary of Contents for Sherbourn Pa 5-200

  • Page 2: Table Of Contents

    “Hum” Noises in the Speakers Other Probable Causes of Noise One or more RED lights on the Front Panel are Blinking Problems with the whole A/V System 5-200 Technical Specifications Technical Features Licensing and Trademark Disclosures Service Assistance for Sherbourn Products...

  • Page 3: Thank You From Sherbourn

    Thank You from Sherbourn Thank you very much for your decision to purchase one of our superb Sherbourn amplifiers. We take enormous pride in the design and build quality of all of our products and we are confident that our product will provide you with many years of enjoyable and trouble free service.

  • Page 4: Safety Precautions

    All other servicing should be referred to of audio/video entertainment equipment, it will be to your Sherbourn or other qualified service personnel. To prevent benefit to seek the services of a qualified installation pro- electric shock, do not use this polarized plug with an fessional or call us for help.

  • Page 5: Nec (National Electrical Code) Standards

    NEC (National Electrical Unpacking the 5-200 Code) Standards All Sherbourn amplifiers are double boxed to survive the rigors of long distance shipping and arrive to you undam- A Note for the Cable Television (CATV) Installer aged. The outer box may show wear and tear, but this is This reminder is to call the CATV system installer’s atten-...

  • Page 6: 5-200 Amplifier Features

    5-200 Amplifier Features • Audiophile quality performance and sound • High current power supply • Low noise toroidal power transformer • Advanced microprocessor operating system • Complementary, discrete power amplifier design incorporating high current, high speed, on semiconductor power devices •...

  • Page 7: Front Panel Layout

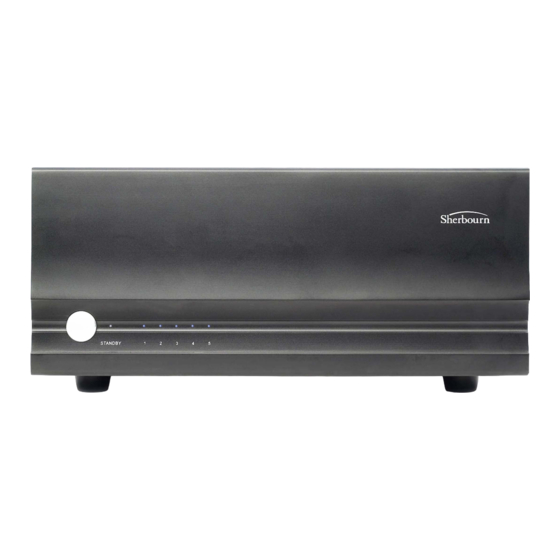

    Front Panel Layout 1. Front Panel Power Switch This switch provides the ON/OFF control of the 5-200 from the front panel. When the unit is off and in standby mode, the switch illuminates amber. Automatic switching is accomplished with the 3.5mm trigger in- put on the rear panel using a 5-12VDC control signal.

  • Page 8: Rear Panel Layout

    Sherbourn processor trigger output. If building 3. XLR / Balanced Audio Input – Standard XLR input your own cable, center is positive and outer shield is neg- connection that connects to a standard XLR audio output ative.

  • Page 9: Installation And Connections

    15 amperes maxi- The amplifier is heavy and should be placed toward the mum, which is sufficient to power your Sherbourn ampli- bottom of an audio rack to minimize the rack being unne- fier.

  • Page 10: 12V Trigger Connections

    (black) post of your speaker. A series connection is established when voice coils are Regardless of the configuration used for your Sherbourn connected in a string – end to end – so there’s only one amplifier channels, proper connection of each speaker is way for audio signals to flow “in”...

  • Page 11: Parallel Connections

    (blinking red use of your unit. If problems persist, contact Sherbourn LED’s on the front of the unit). support for help.

  • Page 12: The Amplifier Shuts Down Often Or The Line Circuit Breaker Trips Often

    5-12VDC from the source unit or • If the unit is not on the ON/OFF switch on the 5- preamplifier (such as the Sherbourn PRE-1 Preamp- 200 might be in the off position. lifier/Processor). This should allow the amplifier to •...

  • Page 13: Other Probable Causes Of Noise

    Please contact Sherbourn if you have re- broken. This is possible even if you can’t physically peated problems causing the RED front panel light to flash see the break as the strain for pulling on audio cables that are NOT thermal or short circuit related.

  • Page 14: Technical Features

    Licensing and Trademark Disclosures Sherbourn Disclosure All Rights Reserved. Sherbourn reserves the right to make improvements to its products at any time. Therefore, the specifications of the product and the specific details of this manual are subject to change at any time.
  • Page 15 Specifications PA 5-200 Topology: Fully discrete, dual differential, high current, short signal path Class A/B. Number of Channels: Power Output (rated power; THD < 0.15%): 300 watts / channel (x5); all channels driven; into 4 Ohms. 200 watts / channel (x5); all channels driven; into 8 Ohms.
  • Page 16 Power Supply: 600 VA toroidal power transformer. 90,000 uF of storage capacitance. Input sensitivity (for rated power; 8 Ohm load): 1.100 V Gain: 32 dB Input Connections: Unbalanced (Tiffany style, audiophile quality, gold plated RCA); one per channel. Balanced (XLR); one per channel. Each input may be independently switched to either unbalanced or balanced.
  • Page 17 LIMITATION MAY NOT APPLY TO YOU. A claim under this warranty must be made by you within the Term. A claim shall not be valid (and Sherbourn has no obligation related to the claim) if it is not made within the Term and if it is not made in strict compliance with the requirements of the “How do you get service?”...
  • Page 18 The CSR will provide you with a returned material authorization number (“RMA”). Ship the product to Sherbourn at the following address, with the RMA written in large, bold letters on the outside of the box, and with the letters “RMA” written before the number. Parcels arriving without an RMA number on the outside of the box will be refused.
