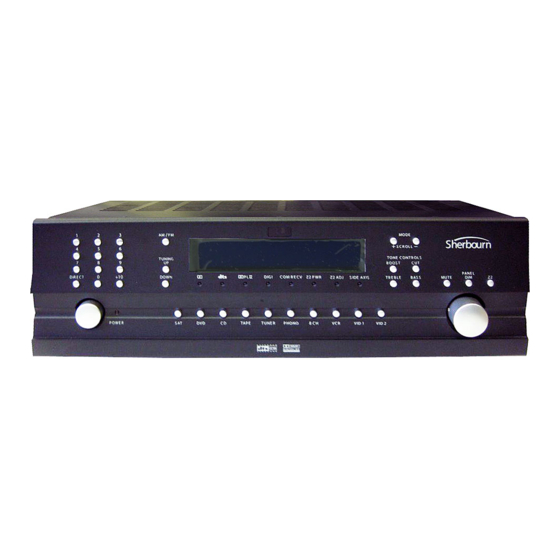

Sherbourn PT-7010A Owner's Manual

Preamplifier/processor/tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

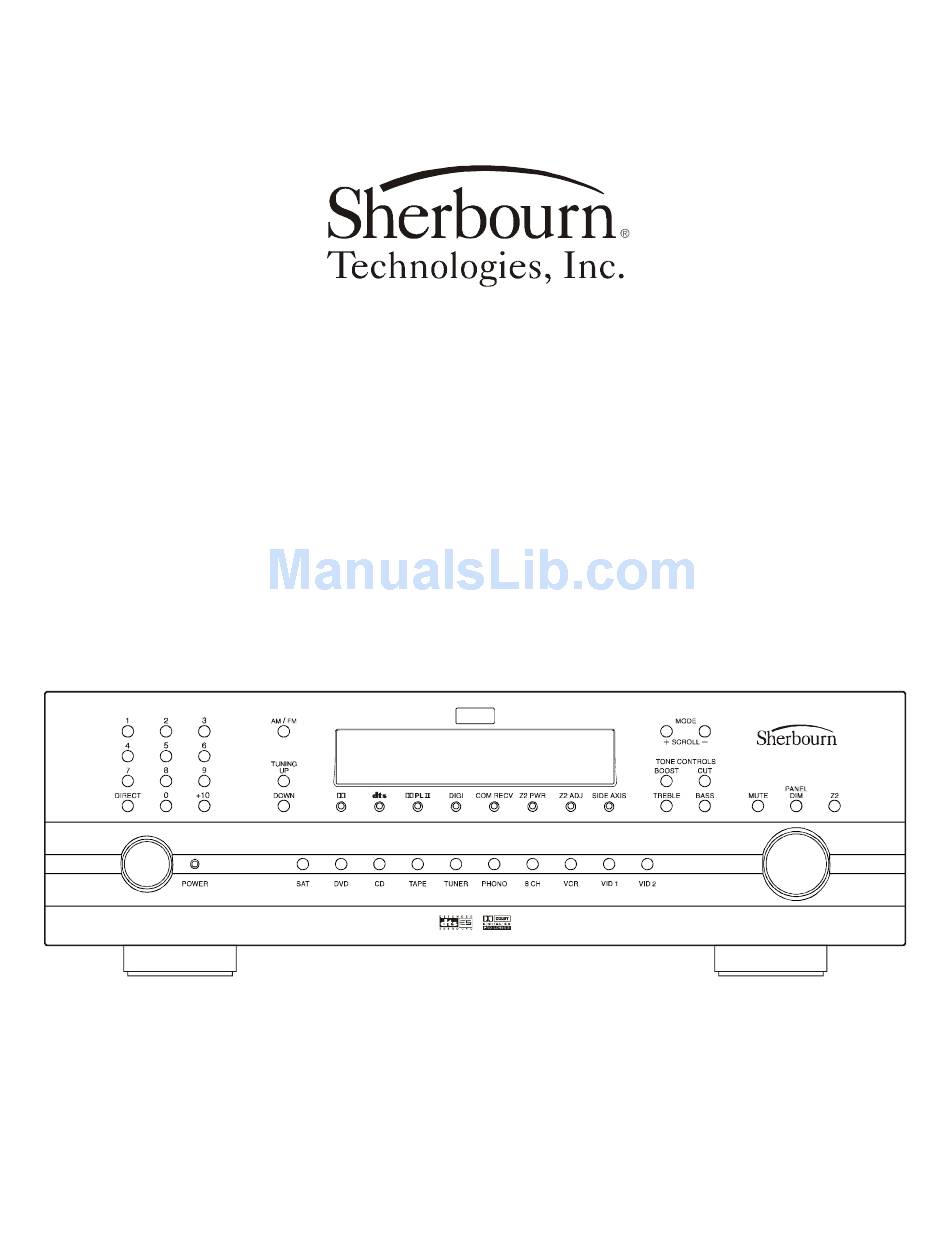

Owner's Manual
for Model PT-7010A
Preamplifier/Processor/Tuner
Sherbourn Technologies, Inc., 19-3A Sterling Road, North Billerica, MA 01862 U.S.A., Tel 978-663-7385, Fax 978-663-7389
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-7010A and is the answer not in the manual?

Questions and answers

Related Manuals for Sherbourn PT-7010A

Summary of Contents for Sherbourn PT-7010A

  • Page 1 Owner’s Manual for Model PT-7010A Preamplifier/Processor/Tuner Sherbourn Technologies, Inc., 19-3A Sterling Road, North Billerica, MA 01862 U.S.A., Tel 978-663-7385, Fax 978-663-7389...

  • Page 2: Table Of Contents

    M1, M2 and M3 Macro Buttons 27 Quick Start Setup Instructions Adding Batteries to the Remote Control Quick Start Instructions for PT-7010A Setup 30 Operation of the PT-7010A using the Remote Turning on the MAIN Zone Turning on ZONE 2 31 Programming and Configuring YOUR...
  • Page 3 Crossover Adjustment Subwoofer Mode VIDEO Menu SOFTWARE Menu CONTROL Menu 42 Special Features of the Sherbourn PT-7010A 42 Bass Management 42 Surround Modes for 2 Channel Source Material 43 Surround Modes for Multi-Channel Sources 44 Tuner Operation 44 Recording Operation...
  • Page 4 A Special ‘Thank You’ All of us at Sherbourn Technologies would like to thank you for your purchase of our exciting PT-7010A Pre/Pro/Tuner and we wish you many years of trouble free and enjoyable listening. From our company’s inception it has been our philosophy to concentrate our efforts on designing and engineering electronic components with rugged build quality, high performance and innovative features at affordable prices.

  • Page 5: Safety Precautions

    Pro/Tuner, it should be cleaned only as recommended in this Owner’s Guide. Never spray liquids directly into the component’s vent openings. Care should be taken so that small objects do not fall into the inside of the PT-7010A Pre/Pro/ Tuner. The following situations require your Sherbourn PT-7010A Pre/Pro/Tuner is serviced only by qualified service personnel: 1.

  • Page 6: Nec (National Electrical Code) Standards

    Gently lift out the unit and remove all the packing material and accessories. It is important to save all the packing materials and the box in case your Sherbourn PT-7010A ever needs to be moved or shipped back to the factory for service.
  • Page 7 Features of the PT-7010A Pre/Pro/Tuner • 24-bit, Crystal Semiconductor® Analog to Digital converter and 24-bit, 192kHz Analog Devices® Digital to Analog converter • 32-bit, 20 MHz control processor • 24-bit, 150 MIPS Motorola Symphony™ DSP processor • Dolby Digital EX®, Dolby Pro Logic II®, Dolby Pro Logic IIx®, DTS ES® and DTS NE0:6® decoding modes •...

  • Page 8: Pt-7010A Front Panel Features

    PT-7010A Front Panel Features Power Button This turns the PT-7010A on or off. It is a non-latching momentary button. If you press Z2 first, it can turn on Zone 2 (even if the Main Zone is off). IMPORTANT- Please note the PT-7010A requires initialization after the power cord is plugged into the AC receptacle.

  • Page 9: Am/Fm Tuner Controls

    AM/FM Tuner Controls The AM/FM button toggles between the AM or FM band. Press and hold it to scan of the station presets. Press it again or press a preset button to stop the scan. DIRECT Tuner Controls Press the DIRECT button, then the numbers for frequency tuning.

  • Page 10: Pt-7010A Rear Panel Layout

    Note that component video provides the best picture compared to composite or S-Video. The PT-7010A can also route HDTV signals. 4 Component Video Out If your TV Monitor has component video inputs, connect them to these outputs.

  • Page 11: Ch Analog Input

    You can select this as an input from the front panel or remote control. The eight channels of analog audio will then pass into the PT-7010A Note: This is designed to be a very short, ultra pure, analog-only signal path. DSP-...

  • Page 12: 18 Iec Line Cord Socket

    The Sherbourn PT-7010A requires a minimum of 2 amperes @ 120 volts. It should be sufficient to allow the PT-7010A to share a wall socket with other video source units, but power amplifiers and a video display (big screen TV or video projector) should each be provided a SEPARATE electrical connection on a SEPARATE circuit.

  • Page 13: Connection Tips For Video Quality And Flexibility

    Example: - Typically you will connect your video display (Television or Projector) to the Component Video outputs of the PT-7010A. With the up conversion capability any of the video sources using Composite Video or S-Video inputs would automatically be converted to Component Video.
  • Page 14 Option 1 This shows independent 12 VDC outputs that will turn on any compatible external amplifier with a 12 VDC trigger input. Use the middle relay contacts to enable another independent device that will turn on (as the contacts close) whenever a “trigger enabled”...

  • Page 15: Connection Diagrams

    Composite Video. When you select DVD on the PT-7010A, the audio output from the DVD player will play through the audio system and video will appear on the TV or projector (remember that you must first select the correct input on the TV).

  • Page 16: Connection Diagram 2

    Dolby Digital or DTS. Use Coaxial (shown) or Optical cables When you select DVD on the PT-7010A, the audio output from the DVD player will play through the audio system and video will appear on the TV or projector (you must first select the correct input on the TV).

  • Page 17: Connection Diagram 3

    Component Video output. Remember that with the video transcoding feature, the PT-7010A will still allow your Composite or S-Video source inputs to up convert to the Component Video outputs, but you...

  • Page 18: Connecting A Vcr

    VCR OUTPUTS from the PT-7010A into the VCR’s inputs This configuration allows the PT-7010A to route the output of the VCR into the TV or projector. If your VCR has S-Video outputs, you may use that connection type in lieu of the Composite Video...

  • Page 19: Connecting A Cd Player (Analog Audio)

    When you select CD on the PT-7010A, the audio output from the CD player will play through the audio system. While this method of connection is normal, if the CD player is equipped with an optical digital output you may choose to use that instead.

  • Page 20: Connection Diagram

    PLAY Depending on the type of tape deck you connect, the inputs and outputs on the PT-7010A can be connected to TAPE or DAT. If you have both types connected, the PT-7010A will switch automatically on to whichever source is playing. You can’t have both playing at the same time.

  • Page 21: Connecting The 8-Channel Analog Inputs

    (dedicated) surround processor. The 8 channels of audio completely bypass all digital signal processing functions of the PT-7010A including the tone controls, surround processing, and bass management features. This provides the purest signal quality for high resolution DVD-A or SACD media.

  • Page 22: Connecting The Am And Fm Antennas

    Position the AM and FM antennas where reception is best. The AM loop antenna that has been included with the PT-7010A has been matched to the AM tuner for optimum reception. If you choose to use an outdoor FM antenna, please observe proper safety...

  • Page 23: Connecting An Amplifier (Main Zone)

    Connecting an Amplifier (Main Zone for a 5.1 Configuration) In this configuration the PT-7010A is connected to 5 channels of amplification via balanced XLR connections. The sixth output would connect to the input of a powered subwoofer. If using more than one subwoofer, use the pass through output on one subwoofer to route the input signal to the additional subwoofer(s).

  • Page 24: Connecting An Amplifier (Zone 2)

    Connection Diagram 10: Connecting an Amplifier (Main Zone for a 7.1 Configuration) This configuration shows the 7.1 channel connections to a 7-channel amplifier. Also note the connection of the 12 VDC trigger to turn the amplifier on.
  • Page 25 Connection Diagram 11: Connecting a Separate Amplifier for Zone 2 This configuration shows the ZONE 2 connections to a 2- channel amplifier. The output is a left and right RCA connection. Zone 2 does not have the option of balanced XLR connections.

  • Page 26: Overview Of The Pt-7010A Remote

    • Does not lose programming memory when changing batteries Button Layout Think of the Sherbourn PT-7010A remote control as ten remotes in one. There are ten DEVICE buttons (five on either side of the display) and each allows the remote to operate one piece of equipment.

  • Page 27: Main Button

    Step 2 - Connect your source equipment and amplifiers to the PT-7010A. If you haven’t yet done this, please refer to the connection diagrams in the subsequent sections of this guide. Safety Precaution - Make sure that all of your equipment remains unplugged from the AC mains until you have made all the connections.
  • Page 28 Make sure the video can be seen in the TV monitor. Step 12 - Stop or pause the source. The PT-7010A now needs to be setup correctly to suit your speakers and system. The SETTINGS (OSD) menu is used to enter and make three main adjustments: •...
  • Page 29 - The PT-7010A has many more options which are described in further detail in the OSD menu section on page 34. These options will help you customize the PT-7010A to suit your tastes. You can do this after you have used the PT- 7010A for a while and have a better idea of how you would like to customize your system.

  • Page 30: Operation Of The Pt-7010A Using The Remote

    2) Press the ZONE 2 device button to set the remote to operate the Zone 2 of the PT-7010A. The display changes to show the PAGE 1 of the ZONE 2 input selections.

  • Page 31: Programming And Configuring Your

    LEARN mode. LEARN The PT-7010A remote can learn commands from other remote controls. This is useful if the pre-programmed commands do not operate some of your equipment, if certain buttons do not work, or you want to customize key functions.

  • Page 32: Step

    that there are two pages from which to choose. 4) Select the PLAY button just above the joystick pad. The display will show “READY.” 5) Press your DVD remote’s PLAY button. The display will show “GOOD” if it has been accepted. If it shows “FAIL,”...

  • Page 33: Recal (Recall)

    20 commands in sequence. For example, a single button press could turn on all of your home theater equipment, and set the PT-7010A to DVD, set the TV to channel 3, and set the DVD to play, make the tea and put the cat out.

  • Page 34: The On-Screen Display (Osd) Functions

    PT-7010A. Press EXIT to quit the OSD at any time. Any changes you make will be saved. Note that the PT-7010A front panel display shows abbreviated text when the OSD is activated. Quick Access to Information Pressing INFO at any time will bring up a short description of the source you are listening to.

  • Page 35: Modes Menu

    MODES Menu Dynamic Range This is the range in level between the loudest sound and quietest sound during Dolby Digital and DTS playback only. The options are QUIET (narrow range), MEDIUM (average range) and LARGE (wide range). Select Quiet for late night listening if you do not want to disturb anyone.

  • Page 36: Inputs Menu

    INPUTS Menu These menus let you select which input you would like to configure. Pressing the joystick right on each input brings up a second menu which allows you to configure what happens when each input is selected. Input Configuration Menus (The example shows the DVD menu) - Use the joystick up/down, and left/right to change...

  • Page 37: Settings Menus

    PRESET level, set below (the power-up volume), or it can play at the LAST level it was playing before it was turned off. The PT-7010A will always turn on at the level set here, but it can be adjusted to any level afterwards.

  • Page 38: Speakers Menu - Position

    SPEAKERS Menu - POSITION This menu allows you to enter the distance from your listening position to the various speakers. The PT-7010A will then automatically adjust and correct the speaker delay times. The sound from each speaker should arrive at the listener seated in the primary listening position at the correct time.

  • Page 39: Speakers Menu - Calibration

    3) The PT-7010A automatically sets the appropriate delays for each speaker so the sounds arrive at the primary listening position at the correct time. 4) Use the table at the right to record your speaker distance measurements. Speaker Placement Tip - There is no substitute for well placed speakers, especially in pairs and especially in the main front (L, C, R) positions.

  • Page 40: Crossover Adjustment

    80 Hz (the default). Set your subwoofer’s own crossover control to maximum frequency or bypassed mode. If it is set lower than the PT-7010A, there would be a hole in the mid bass, and bass information would be time.

  • Page 41: Software Menu

    (including mute or on-the fly trims), source, or surround mode are changed. The OSD circuit in the PT-7010A is not switched into the video path unless called up by an OSD action. This allows for the best possible video reproduction quality.

  • Page 42: Special Features Of The Sherbourn Pt-7010A

    Sherbourn PT-7010A Bass Management Unlike higher frequencies, it is difficult to discern exactly from which direction lower bass is coming. The PT-7010A has a bass management system which takes advantage of this effect. It allows you to choose whether your speakers will play the full frequency range, or if the bass will be redirected to the subwoofer.

  • Page 43: Surround Modes For Multi-Channel Sources

    This mode bypasses all DSP, Tone, and bass management circuits. It is stereo analog only, and offers the shortest signal path through the PT-7010A. Only the front left and right speakers are engaged. Do not use this mode for digital-only sources, as it only routes the analog audio. To prevent damage to your speakers, this mode only works if your front speakers are set to Large.

  • Page 44: Tuner Operation

    Hold UP or DOWN for a second or so, then release to start the scanning feature. The PT-7010A will scan to the next station, pause on it for a few seconds to allow you to hear what is offered there, and then scan to the next, and so on.

  • Page 45: Zone 2 Operation

    MAIN menu. Note: Zone 2 can also be turned on and adjusted without using the remote. Press the Zone 2 button on the PT-7010A front panel, followed by Power, to turn it on (or off), or adjust the input source or volume.

  • Page 46: Speaker Placement Tips

    Side-Axis Speakers The PT-7010A has two side-axis channels which are matrixed and derived from the left and right front channels, so they are available in stereo as well as surround modes.

  • Page 47: Surround Back Speakers

    Dolby Digital EX, Dolby Pro Logic 11x, and DTS ES. The PT-7010A can be configured for one or two surround back speakers. Ideally, all the surround speakers should be of the same make and model, and fitted at similar heights to produce a smooth continuous sound field.

  • Page 48: Remote Control Codes

    Remote Control Codes Audio Components ADC 007 Adcom 082, 092, 225, 161, 269 Aiwa 018, 104, 170, 202, 203, 213, 211, 188 Akai 138, 189 AMC 125, 126, 167, 128, 258, 281, Amend 054 AMX 196 Angstrom 142 Arcam 141 Audio Access 147 Audio Alchemy 135 Audio Design 194, 221, 011...

  • Page 49: Cable Boxes

    Turboscan 167 Velodyne 203 X-10 093, 183 Xantech 168, 169, 170, 171, 172, 188, 189 Cable Boxes ABC 103, 003, 004, 039, 042, 046, Amehcast 099 Antronix 014 Archer 005, 007, 014 Bell South 099 Centurion 092 Century 007 Citizen 007 Combano 080, 081 Comsat 074 Comtronics 030...

  • Page 50: Dvd Players

    Yorx 182 DVD Players Apex Digital 087 Denon 007, 080 GE 026, 027 Harman/Kardon 084 JVC 012 LG 091, 057, 074 Magnavox 066 Marantz 083 Mitsubishi 017 NAD 088 Onkyo 076, 035 Panasonic 021, 042 Philips 066 Pioneer 023, 092 Proceed 086 Proscan 026, 027 RCA 026, 027 Samsung 056, 070...

  • Page 51: Televisions

    Technics 007, 010, 076, 088, 109, 122, 193 Toshiba 112 Victor 106 Yamaha 021, 026, 031, 067, 040 Televisions Admiral 072, 081, 161, 160 Akai 197, 146 Amark 112, 143 Ampro 073, 167, 157, 183 Amstrad 052 Anam 043, 054, 056, 080, 112, 131 AOC 197, 004, 112, 058 Audiovox 076 Blaupunkt 088...

  • Page 52: Vcrs

    Zonda 112 VCRs Aiwa 034, 181 Akai 016, 043, 046, 124, 125, 142, Ampro 072 Anam 031 Audio Dynamics 012, 023, 039, Brooksonic 035, 037, 129 Canon 028, 031 Capehart 108 Craig 003, 040, 135 Curtis Mathes 031, 041 Daewoo 005, 007, 010, 065, 108, 110, 111, 112, 116, 117, 119 Daytron 108 DBX 012, 023, 039, 043...

  • Page 53: Troubleshooting Guide

    • If the bass is weak during Dolby Digital or DTS playback, check the correct audio output is selected in your DVD menu, otherwise it may just play stereo into your PT-7010A and you won’t get the true LFE signal to the subwoofer. Poor AM Reception •...

  • Page 54: No On Screen Display

    • If this does not work, try the reset procedure. Reset Procedure The PT-7010A is a microprocessor controlled device of great complexity. Occasional power fluctuations and spikes may cause the PT-7010A to “lock up” or act strangely. The PT-7010A can be reset as follows. • On pages 56-58, write input settings, Tuner presets, and any other settings you have made.

  • Page 55: Problems Updating Pt-7010A Firmware

    Factory Defaults” appears in the front panel display. When the PT-7010A has been reset, it will shut off. Turn the PT-7010A back on and it will go to the default screen. It has now been reset. If the PT-7010A has to...

  • Page 56: Favorite Settings Log

    You can use this section to log your favorite settings from various OSD menus and other preferences controlled by the PT-7010A. This will come in handy if the unit is ever powered down for transport or in the event loss of power is unintentional.

  • Page 57: Control Settings

    CONTROL SETTINGS RS-232 PORT REAR MAIN I/R REAR ZONE 2 I/R FRONT PANEL I/R VIDEO SETTINGS OSD VOL. POP-UP OSD SOURCE POP-UP OSD MODE POP-UP VIDEO DEFAULT VID 2 / MON 2 VIDEO DELAY Input Settings and Remote Codes You can reference the INPUT SETTINGS on page 36 of this manual. REMOTE CODES are found on pages 48-52. Check off the appropriate boxes, fill in the appropriate information and indicate levels where necessary.

  • Page 58: Speaker Settings

    SPEAKER Settings You can reference the SPEAKER SETTINGS on pages 37-39 of this manual. TRIM settings can be found on page 34.

  • Page 59: Technical Specifications

    Technical Specifications LINE LEVEL INPUTS Sensitivity: 125mV for 0.5V output Frequency Response: +/- 0.5dB from 20Hz to 20kHz Signal to Noise Ratio: (relative to 2V out) Analog 97dB Distortion (THD): <0.03% Separation (at 1kHz): 70dB Tone Control: Bass +/- 10dB Treble +/- 10dB AUDIO OUTPUT SECTION Frequency Response:...

  • Page 60: Software Upgrade

    Software Upgrade The PT-7010A Flash memory software can be upgraded by connecting your PC to the PT-7010A RS-232 serial port. The updated software may be downloaded from our website at www.Sherbourn.com. This is the preferred method, as the software can be updated relatively fast and the latest version is always available.

  • Page 61: Two Year Limited Warranty

    Subject to the terms and conditions stated below, Sherbourn Technologies, Inc. (Sherbourn) warrants to the original owner that this model PT-7010A shall be free from defects in workmanship or materials for a term of two (2) years from its date of purchase from an Authorized Sherbourn Dealer.
  • Page 62 Sherbourn Sherbourn Technologies, Inc., 19-3A Sterling Road, North Billerica, MA 01862 Tel (978) 663-7385 Fax (978) 663-7389 Web www.sherbourn.com...
