Pro-Form PFTL11010.0 User Manual page 8

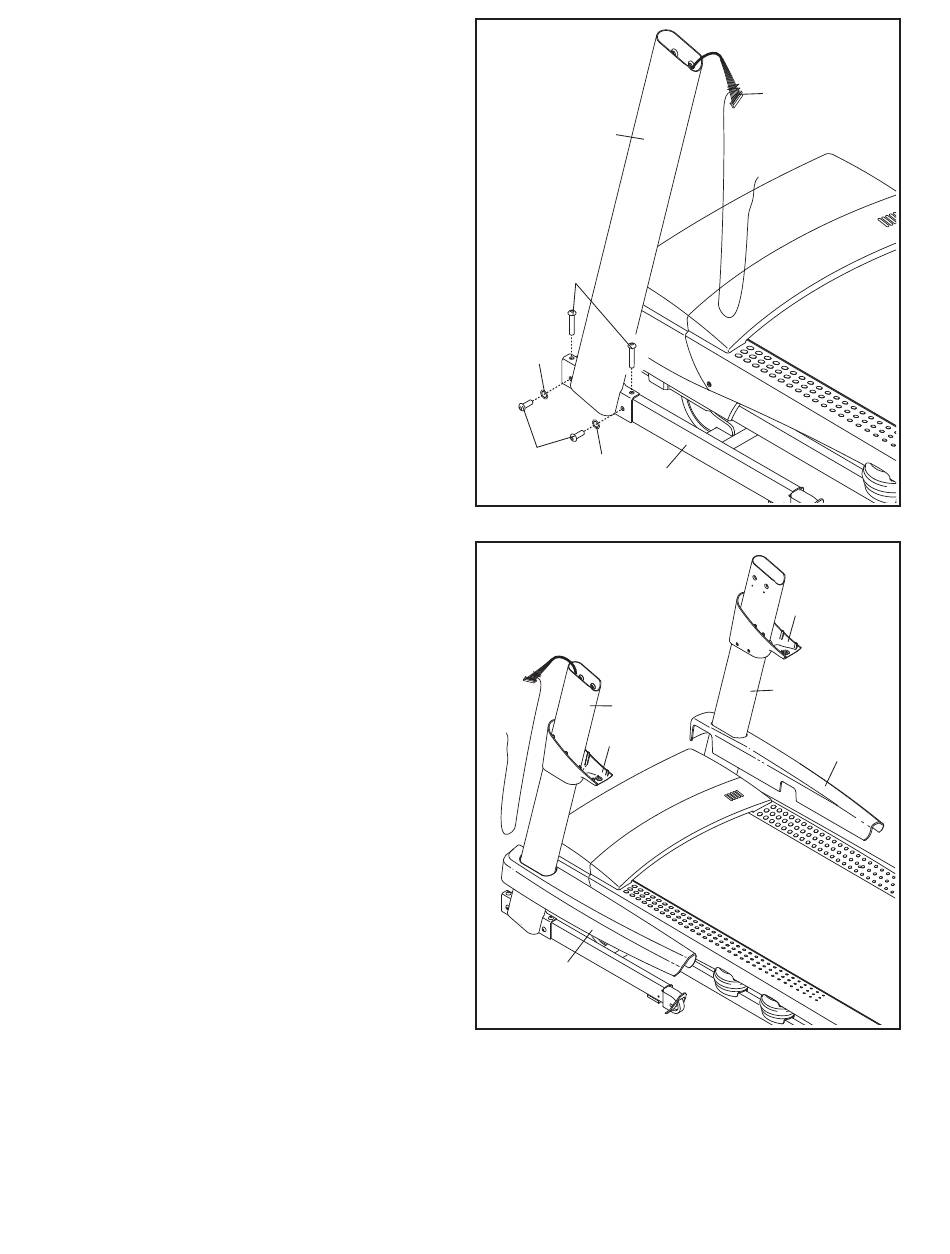

4. Hold the Left Upright (89) against the Base
(94). Be careful not to pinch the Upright
Wire (81). Insert two 3/8" x 1 1/4" Bolts (8) with
two 3/8" Star Washers (13) and two 3/8" x
2 3/4" Bolts (7) into the Left Upright.
Partially tighten the 3/8" x 2 3/4" Bolts (7) and
the 3/8" x 1 1/4" Bolts (8) until the heads of the
Bolts touch the Left Upright (89); do not fully
tighten the Bolts yet. Note: Use the short hex
key.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the
right side.
5. Identify the Left Base Cover (82) and the Right
Base Cover (83). Slide the Left Base Cover onto
the Left Upright (89). Slide the Right Base Cover
onto the Right Upright (90). Do not press the
Base Covers into place yet.
Identify the Left Upright Cover (79) and the
Right Upright Cover (80). Slide the Left Upright
Cover onto the Left Upright (89). Slide the Right
Upright Cover onto the Right Upright (90).
