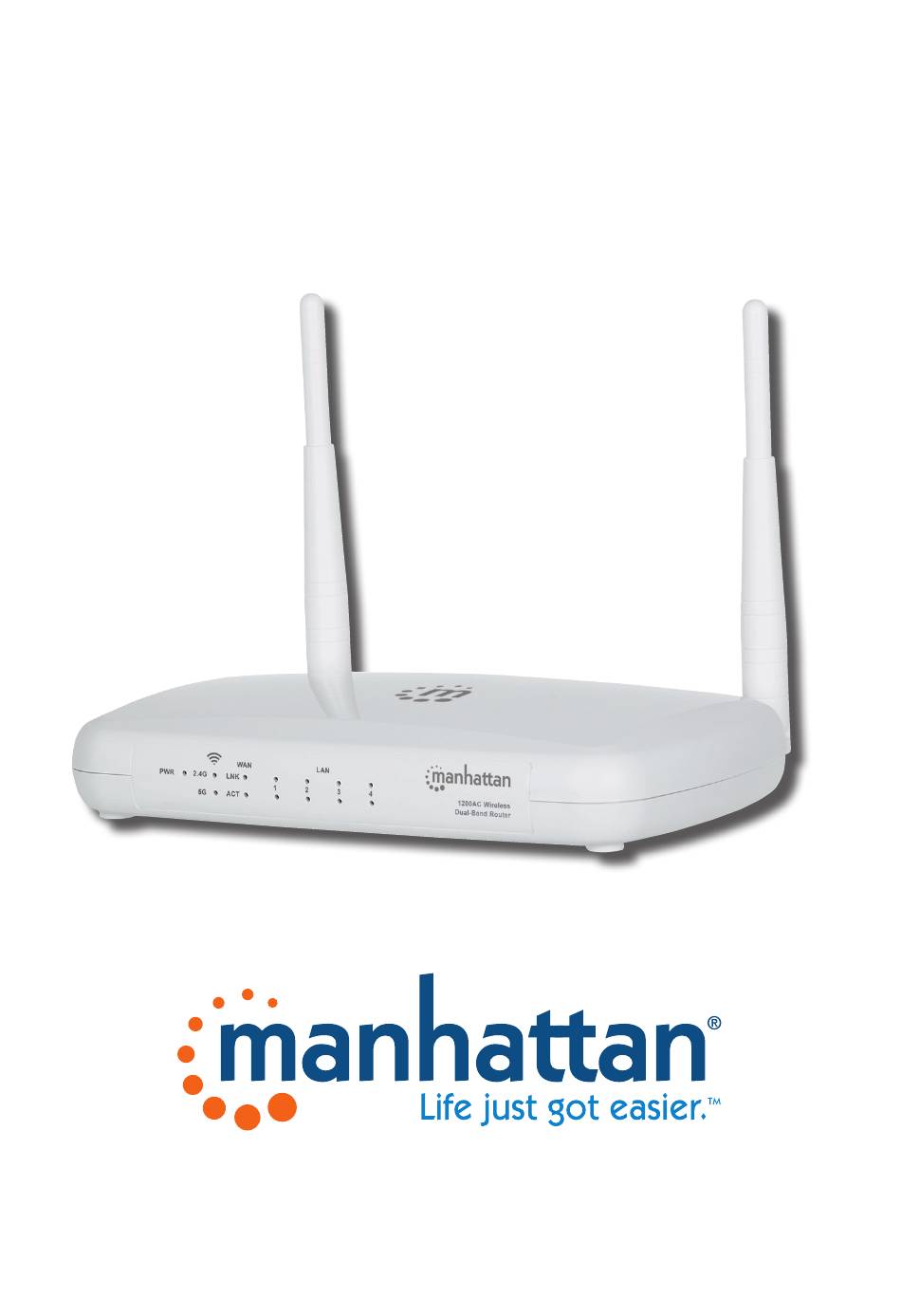

- Page 1 WIRELESS ROUTER USER MANUAL MODELS 525459, 525466, 525480, 525541 1200AC Model 525480 MH-525459/525466/525480/525541-UM-1114-02...
- Page 2 Thank you for purchasing this Manhattan Wireless Router. ® The latest in wireless networking, these Wireless Routers serve multiple purposes — an access point for your wireless network, a four-port router for hard-wiring Ethernet devices — and bring it all together so that the devices can access a high-speed Internet connection.
-
Page 3: Table Of Contents
TABLE OF CONTENTS section page section page 1 HARDWARE ...........5 2.7.4 Wireless Access Control ..31 1.1 Front Panel Display ......5 2.7.5 WPS ........32 1.2 Back Panel Display ......5 2.7.6 Security Tips ......33 2 SYSTEM & NETWORK SETUP .....6 3 ADVANCED FUNCTIONS ....35 2.1 Connecting the Router .....6 3.1 QoS ..........35 2.2 Connecting with Windows ....6... - Page 4 SAFETY GUIDELINES For the protection of equipment users and connected devices, follow these safety guidelines: 1. This router is designed for indoor use only; do not place this router outdoors. 2. Do not place this router in hot or humid environments. 3.
-
Page 5: Hardware
1 HARDWARE 1.1 Front Panel Display 150N / 300N 1200AC Status Description Router is powered on. WLAN Wireless network is switched on or WPS mode is on. Flashing Wireless LAN activity (transferring or receiving data). WAN / WAN port is connected. WAN LNK/ACT Flashing WAN activity (transferring or receiving data). -
Page 6: System & Network Setup
2.2 Connecting with Windows, Mac OS and Linux Before you can use your Manhattan router to connect to the Internet, you need to perform the Quick Setup, which will guide you through the setup procedure. -
Page 7: Quick Setup
2.3 Quick Setup The Quick Setup procedure lets you configure all the settings required for quick Internet access. The initial Quick Setup screen presents time settings. Set Time Zone — Use the drop-down menu to select your time zone. Time Server Address — Enter the IP address/hostname of the time server. This isn’t normally required, but if the default time server (NTP) should go offline, you can obtain a new NTP server from the list at http://www.ntp.org. -
Page 8: Cable Modem
Click “Next” to continue to the next screen of the Quick Setup procedure, where you select the broadband (Internet connection) type you use. On all screens, click “Apply” (if such button appears at the bottom) to submit any option or configuration changes. Click “Back” to return to the previous screen. Click “Cancel”... -
Page 9: Fixed Ip Xdsl (Static Ip)
MAC address — Enter the MAC address of your computer here if your service provider only permits a computer with a certain MAC address to access the Internet. If you’re using a computer used to connect to the Internet via cable modem, you can simply click “Clone Mac address”... -
Page 10: Pppoe Xdsl
2.3.3 Setup Procedure for PPPoE xDSL User Name — Enter the username assigned by your ISP. Password — Enter the password assigned by your ISP. Service Name — Provide a name for this Internet service. (optional) MTU — Enter the MTU value of your network connection. NOTE: Use the default value unless your ISP specifies otherwise. - Page 11 correctly entered; otherwise, the Internet connection will fail even if the PPTP settings are correct. Contact your ISP if you don’t know how you should fill in these fields. The PPTP Settings panel presents these options: User Name — Enter the username assigned by your ISP. Password —...
-
Page 12: L2Tp Xdsl
2.3.5 Setup Procedure for L2TP xDSL L2TP is another popular connection method for xDSL and other Internet connection types, and all required setting items are the same as the PPTP connection (see section 2.3.4 above). 2.3.6 Setup Procedure for Telstra BigPond This procedure is only for the Telstra BigPond network service in Australia. -
Page 13: Basic Setup
NOTE TO DSL USERS While PPPoE is the most common way to connect to DSL Internet service, it still may be necessary to enable “Cable Modem” in the Broadband settings. Below are examples for using Cable Modem instead of xDSL PPPoE, even if your Internet service is a DSL service. -
Page 14: Time Zone / Auto-Synch
management settings. Start your Web browser and log on to the router’s Web management interface by opening http://manhattanrouter, then click the “General Setup” button on the left. 2.4.1 Time Zone and Time Auto-Synchronization Click the “System” menu on the left of the Web management interface, then click “Time Zone.”... -
Page 15: Remote Management
If the passwords entered in the “New Password” and “Confirmed Password” fields aren’t the same, you’ll see the message at right. Re-enter the new password. If you see the error message at right, it means the content in the “Current Password” field is wrong. -
Page 16: Wan Setup
NOTE: To manage this router from another computer on the Internet, you need to input the IP address and port number of this router. If your Internet service provider assigns you a static IP address, it will not be a problem; but if the IP address your service provider assigns will vary every time you establish an Internet connection, this will be a problem. -
Page 17: Dynamic Ip
2.5.1 Setup Procedure for Dynamic IP Host Name — Enter the host name of your computer. (This is optional and is only required if your service provider asks you to do so.) MAC Address — Enter the MAC address of your computer if your service provider only permits a computer with a certain MAC address to access the Internet. -
Page 18: Pppoe
2.5.3 Setup Procedure for PPPoE User Name — Enter the user name assigned by your Internet service provider. Password — Enter the password assigned by your Internet service provider. Service Name — Enter a name for this Internet service. (optional) MTU —... -
Page 19: L2Tp
entered; otherwise, the Internet connection will fail even if the PPTP settings are correct. Contact your ISP if you don’t know how you should fill in these fields. The PPTP Settings panel presents these options: User Name — Enter the username assigned by your ISP. Password —... -
Page 20: Telstra Bigpond
2.5.6 Setup Procedure for Telstra BigPond This procedure is only for the Telstra BigPond network service in Australia. User Name — Enter the username assigned by Telstra. Password — Enter the password assigned by Telstra. Assign login server manually — Select to choose the login server by yourself. Server IP Address —... -
Page 21: Dns
preferred DNS server or use a static IP address, or if your service provider didn’t assign the IP address of the DNS server for any reason, you can input the IP address of the DNS server here. Primary DNS — Enter the IP address of the DNS server provided by your ISP. Secondary DNS —... -
Page 22: Lan Configuration
2.6 LAN Configuration This section explains the IP address settings of the local network. Normally, there is no need to make any changes here: The default values work fine for most applications, and you could just go directly to section 2.7 WLAN Configuration. There are two ways to assign IP addresses to computers: static IP address (set the IP address for every computer manually) and dynamic IP address (the IP address of computers will be assigned by the router automatically). -
Page 23: Dhcp Server
Subnet Mask — Enter the subnet mask for this network. 802.1d Spanning Tree — Select “Enable” or “Disable” from the drop-down menu. DHCP Server — Select “Enable” or “Disable” from the drop-down menu. RECOMMENDED VALUES IP Address: 19.2.168..2.1 8.02.1d Spanning Tree: Disabled Subnet Mask: 255.255.255.0 DHCP Server: Enabled 2.6.2 DHCP Server... -
Page 24: Static Dhcp Leases Table
2.6.3 Static DHCP Leases Table This function allows you to assign a static IP address to a specific computer forever, so you don’t need to set the IP address for a computer to enjoy the benefit of using a DHCP server. A maximum of 16 static IP addresses can be assigned here. NOTE: If you set “Lease Time”... -
Page 25: Basic Wireless Settings
the wireless function of this router to connect to the Internet and share resources with other computers on your network. It’s strongly recommended that you use the built-in security functions to protect your network from intruders. Click the “Wireless” menu on the left of the Web management interface to open the wireless settings page. -
Page 26: Advanced Wireless Settings
• “2.4 GHz (B+G+N)” allows 8.02.11b, 8.02.11g and 8.02.11n wireless network clients to connect to this router (maximum transfer rate of 11 Mbps for 8.02.11b clients; maximum of 54 Mbps for 8.02.11g clients; maximum of 300 Mbps for 802.11n clients. NOTE: For optimal compatibility with wireless clients, select “2.4 GHz (B+G+N).”... -
Page 27: Wireless Security
N Data Rate — Same as above, but only for 802.11n clients. Channel Width — Set the channel width of the wireless radio. NOTE: If you aren’t sure what this should be set to, leave it as the default setting (“Auto 20/40 MHz”). Preamble Type —... - Page 28 card information or bank records. Click the “Security Settings” menu on the left of the Web management interface to select one of the four encryption methods from the drop-down menu (see image below). 2.7.3.1 Disable Wireless Security When you select this mode, data encryption is disabled and every wireless device in proximity will be able to connect your wireless router if no other security measure is enabled (like using MAC address access control disabling ESSID broadcast).
- Page 29 Default Tx Key — You can set up to four sets of WEP keys, and you can designate one as the default here. NOTE: If you don’t know which one you should use, select “Key 1.” Encryption Key 1-4 — Enter WEP key characters here. The number of characters must be the same as the number displayed n the “Key Format”...
- Page 30 2.7.3.3 Wi-Fi Protected Access (WPA) Pre-Shared Key WPA Unicast Cipher Suite — Once you select one of the three ciper options — “WPA (TKIP),” “WPA2 (AES)” or “WPA2 Mixed” — make sure your wireless clients support it. Pre-shared Key Format — Select the type of pre-shared key from the drop-down menu: “Passphrase”...
-
Page 31: Wireless Access Control
“WPA (TKIP),” “WPA2 (AES)” or “WPA2 Mixed” — make sure your wireless clients support it. RADIUS Server IP address — Enter the IP address of the RADIUS server. RADIUS Server Port — Enter the port number of the RADIUS server. RADIUS Server Password —... - Page 32 “aa-bb-cc-dd-ee-ff” or “aa:bb:cc:dd:ee:ff,” just enter “aabbccddeeff” (without the quote marks). Comment — This is optional and can be left blank, but it’s recommended that you enter something (such as “My Desktop,” as shown) that will help you identify an address later. Add —...
-
Page 33: Wps
to connect to this wireless router. Click the “Wireless” menu on the left of the Web management interface, then click “WPS.” Enable WPS Settings — Check the box to enable the function; uncheck to disable. Enable WPS Proxy — Check the box to enable the function; uncheck to disable. When enabled, it allows another access point to serve as an “intermediary”... - Page 34 WPA or WPA2, you should abandon WEP entirely. • You can hide the ESSID of this router by setting the “Broadcast ESSID” option (refer to section 2.7.2.Advanced Wireless Settings) to “Disable.” Once this option is disabled, the router will no longer broadcast the SSID; thus, wireless clients in the area will not be able to see the wireless network in the list of available WLAN networks.
-
Page 35: Advanced Functions
3 ADVANCED FUNCTIONS 3.1 Quality of Service (QoS) Quality of service provides an efficient way for computers on the network to share the Internet bandwidth with a promised quality of Internet service. Without QoS, all computers and devices on the network compete with each other to get Internet bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) are affected negatively, resulting in an interruption of video/audio transfers. -
Page 36: Adding A New Qos Rule
Current QoS Table — All existing QoS rules are shown here. Add — Click to add new QoS rules (see section 3.1.2 Adding a New QoS Rule). Edit — To modify the content of a specific rule, check the “Select” box of that rule, then click “Edit.”... -
Page 37: Nat
Local IP Address — Specify the local (source) IP address that will be affected by this rule. Enter the starting IP address in the left field, and enter the end address in the right field to define a range of IP addresses; or just enter the IP address in the left field to define a single IP address. -
Page 38: Port Forwarding
Click the “NAT” menu on the left of the Web management interface. NAT is enabled by default, and there is normally no need to change this. 3.2.1 Port Forwarding With this function, you can tell the router to forward incoming connections bound to a specific port or port range to an IP address on your local network. -
Page 39: Virtual Server
Type — Select the type of connection from the drop-down menu: “TCP,” “UDP” or “Both.” If you’re not sure which to use, select “Both.” Port Range — Enter the starting port number in the left field and enter the ending port number in the right field. -
Page 40: Port Mapping
Private IP — Enter the IP address of the computer on the local network that provides Internet service. Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address. Private Port —... -
Page 41: Upnp
Current Trigger-Port Table — All the settings for the specifal applications are listed here. Delete — To remove a Special Application setting from the Current Trigger-Port Table, select the setting and click “Delete.” Delete All — Click to delete all existing specifal application settings. 3.2.4 UPnP This function enables network auto-configuration for peer-to-peer communications. -
Page 42: Firewall
3.3 Firewall In addition to the NAT feature, this router provides firewall functionality to block malicious intruders from accessing the computers on your local network. Click the “Firewall” menu on the left of the Web management interface. Firewall Module — Check to enable this function; uncheck to disable. 3.3.1 Access Control This function allows or denies computers with a specific MAC address —... - Page 43 address label of your device reads “aa-bb-cc-dd-ee-ff” or “aa:bb:cc:dd:ee:ff,” just enter “aabbccddeeff” (without the quote marks). Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address. Comment —...
-
Page 44: Add Pc
3.3.2 Add PC Clicking “Add PC” on the Access Control screen will display this page. Client PC Description — Enter up to 16 alphanumerical characters to describe this IP address. Client PC IP Address — Enter the starting IP address in the left field and the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address. -
Page 45: Url Blocking
Protocol — If the service you need is not listed, you can create a new service yourself. Select “TCP” or “UDP” from the drop-down menu and follow the Port Range instructions below. If you’re not sure which Protocol to use, select “Both.” Port Range —... -
Page 46: Dos Attack Prevention
“http://www.blocked-site.com” or “http://11.22.33.44”), or a keyword contained in a URL (like “pornography,” “sex,” “banner advertisement,” etc). Add — Click to add the URL/keyword to the URL/Keyword Filtering Table. Reset — Click to remove all entries in the “URL/Keyword” text field. Current URL Blocking Table —... - Page 47 and the router will filter this kind of traffic out. Advanced Settings — Click to set advanced settings of the DoS prevention method listed above. (See section 3.3.4.1 DoS – Advanced Settings below.) 3.3.4.1 DoS – Advanced Settings Clicking “Advanced Settings” on the first DoS Module screen will display this page. Ping of Death —...
-
Page 48: Dmz
Enable DMZ — Check to enable this function; uncheck to disable. Public IP — Select “Dynamic IP” or “Static IP.” If you select “Dynamic IP,” you need to select an Internet connection session from the drop-down menu; if you select “Static IP,”... -
Page 49: Additional Functions
4 ADDITIONAL FUNCTIONS/FEATURES 4.1 Status This screen and the submenus that can be accessed from here show information about the firmware version of the router, the Internet connection, IP address information, log files and more. Click the “Status” link at the upper-right corner of the Web management interface. -
Page 50: Device Status
This screen shows IP address information the router has obtained. If you experience problems with your Internet connection, open this page and check the contents. Values for IP address, default gateway and primary DNS should always be filled. If they’re missing, it indicates that there is a connection problem preventing the router from accessing the Internet. -
Page 51: Active Dhcp Client
4.1.5 Active DHCP Client If you’re using the DHCP server function of this router, you can use this function to check all active DHCP leases issued by this router. 4.1.6 Statistics Statistics of the wireless LAN, wired LAN and WAN interface of the router are shown on this screen. -
Page 52: Firmware Upgrade
4.2.2 Firmware Upgrade The firmware of the router is like the operating system on your computer. Firmware upgrades for this router may be available at manhattan-products.com. If you experience technical difficulties, you should first check if any updated firmware is available for the router and install it using this firmware upgrade function. -
Page 53: Reset
Browse — Click to locate the firmware file you’ve downloaded. If the file is in Zip (compressed archive) format, you need to uncompress it prior to the upgrade. Apply — Click to start the firmware upgrade process. Never interrupt the upgrade process by closing the Web browser or by physically disconnecting your computer from the router. -
Page 54: Troubleshooting
5 TROUBLESHOOTING This section helps you troubleshoot problems you may be experiencing with the router. Before you contact your dealer for help, you should perform the following troubleshooting steps as they apply to your situation. The router is not responding when I want to access it with the Web browser. •... - Page 55 My wireless notebook cannot see or connect to the wireless network. • Check if Broadcast ESSID is off. Remember that you need to input the ESSID on your wireless client manually if the ESSID broadcast is disabled. • Check that you’ve securely attached the antenna(s). •...
-
Page 56: Glossary
6 GLOSSARY Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out toward the destination. - Page 57 ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations. LAN: Local Area Network. A LAN is a group of computers and devices connected together in a relatively small area (such as a house or an office). Your home network is considered a LAN.
- Page 58 © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
