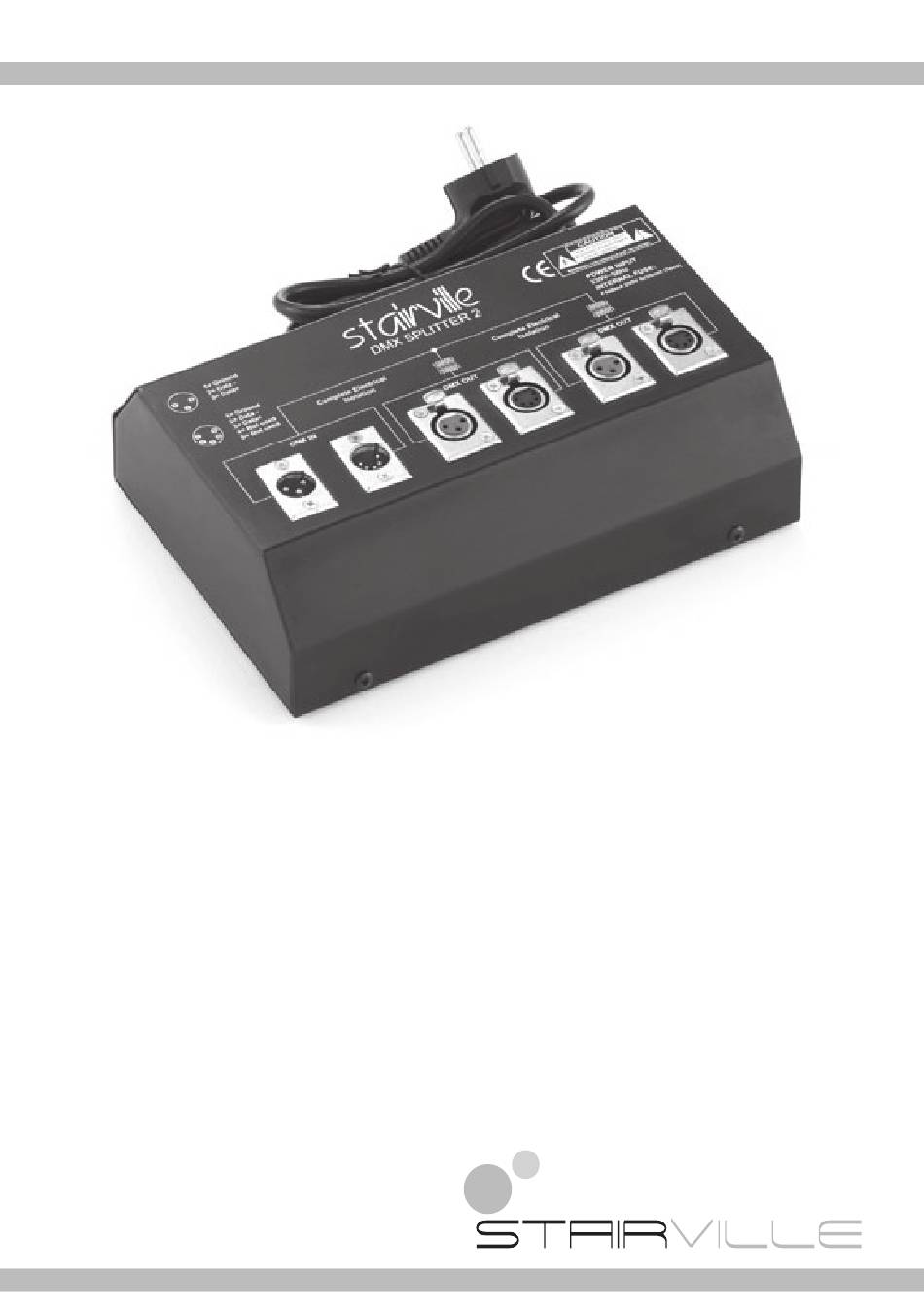

STARVILLE DMX SPLITTER 2 Owner's Manual

Owner's Manual

DMX SPLITTER 2

www.thomann.de

Table of Contents

Need help?

Do you have a question about the DMX SPLITTER 2 and is the answer not in the manual?

Page 1 Owner‘s Manual DMX SPLITTER 2 www.thomann.de...
Page 2 To eliminate the risk of fire you must completely disconnect the power plug from the power socket after the device has been used. STAIRVILLE • DMX SPLITTER 2...
Page 3 Always grasp the power cord by the plug. Do not pull on the cord itself and never touch the power cord with wet hands as this could result in a short circuit or an electrical shock. Do not place the device, speaker cabinets or anything else on the power cord and make sure that it does not become clamped.
Page 4 As we continuously strive to improve our products, all specifications and appearance are subject to change without prior notice. Operating instruction and connection DMX OUT: connect the DMX receiving device(s) here DMX IN: connect the DMX transmitting device here STAIRVILLE • DMX SPLITTER 2...
Page 5 1= Shield This is the unit’s pin assignment: 2= Data – 3= Data + Pin 1: Ground/Shielding Pin 2: Data – Pin 3: Data + Pin 4: not used 1= Shield Pin 5: not used 2= Data – 3= Data + 4= not used 5= not used Connection diagrams:...
Page 6 Have the product disposed of by a professional disposal company of by your communal disposal facility. Observe the currently applicable regulations. In case of doubt contact your disposal facility. Dispose of packaging materials in an environmentally responsible manner. STAIRVILLE • DMX SPLITTER 2...
Page 7 www.thomann.de...
