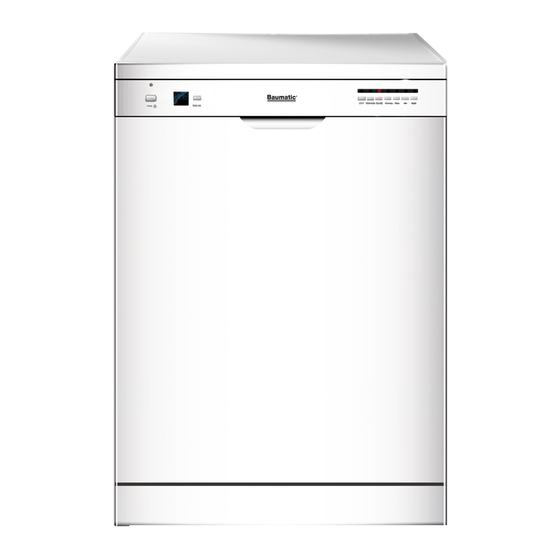

- Page 1 BDF665W 60 cm Freestanding dishwasher...
- Page 2 USER MANUAL FOR YOUR BAUMATIC BDF665W 60 cm Freestanding dishwasher NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 7 Specifications 8 - 9 Product dimensions Product specifications Energy efficiency details Electrical details Description of the appliance 9 - 10 Control panel Using your dishwasher 10 - 21 Before first use Filling with dishwasher salt 11 - 12 Setting the water softener level... -
Page 4: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
General Safety o Repairs to your appliance must only be carried out by a Baumatic engineer or one of its authorised service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your dishwasher. - Page 6 This appliance is only designed to wash normal domestic washloads. If you use your dishwasher in any other way or it is incorrectly used, then Baumatic accepts no liability for any damage that might be caused and any guarantee will be void.
- Page 7 Child Safety o Your dishwasher should only be used by adults. You should not allow children in the area of the machine unsupervised. You should not let them touch the controls or play with the appliance. o It could be possible for a child or pet to gain access to the dishwasher if the door is left open.
-
Page 8: Specifications
Specifications Product dimensions Height: 850 - 855 mm Width: 600 mm Depth: 580 mm Product specifications o 12 Place settings o 7 functions: Normal Intensive Economy Glass Rapid Rinse 3 in 1 o 4 Wash temperatures: 40°C, 45°C, 50°C, 60°C o 3 Rinse temperatures: 45°C, 60°C, 70°C o Delay start o LED display... -
Page 9: Energy Efficiency Details
o 3 in 1 wash program o Low water consumption (13 litres) Energy efficiency details Energy efficiency class: Washing performance class: A Drying performance class: Electrical details Rated voltage: 230 Vac 50 Hz Supply connection: 13 A (double pole switched fused outlet with 3 mm contact gap) Description of the appliance Upper basket... -
Page 10: Control Panel
Control panel ON/OFF button LED display (+ rinse aid and salt required indicator neons) Delay start button Program selection buttons Power indicator neon Program indicator neons Using your dishwasher Before first use o Install the appliance as per the installation instructions contained within this booklet. -
Page 11: Filling With Dishwasher Salt
Filling with dishwasher salt IMPORTANT: You should only use salt that is specially designed for use in a dishwasher. If any other type of salt is used in the appliance (in particular table salt), it will damage the water softener. o Ideally you should fill the water softener with salt, just before you are about to run a wash program. -
Page 12: Setting The Water Softener Level
o IMPORTANT: You do not need to pour 0.5 litres of water into the container when you subsequently fill the water softener with salt. Setting the water softener level It is possible to regulate the amount of salt that the water softener will release during a wash cycle. -
Page 13: Filling With Rinse Aid
Filling with rinse aid The rinse aid is released during the final rinse and it helps to prevent water from forming droplets on your dishes. These droplets will lead to spots and streaks being left on items after the wash program has completed. o Your dishwasher is designed to utilise liquid rinse aid. -
Page 14: Setting The Rinse Aid Level
o Replace the cap and turn it clockwise until it locks into position. o You should refill the rinse aid dispenser when the rinse aid required indicator neon lights on the control panel. o IMPORTANT: If you are using 3 in 1 dishwasher tablets then you should still fill the rinse aid dispenser. -
Page 15: Filling With Dishwasher Detergent
Filling with dishwasher detergent The detergent dispenser must be refilled at the start of each wash cycle (apart from the rinse wash program). o Open the lid that closes over the detergent dispenser and place the detergent inside of the dispenser. o The section marked A in the diagram is for the main wash cycle detergent. -
Page 16: Loading The Upper Basket
Loading the upper basket The upper basket is most suited to washing delicate and light dishware, such as glasses, coffee & tea cups, saucers, plates, bowls and shallow pans (that are not heavily soiled). o You should position the dishes and cookware in such a way that they are not moved by the spray of water during the wash cycle. - Page 17 Lower position o If the upper wheels are placed in the guide supports, then the basket is in the lower position. o For accommodating additional tumblers, cups and mugs. You can also place small, espresso sized cups on top of the side racks. You should take care to ensure that there is enough clearance between the top of the cups placed on top of the side racks and the underneath of the dishwasher interior.
-
Page 18: Loading The Lower Basket
Loading the lower basket The lower basket is most suited to washing larger and more heavily soiled items, such as saucepans, saucepan lids and serving dishes. You can also load bowls and a variety of plates into the lower basket. o Saucepans and serving bowls must always be placed with their bases upwards. -
Page 19: The Cutlery Basket
The cutlery basket Cutlery should be placed inside of the cutlery basket. The cutlery basket should then be placed in the appropriate position in the lower basket. o For the best washing performance, cutlery should be placed through the slots in the top of the cutlery basket. IMPORTANT: Do not allow items of cutlery to fall through the bottom of the cutlery basket, as this may cause damage to the spray arm and/or the cutlery. -
Page 20: Loading Dishes And Cutlery
Loading dishes and cutlery Household cloths, sponges or any other object that may absorb water SHOULD NOT be washed in a dishwasher. o Remove leftovers and soften the remnants of burnt food in pans, prior to loading dishes in the appliance. o Once the dishwasher has been loaded, check that the spray arms can move freely. - Page 21 The following items are NOT suitable for washing inside a dishwasher:- o Cutlery with a handle of mother-of-pearl, wood, horn or china. o Plastic items that are not resistant to heat. o Cutlery that consists of glued parts that are not resistant to heat. o Cutlery items or crockery that are bonded.
-
Page 22: Program Table
Program table Program Program Description Detergent Program information of cycle pre/main Times** 3 in 1 For normally soiled Pre-rinse 3 in 1 loads, such as pots, Wash (45°C) minutes plates, glasses and Rinse (2:50 hours lightly soiled pans. Rinse (70°C) on display) Standard daily cycle Drying... -
Page 23: Setting A Wash Program
Setting a wash program Make sure that the “Before first use” section has been followed. o Check whether the appliance needs rinse aid or salt adding to it. o Pull out the top and bottom baskets, then load them in accordance with the loading instructions. -
Page 24: Changing A Wash Program
Changing the wash program o Press and hold down the program selection button of the wash program that was in progress for 3 seconds, to cancel the wash program. o Press another program selection button to choose the correct wash program. o After a few seconds, you will hear the appliance continue with the new wash program that you have selected. -
Page 25: Setting A Delay Start
Setting a delay start It is possible to delay the start of the wash program for a maximum of 24 hours. o Check whether the appliance needs rinse aid or salt adding to it. o Pull out the top and bottom baskets, then load them in accordance with the loading instructions. -
Page 26: The 3 In 1 Wash Program
The 3 in 1 wash program Make sure that the water softener has been filled with salt and that the water softener has been set to its lowest setting. Make sure that the rinse aid dispenser has been set to an appropriate level. -
Page 27: Rinse Aid And Salt Required Indicator Neons
Rinse aid and salt required indicator neons o The rinse aid and salt required indicator neons on the control panel will let you know when the appliance needs rinse aid or salt adding to it. o The neon indicates that you need to add rinse aid to the appliance. -
Page 28: Cleaning The Filters
IMPORTANT: Whilst the filtering system is efficient, your dishwasher is not a waste disposal unit. All items being washed inside of the dishwasher should have food scraps removed from them before being loaded into the appliance. Cleaning the filters For best performance and results, the entire filter assembly should be thoroughly cleaned regularly (ideally after each wash cycle). -
Page 29: Cleaning The Spray Arms
Cleaning the spray arms The spray arms should be cleaned regularly, to prevent hard water deposits from clogging the spray arm jets and bearings. o IMPORTANT: Remove the lower basket before attempting to remove the lower spray arm. o Gently pull upwards remove the lower spray arm. -
Page 30: Cleaning The Door
Cleaning the door o To clean the edge around the outside of the door, you should use a soft, damp cloth only. o To prevent water from penetrating the door lock or electrical components, DO NOT use a spray cleaner of any kind. o DO NOT use any abrasive cleaner or scouring pads on the inner or outer surfaces, as they may cause damage to them. -
Page 31: Error Code Failure System
Longer heating time- not reaching the required temperature. Malfunction of the temperature sensor or heating element. Call the Baumatic Customer Care Department. o The machine has sensed water in the base. Check that the outlet hose is not kinked or crushed. - Page 32 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 33: General Troubleshooting
Utensils are not Ensure that everything is loaded as secure in the baskets per Baumatic’s loading instructions. or something small has dropped into the basket Motor hums If the dishwasher is not going to be... - Page 34 Dishes and Improper program Select a more intense wash pans are not program. clean Improper loading Make sure that the spray arms and the detergent dispenser are not being impeded by large dishes. Spots and Extremely hard water filming on Low inlet glasses and temperature...
-
Page 35: Installation
Installation IMPORTANT: THIS INSTALLATION MUST COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION INSTALLATION GIVEN THIS INSTRUCTION MANUAL. SHOULD DISPOSE PACKAGING ENVIRONMENTALLY FRIENDLY MANNER. Positioning and levelling the appliance Remove all packaging from the outside and inside of the... -
Page 36: Applying The Condensation Strip
Place the dishwasher on a solid and level floor surface. DO NOT PLACE THE DISHWASHER ON A CARPET. Loosen the adjustable feet that are positioned on the base of the appliance. Adjust each of the four feet until the appliance is level. IMPORTANT: When the dishwasher is positioned in the location where it will be used. -
Page 37: Connecting To The Mains Water Supply
o Ensure that the underneath of the worktop is clean before sticking the strip to it. o Separate the backing paper away from the strip. o Stick the condensation strip to the underneath of the worktop. o IMPORTANT: Failure to attach the condensation strip could result in damage to your worktop. -
Page 38: Water Outlet
Water outlet The above line drawing shows three different ways in which you can position the drain hose. Secure the drain hose, so that it cannot move whilst the dishwasher is in use. Place the end of the drain hose on your drain pipe. Push it a short way down into your drain pipe. -
Page 39: Power Supply
Power supply IMPORTANT: The electrical socket must still be accessible once the appliance is installed. Consult the rating plate, located on the right hand side of the drop down door BEFORE making the electrical connections. Ensure that the voltage reaching the plug is the same as that on the rating plate. -
Page 40: Before First Use
IMPORTANT: We do not recommend that this appliance is connected to an extension lead. Before first use You should check the following before using the appliance for the first time:- o That the dishwasher is level and fixed in position. o That the water tap is fully open. -
Page 41: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Průmyslová zóna Sever 696 6 Bennet Road, 460 11 Liberec 11 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900...
