Tripp Lite PDUMV20NET Specification

PowerAlert Console Launcher

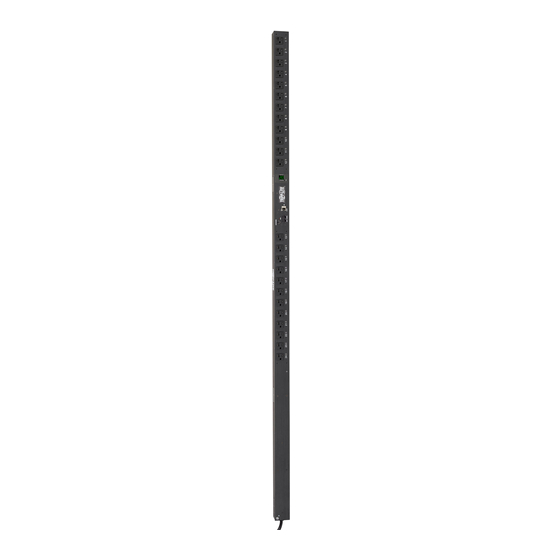

1.9kW Single-Phase Switched PDU, 120V Outlets
(24 5-15/20R), L5-20P/5-20P, 10ft Cord, 0U
Vertical, TAA
MODEL NUMBER: PDUMV20NET
Description
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and
monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle,
monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface
supports remote control and custom notification of user-specified conditions via email, PowerAlert
Console Launcher, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-
time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined
power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent
inrush-related overloads as network equipment is first energized. Unused PDU outlets can be
electronically locked off to prevent the connection of unauthorized hardware. PDU output current
consumption in amps is continuously displayed locally via visual meter and remotely via network interface
to warn of potential overloads before critical IT mains or branch breakers trip.
Features
Specifications
OVERVIEW
UPC Code
PDU Type
037332139719
Switched
1 / 3
Highlights
Switched 20A 120V PDU, 0U 70
in. / 178cm Vertical Rackmount
Format
Reports voltage, frequency &
load level via ethernet interface
Visual current meter, Toolless
button mount installation
NEMA L5-20P input with 5-20P
adapter, attached 10 ft. / 3m
cord
24 switched NEMA 5-15/20R
outlets with cord retention
brackets
Temperature, humidity and
contact closure monitoring
options
Federal Trade Agreements Act /
TAA Compliant for GSA
Schedule purchases
Package Includes
Rackmount PDU
L5-20R to 5-15/20P adapter
Rackmount brackets
PDUMVROTATEBRKT
