[Applicable Wheelbase Size]
950mm – 1,080mm
Warranty Period : 1 year
Features

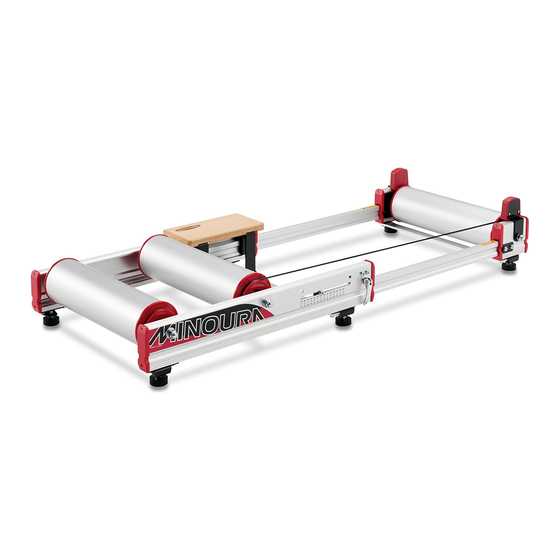

• Large 105mm diameter roller drum is easy to ride and super smooth.
• Newly designed sliding frame system makes adjusting for various wheel sizes easy and quick.
• Frames breaks down into a compact package for easy storage and utilizes quick releases to bring the unit back to
desired length.
• Specially designed roller layout provides a natural riding experience in a comfortable, level position.
• High quality wooden foot step comes in this kit.
Caution
Contact
[for U.S. customers]
MINOURA NORTH AMERICA
Hayward, California, U.S.A.
Phone 1-510-538-8599 / Fax 1-510-538-5899
support@minourausa.com
Triple Roller Trainer
Triple roller trainers require the riders to maintain their balance without the help of any
accessories or devices.
Make sure you can balance yourself on rollers before attempting to ride.
If you have any question or request, please read the supplied "Minoura Limited Warranty Policy" card
and contact the shop where you originally purhased this product or the distributor in your country first.
The distributor list can be found in our web site.
instruction manual
(The front wheel guard is removed)
[for ALL customers]
MINOURA JAPAN
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone +81-584-27-3131 / Fax +81-584-27-7505
minoura@minoura.jp
www.minoura.jp
(ver.1.0 2016/7)
Made in Japan
Advertisement
Related Manuals for MINOURA LiveRoll R720
Summary of Contents for MINOURA LiveRoll R720

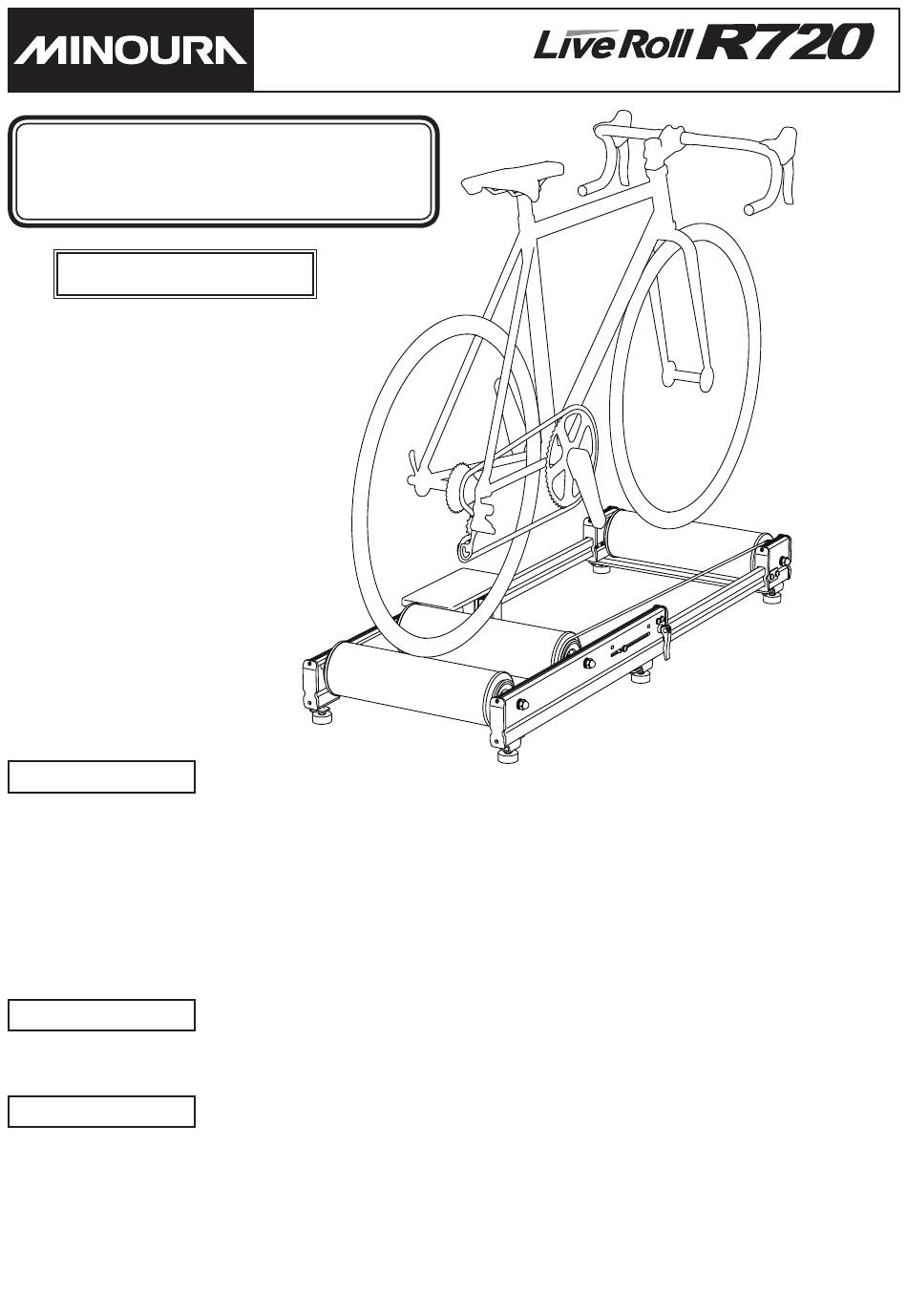

- Page 1 Make sure you can balance yourself on rollers before attempting to ride. If you have any question or request, please read the supplied "Minoura Limited Warranty Policy" card Contact and contact the shop where you originally purhased this product or the distributor in your country first.
-
Page 2: Important Notes
R720. Do not try to disassemble or modify the product without prior approval by Minoura. • Minoura shall offer 1-year limited warranty to this product from the date of purchase for the owner who originally purchased it in brand-new condition at Minoura authorized dealer. Any other problems than the things caused by manufacturer's defect such as natural wear will not be covered by this program. -
Page 3: Required Tools
How To Setup R720 Required Tools: 17mm Spanner , M4 Hex Wrench (not included) Take out the pre-assembled frame from the box. Please note the longer one is the rear frame and shorter one is the front frame. Flat side is outside and the narrow side is inside. Install the Quick Lever and nut to the front hole of the long hole on the Rear Frame. - Page 4 Next, install the rollers to the right side frame with the same method of Step-2. Make sure the Alloy Sleeve direction is correct. Make sure all Alloy Sleeves are correctly inserted to the holes on the frame. If not, the Alloy Sleeve or frame will be broken when tightening the nut in Step-5.
- Page 5 Lay the R720 on the floor, and tighten all dome nuts firmly. Do not over tighten the nut. This will cause serious damage to the frame, axle thread, and alloy sleeves. The desired tightening torque should be 10 N.m. It's much lighter than you expect. How To Install Foot-Step Required Tools: 10mm Spanner...
- Page 6 Set The Front Roller Position Required Tool : M4 Hex Wrench Wheelbase Setting Gauge (min. 950mm / max. 1,080mm) On triple roller trainer, the rear wheel position has been fixed by the position of Left Side Frame both middle and rear rollers. So you will change the front roller position to adjust to various wheelbase sizes.
- Page 7 Preparing R720 For Use Adjust the quick release properly At first, adjust the quick release properly so that as the 1st step you can tightely fix the Front Frame by just bending the lever. This step shoud be done while the frame is retracted.
- Page 8 Install The Front Wheel Guard While you are a beginner on the tri-roller, you need to understand that rollers require practice. Your front wheel will move side-to-side on the front roller and could cause you to come off the rollers if you're not careful. To prevent the front wheel from coming off the roller the R720 comes with a Front Wheel Guard Kit.
