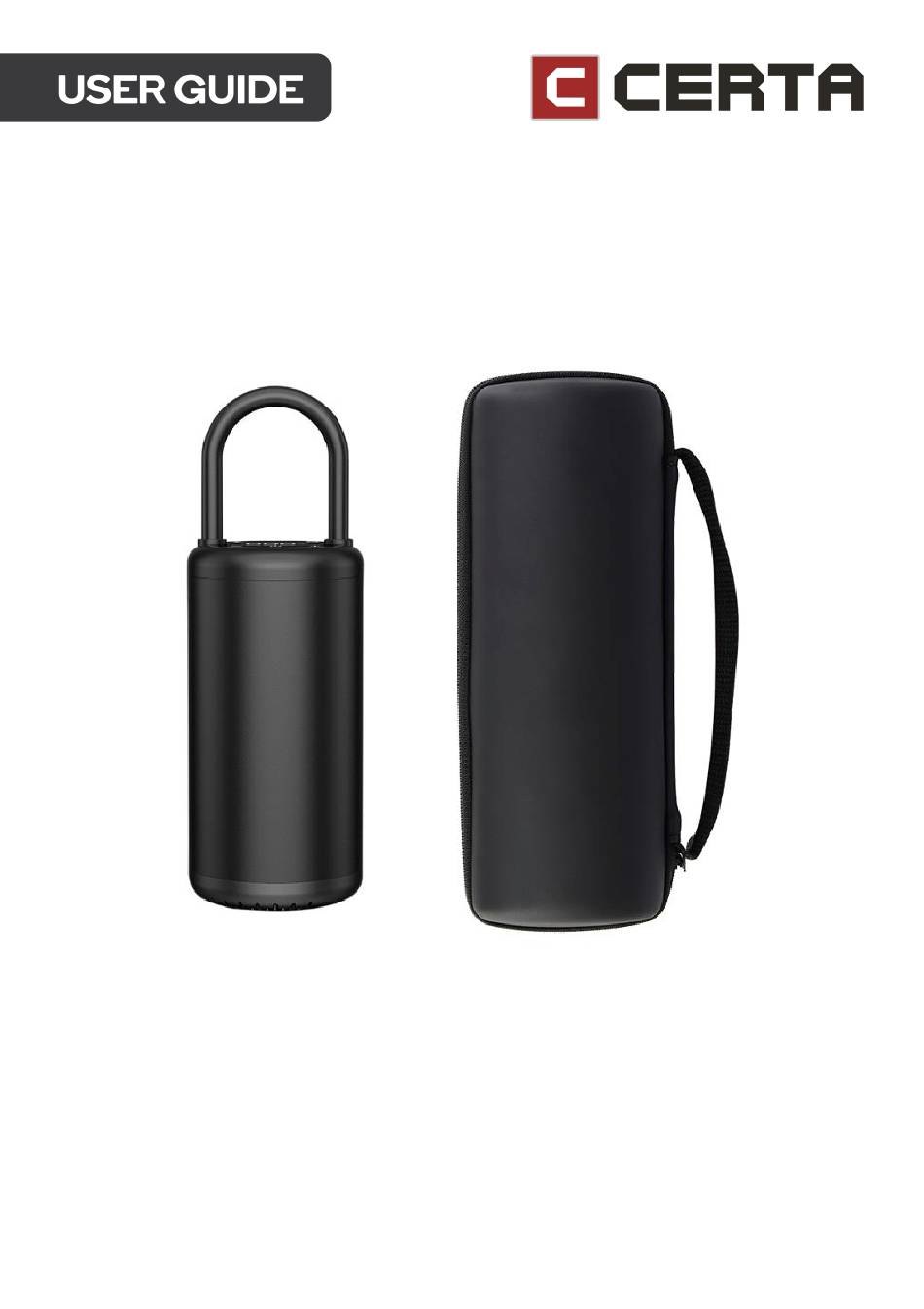

- Page 1 SMART CORDLESS MICRO AIR COMPRESSOR TYRE INFLATOR CTSMARTIFLA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Read these instructions carefully before using this product for the first time. Retain this user guide for future reference. • This product is suitable for the inflation of small cars tires, motorcycle tire, bicycle tire, balls, swimming rings and other inflatables •... - Page 4 OVERVIEW Valve Battery indicator Hose Mode button Touch screen Light button Hose storage port Increase button Light Power button Charging port Decrease button...
-
Page 5: Getting Started
GETTING STARTED Turning On Remove the air hose from the hose storage port. The inflator will automatically turn on. If there is no input for 180 seconds the inflator will automatically turn itself off to converse power. Press and hold the power button to turn the inflator back on. Turning Off When you have finished using the inflator, replace the hose back into the hose storage jack. - Page 6 Air Valves and Needle Schrader valve: Standard valve, suitable for mountain bikes, electric bikes, motorcycles and small cars tires. Presta valve: • Suitable for road bikes and some mountain bikes. • Connect the presta valve to the schrader valve before inflating. ir n eedle: •...
- Page 7 Air Pressure Guide In order to maintain user safety and avoid over or under inflating items, always check the recommended air pressure of the product. Below is a guide of recommended air pressure values for common products. Recommended Category Product Type Pressure Range Folding bicycle tire 45-50psi...
-
Page 8: Operation
OPERATION Fine-tuning Presets • After selecting the desired preset mode, press "+" or "-" to slowly adjust the air pressure value. • Press and hold "+" or "-" buttons to quickly adjust the air pressure value. • When adjusting the preset value the number flashing indicates the preset target and the solid number displays the current air pressure of the product. -
Page 9: Specifications
SPECIFICATIONS Pressure range 0.2~10.3bar/3~150psi Dimension (without hose) 70x140mm Working temperature Charging 0°C~45°C Operation -10°C~45°C Storage temperature -10°C~45°C Battery capacity 2600mAh Working noise less than 75dB when 1m away Input current 5V==2A Charging interface USB-C Charging time Less than 4 hours Air pressure gauge accuracy 35±1.5psi Common unit conversion: 1bar = 14.5psi, 1bar = 100kPa... -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Solution Check the power is sufficient Check if the air hose is leaking. Slow inflation Check whether the connection at both ends of the air hose are tight Check whether the air hose is pulled out. Check whether the power is sufficient Cannot inflate when turning on Check whether the current tire pressure value is higher than the preset value... - Page 11 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com.
