BEGA 77 756 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

4mm hex key
5mm hex key
Flat head screw driver medium
Phillips head screw driver medium
Protection Class: IP65
Weight: 4.9 lbs

Notice to Installer for 77 756:

1. This product must be installed in accordance with the applicable installation code
by a person familiar with the construction and operation of the product and the
hazards involved.
2. Mounts directly over a standard, vertical single gang wiring box (by others).
3. Ceiling and wall applications only.
4. In conformance with U.L. Standards 1598, a silicone-based sealant MUST be
used between the mounting plate edge and supporting wall.
5. WARNING: LEDs are high quality electrical components. Please avoid touching
them directly during installation.

77 756 - installation:

1. Loosen the (4) 4mm hex screw on the luminaire canopy and remove
luminaire base from luminaire.
2. Feed luminaire wiring through the luminaire base and mounting plate.
3. Make supply wiring and luminaire wiring connections inside the wiring box:
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE DRIVER DIM CONTROL WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE DRIVER DIM CONTROL WIRE
4. Mount luminaire to ceiling or wall using hardware (by others). Minimum
size: 8-32 screws
5. Replace luminaire canopy (with luminaire attached) and tighten (4) 4mm screws.
8. To adjust head angle, use 5mm hex key to loosen adjustment screw. Adjust
luminaire head as needed and tighten adjustment screw.

Relamping/Maintenance

No relamping necessary.
Lamp: 6.5W LED
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2017

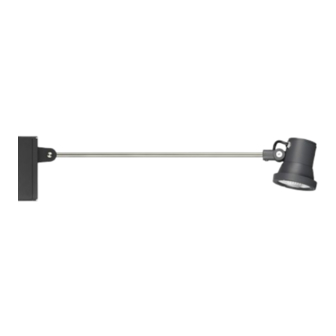

LED compact floodlight - outrigger
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.
180° Glare Shield
Elliptical Spread Lens

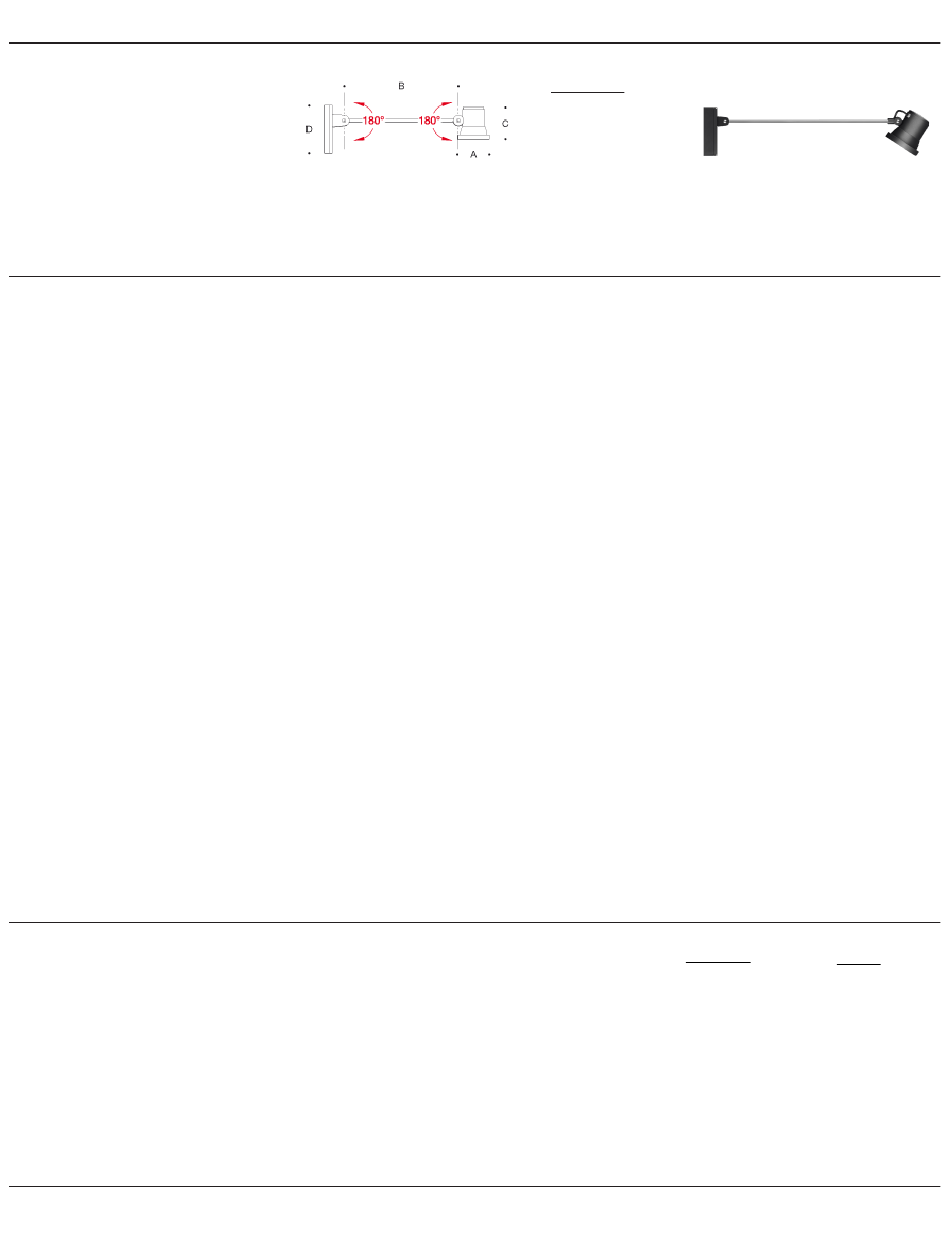

Dimensions

A: 4-1/8 "
B:
27-1/2 "
C: 4-3/8 "
D: 7-1/2 x 3-1/2 "

Replacement Parts

Description
Diffuser
Gasket
LED driver (120V-277V)
70 755
LED module (4000K)
70 050
77 756
Part No
140850
831652
75943
LED-0329/840
77 756
12/4/2017
Page 1 of 2
