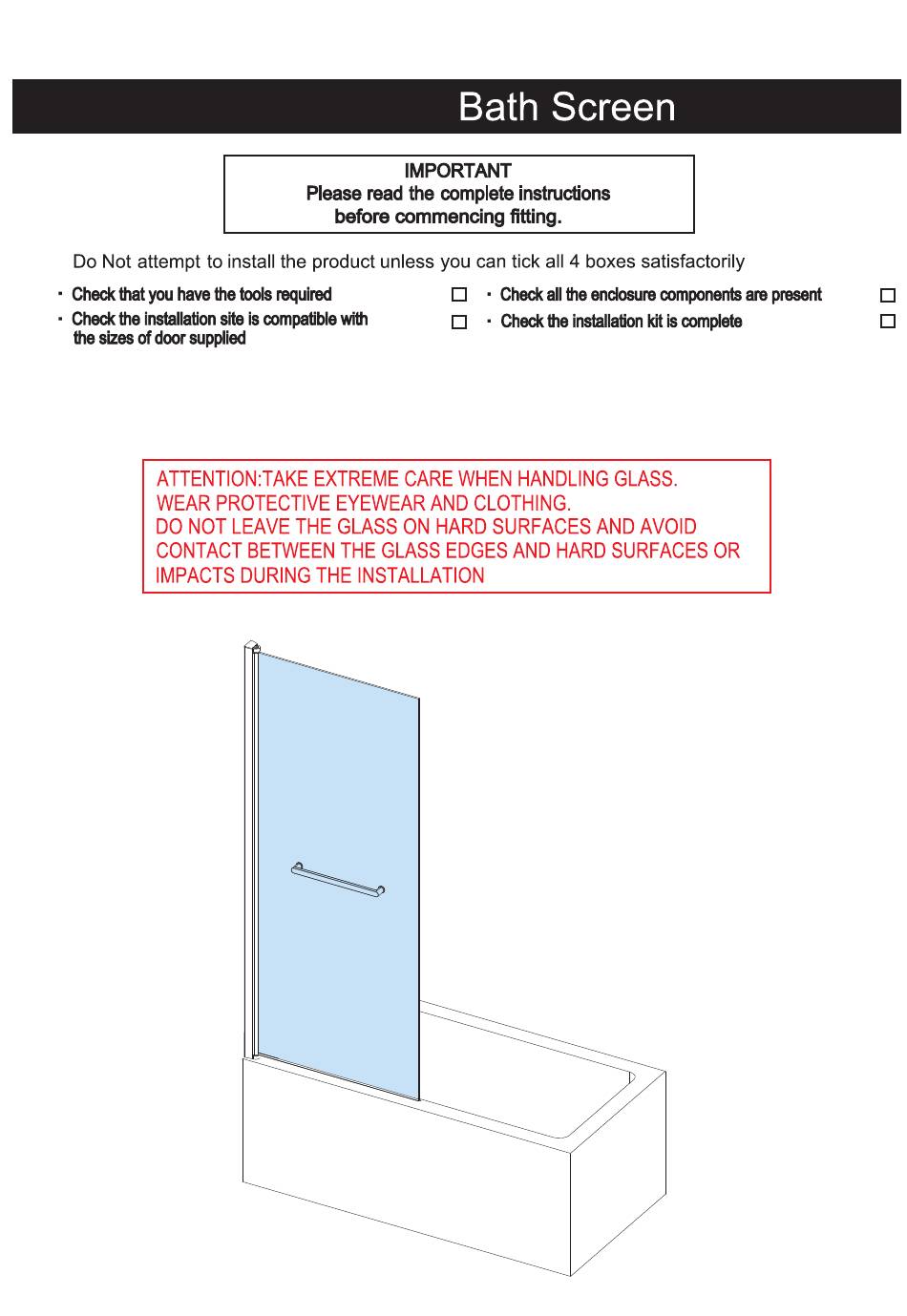

Installation Guide
MB10 Pivot
The wall plugs supplied with the installation kit are for use in solid walls.
Hollow or 'stud partition' walls will require alternative fixings. Please consult
a hardware supplier for the correct type. It may also be necessary to consult
your tiling supplier about the correct method for drilling your tiles.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MERLYN MB10
Summary of Contents for MERLYN MB10
- Page 1 Installation Guide MB10 Pivot The wall plugs supplied with the installation kit are for use in solid walls. Hollow or ‘stud partition’ walls will require alternative fixings. Please consult a hardware supplier for the correct type. It may also be necessary to consult...
- Page 2 Description Description Part No. Part No. Part No. Cover cap for wall profile L/R SP0M7017L / SP0M7017R Wall plug SP0B08070 SP0M7013 Screw ST4x40 A2403001 Wall profile Cover strip SP0M7004 Bottom seal SP0M7030 Moving panel Handle SP0M7033 Screw ST4x12 A2401201 parts shown are not to scale 4x40 4x12 A2401201...
- Page 3 2. Plumb the wall profiles using the vertical element of 1.Position the wall profile so the seal on the the spirit level. Mark 3 holes, drill with 6mm masonry moving panel sits on the inside edge of the bath. FIG 1. bit and fit wall plugs.
- Page 4 4. Insert the screen into the wall profile. Ensure the bottom edge of the moving panel is parallel to the top surface of the bath. Make sure open side of bracket is to the inside. FIG 4. INSIDE INSIDE FIG 4 5.
- Page 5 7. Fix top cover cap (SP0M7017) to wall profile (SP0M7013). FIG 7. FIG 7 8. Fix the bottom seal. FIG 8. IMPOTANT: Cut 2mm from the end of the bottom fin. Slide the end of the seal onto the glass and tight against the bottom bracket.
- Page 6 9. Fit handle to Moving panel FIG 9 FIG 10...
