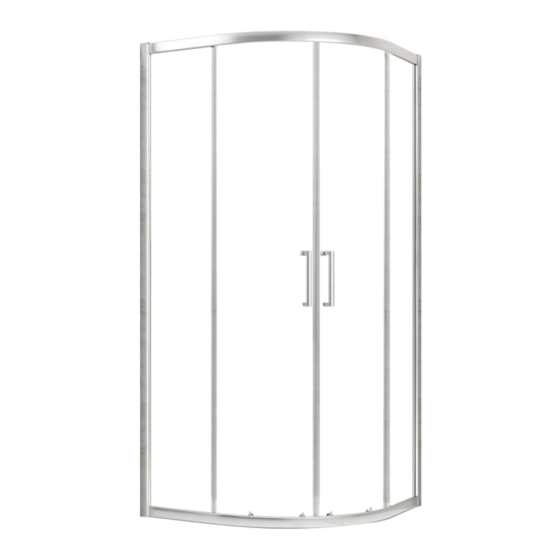

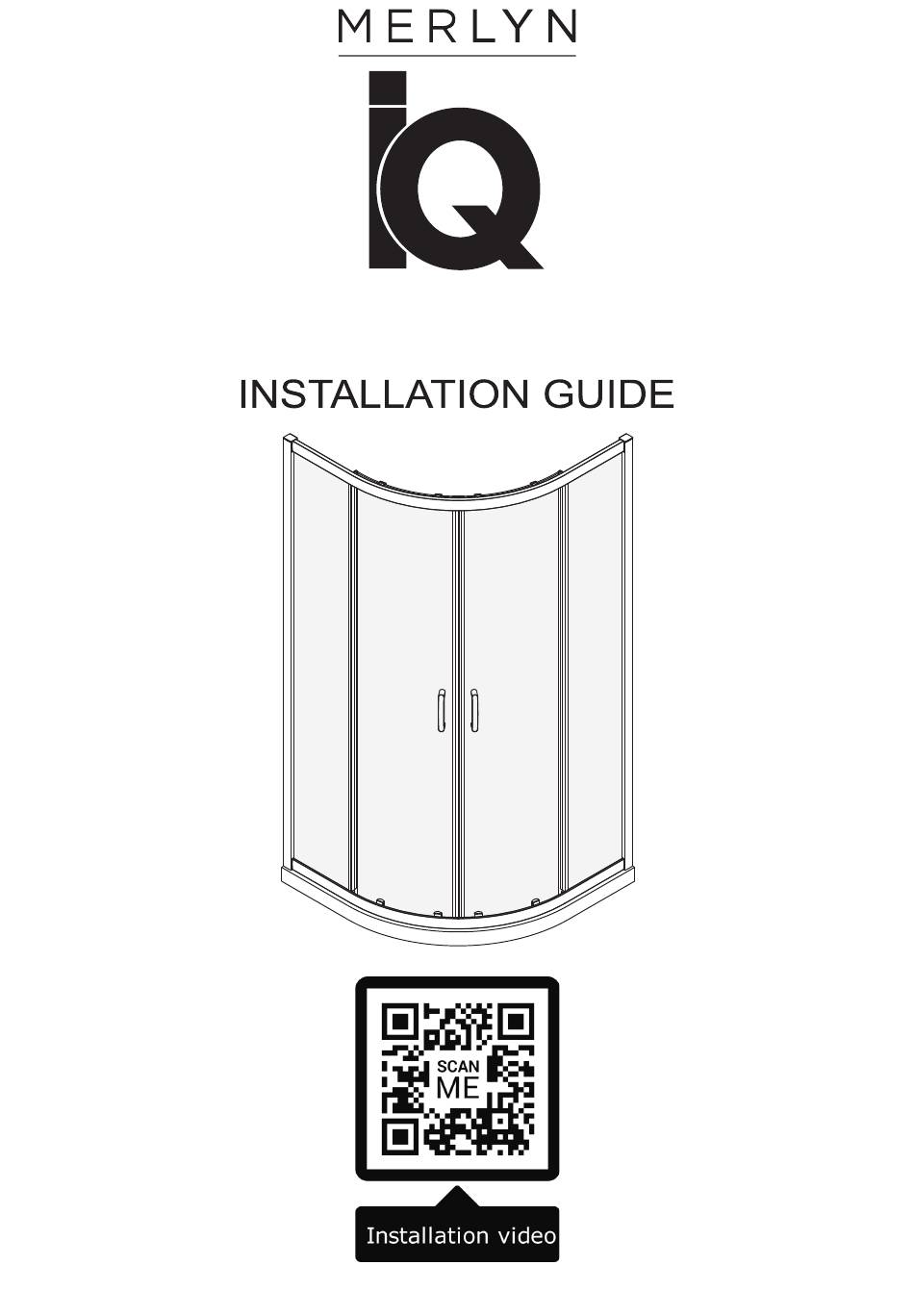

- Page 1 2 DOOR QUADRANT PATENT PENDING...
- Page 2 MG3MMALKEY x 1 K024 x 2 K048 x 4 K049 x 4 Cover cap of wall profile K010 x 2...
- Page 3 No. Qty Code No. Qty Code No. Qty Code K010 K156 K145 K001/002 2SP12 K048 2SY51 K008/009 K073 K165 K005/006 K158 K120 K054~K060 K124 K049 K114 K024 K143/K144 K126...
- Page 4 Please ensure your tray is 100% level in all directions before fitting your enclosure. 100%level!
- Page 5 800x800 and 900x900 size have the same adjustment on each side. All other sizes are offset and can be fitted with the wider panel on either side depending on the handing of your tray. For offset sizes check which side the wider fixed panel is on and if needed swap X&Y.
- Page 6 Build the product on the tray starting with the bottom profile. A&B. Slide the wall profile fully over the nylon bracket. C&D. Load the 4 x 30 screw onto the tool provided and fix the wall profiles top, middle and bottom. 2SY51...
- Page 7 Slide the top frame fully into the ends of the wall profiles. Check the frame is locked in place and does not slide back out of the frame. A. Slide the clip K143/K144 away from the seal on the top and bottom of the frame. B.
- Page 8 A. Standing inside the enclosure, place the bottom of the fixed panel on the frame at a slight angle. Then lean the panel forward into the top frame. B. Slide the glass panel into the wall profile. Adjust the top and bottom profile to align the glass with the red line on the labels while ensuring the glass is plumb.
- Page 9 A. Slide the clip over the fixed panel on both the top and bottom. B. Starting at the bottom use the tool provided to insert the wedge gasket between the glass and the profile. Keep the flat side to the glass and the ridged side to the profile. Top Tip ! Dampen the seal with water to help slide into place.
- Page 10 Slide the rollers labeled 'TOP' onto the top and the 'BOTTOM' onto the bottom housings. K048 K049...
- Page 11 K124 K126 K120 K024 Adjust the rollers to ensure there are no gaps between the magnet seals. K010...
- Page 12 and at the base of the clip where it sits on the frame. DOP:CEKA1.1 Https://merlynshowering.com/aftersales-support/dop-certs/...
