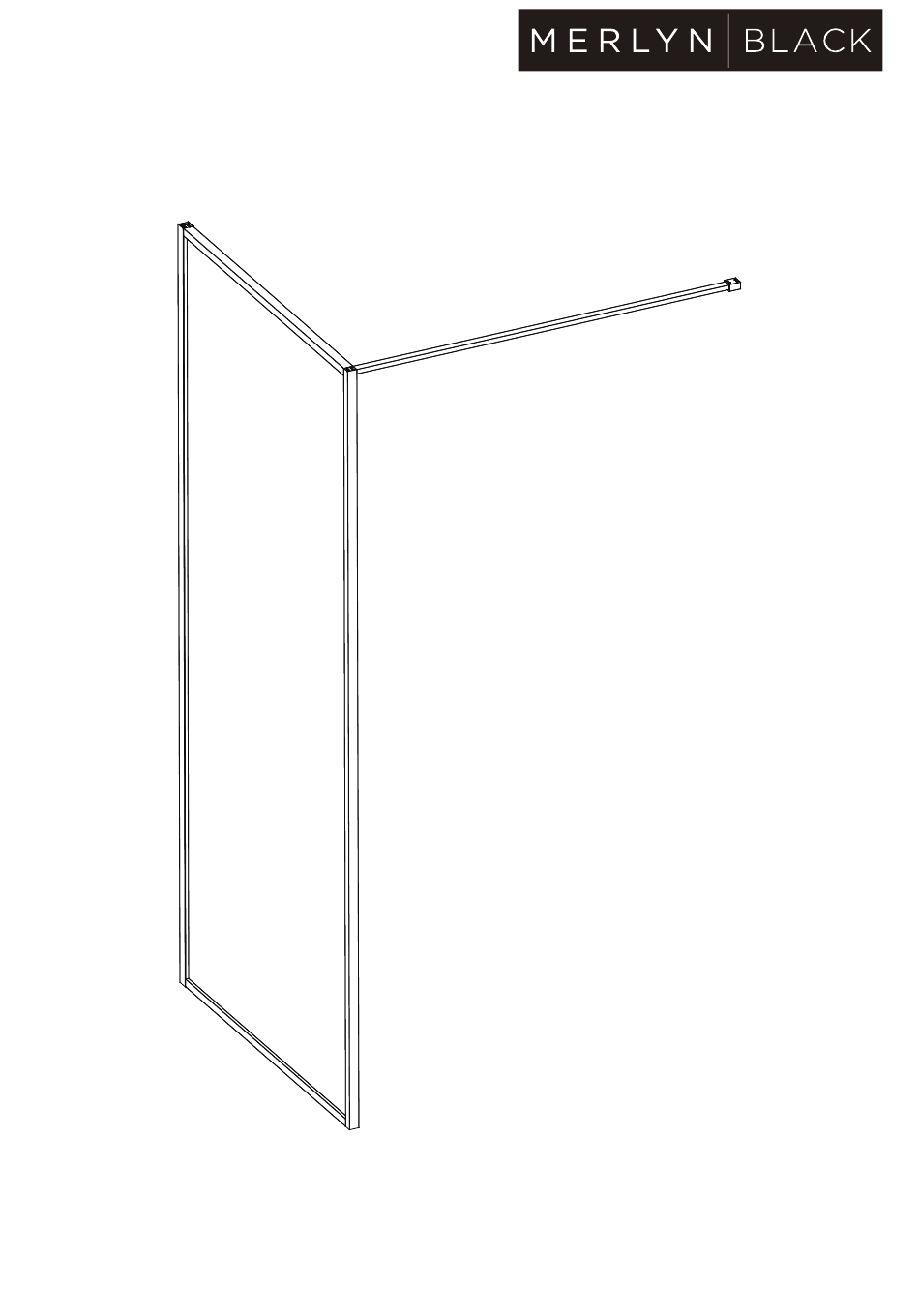

- Page 1 BLACK FRAMED SHOWER WALL Paroi fixe de douche /Duschwand /Douchewand INSTALLATION INSTRUCTIONS Guide d'installation Installstionsanleitung Installatiehandleiding...
- Page 2 If you install the product in a way that differs from this manual this will void all guarantees. Before installation check that the product meets all your requirements and is not damaged. By proceeding with installation, you accept the condition of the product.The wall plugs supplied with the installation kit are for use in solid walls.
- Page 3 Par t N o . Par t N o . No . Qt y No . Qt y BLKFWFSCRW BLKFSWP BLKFBRACSRW BLKF6WPLUG BLKFBAR1000 BLKFSCRWCAP BLKFFFBRAC BLKFFFCSCRW BLKFUPCAP BLKFWPCAP BLKFBRACSRW...
- Page 4 BLKFWFSCRW x 5 BLKF6WPLUG x 5 BLKFFFCSCRW x 4 BLKFWCAP BLKFUPCAP BLKFSCRWCAP BLKFFFBRAC BLKFWBRAC BLKFBAR1000 BLKFBRACSRW BLKFWBRCSRW...
- Page 5 Installation Steps Mark the wall profile screw hole locations on the wall. using 4 wall fixings...
- Page 6 INTERIOR SHOWER SIDE INTERIOR SHOWER SIDE...
- Page 7 Support bar installation- choose between one of 2 possible rail fixing positions on the top rail 5B on the upright 5A. Option 1 100% Option 2 3.2mm...
- Page 8 Adjust the shower enclosure Adjust the level. Drill 4 equally spaced holes along the length of the wall profile to secure the shower wall. INSIDE SHOWER VIEW 3.2mm INTERIOR SHOWER SIDE Seal the shower unit All sealant should be applied to the outside. Seal top to bottom between the wall profile and the wall.Seal the the bottom between the tray/floor and the glass/rail/profile and...
- Page 9 CEBSW1.1 To download the Declaration of Performance (DOP) for this product please use the link below. http://merlynshowering.com/aftersales-support/dop-certs/ For further information please contact IRL: 056 7791 555, UK: 08081011429...
