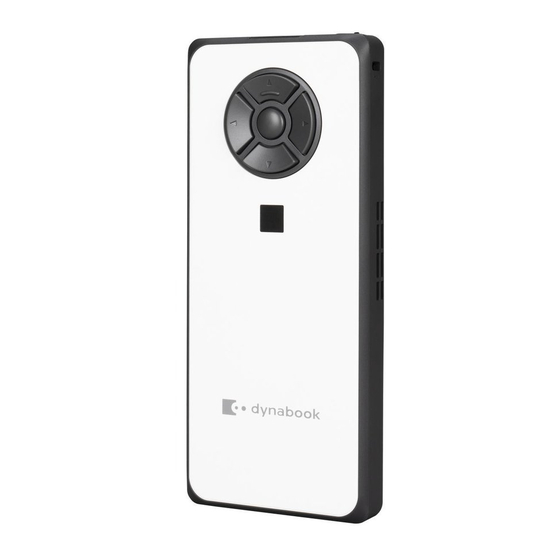

Dynabook Mobile Edge Computing Device
dynaEdge DE200 Series
Maintenance Manual
Rev.00
Aug. 2021
First issue
Dynabook Inc.
File Number (960-947)
[CONFIDENTIAL]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dynaEdge DE200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dynabook dynaEdge DE200 Series

Summary of Contents for dynabook dynaEdge DE200 Series

  • Page 1 Dynabook Mobile Edge Computing Device dynaEdge DE200 Series Maintenance Manual Rev.00 Aug. 2021 First issue Dynabook Inc. File Number (960-947) [CONFIDENTIAL]...
  • Page 2 © 2021 Dynabook Inc. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Dynabook Inc. No patent liability is assumed with respect to the use of the information contained herein.
  • Page 3 NOTE: “Note” contains general information that relates to your safe maintenance service. Improper repair of the device may result in safety hazards. Dynabook Inc. requires service technicians and authorized dealers or service providers to ensure the following safety precautions are adhered to strictly.
  • Page 4  Handling the LCD module: Not used  Board layout  Pin assignments  Scan codes  Button layout  Wiring diagrams: Not used  BIOS rewrite procedures  EC rewrite procedures  Reliability [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 5 Text that you are instructed to type in is shown in the boldface type below: DISKCOPY A: B: The display Text generated by the device that appears on its display is presented in the type face below: Format complete System transferred dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 6: Table Of Contents

    1.3 Power Supply ........................1-7 1.4 Batteries ..........................1-8 1.5 AC Adapter ........................1-10 1.6 Controll buttons ......................1-11 1.7 Specifications for special software ................1-14 1.8 USB Type-C Adapter ..................... 1-16 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 7 2.16 Fingerprint sensor Troubleshooting .................. 2-40 2.17 Web camera Troubleshooting: Not used ................2-42 2.18 FAN Troubleshooting ....................... 2-43 2.19 USB Type-C adapter Troubleshooting ................2-44 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 8 3.14 Wireless Module Test ....................... 3-25 3.15 3G/LTE Test........................3-27 3.16 WiGig Test: Not used ....................... 3-28 3.17 Sound Test......................... 3-30 3.18 SETUP ..........................3-31 viii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 9 4.7 SYSTEM BOARD/HEAT SINK/SSD ................4-29 4.8 LTE BOARD/LTE MODULE.................... 4-45 4.9 LTE ANTENNA ......................... 4-52 4.10 FINGER PRINT MODULE....................4-56 4.11 SW BOARD ........................4-59 4.12 W-LAN ANTENNA ......................4-64 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 10 Appendix E Button Layout ....................E-1 Appendix F Wiring Diagrams: Not used ................F-1 Appendix G BIOS Rewrite Procedures ................G-1 Appendix H EC Rewrite Procedures ................. H-1 Appendix I Reliability ......................I-1 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 11: Chapter 1 Hardware Overview

    Chapter 1 Hardware Overview...
  • Page 12 1 Hardware Overview 1-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 13 Main Battery ..................1-8 1.4.2 Battery Charging Control ..............1-8 1.4.3 RTC Battery ..................1-9 AC Adapter ......................1-10 Control buttons......................1-11 Specifications for special software ................1-14 USB Type-C Adapter ....................1-16 1-iii dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 14 Table 1-9 Battery remaining capacity (detailed) ..............1-13 Table 1-10 Additional behaviors (for special SW) ............. 1-14 Table 1-11 Additional behavior of LED (for special SW) ..........1-15 Table 1-12 USB Type-C adapter specifications ..............1-16 1-iv [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 15: Features

    1 Hardware Overview Features Dynabook Personal Computer uses extensive Large Scale Integration (LSI), and Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage and high reliability. The following shows each unit position and system unit configuration of this model.

  • Page 16: Figure 1-2 Board Connection Diagram

    1 Hardware Overview Figure 1-2 Board connection diagram [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 17: Figure 1-3 System Block Diagram

    1 Hardware Overview Figure 1-3 System block diagram dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 18 AC adapter only. The other type-C port complies to USB3.1 Gen2, PD, DP, USB3.0, USB2.0 and USB1.1. The type-A port complies with USB3.1 Gen2, USB3.0, USB2.0 and USB1.1.  Wireless LAN/Bluetooth, Wireless WAN An on-board wireless module, Intel802.11ax+acabgn, supporting also bluetooth function is mounted. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 19  USB Type-C Adapter with HDMI/VGA/USB3.0/LAN  dynabook USB-C Dock  AR100 glass kit for Altair-G20 (TBD)  Battery Charger (TBD)  Additional Battery Pack  VESA Mount Kit  Rain Cover Kit dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 20: Ssd

    Capacity 256GB 512GB Outline Width (mm) 22.00±0.15 Height 2.23 Max (mm) Length 30.0±0.15 (mm) Weight (g) 2.5 (typ.) Data transfer speed Host Interface: Gen 3 Maximum Data Read: 2,300MB/s Maximum Data Write: 1,800MB/s [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 21: Power Supply

    5. Turns the power supply on and off. 6. Provides more accurate detection of a low battery. 7. Calculates the remaining battery capacity. 8. Controls the transmission of the status signal of the main battery. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 22: Batteries

    Table 1-3 Time required for charges Battery type Power off (hours) Power on (hours) About 3.5 About 3.5 – 10.0 Battery (2Cell，29Wh) If any of the following occurs, the battery charge process stops. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 23: Table 1-4 Data Preservation Time

    Battery type Power off Power on RTC battery Doesn’t charge Doesn’t charge Table 1-6 RTC battery Data preservation time Battery type Sleep Mode Shut Down Mode RTC battery about 8 years about 8 years dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 24: Ac Adapter

    G71C000LS310 (3-pin) Power Input voltage 100V/240V Input frequency 50Hz to 60Hz Output voltage 5 to 20V±5% Output current 3 to 3.25A (Peak 3.5 to 3.75A) Outline (mm) 63(W) x 63(L) x 28(H) 1-10 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 25: Controll Buttons

    Button  seconds  Blue Power LED off twice  unlock  unlock  Button  1.  Up +  Button Lock  Blue Power LED off once  S0  key lock  Down  Immediate  status  2.  Up +  Button  Blue Power LED off twice  S0  check  Down + Enter  Unlock  BIOS  Blue Power LED slow blink  BIOS  Left + Right +  update  Immediate  S5  update  Power  EC update  Blue Power LED fast blink  1-11 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 26 LED for  application on ‐> Amber  SDK  power LED on 1 second  Ctrl + Alt  Ctrl + Alt +  + Del key  Left + Right  5 seconds  N/A  ‐  Del key input  input  Win + Tab  Win + Tab  Left + Up  5 seconds  N/A  ‐  key input  key input  USB  AR100 won’t  Down +  Type‐C  5 seconds  work  N/A  ‐  Right  port reset  properly  1-12 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 27: Table 1-9 Battery Remaining Capacity (Detailed)

    Amber  Amber ‐> Off  ‐>  On= 500 ms  Amber  Low: <= 20%  Off ‐> Amber ‐>   On= 200 ms  Off ‐> Amber ‐>  No charging  Off   Off‐>  Amber ‐>   Off= 500 ms  Off  Amber ‐> Off  ‐>  Off= 200 ms  Amber ‐> Off  ‐>  Charging  Amber  Amber ‐> Off  ‐>  On= 500 ms  Low: <= 5%  Amber  Off= 500 ms  No charging  Amber blink  Off ‐> Amber repeat  On= 500 ms  No battery  No charging  Off  No blinking  N/A  1-13 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 28: Specifications For Special Software

    Left key becomes  N/A  ‐  login  Number key (ex.  2, 4, 6, 8)  During Preboot  PIN code  Auth  preboot  Up/Down/Right/  N/A  N/A  N/A  ‐  Auth for  Left key becomes  SDE  Number key (ex.  2, 4, 6, 8)  Key repeat  for  Key repeat for  Up/Down/ N/A  N/A  Up/Down/Right/  N/A  ‐  Right/Left  Left key  key  1-14 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 29: Table 1-11 Additional Behavior Of Led (For Special Sw)

    Power LED  Login error (support only for  Amber/Blue  On (in turn)  Fingerprint usage)  Amber  Blink  Screen lock  Blue  Blink(Very slow)  S0ix (Modern standby)  ‐  Off  S4 or S5 (Power off)  White  On  With AC connection and fully charged  Amber  On  With AC connection and charging  DC IN/  Battery  ‐  Off  W/O AC connection,  discharging  indicator  Blue  Blink  BIOS/EC/PD FW updating  White  Blink(Special pattern)  Power error(show error code)  1-15 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 30: Usb Type-C Adapter

    Table 1-12 USB Type-C adapter specifications Item Specifications Maker Goodway Appearance USB-C to HDMI/VGA Travel adapter Name G83C000L2110 Parts code USB 3.0 port/HDMI out port/RGB Functions monitor port/LAN jack/USB Type-C port (Power Delivery Charging) 1-16 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 31: Troubleshooting Procedures

    Chapter 2 Troubleshooting Procedures...
  • Page 32 Procedure 3 Replacement Check ............2-25 Display (LCD, Touch panel) Troubleshooting: Not used ........2-27 2.9.1 Procedure 1 Check on Windows OS ..........2-27 2.9.2 Procedure 2 Diagnostic Test Program Execution Check ....2-27 2-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 33 2.17 Web camera Troubleshooting: Not used ............... 2-42 2.17.1 Procedure 1 Check on Windows OS ..........2-42 2.17.2 Procedure 2 Connector Check and Replacement Check ....2-42 2.18 FAN Troubleshooting ................... 2-43 2-iii dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 34 USB Type-C port (power delivery charging ........2-46 Figures Figure 2-1 Troubleshooting flowchart .................. 2-5 Tables Table 2-1 Power button ring LED (Power LED) ............2-10 Table 2-2 DC IN/Battery indicator ................2-10 Table 2-3 Error code ..................... 2-13 2-iv [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 35: Troubleshooting

    13. Memory media (SD Card) slot: Not used 14. Fingerprint sensor 15. Web camera: Not used 16. FAN 17. USB Type-C adapter The Test Program operations are described in Chapter 3. Detailed procedures for replacement are described in Chapter 4. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 36 After exchanging a system board, update also the EC to the latest version by the test program or BIOS update. For details, refer to the Chapter 3 or Appendix G “BIOS rewrite Procedures”. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 37 There are following two types of connections in the figure of board and module connection in this chapter. (1) Cable connection is described with lines in the figure. (2) Pin connection is described with arrow in the figure. < Sample figure of connection > dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 38: Troubleshooting Flowchart

     Connect a USB Type-C adapter, an external display, an external keyboard (with function keys) and a mouse to the computer.  Make sure any optional equipment other than above is removed from the computer. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 39 USB If the “Password=” message Troubleshooting Procedures appears, type the password. in section 2.5. Perform the SSD Is Windows logo being Troubleshooting Procedures loaded? in section 2.6. Figure 2-1 Troubleshooting flowchart (1/2) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 40 Perform/repeat the Heatrun test. Confirm on which test the error Is an error detected during was detected and perform the the Heatrun test? appropriate procedures. System can work without problem. Figure 2-1 Troubleshooting flowchart (2/2) [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 41 13. If an error is detected on the Memory media (SD Card) Slot, perform the Memory media (SD Card) Slot Troubleshooting Procedures in Section 2.15.: Not used 14. If an error is detected on the Fingerprint sensor, perform the Fingerprint sensor Troubleshooting Procedures in Section 2.16. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 42 16. If an error is detected on the FAN, perform the FAN Troubleshooting Procedures in Section 2.18. 17. If an error is detected on the USB Type-C adapter, perform the USB Type-C adapter Troubleshooting Procedures in Section 2.19. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 43: Power Supply Troubleshooting

    Procedure 1 and continue with the other Procedures as instructed. The procedures described in this section are: Procedure 1: Power Status Check Procedure 2: Error Code Check Procedure 3: Connection Check Procedure 4: Charging Check Procedure 5: Replacement Check dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 44 No light Indicates the AC adaptor is not connected. Or the battery pack is not installed. In the case of other than the above, there might be a problem on the battery. 2-10 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 45 Use a supplied AC adapter, G71C000LR310 (2-pin) or G71C000LS310 (3-pin). When the DC IN/Battery indicator is still flashing, go to Procedure 2. If the DC IN/Battery indicator is turned off, go to Procedure 3. 2-11 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 46 On for half second Interval between data bits Off for half second The error code begins with the least significant digit. Example: Error code A2h (Error codes are given in hexadecimal format.) 2-12 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 47 PPVOK (PCNFPV) signal deassertion steady-state output error P system and the CPU system power supply Off the At power off steady time, Support steady-state output error PPVOK (PCNFPV) signal assertion (With output) 2-13 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 48 The power supply failure detection at On / Off steady state determines the state by 50 ms polling × 2 times after detecting a signal change by an interrupt. If there is no other P system power supply, the power failure for the 50H-53H is not monitored. 2-14 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 49 To disassemble the computer, follow the steps described in Chapter 4, Replacement Procedures. Check 1 AC adapter may be faulty. Replace it with a new one. If the problem still occurs, perform Check 2. 2-15 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 50 Battery pack may be faulty. Replace it with a new one. If the problem still occurs, perform Check 3. Check 3 System board may be faulty. Replace it with a new one. 2-16 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 51: System Board Troubleshooting

    Procedure 1 and continue with the other procedures as instructed. The procedures described in this section are: Procedure 1: Message Check Procedure 2: Diagnostic Test Program Execution Check Procedure 3: Replacement Check 2-17 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 52: Procedure 1 Message Check

    Remove the device and reboot the computer. At the reboot, press F2 to display the BIOS setup screen. Set the correct boot device and repeat Procedure 1. If any error still occurs or any device is not installed, go to Procedure 2-18 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 53: Procedure 2 Diagnostic Test Program Execution Check

    Menu of the test program. After the exchange, register the DMI information to the new system board according to Chapter 3. At that time, update the BIOS and EC to the latest ones. 2-19 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 54: Usb Troubleshooting

    Procedure 2. 2.5.2 Procedure 2 Replacement Check of USB unit Check 1 USB unit may be faulty. Replace it with a new one. If the problem still occurs, go to Procedure 3. 2-20 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 55 CN4850 Type-A connector System board CN4800 USB unit Type-C connector Check 1 Connectors on the system board or the system board may be faulty. Replace the system board with a new one. 2-21 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 56: Ssd Troubleshooting

    Make sure the M.2 SSD is connected firmly to the connector on the system board. System board CN1900 If the connection is loose, reconnect it firmly and repeat Procedure 1. If there is still an error, go to Procedure 3. 2-22 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 57: Procedure 3 Replacement Check

    Chapter 4, Replacement Procedures and check the operation. If the problem still exists, perform Check 2. Check 2 System board may be faulty. Replace it with a new one following the instructions in Chapter 4, Replacement Procedures. 2-23 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 58: Keyboard (Button) Troubleshooting

    KEY PAD ASSY may be damaged. Replace it with a new one. If the problem still occurs, perform Check 5. Check 5 The system board may be faulty. Replace it with a new one. 2-24 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 59: Touch Pad (Click Pad) Troubleshooting: Not Used

    If the problem still occurs, go to Procedure 3. 2.8.3 Procedure 3 Replacement Check NOTE: Exchange the system board first as the Touch pad is pasted up on COVER ASSY and it is impossible to reuse. 2-25 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 60 Chapter 4, Replacement Procedures. If the problem still occurs, perform Check Check 2 Touch Pad or the cable(s) may be faulty. Replace them with new ones one by one following the steps in Chapter 4, Replacement Procedures. 2-26 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 61: Display (Lcd, Touch Panel) Troubleshooting: Not Used

    Diagnostics, for more information on how to perform the test program. If any error occurs during the test program, go to Procedure 3. If not, both the LCD and touch panel should work properly. 2-27 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 62 If the problem still exists, perform Check 5 Check 5 The display controller on the system board may be damaged. Replace the system board with a new one. 2-28 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 63: Optical Disk Drive Troubleshooting: Not Used

    Chapter 4, Replacement Procedures. If the problem still exists, perform Check 3. Check 3 System board may be faulty. Replace it with new one following the instructions in Chapter 4, Replacement Procedure. 2-29 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 64: Wireless Lan +Bluetooth Troubleshooting

    If the cables are not connected properly or connected to the wrong positions, connect them firmly to the correct position and perform Procedure 1. If the problem still occurs, go to the procedure 3. 2-30 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 65: Procedure 3 Replacement Check

    The antennas for wireless function may be faulty. Replace them with new ones. If the problem still occurs, perform Check 2. Check 2 System board or Wireless LAN/Bluetooth Combo module may be faulty. Replace the system board with a new one. 2-31 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 66: Lte Troubleshooting

    This procedure checks if the 3G/LTE module can be found on the Windows application. Refer to Chapter 3 for more information about that. If any problem is found on that check, perform Procedure 2. 2-32 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 67 If the problem still exists, 3G/LTE module, antenna, LTE FFC, LTE board or system board may be faulty. Refer to Chapter 4, Replacement Procedures, for instructions on how to disassemble the computer and then perform the following checks: 2-33 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 68 LTE board may be defective or damaged. Replace it with new ones and perform Procedure 1 again. If the problem still exists, perform Check 5. Check 5 System board may be defective or damaged. Replace it with a new one. 2-34 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 69: Wigig Troubleshooting: Not Used

    Make sure that WiGig module is firmly connected to the connector on the system board. If the connection is loose, connect it firmly and perform Procedure 1. If the problem still occurs, perform Check 2. 2-35 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 70 WiGig antenna may be faulty. Replace it with a new one. If the problem still occurs, perform Check 3. Check 3 The system board may be faulty. Replace it with a new one. 2-36 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 71: Sound Troubleshooting

    System board Headphone, Microphone, Headset J6320 The connection between the headphone, microphone or headset and the system board may be loose. Reconnect it surely. If there is still problem, perform Procedure 3. 2-37 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 72: Procedure 3 Replacement Check

    Headphone, microphone or headset may be faulty. Replace it with a new one. If the problem still occurs, perform Check 2. Check 2 System board may be faulty. Replace it with a new one following the instructions in Chapter 4, Replacement Procedures. 2-38 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 73: Memory Media (Sd Card) Slot Troubleshooting: Not Used

    Memory media (SD Card) may be faulty. Replace it with a new one. If the problem continues, perform Check 3. Check 3 System board may be faulty. Replace it with a new one following the step in Chapter 4, Replacement Procedures. 2-39 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 74: Fingerprint Sensor Troubleshooting

    To use the fingerprint functions, registration of your fingers on “Windows Hello” is needed after setting the Windows sign-in password and PIN. 2.16.2 Procedure 2 Registration of Pin and fingerprint As for the registration of the fingerprint information, refer to the User’s manual. 2-40 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 75: Procedure 3 Authentication Of Fingerprint

    The Fingerprint sensor may be faulty. Replace it with a new one. If the problem still occurs, perform Check 4. Check 4 The system board may be faulty. Replace it with a new one. 2-41 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 76: Web Camera Troubleshooting: Not Used

    Web camera module or the harness may be faulty. Replace them with new ones and perform Procedure 1 again. If the problem still occurs, perform Check 3 Check 3 System board may be faulty. Replace it with a new one. 2-42 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 77: Fan Troubleshooting

    FAN may be faulty. Replace it with new one and perform Procedure 1 again. If the problem still occurs, perform Check 3 Check 3 System board may be faulty. Replace it with a new one. 2-43 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 78: Usb Type-C Adapter Troubleshooting

    Check the setup condition of TV and returns to Procedure 1. As for the setting of the TV, refer to the instructions manual for the TV. If the problem still exists, perform Check 3. 2-44 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 79: Usb 3.0

    USB unit may be faulty. Replace it with a new one. If the problem still occurs, go to Check 2. Check 2 USB Type-C adapter may be faulty. Replace it with a new one. If the problem still occurs, check the PC condition. 2-45 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 80: Rgb Port

    The test program to check the LAN function is not prepared on the diagnostic test for maintenance program. So check if the LAN is working properly by using the function of Windows. 2-46 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 81 If the DC IN/battery LED does not glow, make sure that the power cord, USB Type-C adapter and the PC are connected firmly each other. If connection is loose, reconnect it firmly and return to Procedure 1. If the problem still occurs, perform Procedure 2. 2-47 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 82 The power cord or the AC adapter may be faulty. Replace them with new ones. If the problem still occurs, perform Check 2. Check 2 USB Type-C adapter may be faulty. Replace it with a new one. If the problem still exists, check the PC condition. 2-48 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 83: Chapter 3 Tests And Diagnostics

    Chapter 3 Tests and Diagnostics...
  • Page 84 3 Tests and Diagnostics 3-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 85 WiGig Test: Not used ....................3-28 3.16.1 Check of the WiGig module ............... 3-28 3.16.2 Check of the antenna condition ............3-29 3.17 Sound Test ....................... 3-30 3.18 SETUP ........................3-31 3.18.1 Function Description ................3-31 3-iii dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 86 3 Tests and Diagnostics 3.18.2 Accessing the SETUP Program ............3-35 3-iv [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 87: Test Program For Maintenance

     A USB hub (if more connectors are needed)  The diagnostic program for maintenance (USB Memory),  A Headphones and microphone (Sound test)  The calibration tool for sensor (USB memory): Not used dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 88: Setting Of Battery Off Mode

    Before returning to user, set the “Battery Off mode” to the PC. Check the [Advanced] – [System Configuration] in the BIOS setup screen. You can see [Battery disconnect] item. Connect the AC adapter and execute it to set the “Battery Off mode” state. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 89: How To Execute The Test Program

    When a system board is exchanged and DMI information has not been written in, the DMI information can be registered with this program. Refer to 3.3 Entry of the DMI information for details. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 90 Change PCB ? or After Update DMI ? (y/n) If the PCB was just replaced or the DMI information was just updated before executing of this test program, press Y. If not, press N. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 91 To start the Main Test Menu, press 3 and Enter. To start the LCD Gamma Correction Utility, press 7 and Enter. : Not used NOTE: Before starting the diagnostics, be sure to that all the cables are connected firmly. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 92: Entry Of The Dmi Information

    Input the information one by one. (If you have not replaced the system board, the DMI information should not be changed.) ・Model Name (e.g. PORTEGE Z830 ・Version Number (e.g. XF82BFGCTL7AA21) ・Serial number (e.g. 7G121732H) ・Model Number (e.g. PRT10N-AAAA2) [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 93 ・Cancel: ends this program. When Cancel button is pressed, the PC will restart. Press F12 and select the USB memory as the boot device. Then this program will return to the test program screen. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 94: Heatrun Test

    2. Sequential Read Test Refer to Subtest 1 of 3.7 HDD/SSD Test 3. V-RAM Memory test Refer to Subtest 2 of 3.6 Memory Test To terminate the program, press SHIFT + Q and then press E. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 95: Main Test Menu

    Others are the diagnostic tests. Move the cursor on the test item you want to execute and press ENTER. The following table shows the subtests names of each test. Table 3-1 Subtest names (1/2) TEST No TEST NAME SUBTEST No SUBTEST NAME MEMORY Main Memory Test V-RAM Memory Test dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 96 Select Yes: if any error occurs during the test, the test is suspended and key input is required. Enter C ……Restarts the test execution Enter E…….Ends the test. The program returns to the screen to select Error Stop and Test Loop item. 3-10 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 97 Go to Test The subtest is started in the selected conditions by pressing ENTER. For more information about the tests in the Main Test Menu and other tests, refer to Section 3.6 or later. 3-11 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 98: Memory Test

    If the test data and read data is not the same at comparing, this test displays the message “Data Compare error “and writes this information to the text file (errorlog.txt) as an error log. 3-12 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 99 3 Tests and Diagnostics As for the details of the error log, refer to 3.12 Log utility. 3-13 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 100: Hdd/Ssd Test

    3. LBA 86 (=22 + 64) (by 512-byte) 4. LBA 45 (=86 - 41) (by 512-byte) At Step 1, this test starts from the LBA 63 and writes the test data by 512-byte. 3-14 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 101 ) If the test data and read data is not the same, this test displays a message of “Data Compare error” and writes the information to the text file (errorlog.txt) as an error log. (1 LBA (512-byte)) Number of Passes LBA No. ００００００・・・・・・・・・・・・ (UINT32) （UINT32） 3-15 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 102 If any errors occur at comparing, this test displays the message “Compare error“ and writes the information to the text file (errorlog.txt) as an error log. As for the details of the error log, refer to 3.12 Log utility. 3-16 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 103: Keyboard Test (Button Test)

    B (right click button), and displays the information in real time. To back to the main menu screen, press the button A and B. (Displayed information) [X: xxxx] [Y: xxxx] [Button A : x] [Button B : x] 3-17 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 104: Lcd Panel Test: Not Used

    Subtest 2 [All dot on/off for LCD] This test displays the white screen for 5 sec. and then the black screen for 5 sec. After that, this test backs to the main menu screen automatically. 3-18 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 105 This test displays the white screen and changes the LCD brightness to the maximum, middle and low setting in order with 5-sec intervals. After that this test backs to the main menu screen automatically. 3-19 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 106: Battery Charge Test

    When this test program is selected, the following message appears. The test starts by pressing ENTER. The test gets the charging status of the mounted battery pack and displays the message. To back to the main menu screen, press ENTER. 3-20 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 107: Fan Test

    OK appears in the display if the test ends without an error. NG appears in the display if an error is found during the test. To back to the main menu screen, press ENTER. 3-21 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 108: Log Utility

    ・Address… Address（Memory Test/HDD Test…LBA No.） ・Write..Write value（Memory Test/HDD Test） ・Read..Read value（Memory Test/HDD Test/ Battery Charge Test） To clear the log information, press C. To back to the main menu screen, press ENTER. 3-22 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 109: Lcd Gamma Correction: Not Used

    The PC will restart. Press F12 and select the USB memory as the boot device. Then the following screen will appear and the correction is done automatically. If this program ends successfully, “PASS” is displayed. 3-23 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 110 “LogInfo.” button. As for the details of the log, refer to “3.19.5 Log” section. When Close button is selected, the PC will restart. Press F12 and select the USB memory as the boot device. Then this program will return to the original test program screen. 3-24 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 111: Wireless Module Test

    Check the module name via the application, system information. On this model, a combo module which has both wireless LAN and Bluetooth function is mounted. <How to display system information screen> 1. Click Start button -> [dynabook PC information]. Check the “Network” or “ネットワーク” information. (Example screen)

  • Page 112: Check Of The Antenna Connection

    If the computer can find any AP, the names will appear. It shows the antenna cables are surely connected to the wireless module. If AP should be ready but no names appears, any problem might occur on the wireless module or on the antenna connection. 3-26 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 113: Lte Test

    3 Tests and Diagnostics 3.15 3G/LTE Test Check if the 3G/LTE module is recognized by the PC on Windows. Start the device manager. If "EM****" is shown under "Network adapters", the module is recognized. 3-27 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 114: Wigig Test: Not Used

    Windows. 3.16.1 Check of the WiGig module Check the module name on the Device Manager. If “Wireless Gigabit **” is shown, a WiGig module is installed. (Sample of a module name) 3-28 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 115: Check Of The Antenna Condition

    If “Not connected” is shown, there is no problem on WiGig function. If “Intel Wireless Dock Manager” is not displayed or another message is shown, there may be any problem on the WiGig module or antenna. 3-29 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 116: Sound Test

    3 Tests and Diagnostics 3.17 Sound Test Since there is no sound test in the test program for maintenance, check the functions related to sound on Windows with music data, etc. 3-30 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 117: Setup

    This program displays the current system setup information as listed below: Main menu System Time System Date CPU Type CPU Speed HDD/SSD Total Memory Size System BIOS Version EC Version PDC Version Language 3-31 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 118 *5: This item is shown only when the fingerprint sensor is mounted. Power Management menu Wake-up on LAN Power on by AC Intel Turbo Boost Technology (*1) Intel Display Power Management (*1) *1: This item will appear depending on the CPU type. 3-32 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 119 - HDD/SSD Test Mode - Start Memory Test *1: This item will appear depending on the CPU type. Boot Priority - Boot Option #n Priority for devices - HDD/SSD - Add New Boot Option 3-33 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 120 3 Tests and Diagnostics Exit menu Exit Saving Changes Exit Discarding Changes Load Setup Defaults Save Changes and Power off 3-34 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 121 3 Tests and Diagnostics 3.18.2 Accessing the SETUP Program While pressing F2 of an external keyboard, turn on the power. The following screen appears. (They are example screens.) Main menu screen 3-35 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 122 3 Tests and Diagnostics Security menu screen Power Management menu screen 3-36 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 123 3 Tests and Diagnostics Advanced menu screen Boot menu screen 3-37 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 124 3 Tests and Diagnostics Exit menu screen 3-38 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 125 When you access SETUP, the current configuration is displayed. 1. To show the factory preset configuration, press F9. (Some items will not back to the preset setting.) 2. To accept the default settings, press Y. 3-39 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 126 3 Tests and Diagnostics How to change setup Options Since a help is displayed on the right-hand side of each menu screen, refer it before change. 3-40 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 127 Chapter 4 Replacement Procedures...
  • Page 128 4 Replacement Procedures 4-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 129 LTE BOARD/LTE MODULE ................. 4-45     LTE ANTENNA ...................... 4-52     4.10 FINGER PRINT MODULE ..................4-56     4.11 SW BOARD ......................4-59     4.12 W-LAN ANTENNA ....................4-64     dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-iii...
  • Page 130 Figure 4-27 Removing the SW BOARD (1) ..............4-59   Figure 4-28 Removing the SW BOARD (2) ..............4-60   Figure 4-29 Removing the SW BOARD (3) ..............4-61   Figure 4-30 Removing the SW BOARD (4) ..............4-62   4-iv [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 131 4 Replacement Procedures Figure 4-31 Removing the W-LAN ANTENNA (1) ............4-64   Figure 4-32 Removing the W-LAN ANTENNA (2) ............4-65   dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 132 4 Replacement Procedures 4-vi [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 133 FRUs need to be removed. Chart Notation The chart shows the case for the following example:  Removing the RTC BATTERY All FRUs down from the “4.2 BATTERY” to “4.4 BASE ASSY” must be removed. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 134 FFC FINGER PRINT M2x4C S-THIN HEAD screw SCREW M2X4 FLAT HEAD M2x10C FLAT HEAD screw SCREW M2X10 FLAT HEAD M2x3C S-THIN HEAD screw TSCREW M2X3 3CR M2x2.3C S-THIN HEAD screw SCREW M2X2.3 FLAT HEAD [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 135 6) Some parts inside the computer, such as the CPU and cooling module, become very hot during operation. Conduct repair work after they have cooled. Be careful around the CPU and cooling module to avoid burns. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 136 11. Be careful that not to break the computer casing and harnesses by the removed parts. 12. After replacing an FRU, check that the computer and replaced part operate correctly. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 137 Pull the cable to ensure that it is securely connected. Normal pin connectors are used for all other cables. Simply pull out or push in these connectors to disconnect or reconnect. Pressure plate connector Spring connector Back flip connector dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 138 When re-assembling, ensure that not to break the computer casing and harnesses by the tools and equipment.  When checking the computer moved correctly, do not put the excessive power on the hinges and computer itself. After installing FRUs, check that the computer operates correctly. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 139 ESD mats (lay on work table or floor)  An ESD wrist strap and heel grounder  Anti-static carpet or flooring  Air-ionizers in highly static sensitive areas  Antenna coaxial cable disconnector dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 140 Press along the axis of the screwdriver while turning the screw. This is because the contact area between the screw and driver is less than for a pan head screw (standard pan-shaped screw head). [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 141 U: Other screws (Unique screws: pan head, stud, etc.) Example: B6 ... 6mm BIND screw Screw color/material B: Black/Nickel C: Silver/Non-Hexavalent Chromate or Nickel U: Other screws (Unique screws: such as stud, etc.) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 142 4. Disconnect the external devices from the computer. 5. Turn the computer face down. 6. Set the computer to the stand which has the round hole to prevent pushing the KEY PAD ASSY. 4-10 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 143 4.2 BATTERY PACK 4 Replacement Procedures KEY PAD ASSY Stand Figure 4-1 Removing the BATTERY PACK (1) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-11...
  • Page 144 BATTERY PACK. Battery latch BATTERY PACK Slot Figure 4-2 Removing the BATTERY PACK (2) CAUTION: The been used/removed BATTERY PACK must be disposed according to the laws and ordinances of your local authority. 4-12 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 145 NOTE: Check the battery’s terminals visually. If they are dirty, wipe them clean with a dry cloth. 1. Set the BATTERY PACK into the battery slot. Make sure the BATTERY PACK is installed securely and the BATTERY latch goes into the lock position. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-13...
  • Page 146 0.8 mm), such as a straightened paper clip, into the eject hole. Gently pull to open the SIM card tray. 2. Remove the SIM card from the SIM card tray. SIM card SIM card tray Eject hole Slender object Figure 4-3 Removing the SIM card 4-14 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 147 1. Place the SIM card into the SIM card tray with the metal connectors facing down. 2. Insert the SIM card tray into the SIM card slot and push the center of the tray to close it. Push gently until it locks into place. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-15...
  • Page 148 1. Insert the tweezers to the screw holes and peel off the BASE SCREW RUBBERs. NOTE: Do not reuse the removed BASE SCREW RUBBERs. Be sure to use new ones. BASE SCREW RUBBER BASE SCREW RUBBER Figure 4-4 Removing the BASE ASSY (1) 4-16 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 149 S-THIN HEAD screw or TORX screw (for LTE JPN model) 2 (Described as “4” in the figure)  M210C 4 (Described as “10” in the figure) FLAT HEAD screw Figure 4-5 Removing the BASE ASSY (2) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-17...
  • Page 150 4 Replacement Procedures 4.4 BASE ASSY 3. Remove the BASE ASSY from the COVER ASSY while releasing the latches. BASE ASSY Latch Latch Latch Figure 4-6 Removing the BASE ASSY (3) 4-18 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 151 To install the BASE ASSY, follow the steps below and refer to Figure 4-4 to 4-6. NOTE: When replacing the BASE ASSY with a new one, stick the SIM LABEL (LTE model (unreusable)) or INSU SQUARE (Non-LTE model) to the BASE ASSY in place. SIM LABEL dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-19...
  • Page 152 4 Replacement Procedures 4.4 BASE ASSY INSU SQUARE 4-20 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 153 4.4 BASE ASSY 4 Replacement Procedures NOTE: When replacing the BASE ASSY with a new one, stick a new CAUTION LABEL to the BASE ASSY in place. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-21...
  • Page 154 2. Stick new BASE SCREW RUBBERs to the BASE ASSY in place. Prepare required parts in advance, when replacing the following items. Parts List ITEM PART NAME Quantity ITEM No BASE ASSY BASE SCREW RUBBER BASE ASSY CAUTION LABEL SIM LABEL (LTE model) 4-22 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 155 To remove the RTC BATTERY, follow the steps below and refer to Figure 4-7 to 4-9. 1. Remove the CUSHION FPC SPACER. (LTE model) CUSHION FPC SPACER Figure 4-7 Removing the RTC BATTERY (1) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-23...
  • Page 156 4 Replacement Procedures 4.5 RTC BATTERY 2. Turn up the INSU PCB LTE. (LTE model) INSU PCB LTE Figure 4-8 Removing the RTC BATTERY (2) 4-24 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 157 Figure 4-9 Removing the RTC BATTERY (3) CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the laws and ordinances of your local authority. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-25...
  • Page 158 2. Connect the RTC BATTERY harness to the connector CN8020 on the SYSTEM BOARD. NOTE: Stick the RTC BATTERY as shown in the figure below. 3. Close the INSU PCB LTE. (LTE model) 4. Set the CUSHION FPC SPACER in place. (LTE model) 4-26 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 159 1. Disconnect the FAN harness from the connector CN3380 on the SYSTEM BOARD. 2. Remove the following screws and the FAN.  M24C 2 S-THIN HEAD screw M24C S-THIN HEAD FAN harness CN3380 Figure 4-10 Removing the FAN dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-27...
  • Page 160 1. Set the FAN in place and secure it with the following screws.  M24C 2 S-THIN HEAD screw 2. Connect the FAN harness to the connector CN3380 on the SYSTEM BOARD. 4-28 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 161 2. When replacing the SYSTEM BOARD with a new one, the ProductKey (MBR-DPK) must be written on the SYSTEM BOARD. 3. When removing/installing the SYSTEM BOARD, handle with both hands and do not handle with the handling prohibition area. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-29...
  • Page 162 3. Disconnect the W-LAN ANTENNA CABLEs from the connectors on the W-LAN MODULE. (white cable from “▲MAIN 2” and black cable from “△AUX 1”). NOTE: Disconnect the W-LAN ANTENNA CABLEs as shown in the figure below. 4-30 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 163 W-LAN ANTENNA cable (white) FP FFC (Connected to CN9551) INSU WLAN HNS HOLD LTE FFC (Connected to CN9500) INSU WLAN CONN HOLD SW FFC (Connected to CN9550) Figure 4-11 Removing the SYSTEM BOARD (1) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-31...
  • Page 164 4 Replacement Procedures 4.7 SYSTEM BOARD/ HEAT SINK/SSD 4. Remove the SYSTEM BOARD from the slot of the COVER ASSY. SYSTEM BOARD Figure 4-12 Removing the SYSTEM BOARD (2) 4-32 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 165 5. Release the all latches (described as “L” in the figure) then remove the SHIELD PLATE B ASSY from the SYSTEM BOARD. CAUTION: Make sure that the all latches (19pics) are released before removing the SHIELD PLATE B ASSY to prevent deformation of it. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-33...
  • Page 166 4 Replacement Procedures 4.7 SYSTEM BOARD/ HEAT SINK/SSD SHIELD PLATE B ASSY Figure 4-13 Removing the SYSTEM BOARD (3) 4-34 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 167 NOTE: When removing the HEAT SINK, be sure to remove the screws in the reverse order of the number marked on the HEAT SINK. M2x2.3C S-THIN HEAD M2x2.3C S-THIN HEAD HEAT SINK Figure 4-14 Removing the SYSTEM BOARD (4) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-35...
  • Page 168 4 Replacement Procedures 4.7 SYSTEM BOARD/ HEAT SINK/SSD 7. Peel off the INSU PCB PIPE and INSU PCB FIN. INSU PCB PIPE INSU PCB FIN Figure 4-15 Removing the SYSTEM BOARD (5) 4-36 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 169 9. Release the all latches (described as “L” in the figure) then remove the SHIELD PLATE F ASSY from the SYSTEM BOARD. CAUTION: Make sure that the all latches (21pics) are released before removing the SHIELD PLATE F ASSY to prevent deformation of it. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-37...
  • Page 170 4 Replacement Procedures 4.7 SYSTEM BOARD/ HEAT SINK/SSD SHIELD PLATE F ASSY Figure 4-16 Removing the SYSTEM BOARD (6) 4-38 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 171 10. Remove the following screw and disconnect the SSD from the connector CN1900 on the SYSTEM BOARD  M22.3C 1 S-THIN HEAD screw M22.3C S-THIN HEAD CN1900 Figure 4-17 Removing the SYSTEM BOARD (7) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-39...
  • Page 172 14. Remove the following screws.  M24C 2 S-THIN HEAD screw INSU SSD CUSHION BATT CONN INSU PCB SYS F M24C S-THIN HEAD M24C S-THIN HEAD Figure 4-18 Removing the SYSTEM BOARD (8) 4-40 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 173 9. Stick the INSU PCB PIPE and INSU PCB FIN in place. 10. When silicon grease is already applied to the CPU or HEAT SINK, wipe them off with a cloth in advance. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-41...
  • Page 174 13. Set the SHIELD PLATE B ASSY to the SYSTEM BOARD while engaging the latches. NOTE: Set the SHIELD PLATE B ASSY to the SYSTEM BOARD as shown in the figure below. 4-42 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 175 MODULE. (white cable from “▲MAIN 2” and black cable from “△AUX 1”). 17. Close the INSU WLAN HNS HOLD and INSU WLAN CONN HOLD. NOTE: Arrange the W-LAN ANTENNA CABLEs as shown in the figure below. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-43...
  • Page 176 4 Replacement Procedures 4.7 SYSTEM BOARD/ HEAT SINK/SSD 18. Connect the LTE FFC (LTE model), SW FFC and FP FFC to the connectors CN9500, CN9550 and CN9551 on the SYSTEM BOARD. 4-44 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 177 2. Disconnect the LTE ANTENNA CABLEs from the connectors on the LTE MODULE. (red cable from “MAIN” and blue cable from “AUX”). INSU LTE CONN LTE ANTENNA cable (red) LTE ANTENNA cable (blue) Figure 4-19 Removing the LTE BOARD/LTE MODULE (1) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-45...
  • Page 178 3. Remove the following screws and the LTE HOLD PLT ASSY.  M23C 4 S-THIN HEAD screw M23C S-THIN HEAD LTE HOLD PLT ASSY Figure 4-20 Removing the LTE BOARD/LTE MODULE (2) 4-46 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 179 5. Disconnect the LTE MODULE from the connector CN2600 on the LTE BOARD. 6. Disconnect the LTE FFC from the connector CN9510 on the LTE BOARD. M22.3C S-THIN HEAD LTE MODULE LTE FFC CN9510 CN2600 Figure 4-21 Removing the LTE BOARD/LTE MODULE (3) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-47...
  • Page 180 S-THIN HEAD screw 8. Remove the LTE BOARD from the LTE HOLD PLT. M22.3C S-THIN HEAD M22.3C S-THIN HEAD LTE BOARD LTE HOLD PLT Figure 4-22 Removing the LTE BOARD/LTE MODULE (4) 4-48 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 181 4.8 LTE BOARD/LTE MODULE 4 Replacement Procedures 9. Peel off the INSU PCB LTE from the LTE BOARD. INSU PCB LTE LTE BOARD Figure 4-23 Removing the LTE BOARD/LTE MODULE (5) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-49...
  • Page 182  M22.3C 1 S-THIN HEAD screw 5. Set the LTE HOLD PLT ASSY to the COVER ASSY and secure it with the following screws.  M23C 4 S-THIN HEAD screw 4-50 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 183 6. Connect the LTE ANTENNA CABLEs to the connectors on the LTE MODULE. (red cable to “MAIN” and blue cable to “AUX”). 7. Stick the INSU LTE CONN in place. NOTE: Arrange the LTE ANTENNA CABLEs as shown in the figure below. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-51...
  • Page 184 1. Peel off the INSU LTE GRAPHITE SHEET. NOTE: Do not reuse the removed INSU LTE GRAPHITE SHEET. Be sure to use a new one. INSU LTE GRAPHITE SHEET CUSHION COVER LTE Figure 4-24 Removing the LTE ANTENNA (1) 4-52 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 185 NOTE: Do not reuse the removed LTE AUX ANTENNA. Be sure to use a new one. LTE MAIN ANTENNA (with a red cable) LTE AUX ANTENNA (with a blue cable) INSU ANT HOLD Guide Figure 4-25 Removing the LTE ANTENNA (2) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-53...
  • Page 186 NOTE: Stick the LTE AUX ANTENNA as shown in the figure below. When replace the COVER ASSY with a new one, stick a new INSU ANT HOLD to the COVER ASSY in place. (LTE model) 4-54 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 187 Prepare required parts in advance, when replacing the following items. Parts List ITEM PART NAME Quantity ITEM No LTE AUX ANTENNA LTE MAIN ANTENNA LTE ANTENNA INSU LTE GRAPHITE SHEET CUSHION COVER LTE dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-55...
  • Page 188  M23C 1 S-THIN HEAD screw 3. Remove the FP SUPPORT BRACKET from the guides of the COVER ASSY. 4. Remove the FINGER PRINT MODULE from the slot of the COVER ASSY. 4-56 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 189 4.10 FINGER PRINT MODULE 4 Replacement Procedures FINGER PRINT MODULE M23C S-THIN HEAD FP FFC FP SUPPORT BRACKET Guide Figure 4-26 Removing the FINGER PRINT MODULE dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-57...
  • Page 190 5. Arrange the FP FFC inside the lines on the SW BOARD and stick it on the INSU PCB 5 BUTTON. NOTE: Arrange the FP FFC as shown in the figure below. 4-58 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 191 1. Peel off the AL SHEET LED. NOTE: Do not reuse the removed AL SHEET LED. Be sure to use a new one. AL SHEET LED Figure 4-27 Removing the SW BOARD (1) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-59...
  • Page 192 4.11 SW BOARD 2. Remove the following screws and the SW BOARD.  M23C 4 S-THIN HEAD screw M23C S-THIN HEAD M23C S-THIN HEAD SW BOARD Figure 4-28 Removing the SW BOARD (2) 4-60 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 193 3. Peel off the INSU PCB 5 BUTTON. 4. Disconnect the SW FFC from the connector CN9562 on the SW BOARD. SW FFC INSU PCB 5 BUTTON CN9562 SW BOARD Figure 4-29 Removing the SW BOARD (3) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-61...
  • Page 194 4 Replacement Procedures 4.11 SW BOARD 5. Remove the KEY PAD ASSY. KEY PAD ASSY Figure 4-30 Removing the SW BOARD (4) 4-62 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 195 4. Set the SW BOARD to the COVER ASSY and secure it with the following screws.  M23C 4 S-THIN HEAD screw 5. Stick a new AL SHEET LED to the SW BOARD and COVER ASSY in place. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-63...
  • Page 196 NOTE: Do not reuse the removed W-LAN AUX ANTENNA. Be sure to use a new one. W-LAN AUX ANTENNA CABLE (black) Guide W-LAN AUX ANTENNA Figure 4-31 Removing the W-LAN ANTENNA (1) 4-64 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 197 NOTE: Do not reuse the removed W-LAN MAIN ANTENNA. Be sure to use a new one. W-LAN MAIN ANTENNA CABLE (white) Guide W-LAN MAIN ANTENNA Figure 4-32 Removing the W-LAN ANTENNA (2) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-65...
  • Page 198 1. Stick a new W-LAN MAIN ANTENNA (white cable) to the COVER ASSY in place. 2. Arrange the W-LAN MAIN ANTENNA CABLE under the guide of the COVER ASSY. NOTE: Stick the W-LAN MAIN ANTENNA as shown in the figure below. 4-66 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 199 LTE MAIN ANTENNA (LTE model) INSU LTE GRAPHITE SHEET COVER ASSY CUSHION COVER LTE AL SHEET LED D STICK TAPE (LTE model) INSU ANT HOLD (LTE model) W-LAN MAIN ANTENNA W-LAN AUX ANTENNA dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL] 4-67...
  • Page 200 4 Replacement Procedures 4.12 W-LAN ANTENNA 4-68 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 201 Appendices [CONFIDENTIAL]...
  • Page 202 Appendices App-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 203 Appendix E Button Layout ....................E-1 Appendix F Wiring Diagrams: Not used ................F-1 Appendix G BIOS Rewrite Procedures ................G-1 Appendix H EC Rewrite Procedures ................H-1 Appendix I Reliability ......................I-1 App-iii dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 204 Appendices App-iv [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 205 LCD cover before securing the module with screws. Do not force the module into place, because stress can affect its performance. Also, the panel’s polarized surface is easily scarred, so be careful when handling it. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 206 4. If water or other liquid is left on the panel’s surface for a long period, it can change the screen’s tint or stain it. Be sure to quickly wipe off any liquid. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 207 6. CMOS-LSI circuits are used in the module, so guard against damage from electrostatic discharge. Be sure to wear a wrist or ankle ground when handling the module. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 208 8. Do not store the module at temperatures below specifications. Cold can cause the liquid crystals to freeze, lose their elasticity or otherwise suffer damage. 9. Do not disassemble the LCD module. Disassembly can cause malfunctions. [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 209 10. If you transport the module, do not use packing material that contains epoxy resin (amine) or silicon glue (alcohol or oxide). These materials can release gas that can damage the panel’s polarization. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 210 Appendices Appendix A Handling the LCD Module [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 211 Table B-1 System board (FAG2SY*) connectors and ICs (Front) ......... B-1 Table B-2 System board (FAG2SY*) connectors and ICs (Back) ......... B-3 Table B-3 SW board (FAG2SW*) connectors and switches ........... B-4 Table B-4 LTE board (FAG23G*) connectors and ICs (Back) ..........B-5 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 212 Appendix B Board Layout Appendices B-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 213: System Board (Fag2Sy*) Front View

    Appendix B Board Layout Appendices B. 1 System board (FAG2SY*) Front View CN1900 Figure B-1 System board (FAG2SY*) layout (Front) Table B-1 System board (FAG2SY*) connectors and ICs (Front) Name CN1900 SATA/PCIe SSD I/F connector (75-pin) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 214: System Board (Fag2Sy*) Back View

    Appendix B Board Layout Appendices B. 2 System board (FAG2SY*) Back View CN4800 CN9500 CN4850 IC2630 CN9551 CN9550 CN8020 CN3380 S3300 CN4821 CN8021 J6320 Figure B-2 System board (FAG2SY*) layout (Back) [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 215 RTC battery connector (3-pin) CN9500 FAG23G* board I/F connector (30-pin) CN3380 FAN I/F connector (4-pin) CN8021 Battery connector (9-pin) J6320 Headphone/Microphone combo jack (6-pin) CN4821 USB Type-C (2) I/F connector (24-pin) S3300 Power switch (2-pin) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 216: Sw Board (Fag2Sw*) View

    Figure B-3 SW board (FAG2SW*) layout Table B-3 SW board (FAG2SW*) connectors and switches Name S9560 Up button S9563 Center (OK) button S9561 Right button S9562 Down button CN9562 FAG2SY* board I/F connector (10-pin) S9564 Left button [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 217: Lte Board (Fag23G*) Back View

    Table B-4 LTE board (FAG23G*) connectors and ICs (Back) Name CN2600 M.2 3G I/F connector (75-pin) CN2650 Proximity sensor I/F connector (4-pin) IC2650 Proximity sensor CN9510 FAG2SY* board I/F connector (30-pin) IS2641 SIM card I/F connector (10-pin) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 218 Appendix B Board Layout Appendices [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 219 CN9510 FAG2SY* board I/F connector (30-pin) ................C-9 C.15 IS2641 SIM card I/F connector (10-pin) .................... C-9 C.16 CN2650 Proximity sensor I/F connector (4-pin) ................C-10 C.17 CN2600M.2 3G I/F connector (75-pin) ..................... C-10 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 220 Table C-14 FAG2SY* board I/F connector (30-pin) ..................C-9 Table C-15 SIM card I/F connector (10-pin) ..................... C-9 Table C-16 Proximity sensor I/F connector (4-pin) ..................C-10 Table C-17 M.2 3G I/Fconnector (75-pin) ...................... C-10 C-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 221 Table C-1 SATA/PCIe SSD I/F connector (75-pin)(1/2) Pin No. Signal Name Pin No. Signal Name ZERSS3-E1N ZERSS3-E1P ZETSS3-E1N ZETSS3-E1P ZERSS2-E1N ZERSS2-E1P ZETSS2-E1N ZETSS2-E1P ZERSS1-E1N ZERSS1-E1P ZETSS1-E1N ZETSS1-E1P ZERSS0-E1P ZERSS0-E1N ZETSS0-E1N ZETSS0-E1P PLTRS2-E3N SSDXRQ-P3N XSSDPCI-E0N XSSDPCI-E0P dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 222: S3300 Power Switch (2-Pin

    Table C-1 SATA/PCIe SSD I/F connector (75-pin)(2/2) Pin No. Signal Name Pin No. Signal Name S3300 Power switch (2-pin) Table C-2 Power switch (2-pin) Pin No. Signal Name Pin No. Signal Name PWRSW-S3N [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 223 Table C-4 USB Type-C (1) I/F connector (24-pin) Pin No. Signal Name Pin No. Signal Name ZSS0T1-E0P ZSS0T0-E0P ZSS0T1-E0N ZSS0T0-E0N PDVBUS1 PDVBUS1 PA1CC2-SXP PA1CC1-SXP ZUSBE1-E3P USBE1-E3P ZUSBE1-E3N ZUSBE1-E3N ZP1SB2-EXP ZP1SB1-EXP PDVBUS1 PDVBUS1 ZSS0R0-E0N ZSS0R1-E0N ZSS0R0-E0P ZSS0R1-E0P dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 224 Pin No. Signal Name PDVBUS2 PDVBUS2 PA2CC2-SXP PA2CC1-SXP PDVBUS2 PDVBUS2 J6320 Headphone/Microphone combo jack (6-pin) Table C-6 Headphone/Microphone combo jack (6-pin) Pin No. Signal Name Pin No. Signal Name HEADL-PXP HEADR-PXP SLEEVE-PXP RING2-PXP DETECT-P3N [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 225: Cn9551 Fingerprint Sensor I/F Connector (8-Pin

    Pin No. Signal Name Pin No. Signal Name PWLEWH-M5N PWLEOR-M5N UPBTN-S3N LFTBTN-S3N RGTBTN-S3N OKBTN-S3N DWNBTN-S3N CN8020 RTC battery connector (3-pin) Table C-9 RTC battery connector (3-pin) Pin No. Signal Name Pin No. Signal Name dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 226: Cn9500 Fag23G* Board I/F Connector (30-Pin

    ZU33GR-E1P ZU33GR-E1N ZUSB3G-E3N ZUSB3G-E3P 3GDET-E3N FSCL-E3P FSDA-E3P 3GON-E1P 3GRFON-E3P 1R8-E1V SARINTR-E3N C.11 CN3380 FAN I/F connector (4-pin) Table C-11 FAN I/F connector (4-pin) Pin No. Signal Name Pin No. Signal Name FANG0-P3P FPWM0-P5P [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 227: Cn8021 Battery Connector (9-Pin

    Appendix C Pin Assignments Appendices C.12 CN8021 Battery connector (9-pin) Table C-12 Battery connector (9-pin) Pin No. Signal Name Pin No. Signal Name PVBH1 PVBH1 BDET-S3N ESDA-S3P ESCL-S3P dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 228: Sw Board (Fag2Sw

    Appendices SW board (FAG2SW*) C.13 CN9562 FAG2SY* board I/F connector (10-pin) Table C-13 FAG2SY* board I/F connector (10-pin) Pin No. Signal Name Pin No. Signal Name DWNBTN-S3N RGTBTN-S3N OKBTN-S3N UPBTN-S3N LFTBTN-S3N PWLEOR-M5N PWLEWH-M5N [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

  • Page 229: Lte Board (Fag23G

    FSCL-E3P FSDA-E3P 3GON-E1P 3GRFON-E3P 1R8-E1V SARINTR-E3N C.15 IS2641 SIM card I/F connector (10-pin) Table C-15 SIM card I/F connector (10-pin) Pin No. Signal Name Pin No. Signal Name UIMPW3G-E3V MRS3G-E3P IMCL3G-E3P UIMIO3G-E3P 3G-E3V dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...

  • Page 230: Cn2650 Proximity Sensor I/F Connector (4-Pin

    C.17 CN2600 M.2 3G I/F connector (75-pin) Table C-17 M.2 3G I/Fconnector (75-pin) (1/2) Pin No. Signal Name Pin No. Signal Name 3G-E3V 3G-E3V 3GON-E1P ZUSB3G-E3P 3GRFON-E3P ZUSB3G-E3N 3GSAR-E1N ZU33GR-E1N UIMRS3G-E3P ZU33GR-E1P UIMCL3G-E3P UIMIO3G-E3P ZU33GT-E1N UIMPW3G-E3V ZU33GT-E1P C-10 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 231 Appendix C Pin Assignments Appendices Table C-17 M.2 3G I/Fconnector (75-pin) (2/2) Pin No. Signal Name Pin No. Signal Name UIMDT3G-E3N 3G-E3V 3GDET-E3N 3G-E3V 3G-E3V C-11 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 232 Appendix C Pin Assignments Appendices C-12 [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 233 Appendix D Scan Codes Appendices Appendix. D Appendix D Scan Codes Scan codes ........................ D-1 Tables Table D-1 Scan codes for buttons ..................D-1 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 234 Appendices Appendix D Scan Codes D-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 235  Left button E0 4B E0 CB Right button  E0 4D E0 CD Center button (pressing less than 1 sec.) ENTER No code 1C 9C Center button (pressing 1 sec. or more) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 236 Appendices Appendix D Scan Codes [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 237 Appendix E Button Layout Appendices Appendix. E Appendix E Button Layout Buttons ........................E-1 Figures Figure E-1 Buttons ........................ E-1 dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 238 Appendices Appendix E Button Layout E-ii [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 239 Appendix E Button Layout Appendices Buttons Figure E-1 Buttons dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 240 Appendices Appendix E Button Layout [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 241 Appendix F Wiring diagrams Appendices Appendix F Wiring diagrams: Not used RGB Monitor Loopback Connector Figure F-1 RGB Monitor Loopback Connector LAN Loopback Connector Figure F-2 LAN Loopback Connector dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 242 Appendices Appendix F Wiring diagrams [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 243 NOTE: 1. Connect the AC adapter and the charged battery to the computer when you rewrite the BIOS. 2. Do not turn off the power while you are rewriting the BIOS. If the rewrite fails, it might be impossible to start up the computer. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 244 Appendices Appendix G BIOS rewrite procedures [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 245 Appendix H EC Rewrite Procedures This Appendix explains how to rewrite the EC system. The EC solely can’t be updated. It is updated at the BIOS update simultaneously. As for the BIOS update, refer to Appendix G. dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 246 Appendices Appendix H EC rewrite procedures [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)
  • Page 247 Appendix I Reliability Appendices Appendix I Reliability Appendix I Reliability The following tables show MTBF (Mean Time between Failures) in maximum configuration. Table I-1 MTBF Time (hours) 13,354.64 (LTE model) dynaEdge DE200 Series Maintenance Manual (960-947) [CONFIDENTIAL]...
  • Page 248 Appendices Appendix I Reliability [CONFIDENTIAL] dynaEdge DE200 Series Maintenance Manual (960-947)

Table of Contents
