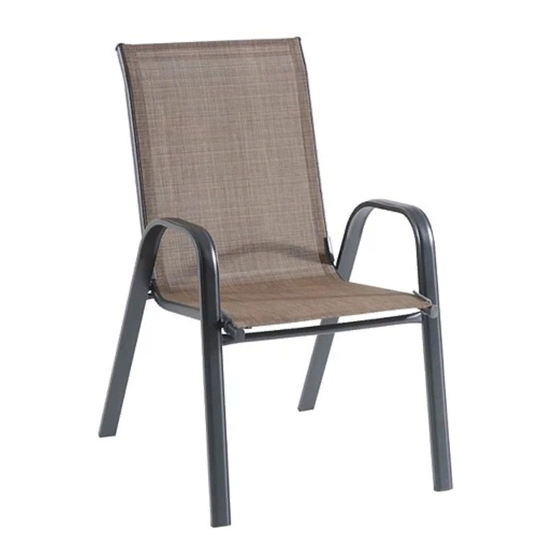

SONOMA CORONADO KD STACKING CHAIR ASSEMBLY INSTRUCTIONS
ASSEMBLE ON A FLAT, PROTECTED SURFACE.
PART LIST
A
B
C
D
FOR MISSING OR INCORRECT PARTS/HARDWARE, CONTACT THE MANUFACTURER'S CUSTOMER SERVICE DIRECTLY AT
REFER TO LAST PAGE FOR ADDITIONAL CUSTOMER SERVICE DETAILS.
SAVE THESE INSTRUCTIONS
FIGURE
QUANTITY
4 PCS + 1 PC
1-866-905-4107 OR WWW.YOTRIOINT.COM
1 PC
1 PC
FLAT WASHER+BOLT
1PC
DESCRIPTION
SEAT
CHAIR BASE
(M6*30MM)
ALLEN WRENCH
Page 1/2
Advertisement
Table of Contents
Related Manuals for Sonoma CORONADO KD
Summary of Contents for Sonoma CORONADO KD
- Page 1 SAVE THESE INSTRUCTIONS SONOMA CORONADO KD STACKING CHAIR ASSEMBLY INSTRUCTIONS ASSEMBLE ON A FLAT, PROTECTED SURFACE. PART LIST FIGURE QUANTITY DESCRIPTION 1 PC SEAT 1 PC CHAIR BASE FLAT WASHER+BOLT 4 PCS + 1 PC (M6*30MM) ALLEN WRENCH FOR MISSING OR INCORRECT PARTS/HARDWARE, CONTACT THE MANUFACTURER'S CUSTOMER SERVICE DIRECTLY AT 1-866-905-4107 OR WWW.YOTRIOINT.COM...
- Page 2 ASSEMBLY INSTRUCTIONS (CONTINUED) SONOMA CORONADO KD STACKING CHAIR ASSEMBLY INSTRUCTIONS STEP 1 A. PLACE SEAT (A) AND CHAIR BASE (B) ON A FLAT, PROTECTED SURFACE AS SHOWN. B. CONNECT CHAIR BASE (B) TO SEAT (A) WITH FLAT WASHERS AND BOLTS (C) USING WRENCH (D). DO NOT TIGHTEN COMPLETELY.
