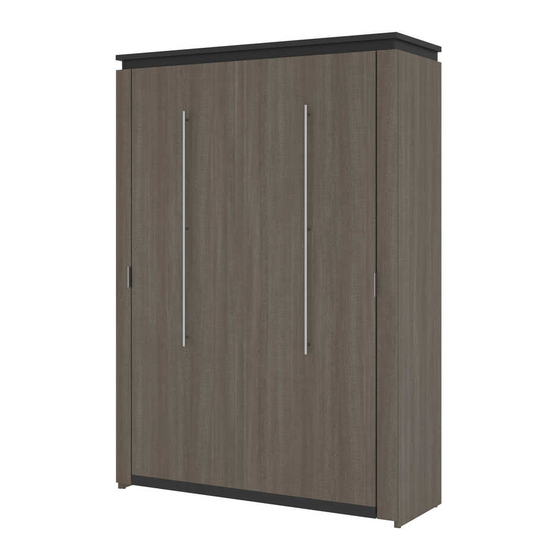

Bestar 116183 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Important information to read before starting the assembly.
Keep this information for future reference.
IMPORTANT WARNINGS
Risk of serious injuries if the wall bed tips over.
To prevent wall bed from tipping over, mount it permanently to the wall.
Only a qualified person* must carry out the installation and any possible adjustment of the wall bed
(including disassembly). If the wall bed is not firmly mounted (anchored) to the wall, it might tip over
and cause serious injuries to the installer, users of the bed as well as the people near the bed.
The choice of wall anchoring depends on the type of wall. Use wall anchors suitable for the wall material.
* Qualified person: it is necessary to have a good understanding of the wall structure where the bed is anchored, including the positioning
of the wall studs and structural components in the case of a wood or metal structure. If you do not have the necessary skills, make sure that
the installation is done by someone who has the qualifications and required knowledge. When you choose the installer, make sure to comply
with all applicable regulations in the province, state or country where the furniture is installed.
Every time the bed is used, the owner should make sure that the anchors are strong and show no signs of weakening (for example if you feel
that the anchor screws are moving when pulling on the cabinet of the bed). Do not use the wall bed if the cabinet moves and do not open
the bed if you are not sure that it is firmly attached to the wall, because it could tip over causing serious injuries. When in doubt about the
anchoring, please stop using the bed immediately and have it inspected by a professional* or contact us at 1-888-823-7827.
BESTAR is released from any responsibility and will void the warranty if the installation or the anchoring is not done according to the
recommendations included in this instruction manual. BESTAR and its distributors (and their respective o cers, directors, agents and
servants) shall not be liable or obligated in any manner for any direct, punitive, exemplary, special, indirect, incidental or consequential
damages of any kind, regardless of the form of action, whether in contract, tort, negligence, strict product liability or otherwise, arising
out of or in connection with improper anchoring of the bed or non-compliance to the anchoring procedure of this document.
IMPORTANT: BEFORE STARTING ASSEMBLY
Be sure to confirm the following information:
1. The installer has the qualifications * and required knowledge.
2. Only wall anchor screws for wood-frame walls are provided with this bed. See anchor requirements and installation notes provided
in the instruction manual, according to the type of wall, and use the appropriate anchors such as described in this manual.
3. Your bed can hold a maximum distributed weight of 1000 lb (455 kg), including the weight of the mattress.
4. Maximum thickness of mattress: 10 in (25.4 cm), and must stand in vertical position without sagging.
5. The bed will not stay open without the weight of the mattress which must be between: 60 lb (27 kg) and 90 lb (41 kg).
6. Minimum ceiling height requirements for installation: 85 in (2.16 m).
7. It is recommended to assess the structural integrity of the floor and wall and to make sure that the wall anchoring devices can withstand
the forces generated. More specifically, before installing the wall bed, it is necessary to verify that the floor and the wall on which you
want to install the bed are flat and have no structural damage that could a ect the installation of the wall bed or its anchoring to the
wall. Do not install the bed on weakened or rotten structures.
8. It is necessary to ensure that wall anchors of the bed can withstand forces generated. The value of the holding power (Fh) of each
anchor should be 630 Newtons (142 lbf).
If the wall bed is not installed properly, the latter might close unexpectedly or could open involuntarily.
In addition, if the wall bed is installed incorrectly, one of its structural components may break and fall o .
FOR ANY PROBLEM OR INFORMATION
116183-110017-120017-130017
116183-110047-120047-130047
WWW.BESTAR.CA : 1-888-8BESTAR (1 888 823-7827)
www.bestar.ca
1-888-8bestar (1888 823-7827)
MODEL
