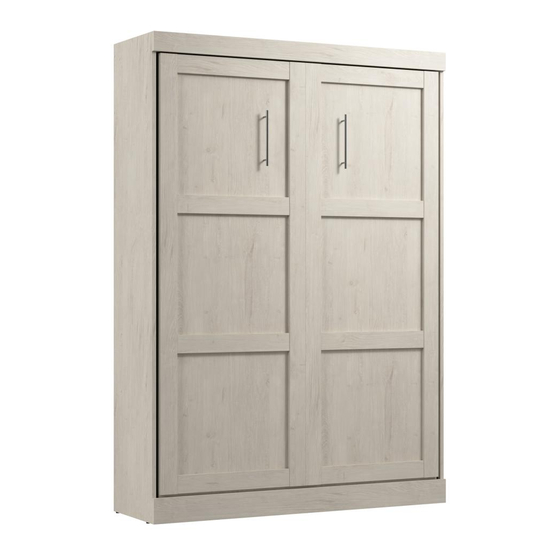

Important information to read
before starting the assembly.
Keep this information for future reference.
IMPACT OR CRUSHING HAZARD: If bed is not properly attached to the wall,
it can suddenly fall, resulting in serious injury or death.
• For wood or masonry wall structure, a qualified person must install the bed to the wall.
• For all other types, a construction professional must install the bed to the wall in compliance
with the codes and regulations in the province, state, or country where installed.
• The choice of wall attachment screw depends on wall type. Use wall attachment screws
suitable for your wall material.
• Verify structural integrity of floor and wall prior to installation.
• Do not open or use the bed if the bed cabinet moves while opening, or if you notice any other
signs of loose or detaching screws.
• Never remove wall attachment screws without first disassembling and removing the mattress
frame and lift cylinders.
• Qualified person must have the skills and tools necessary to locate wall studs, identify type
of wall structure (wood, metal, masonry or other) and install screws correctly to wall structure.
Skills and tools include electronic stud finder, drill motor and bits, screwdriver, and ability
to correctly use these tools.
• Bed frame maximum supporting weight: 1000 lb (455 kg).
• Maximum mattress thickness: 10 in (25.5 cm).
• Mattress weight must be between: 60 lb (27 kg) and 90 lb (41 kg).
• Minimum ceiling height: 85.75 in (2.18 m).
• Minimum holding force required for each fastener: 142 lb (630 N).
• Not for use with folding mattress.
FOR ANY PROBLEM OR INFORMATION
1-888 8BESTAR (1-888 823-7827)
WARNING
NOTICE
http://bestar.ca
http://bestar.com
MODEL
26183-5
COLOR
WO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Murphy 26183-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bestar Murphy 26183-5

  • Page 1 MODEL 26183-5 COLOR Important information to read before starting the assembly. Keep this information for future reference. WARNING IMPACT OR CRUSHING HAZARD: If bed is not properly attached to the wall, it can suddenly fall, resulting in serious injury or death.
  • Page 2 Bestar reserves the right to request a proof of purchase to document a warranty claim. In no event shall BESTAR be liable for incidental or consequent damages resulting from the misuse of the product.
  • Page 3 Customer Service www.bestar.com/support If there are parts missing from your order or if your product was damaged during shipping, PLEASE CONTACT US DIRECTLY. Need help? If you have any questions or concerns, please visit our website: www.bestar.com/support or call our toll-free number:...
  • Page 4 Activate your Warranty www.bestar.com/activate-my-warranty Activate your warranty now: www.bestar.com/activate-my-warranty Information required to make a warranty claim A copy of your receipt. Pictures of the damaged parts. You must know the name of the product, the item number and the name of the store where the item was purchased.
  • Page 5 Maintenance Tips www.bestar.com/maintenance Never leave damp clothes, liquids or damp cloths on the furniture. If a liquid has spilled on the furniture, clean the liquid up immediately. Clean the furniture with a damp cloth, then wipe dry. To avoid damaging the finish, do not use cleaning products on the furniture.
  • Page 6 At Bestar, we take pride in manufacturing stylish and functional furniture for your home and workspace. We go beyond manufacturing furniture: we offer solutions to optimize and customize your home and workspace. That’s why customer satisfaction is our number one priority! Satisfaction Survey www.bestar.com/satisfaction...
  • Page 7 Parts & Hardwares Parts Code Code Code Code Part number on the top or on edge 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 8: Table Of Contents

    Parts & Hardwares Hardwares in box 1 Code Code Code Code BT-1137 FO-1136 H-36 PO-959 3/32 in CA-100 GO-796 H206515 LEG WARNING STICKER (2,5 mm) 83 in 1 in EX-7635 H-03 PA-844 (2100 mm) (25 mm) Hardwares in box 3 — Metal Mechanism for Full-Size Wall Bed Code Code Code...
  • Page 9: Code

    3500-400350 1/2 in (13 mm) 2 3/4 in (70 mm) VC-204 2 in (50 mm) VB-1134 4 in (102 mm) Important Notice http://bestar.ca http://bestar.com To better serve you! MODEL 25183-3 Pour mieux vous servir! COLOR Important information to read before starting the assembly.
  • Page 10 Important Notice Main hardware system. Installation steps. How to remove a misplaced assembly bolt (H-36). Arrow Proper position H-03 H-36 Pull out Turn Push down Insert the cam with the arrow pointing toward the hole in the edge. Main hardware system. Assembly steps. TWO people are required to assemble and move this model.
  • Page 11 Hardware installation Murphy bed GO-796 H-03 PA-844 Code x 14 NOTICE Place boxes under parts during the assembly to avoid damage. H-03 GO-796 GO-796 GO-796 GO-796 PA-844 GO-796 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 12 Hardware installation & assembly Murphy bed TWO people are required for this step. VC-204 Code VC-204 Holes down. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 13 Hardware installation & assembly Murphy bed VC-204 Code x 11 NOTICE Label must face this way. See next page for detailed view. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 14 • Disassemble product in reverse order of initial assembly. ce lit escamotable. • Consulte el manual del propietario o descargue el manual en bestar.ca • Refer to owner’s manual or download manual at bestar.ca or bestar.com • Consultez le manuel du propriétaire ou téléchargez le manuel sur bestar.ca.
  • Page 15 WALL ANCHORING REQUIREMENTS & INSTALLATION RECOMMENDATIONS Important information to read before starting the assembly. Keep this information for future reference. WARNING IMPACT OR CRUSHING HAZARD: If bed is not properly attached to the wall, it can suddenly fall, resulting in serious injury or death. •...
  • Page 16 WALL ANCHORING INSTRUCTIONS ATTACHING THE CABINET TO THE WALL STRUCTURE INSTALLATION RECOMMENDATIONS Locate stud centerlines using electronic stud finder. Use pencil to mark stud centerlines above the upper back of wall bed. Drill a 1/8 in or 3 mm pilot hole into the wall stud to determine the type of wall structure present.
  • Page 17 WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS — WOOD STUDS WALL COMPOSITION Wood studs ACCORDING TO YOUR WALL TYPE AND COMPOSITION, YOUR PROFESSIONAL INSTALLER SHOULD APPROVE THE CHOICE OF ANCHOR SCREWS AND SELECT, IF REQUIRED, MORE APPROPRIATE ANCHORING DEVICES. HARDWARE INCLUDED H206515 VB-1134 BT-1137 Wood drill bit...
  • Page 18 WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS — WOOD STUDS Determine the position of the bed in the room. Move the bed if necessary, then remove the floor trim completely. Locate and mark the positioning Put the bed back in its place. Level by adjusting of 2 studs using a stud finder.
  • Page 19 WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS — WOOD STUDS Put the VB-1134 screws through the holes of part #71 and screw into the center of the studs until the plywood is tight against the wall. USE AN ELECTRIC SCREWDRIVER WITH AN ADJUSTABLE TENSION CLUTCH THAT HELPS PREVENT OVER-TIGHTENING AND STRIPPING.
  • Page 20: Fo-1136

    WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS — MASONRY WALL COMPOSITION Masonry ACCORDING TO YOUR WALL TYPE AND COMPOSITION, YOUR PROFESSIONAL INSTALLER SHOULD APPROVE THE CHOICE OF ANCHOR SCREWS AND SELECT, IF REQUIRED, MORE APPROPRIATE ANCHORING DEVICES. HARDWARE H206515 FO-1136 VB-1134 Wood drill bit Masonry drill bit 1/8 in (3 mm) 3/16 in (4 mm)
  • Page 21 WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS — MASONRY Determine and mark the position of the bed in the room. Move the bed if necessary, then remove Put the bed back in its place. Level by adjusting the floor trim completely. the legs PA-844 previously installed. If you install the bed on a carpet, you must raise the bed by an extra 3/8 in (10 mm).
  • Page 22 WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS — MASONRY Move the bed again. Using a 5/32 in (4 mm) diameter masonry bit, drill into the drywall and masonry (a hammer drill is required). Masonry Drywall Wood Put the bed back in its place. Minimum 1 1/4 in (32 mm) Maximum 1 3/4 in (44 mm) VB-1134...
  • Page 23: Ki-985-Q

    • Disassemble product in reverse order of initial assembly. ce lit escamotable. • Consulte el manual del propietario o descargue el manual en bestar.ca • Refer to owner’s manual or download manual at bestar.ca or bestar.com • Consultez le manuel du propriétaire ou téléchargez le manuel sur bestar.ca.
  • Page 24: Ki-7652-C

    Hardware installation & assembly Murphy bed KI-985-M KI-7652-C KI-7652-D KI-7653-V Code x 10 CA-7641 KI-7652-C KI-985-M KI-985-Q This part can move toward the front or the back. KI-7653-W KI-985-M KI-7652-D Place tube KI-7653-V in upper-front position. NOTICE Use the 3 back holes without fully tightening the KI-985-M.
  • Page 25 Assembly Murphy bed TWO people are required for this step. Push the metal base Insert the in until you metal base touch the that you have wooden just assembled. dowels. Place a leveler on the tube. Adjust the leg levelers until the tube is level.
  • Page 26 Assembly Murphy bed Adjust the position of the back tube to rest it against the wall. Fully tighten the (6) KI-985-M. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 27 Hardware installation & assembly Murphy bed KI-985-M KI-7653-A-1 KI-7653-A-2 KI-7653-A-3 KI-7653-A-4 Code KI-7653-A-4 These holes on top. KI-7653-A-1 Insert inside. KI-7653-A-2 KI-7653-A-3 KI-985-M KI-985-M 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 28: Ki-7652-M

    Hardware installation & assembly Murphy bed KI-7652-O KI-7652-M KI-7653-A-5 Code 1.25 in (31.5 mm) 2.7 in (68 mm) KI-7653-A-5 KI-7652-M KI-7652-O 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 29: Ki-7652-X

    Hardware installation & assembly Murphy bed KI-985-E KI-7653-A-6 KI-7653-A-7 KI-7652-O KI-7652-M Code x 18 x 18 KI-7653-A-7 KI-7653-A-6 KI-7653-A-7 KI-7652-M KI-985-E KI-7652-O 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 30 Assembly Murphy bed TWO people are required for this step. Place the bearing inside the bearing support. Close the metal frame. Distance between metal frame and wood gable must be the same each side. Move the base to adjust Mark the bottom the distance on top.
  • Page 31 Assembly Murphy bed TWO people are required for this step. Remove the base. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 32 WALL ANCHORING REQUIREMENTS & INSTALLATION RECOMMENDATIONS Important information to read before starting the assembly. Keep this information for future reference. WARNING IMPACT OR CRUSHING HAZARD: If bed is not properly attached to the wall and floor, it can suddenly fall, resulting in serious injury or death. •...
  • Page 33 • Disassemble product in reverse order of initial assembly. ce lit escamotable. • Consulte el manual del propietario o descargue el manual en bestar.ca • Refer to owner’s manual or download manual at bestar.ca or bestar.com • Consultez le manuel du propriétaire ou téléchargez le manuel sur bestar.ca.
  • Page 34 WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS BT-1137 FO-1136 H206515 VB-1134 Code VB-1134 Wall Wood or Masonry 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 35 • Disassemble product in reverse order of initial assembly. ce lit escamotable. • Consulte el manual del propietario o descargue el manual en bestar.ca • Refer to owner’s manual or download manual at bestar.ca or bestar.com • Consultez le manuel du propriétaire ou téléchargez le manuel sur bestar.ca.
  • Page 36 WALL ANCHORING INSTRUCTIONS INSTALLATION RECOMMENDATIONS BT-1137 FO-1136 H206515 VB-1135 Code VB-1135 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 37: Leg Warning Sticker

    Hardware installation & assembly Murphy bed TWO people are required for this step. WARNING KI-7653-J STICKER Code NOTICE NOTICE Fully tighten 1 nut per cylinder. Nylon side of the nut must face outwards. Take note that after the installation of Thread should extend past end of nut when tightened.
  • Page 38 Assembly Murphy bed TWO people are required for this step. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 39: Ki-7653-V

    Hardware installation & assembly Murphy bed KI-985-L KI-7652-P Code NOTICE 1. Place the bearings equally on each side before attaching them. 2. Position the bearing support in such a way as to lock. (Image 1) 3. Firmly tighten the bearing support screws. BOLTS KI-985-L KI-7652-P...
  • Page 40 Assembly Murphy bed NOTICE TWO people are required Take note that after the installation of for this step. the pistons, it will be very difficult to open the bed. Follow the steps until the end, after mattress and front panels are installed, the bed will open without effort.
  • Page 41 Hardware installation & assembly Murphy bed TWO people are required for this step. KI-985-G KI-985-H KI-993-I Code NOTICE Place an object so that the bed stays partially open. KI-985-H KI-985-H KI-985-H KI-993-I KI-993-I KI-993-I Front view Washer 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 42 Hardware installation & assembly Murphy bed TWO people are required for this step. CA-7641 KI-7652-O KI-7652-M KI-7652-S KI-7652-Y Code CA-7641 Someone must hold the bed open during KI-7652-C this step. KI-7652-Y KI-7652-S KI-7652-M KI-7652-O 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 43 Assembly Murphy bed TWO people are required for this step. Someone must hold the bed open during this step. Adjustment to close the metal base. Adjusment Perfect to open the metal base. adjusment. Unscrew Screw this bolt. this bolt. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 44 Hardware installation & assembly Murphy bed TWO people are required for this step. KI-985-S KI-993-R KI-7652-A-8 MA-1138 Code x 40 x 40 x 20 KI-7652-A-8 KI-993-R KI-985-S MA-1138 Someone must hold the bed open during this step. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 45 Hardware installation & assembly Murphy bed CR-7639 3500-400350 Code NOTICE Place an object so that the bed stays partially open. Unfinished edge 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 46 Hardware installation & assembly Murphy bed KI-985-K PO-959 VF-232 3500-400350 Code x 18 x 36 3500-400350 KI-985-K VF-232 PO-959 PO-959 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 47 Hardware installation & assembly Murphy bed EX-7635 VR-207 Code x 21 VR-207 EX-7635 Start even on this edge. Cut off the excess. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 48 Hardware installation & assembly Murphy bed EX-7635 VR-207 Code x 21 VR-207 EX-7635 Start even on this edge. Cut off the excess. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 49 Assembly Murphy bed NOTICE TWO people are required Use one of the cardboard corner pieces for this step. from packaging or similar object to keep the bed in semi-closed position for the installation of the facades. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 50 Assembly Murphy bed TWO people are required for this step. Move the facades to the left or to the right until the space is the same on each side. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 51 Hardware installation & assembly Murphy bed TWO people are required for this step. VR-215 Code x 12 VR-215 Use Velcro to secure the mattress. VR-215 VR-215 VR-215 Someone must hold the bed open during this step. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 52 Hardware installation & assembly Murphy bed TWO people are required for this step. H-36 Code H-36 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 53 1-888-823-7827 to get the instructions and the parts required for the repair (if possible). Do not continue to use a damaged bed and don’t try to fix it yourself without instructions from Bestar. A damaged bed may malfunction resulting in unexpected opening, closing, or collapse of bed.
  • Page 54 DISASSEMBLY Important information to read before starting the disassembly. Keep this information for future reference. WARNING IMPACT OR CRUSHING HAZARD: if wall attachment screws are removed before removing lift cylinders and metal mattress frame, wall bed cabinet can suddenly fall, resulting in serious injury or death.
  • Page 55 DISASSEMBLY Rotate the leg toward the interior. TWO people are required for this step. Use an object of about 2 in (50 mm) thick to keep the bed in a semi-closed position, then lift and pull to remove the facades. TWO people are required for this step.
  • Page 56 DISASSEMBLY Let the bed frame sink back into the cabinet and remove the lift cylinders. UNSCREW THE FASTENER AND REMOVE THE END OF THE CYLINDER FROM THE “L” BRACKET. 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 57 DISASSEMBLY Unscrew and remove the bearing supports. KI-7652-P KI-7652-P IMAGE 1 FRONT VIEW TWO people are required for this step. Lift the metal bed frame from the brackets. TWO people are required for this step. Now you can unscrew the bed from the wall and continue the disassembly. 101122 V8 26183-5 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
