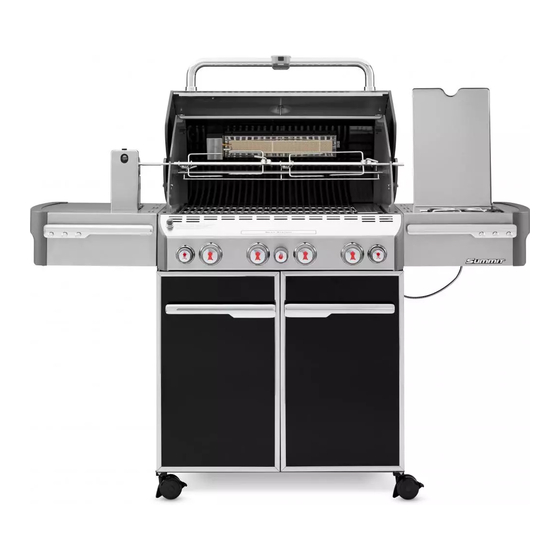

Weber Summit E-470 Owner's Manual

Hide thumbs Also See for Summit E-470:
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for purchasing
a WEBER grill. Take a few
minutes and protect it by
registering your product
online at www.weber.com.
845BR-0035
0845

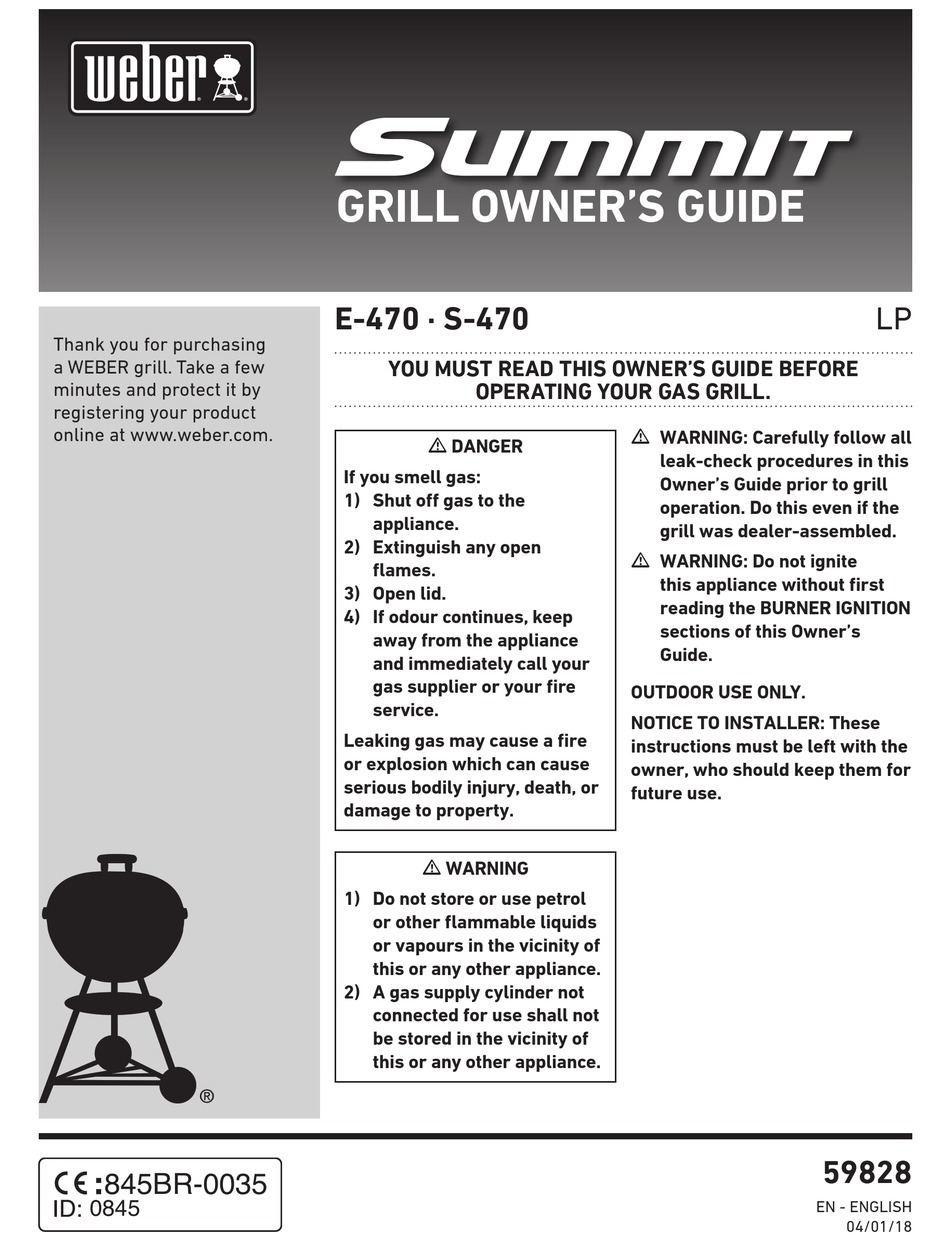

GRILL OWNER'S GUIDE
E-470 · S-470
YOU MUST READ THIS OWNER'S GUIDE BEFORE
OPERATING YOUR GAS GRILL.
m DANGER
If you smell gas:
1) Shut off gas to the
appliance.
2) Extinguish any open
flames.
3) Open lid.
4) If odour continues, keep
away from the appliance
and immediately call your
gas supplier or your fire
service.
Leaking gas may cause a fire
or explosion which can cause
serious bodily injury, death, or
damage to property.
m WARNING
1) Do not store or use petrol
or other flammable liquids
or vapours in the vicinity of
this or any other appliance.
2) A gas supply cylinder not
connected for use shall not
be stored in the vicinity of
this or any other appliance.
m WARNING: Carefully follow all
leak-check procedures in this
Owner's Guide prior to grill
operation. Do this even if the
grill was dealer-assembled.
m WARNING: Do not ignite
this appliance without first
reading the BURNER IGNITION
sections of this Owner's
Guide.
OUTDOOR USE ONLY.
NOTICE TO INSTALLER: These
instructions must be left with the
owner, who should keep them for
future use.
LP
59828
EN - ENGLISH
04/01/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Summit E-470 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber Summit E-470

Summary of Contents for Weber Summit E-470

  • Page 1 GRILL OWNER’S GUIDE E-470 · S-470 Thank you for purchasing a WEBER grill. Take a few YOU MUST READ THIS OWNER’S GUIDE BEFORE OPERATING YOUR GAS GRILL. minutes and protect it by registering your product online at www.weber.com. m WARNING: Carefully follow all...

  • Page 2: Warnings

    WARNINGS m DANGER Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. m WARNINGS m The gas grill should be cleaned thoroughly at regular intervals. m When cleaning valves or burners, do not enlarge orifices or m Follow regulator connection instructions for your type of gas ports.

  • Page 3: Table Of Contents

    WEBER SPIDER/INSECT SCREENS ........

  • Page 4: Exploded View

    EXPLODED VIEW SUMMIT E-470/S-470_LP_EN_110117...

  • Page 5: Warranty

    WARRANTY The WEBER Promise (10 year EMEA voluntary warranty) At WEBER, we pride ourselves on two things: making barbecues that last and providing a lifetime of excellent customer service. Thank you for purchasing a WEBER product. Owner’s Responsibilities Under this Disclaimers Weber-Stephen Products LLC, 1415 S.

  • Page 6: General Instructions

    The WEBER gas grill is portable so you can easily change its location in your garden or on • If the gas supply cylinder is not removed from the WEBER gas grill, the entire grill and your patio.

  • Page 7: Operating

    WARNING: Do not move the appliance while it is alight. m WARNING: Your WEBER gas grill is not intended to be installed in m WARNING: Use heat-resistant barbecue mitts or gloves or on caravans and/or boats.

  • Page 8: Installing The Cylinder

    A) Place the cylinder on the ground, outside the base cabinet, on the right side of the grill (7). B) Turn the LP cylinder so the opening of the valve is facing the front of the WEBER gas grill. ◆...

  • Page 9: Connecting The Lpg Cylinder

    5 years, in which case that country’s requirement would take precedence. For replacement hose, regulator, and valve assemblies, contact the Customer Service Representative in your area using the contact information on our web site. Log on to www.weber.com. WWW.WEBER.COM...

  • Page 10: Leak-Check Preparation

    GAS INSTRUCTIONS LEAK-CHECK PREPARATION m WARNING: The gas connections of your SUMMIT gas grill have been factory-tested. We do, however, recommend that you leak- check all gas connections before operating your SUMMIT gas grill. Remove Control Panel Tools needed: Screwdriver, pliers, and towels. A) Remove burner control knobs (1).

  • Page 11: Check For Gas Leaks

    If leak does not stop, contact the Customer Service Representative in your area using the contact information on our website. Log onto www.weber.com. D) When leak checking is complete, turn gas supply off at the source and rinse connections with water.
  • Page 12 DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. When leak checks are complete, turn gas supply off at the source and rinse connections with water.

  • Page 13: Refilling The Lpg Cylinder

    Requires three “D” alkaline batteries. Do not mix old and new batteries or different types of batteries (standard, alkaline or rechargeable). Battery housing is located inside the GREEN WIRE cabinet on the left side. To operate, activate power button. ◆ RED WIRE RED WIRE WWW.WEBER.COM...

  • Page 14: Before Using The Grill

    WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only WEBER authorized replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site.

  • Page 15: Snap Ignition Operation

    WARNING: If the burner still does not light, turn the burner control knob to OFF and wait five minutes to let the gas clear before you try again or try to light with a match. ◆ WWW.WEBER.COM...

  • Page 16: Main Burner Ignition & Usage

    MAIN BURNER IGNITION & USAGE MAIN BURNER IGNITION m DANGER Failure to open the lid while igniting the grill’s burners, or not waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flare-up, which can cause serious bodily injury or death.

  • Page 17: Main Burner Manual Ignition

    WARNING: If the burner does not light, turn the burner control knob to OFF and wait five minutes to let the gas clear before you try again. ◆ TO EXTINGUISH Push in and turn each burner control knob clockwise to OFF position.Turn gas supply off at the source. ◆ WWW.WEBER.COM...

  • Page 18: Grilling Tips & Helpful Hints

    • Foods placed on the cooking grate directly above burners may require turning or moving to a less hot area. Your WEBER gas grill may include a sear burner for searing thin meats and fish. The SEAR • Use tongs rather than a fork for turning and handling meats to avoid losing natural STATION burner has an ON or OFF control setting that works with the two adjacent main juices.

  • Page 19: Cooking Methods

    For longer cooking times, add water to the foil pan to keep drippings from burning. The drippings can be used to make gravies or sauces. ◆ WWW.WEBER.COM...

  • Page 20: Side Burner Ignition & Usage

    SIDE BURNER IGNITION & USAGE SIDE BURNER IGNITION m DANGER Failure to open the lid while igniting the side burner, or not waiting five minutes to allow the gas to clear if the side burner does not light, may result in an explosive flare-up, which can START/HI cause serious bodily injury or death.

  • Page 21: Sear Station Ignition & Usage

    WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged The grills illustrated in this in any way, do not use the grill. Replace using only WEBER Owner’s Guide may vary slightly from the model purchased.

  • Page 22: Sear Station Burner Manual Ignition

    SEAR STATION IGNITION & USAGE SEAR STATION BURNER MANUAL IGNITION m DANGER Failure to open the lid while igniting the grill’s burners, or not waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flare-up, which can cause serious bodily injury or death.

  • Page 23: Smoker Burner Ignition & Usage

    WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only WEBER authorised replacement hose. Contact the Customer Service...

  • Page 24: Smoker Burner Manual Ignition

    WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only WEBER authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site.

  • Page 25: Using The Smoker

    To a lesser degree a “smoke” residue will accumulate on the inside of your gas grill. This residue need not be removed and will not adversely affect the function of your gas grill. ◆ WWW.WEBER.COM...

  • Page 26: Rotisserie Burner Ignition & Usage

    WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only a WEBER authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site.

  • Page 27: Rotisserie Burner Manual Ignition

    WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only a WEBER authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site.

  • Page 28: Important Safeguards

    Representative in your area using the contact information on our m Use heat-resistant barbecue mitts or gloves (conforming to web site. Log onto www.weber.com. EN 407, Contact Heat rating level 2 or greater) when operating Make sure the rotisserie shaft handle is securely fastened. Slide one of the spit forks barbecue.

  • Page 29: Rotisserie Cooking

    (1). m CAUTION: Do not allow rotisserie spit to come into contact with any gas lines. B) Store rotisserie forks by placing them on the hooks located on the catch pan holder within the grill cabinet (2). ◆ WWW.WEBER.COM...

  • Page 30: Troubleshooting

    LP cylinder. Replace with a spare LP cylinder and resume cooking. If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. SIDE BURNER TROUBLESHOOTING PROBLEM...

  • Page 31: Sear Station Troubleshooting

    Turn cylinder valve on slowly. Refer to “MAIN BURNER safety device. IGNITION”). If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. ROTISSERIE TROUBLESHOOTING PROBLEM CHECK SOLUTION Rotisserie burner does not light.

  • Page 32: Maintenance

    Customer Service Representative in your area using the contact information on our a fire, which can cause serious bodily injury or death, and cause website. Log onto www.weber.com. damage to property. Catch pan — Disposable foil trays are available, or you can line the catch pan with aluminum foil.

  • Page 33: Replacing Main Burners

    Pull manifold assembly away from burner tubes and let it hang loose from grill cabinet (9). Do not disconnect the blue wire from the left side of the manifold assembly. Pull the selected burner tube(s) through the front of cookbox and replace with new burner tube(s) (10). WWW.WEBER.COM...

  • Page 34: Side Burner Maintenance

    MAINTENANCE Remove SEAR STATION Burner To remove the SEAR STATION burner, pull the burner tube toward you. This removes it from the burner tube notch (11). Then rotate the tube clockwise (12), so that the screw at the end of the tube (13) fits through the notch in the heat shield opening (14). When the burner tube is free, remove it from the cookbox (15).

  • Page 35: Annual Maintenance

    If the spider/insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. Burner Flame Pattern The gas grill burners have been factory set for the correct air and gas mixture. The correct flame pattern is shown.
  • Page 36 ATTENTION: This product has been safety-tested and is only certified for use in a specific country. Refer to country designation located on outside of box. These parts may be gas-carrying or gas-burning components. Please contact Weber-Stephen Products LLC Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information.
