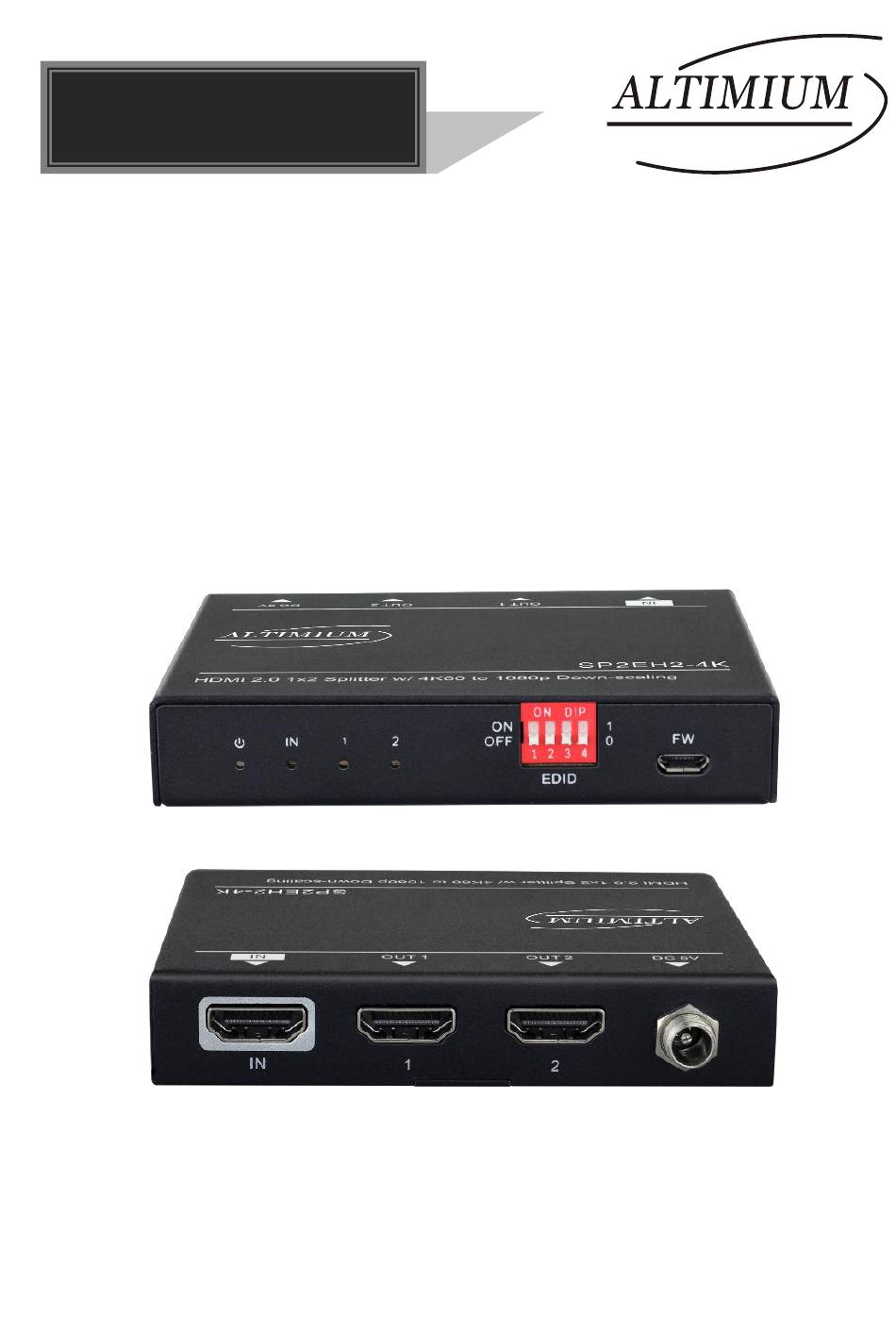

- Page 1 User Manual SP2EH2-4K HDMI 2.0 1x2 Splitter with 4K to 1080p Down-scaling All Rights Reserved Version: SP2EH2-4K_2019V1.0...
- Page 2 HDMI 2.0 1x2 Splitter Statement Thanks for purchasing this product, please read this user manual carefully before using this product. The functions described in this version are updated till November, 2019. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation.

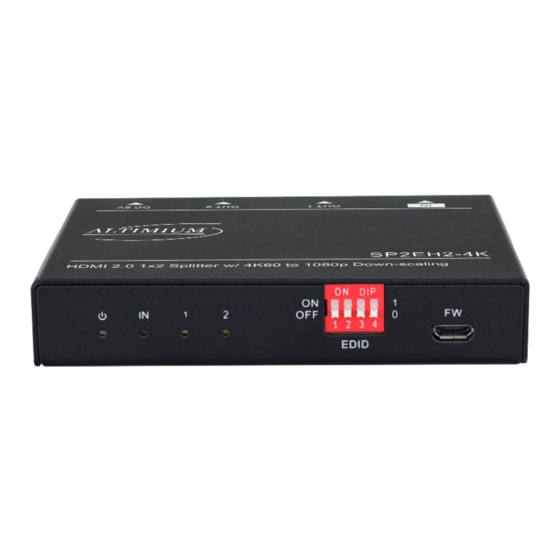

- Page 3 HDMI 2.0 1x2 Splitter Product Introduction Thanks for choosing the HDMI 2.0 1x2 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel.
- Page 4 HDMI 2.0 1x2 Splitter Rear Panel DC 5V ① INPUT: Type-A female HDMI input port to connect a HDMI source. ② OUTPUTS: Two type-A female HDMI output ports to connect HDMI displays. ③ DC 5V: DC barrel port to connect an AC power adapter. DIP Switch Operation EDID Management The Extended Display Identification Data (EDID) is used by the source device to match...
- Page 5 HDMI 2.0 1x2 Splitter Switch Status Video Resolution Audio Format Obtains EDID from the first detected display starting at output 1>2. Obtains EDID from the first detected display starting at output 2>1. 1080p LPCM 1080p DTS/Dolby 3840x2160@30Hz HDR LPCM 3840x2160@30Hz HDR DTS/Dolby 3840x2160@60Hz HDR LPCM...
- Page 6 HDMI 2.0 1x2 Splitter Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. 2) Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”.
- Page 7 HDMI 2.0 1x2 Splitter Technical Specification Video Input Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.3, 1.4 compliant Supported Video Output Output (2) HDMI Output Connector (2) Type-A female HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit...
- Page 8 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
