FREQUENCY:
GAIN :
POWER :
ELEMENT PHASING : 6m: 1/4λ, 2m: 1/2λ, 70cm: 2 5/8λ
IMPEDANCE :
VSWR :
LENGTH :
WEIGHT :
MOUNT :
WARRANTY :
Recommended Mounts: K400C, K400S, K412C, K412S, K600M and K600S.
THE SG-M911 REQUIRES PEOPER VEHICLE GROUND. MOUNTING LOCATION WILL AFFECT VSWR.
NOT RECOMMENDED FOR MAGNET MOUNTS.
1. Remove antenna from package and inspect contents to insure it is complete.
2. Choose desired mounting location to insure proper vehicle grounding, maximum strength of mount, and best
performance of antenna.
3. Install antenna on vehicle. Use quality meter to check VSWR. The SG-M911 is pre-tuned and only minor adjustment
may be required for best VSWR. Minor tuning can be achieved by loosening setscrews at fold-over and adjusting
lower element.
4. Tighten setscrews. Recommend using removable Loctite Threadlocker #242 or similar product to insure proper
fastening of setscrews.
Lift upper half of foldover hinge vertically out of its conical socket, avoiding the use of the sockets' edge as a
fulcrum. Position hinge to permit foldover in desired direction. Care should be taken when folding over, not to damage
vehicle or antenna. Do not drive with antenna in folded position.

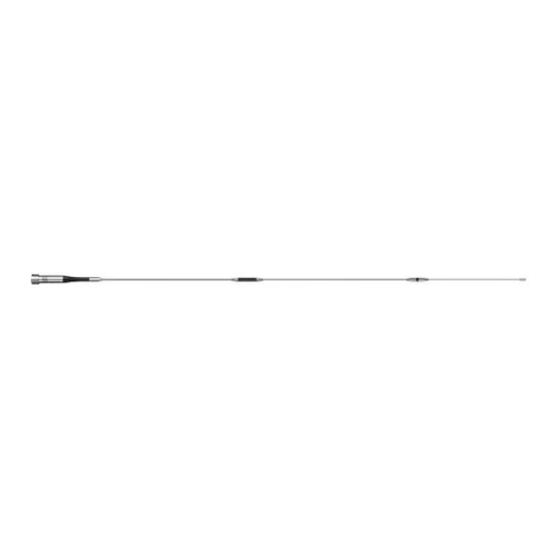

6m/2m/70cm Tri-Band Mobile Antenna
6m: 52-54 MHz, 2m: 144-148 MHz, 70cm: 440-450 MHz
6m: 2.15 dBi, 2m: 2.15 dBi, 70cm: 5.5 dBi
60 Watts
50 Ohms (nominal)
1.5:1 (nominal)
41"
.3 lbs.
UHF Male
1 year against defects in material or workmanship.
Foldover Hinge Assembly
DIAMOND ANTENNA Products are distributed by RF PARTS COMPANY
435 S. Pacific Street ¥ San Marcos, CA 92078 ¥ (760) 744-0900
www.diamondantenna.net
SG-M911
Specifications
Antenna Assembly
