Solid State Outputs
The two solid state outputs (Output #3 & Output #4) can be
programmed to activate during various conditions. These
outputs can be used to activate indicators or sounders. See
Figure 7 for wiring examples using the solid state outputs.
DC
POWER
SOURCE
1K Ω @ 12 volts
2K Ω @ 24 volts
LED
OUTPUT #3
OUTPUT #4
EXAMPLE 1: OUTPUT #3 LIGHTS AN LED,
OUTPUT #4 LIGHTS AN LED AND SOUNDS A BEEPER
OUTPUT #3
LOW VOLTAGE
OUTPUT #4
LAMP
END-OF-LINE
RESISTOR
COMMON
GROUND
EXAMPLE 2: OUTPUT #3 LIGHTS A LAMP POWERED FROM AN EXTERNAL
SOURCE, OUTPUT #4 TRIGGERS A NORMALLY OPEN ALARM PANEL ZONE

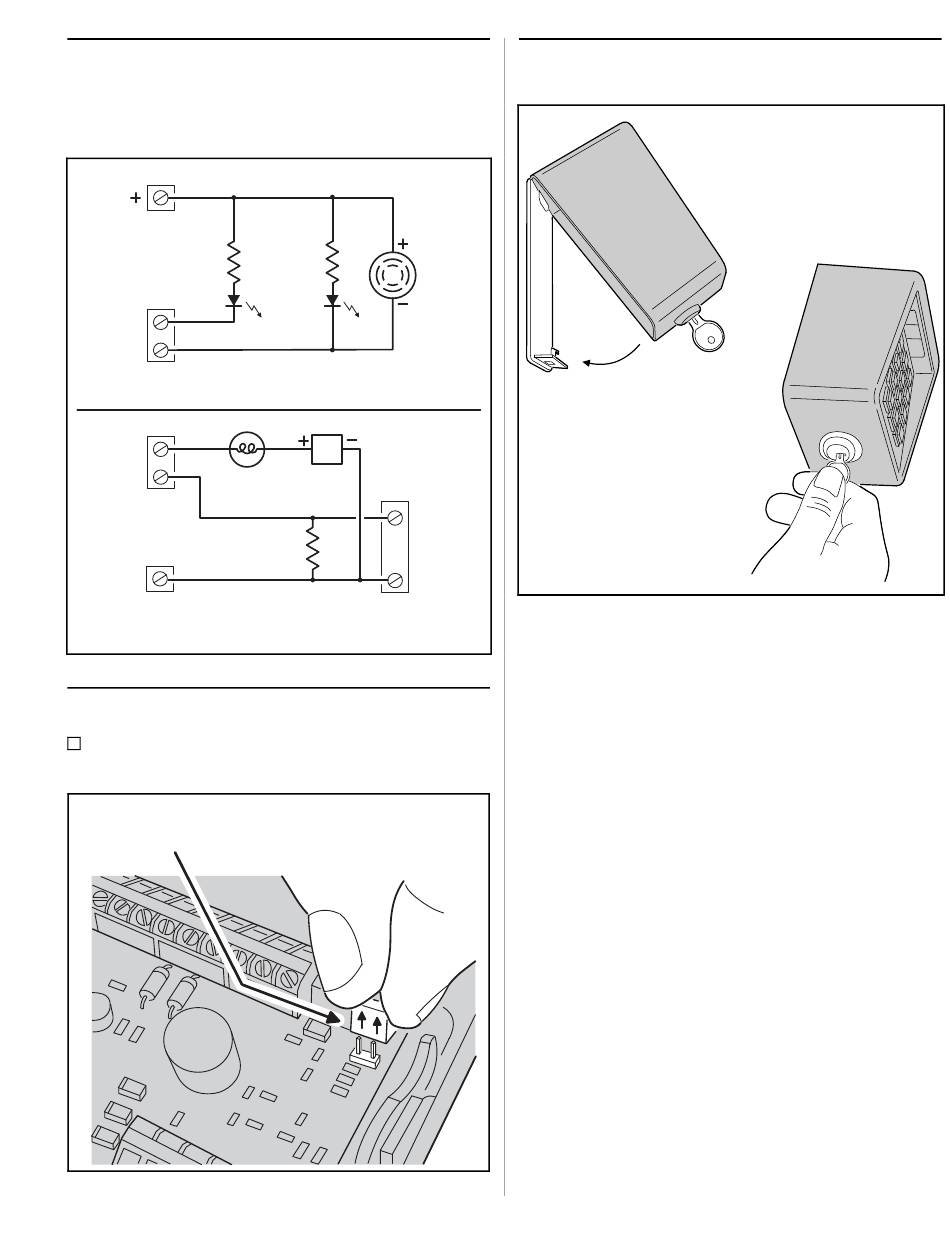

Figure 7. Using the Solid State Outputs
Beeper Sound Level
The keypad's beeper can be set to low or high level.
If the keypad's beeper is too loud for the keypad's location,
remove jumper JP1 (see Figure 8).
REMOVE JUMPER JP1 TO REDUCE
THE SOUND LEVEL OF THE BEEPER
Figure 8. Removing Beeper Jumper
ELECTRONIC
BEEPER
LED
EACH
OUTPUT
100 mA
MAXIMUM
EACH
OUTPUT
100 mA
POWER
MAXIMUM
SOURCE
N.O. ZONE
ALARM PANEL
COMMON
Locking Keypad
After the installation is complete. Lock the keypad using the
keylock (see Figure 9).
HOOK KEYPAD
ONTO BACKPLATE
USE KEY TO
LOCK KEYPAD
Figure 9. Locking the Keypad Case
