COMPONENT LOCATIONS

RED/GREEN
POWER/ACCESS
INDICATOR
NIGHT
LIGHT
TACTILE
KEYPAD

WIRING DIAGRAM

TYPICAL GATE INSTALLATION WIRING
J4
1
POWER
2
3 INHIBIT
4
COMMON
5 REQUEST-TO-ENTER
6
EARTH GROUND
INHIBIT FIRE
TIMER ACCESS
REQUIRED WIRING AUXILIARY
OPTIONAL WIRING
YELLOW
"LOCKOUT"
INDICATOR
TERMINAL BLOCK J4
POWER AND INPUTS

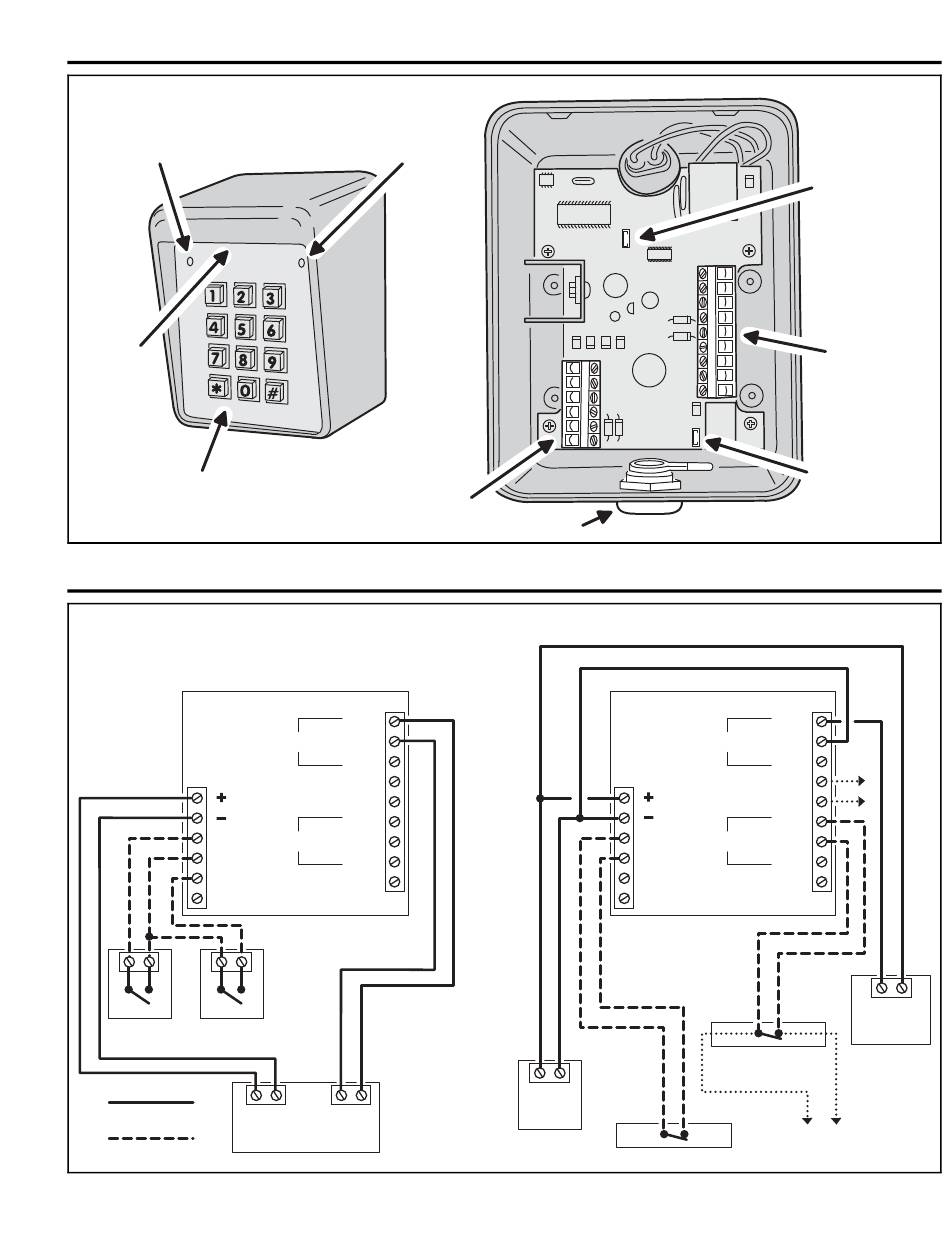

Figure 1. Component Locations
AK-11
J3
1
N.O.
2
RELAY #1 COMMON
3
N.C.
OUTPUT #3 4
OUTPUT #4 5
6
N.O.
7
RELAY #2 COMMON
8
N.C.
COMMON 9
GROUND
OPEN
POWER
GATE OPERATOR
Figure 2. Wiring Diagram
KEYLOCK
TYPICAL DOOR INSTALLATION WIRING
J4
1
POWER
2
3 DOOR SENSE
4
COMMON
5 REQUEST-TO-ENTER
6
EARTH GROUND
POWER
DOOR SWITCH
SUPPLY
JUMPER JP2
RESETS
MASTER CODE
TERMINAL
BLOCK J3
OUTPUTS
JUMPER JP1
REMOVE TO
REDUCE
BEEPER SOUND
AK-11
J3
1
N.O.
2
RELAY #1 COMMON
TO ALARM
3
N.C.
SYSTEM
OUTPUT #3 4
OUTPUT #4 5
6
N.O.
7
RELAY #2 COMMON
8
N.C.
COMMON 9
GROUND
OPEN
ALARM CONTACT ELECTRIC
DOOR
STRIKE
TO ALARM
SYSTEM
