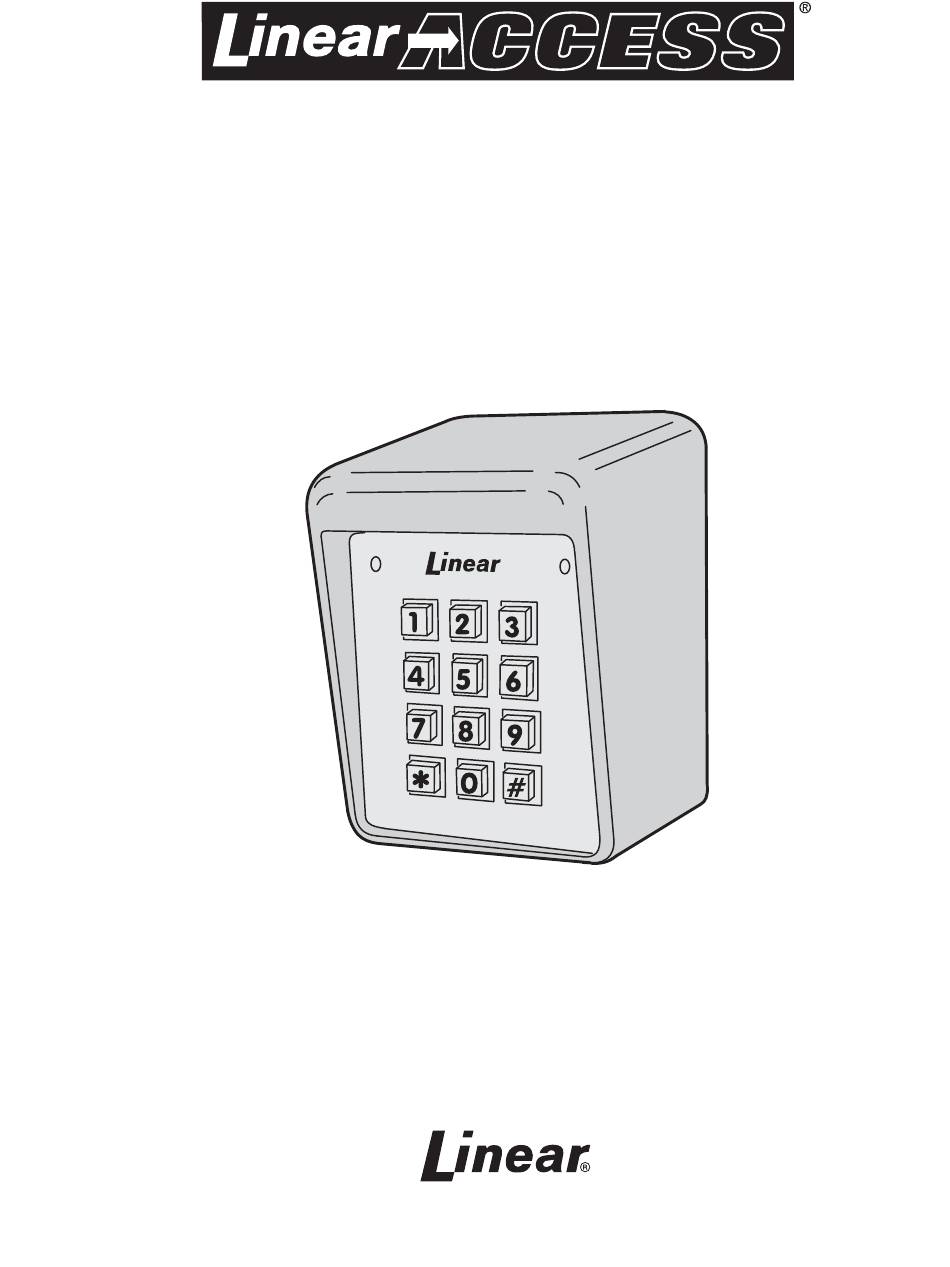

- Page 1 AK-11 Digital Keyless Entry System Installation and Programming Instructions (760) 438-7000 USA & Canada (800) 421-1587 & (800) 392-0123 Toll Free FAX (800) 468-1340 www.linearcorp.com...
-
Page 2: Table Of Contents
Form “C” 1 Amp @ 24 Volts maximum AK-11 OPERATION ......10 Solid state outputs (Outputs #3 & #4) MANAGER’S ENTRY CODE LOG . -
Page 3: Component Locations
TACTILE REDUCE TERMINAL BLOCK J4 KEYPAD BEEPER SOUND POWER AND INPUTS KEYLOCK Figure 1. Component Locations WIRING DIAGRAM TYPICAL GATE INSTALLATION WIRING TYPICAL DOOR INSTALLATION WIRING AK-11 AK-11 N.O. N.O. RELAY #1 COMMON RELAY #1 COMMON TO ALARM N.C. N.C. -
Page 4: Installation
Use four security bolts and locking nuts to secure the keypad’s backplate to the pedestal (see Figure 3). WALL MOUNTING Wall Mounting The AK-11 keypad can be mounted directly to a wall or flat surface. Use the appropriate fasteners to secure the keypad’s backplate to the mounting surface. - Page 5 2 WIRES FOR FOR DOOR (BEHIND GATE) REQUEST-TO-ENTER SENSE FIRE ACCESS KEYSWITCH AK-11 KEYPAD 2 WIRES POWER 2 WIRES FROM AK-11 2 WIRES FROM OPERATOR TO TRIGGER GATE OPEN FOR AK-11 POWER FROM ELECTRIC 2 WIRES POWER DOOR FOR DOOR SUPPLY STRIKE STRIKE Figure 5.
-
Page 6: Factory Defaults
BASIC PROGRAMMING If the new entry code chosen is already being used for another When the AK-11 is in programming mode, both LEDs will turn off entry code, the red LED will light. A new unique code needs to until programming begins. After a programming option number be entered. -
Page 7: Programming Options
PROGRAMMING OPTIONS Select Alarm Shunt Output Default: No Output Sets which output activates during the time access is granted. (Use this output to shunt alarm contacts attached to the access door.) This output may be timed or latched. Select Door Sense or Inhibit Input Press: 1 5 Output Default: Door Sense... - Page 8 ! CAUTION: Performing a master reset will clear the entire Selects whether or not the keypad beeps as each key is pressed. memory of the AK-11 and return all programmable options to the factory default values. ALL ENTRY CODES WILL BE...
- Page 9 Solid State Outputs Locking Keypad The two solid state outputs (Output #3 & Output #4) can be After the installation is complete. Lock the keypad using the programmed to activate during various conditions. These keylock (see Figure 9). outputs can be used to activate indicators or sounders. See Figure 7 for wiring examples using the solid state outputs.
-
Page 10: Ak-11 Operation
AK-11 OPERATION Users of the AK-11 have up to 40 seconds to key in their entry code. Up to eight seconds are allowed between each keystroke. All digits of the entry code must be entered. Example: If the code is 0042, the user must enter “0 0 4 2”.
