Kaito KA752 User Manual

Kaito KA752 User Manual

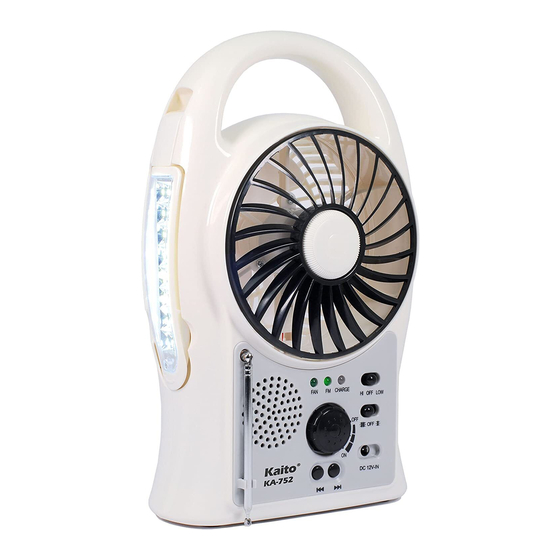

Multi-function radio, fan, flashlight combo

Advertisement

Quick Links

User Manual
Kaito
®
KA752 A Multi-Function Radio, Fan, Flashlight Combo
Product Introduction
The KA752 is a built-in rechargeable battery powered combo: Fan, Radio and light. It is in small size, easy to carry, the
LED lights can be set to different directions, a FM radio and two speed of the fan. It is a perfect camping and family use
item on your outdoor trip, or a garage companion.
Schematic Diagram
270° Axial Rotation Angle
5
150° Radial Rotation Angle
7
6
1
Fan Power Switch, High or Low
2
Tilt-able Lamp Control, High/Low
3
DC12V Charge Jack
4
Fan Grill
5
Tilt and Rotatable Lamp
6
Telescopic Antenna for the FM Scan Radio
Functions Overview
Portable Two Speed DC Electric Fan
Multi-Direction and Multi-Angle LED Lantern with Two-Level Brightness
Built-in FM Scan Radio
Built-in Rechargeable Battery
Built-in 12V DC Charge Receptacle
11
4
10
1
2
9
3
8
7
Built-in Speaker for FM Radio
8
FM Radio Station Selector
9
Radio Power and Volume Control
10
Fan, Radio and Charge Indicators
11
Handle
1
User Manual
Kaito
®
KA752 A Multi-Function Radio, Fan, Flashlight Combo
How To Use This Multi-Function KA752
The KA752 A Multi-Function Radio, Fan, Flashlight Combo can be operated by built-in battery or AC adapter. See the following
detail to use these functions. (All the sign marks refer to Schematic Diagram section)
1. How to use the Fan
1
Refer to the
, Slide the switch to the position of "LOW", the fan will be turned on at a low speed; when slid to the "HI", the
fan will run at a higher speed.
Set it to "OFF", the fan will stop.
2. How to use the LED Lantern
2
Refer to the
, Slide the switch to position "
", the tilt-able lantern will be on with lower brightness; slide to the "
lantern will be in full brightness.
This Lantern can work in multi-direction and angle. To pull it from the fuselage, along the radial angle, it can be adjusted to 150°
Max, each step angle is 30°. The lantern LED can be rotated along the axial angle for 270° Max. Refer to the
3. How to Use the FM Radio
6 7
8 9
Refer to the
, Pull and extend the telescopic antenna fully, clockwise turn the knob
press the "
" forward or "
" backward to select the station you like. The frequency range is 87.5MHz to 108.8MHz. The knob
9
is a volume control too.
4. How to charge the Unit
The AC adapter works on 110V only, make sure you have the correct voltage on the wall output. Connect the DC 12V to the unit,
the "CHARGE" indicator will be on.
The unit might be slightly warm while charging.
Important Notice
Fully charge the unit before use.
Turn off the unit if not in use it for a while. Make sure to charge the unit every month to avoid battery dry up.
Keep the unit away from water or humidity.
Working Temperature: 32°F to 100°F.
Do not open the unit without consulting seller or manufacturer.
WARNING!
Please read the instructions before first use of the electric fan.
In order to prevent the risk of fire or electric shock, do not expose the electric fan to rain or moisture.
To prevent electric shock, Do not open the cabinet. Only qualified personnel may carry out repairs.
Do not placed in water, or close to fire.
Please do not allow children access to the electric fan.
5
description.
9
to turn on the radio,
2
", the
