Table Assembly Manual for 2018 and Later Aluminum Stands

Each Kit will include:

64 – M6 x 12mm Socket Cap Screws
64 – M6 T-nuts
16 – Corner Brackets
8 – M5 x 20mm Socket Cap Screws
5 – M5 Push in T-Nuts
5 – M5 x18mm Socket cap screws
16 – 5/16" - 18 x 1" Socket Cap Screw QTY for Castors 24, QTY for Feet 8
8 – Plastic end caps(4 rectangular, 0 square)
4 – 60/60 Base plates
4 – Leveling feet or casters(depending on which option chosen)
1 – MDF Shelf
4 - Machine Pads for Castors, 8- Feet Adapters for leveling table feet

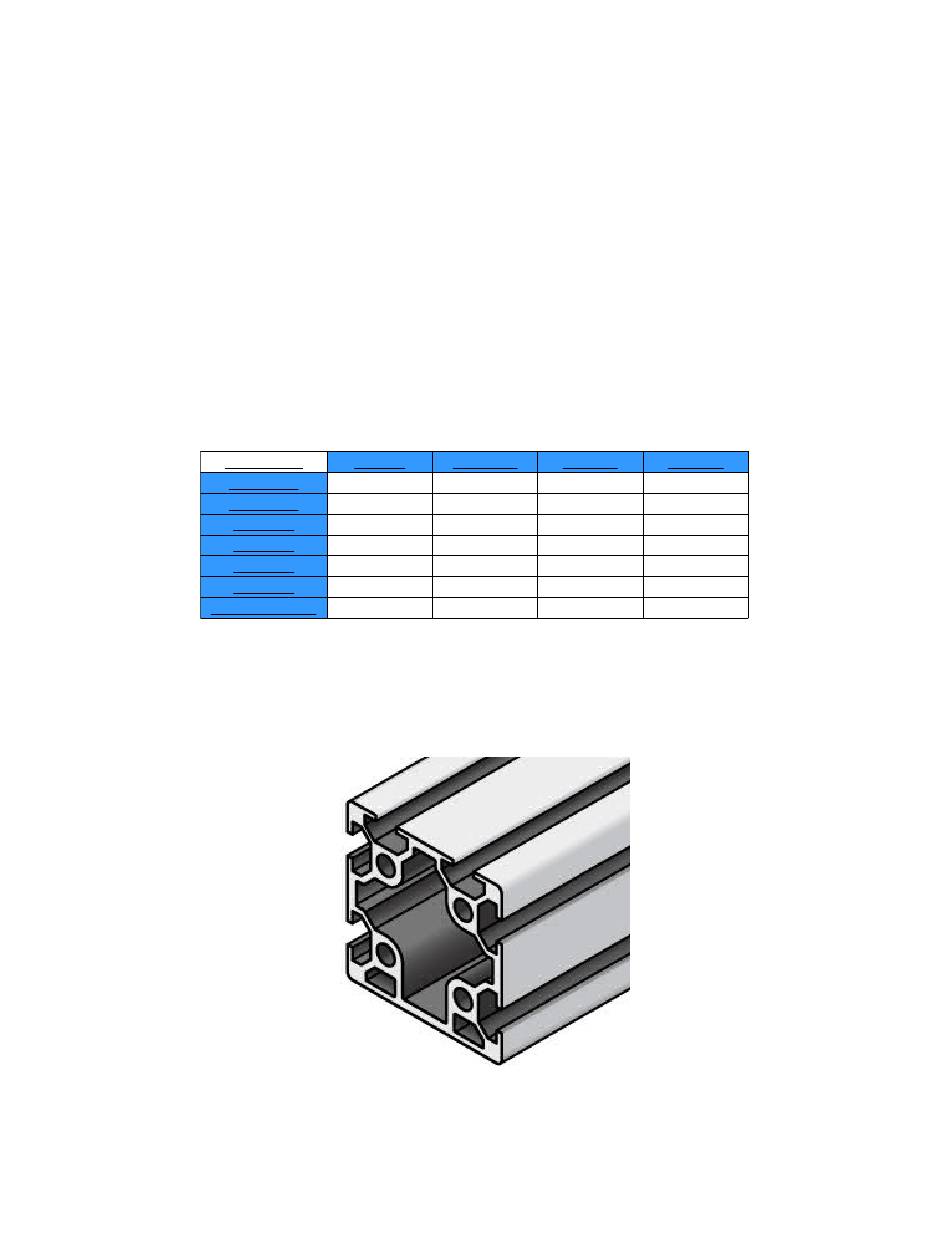

12 – Aluminum Extrusions per kit. Please see chart below for corresponding sizes.
Extrusion:
1528 mm
1414 mm
987 mm
832 mm
704 mm
718 mm
692 mm 60/60

Assembly Procedure:

1) After removing all hardware from its packaging you will need to lay out the four 60/60 692 mm
square extrusions.
2) At this time you will want to install the 4 base plates (or feet adapters) to threaded side of the
extrusions using the 5/16" - 18x 1" Socket cap screws
Page 1
Comet
Asteroid
4
2
2
4
2
2
4
4
Last Modified 1/28/2019
Meteor
Nebula
2
2
2
2
4
4
4
4
Changes in BOLD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comet and is the answer not in the manual?

Questions and answers

Summary of Contents for Probotix Comet

  • Page 1 4 – Leveling feet or casters(depending on which option chosen) 1 – MDF Shelf 4 - Machine Pads for Castors, 8- Feet Adapters for leveling table feet 12 – Aluminum Extrusions per kit. Please see chart below for corresponding sizes. Extrusion: Comet Asteroid Meteor Nebula 1528 mm...
  • Page 2 3) Next you will take the four rectangular extrusions that are of the same size and slide four M6 T- nuts in both the top and bottom slots of one side, on all four extrusions. 4) Next you will secure the corner brackets into these T-nuts using your M6-12mm socket cap screws, with the opposite side of the brackets facing in towards another paired 60/60 extrusion.
  • Page 3 13) Place the shelf on the lower extrusions in the front of the table allowing the T-nuts to drop in the channels on the top of the extrusions. Tighten the M5 x 18mm screws. 14) Next, lift each leg individually and thread your feet or casters to the appropriate, level, height. 15) Now attach the machine mounting pads to the tops of the 6060 extrusion.
