Each Kit will include:
64 – M6 x 12mm Socket Cap Screws
64 – M6 T-nuts
16 – Corner Brackets
8 – M5 x 20mm Socket Cap Screws
8 – M5 T-nuts
5 – M5 Push in T-Nuts
5 – M5 x18mm Socket cap screws
16 – 5/16" - 18 x 1" Socket Cap Screw
8 – Plastic end caps(4 rectangular, 4 square)
4 – 60/60 Base plates
4 – Leveling feet or casters(depending on which option chosen)
1 – MDF Shelf

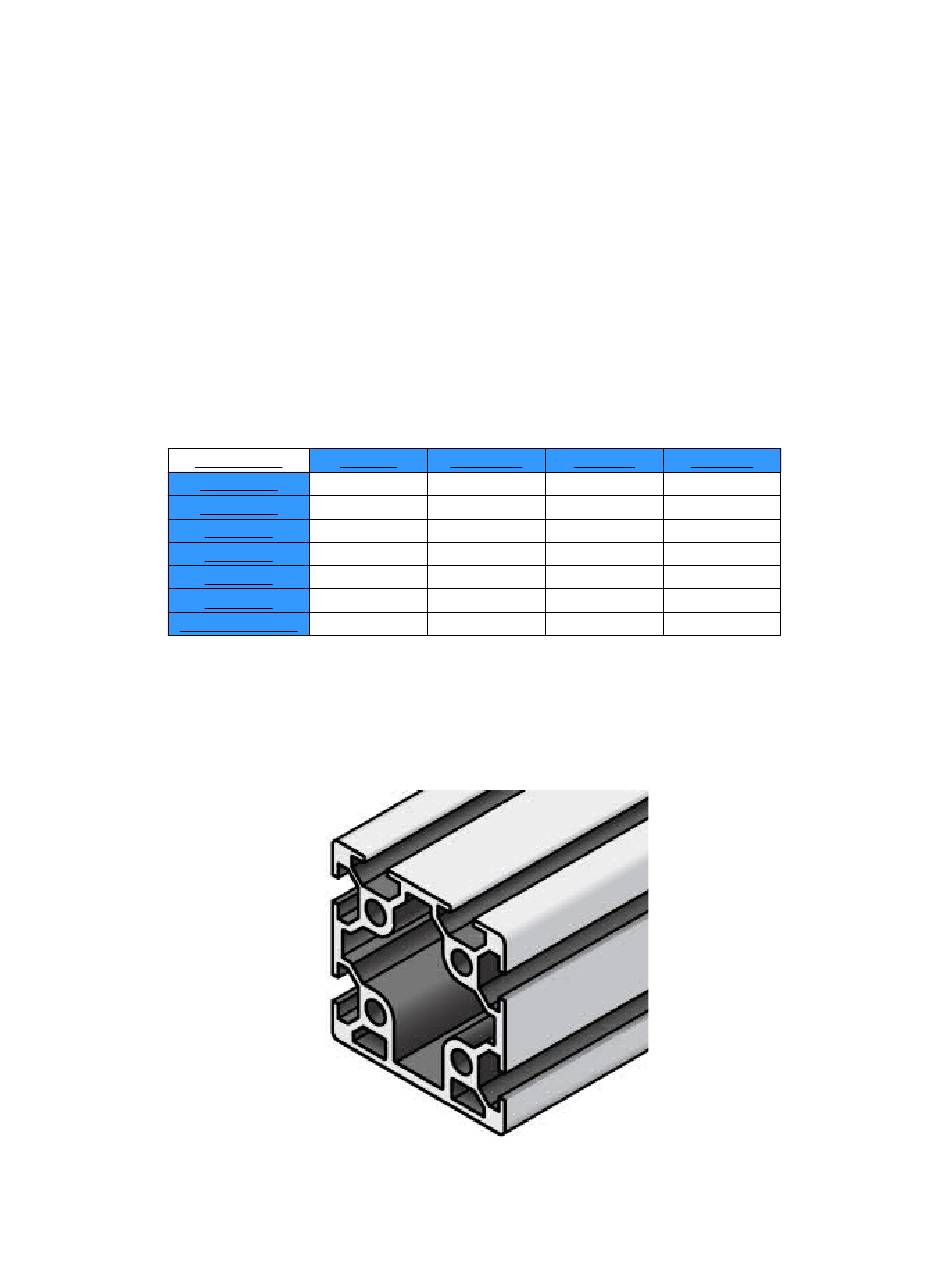

12 – Aluminum Extrusions per kit. Please see chart below for corresponding sizes.
692 mm 60/60
Assembly Procedure:
1) After removing all hardware from its packaging you will need to lay out the four 60/60 692 mm
square extrusions.
2) At this time you will want to install the 4 base plates to threaded side of the extrusions using the
5/16" - 18x 1" Socket cap screws.
Extrusion:
Comet
1528 mm
1414 mm
987 mm
832 mm
2
704 mm
4
718 mm
2
4
Asteroid
Meteor
2
2
4
2
4
2
4
4
Nebula
2
2
4
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Probotix Comet

  • Page 1 4 – 60/60 Base plates 4 – Leveling feet or casters(depending on which option chosen) 1 – MDF Shelf 12 – Aluminum Extrusions per kit. Please see chart below for corresponding sizes. Extrusion: Comet Asteroid Meteor Nebula 1528 mm 1414 mm...
  • Page 2 3) Next you will take the four rectangular extrusions that are of the same size and slide four M6 T- nuts in both the top and bottom slots of one side, on all four extrusions. 4) Next you will secure the corner brackets into these T-nuts using your M6-12mm socket cap screws, with the opposite side of the brackets facing in towards another paired 60/60 extrusion.
  • Page 3 13) Place the shelf on the lower extrusions in the front of the table allowing the T-nuts to drop in the channels on the top of the extrusions. Tighten the M5 x 18mm screws. 14) Next, lift each leg individually and thread your feet or casters to the appropriate, level, height. 15) Use the eight remaining T-nuts and M5 x 20mm socket cap screws to secure your machine to the table using the holes provided at the bottom of each of the machines feet.
