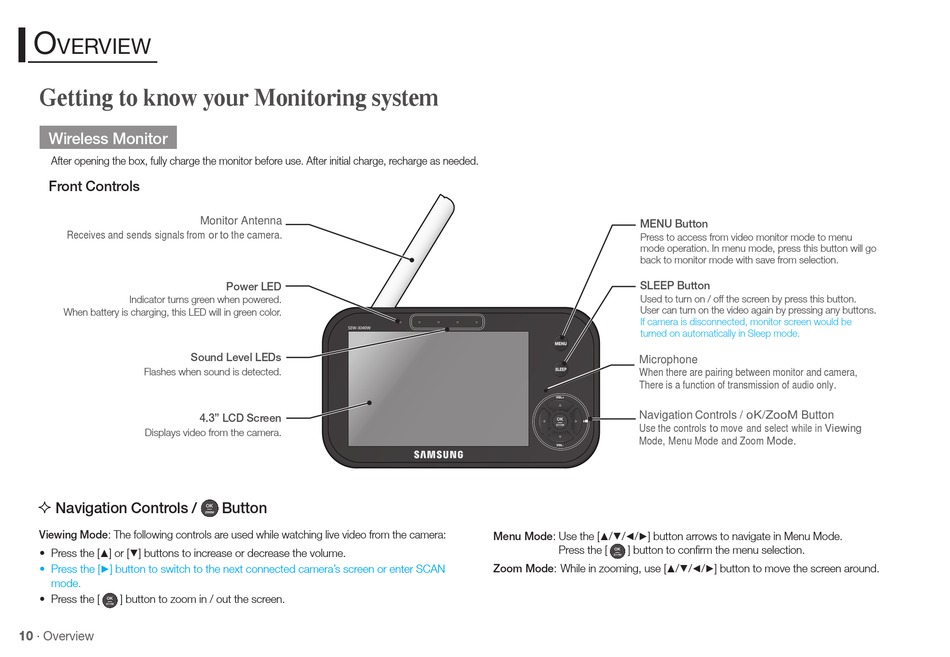

Getting to know your Monitoring system
Wireless Monitor
After opening the box, fully charge the monitor before use. After initial charge, recharge as needed.
Front Controls
Receives and sends signals from or to the camera.
Indicator turns green when powered.
When battery is charging, this LED will in green color.
Flashes when sound is detected.
SEW-3036W
Displays video from the camera.
Navigation Controls /
—
Viewing Mode: The following controls are used while watching live video from the camera:
• Press the [$] or [%] buttons to increase or decrease the volume.
• Press the [+] button to switch to the next connected camera's screen or enter SCAN
mode.
• Press the [ ] button to zoom in / out the screen.
10 · Overview
Monitor Antenna
Power Led
Sound Level Leds
4.3" LCd Screen
Button
SEW-3036W
Menu Mode: Use the [$/%/_/+] button arrows to navigate in Menu Mode.
Press the [
Zoom Mode: While in zooming, use [$/%/_/+] button to move the screen around.
MeNu Button
Press to access from video monitor mode to menu
mode operation. In menu mode, press this button will go
back to monitor mode with save from selection.
SLeeP Button
Used to turn on / off the screen by press this button.
User can turn on the video again by pressing any buttons.
If camera is disconnected, monitor screen would be
turned on automatically in Sleep mode.
Microphone
When there are pairing between monitor and camera,
There is a function of transmission of audio only.
Navigation Controls / oK/ZooM Button
Use the controls to move and select while in Viewing
Mode, Menu Mode and Zoom Mode.
] button to confirm the menu selection.
