Summary of Contents for Wylie Non-DOT Nurse Trailer

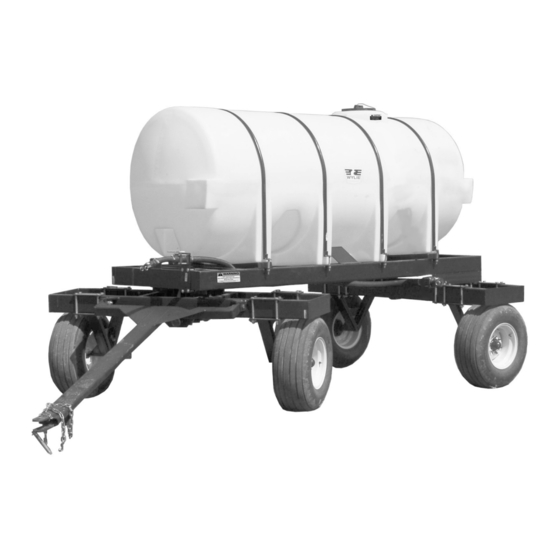

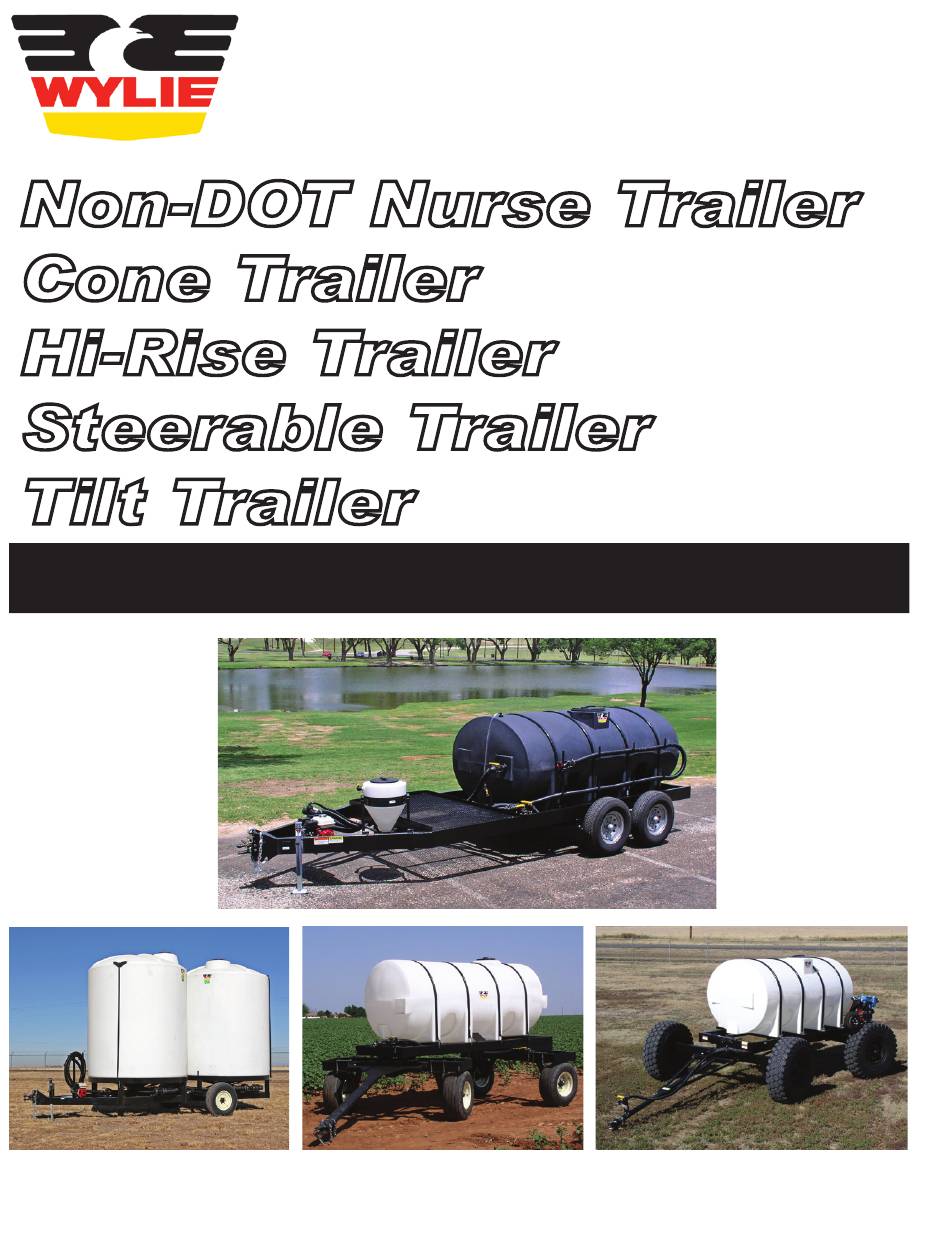

- Page 1 Non-DOT Nurse Trailer Cone Trailer Hi-Rise Trailer Steerable Trailer Tilt Trailer Operator’s & Parts Manual 6-8-18 06-25R5 Printed In The USA — Specifications & Design Subject To Change Without Notice...
- Page 2 Disclaimer of Warranty WYLIE Mfg. Co., and its divisions, “Wylie Spray Centers,” in each location, requires as a condition of sale and coverage by its LIMITED WARRANTY that all equipment sold by it be used in accordance with the instructions and specifications of the Warrantor.
- Page 3 Owner Registration Wylie Manufacturing Company 702 E. 40th St. Lubbock, TX 79404 Ph. 888-788-7753 Non-DOT Trailers Date of Purchase Type of Trailer: Model Number Nurse Cone Tilt Frame Serial Number Hi-Rise Steerable Size of Trailer: Tank Serial Number 2,010 Gal.
- Page 5 Table of Contents Table Of Contents Safety Issues ................................2 - 3 Safety Decals & Placement ............................. 4 - 8 Introduction ................................... 9 Inspection & Setup ..............................10 - 12 Operation ................................13 - 21 Nurse Trailers ............................13 - 14 Cone Trailers ............................15 - 18 Hi-Rise Trailers ............................
- Page 6 Do not operate trailer until this manual has been read and understood! • Thoroughly read and understand all instructions before operating this trailer. If you have questions, (888) 788-7753. please contact Wylie Manufacturing, 702 E. 40th St., Lubbock, TX 79404, Wylie Spray Center. You can also contact your nearest •...
- Page 7 Safety Issues After Use • Inspect trailer for wear or damage. • Ensure that all fasteners and fittings are tight. • Flush tank and pump with fresh water if chemicals are used. Dispose of flush water using appropriate means. • Carry out maintenance and/or lubrication procedures as outlined in this manual.
- Page 8 Safety Issues Safety Decals & Placement Nurse Trailers Decal #V9019 Decal #V9020 Decal #V9022...
- Page 9 Safety Issues Safety Decals & Placement Cone Trailers Decal #V9022 Decal #V9049 Decal #V9020 Decal #V9013...
- Page 10 Safety Issues Safety Decals & Placement Steerable Trailers Decal #V9015 Decal #V9019 Decal #V9047 Decal #V9020...
- Page 11 Safety Issues Safety Decals & Placement Steerable Hi-Rise Trailers Decal #V9015 Decal #V9019 Decal #V9047 Decal #V9020...
- Page 12 Safety Issues Safety Decals & Placement Hi-Rise Trailers Decal #V9020 Decal #V9022...
- Page 13 Introduction The Wylie Non-DOT Nurse Trailers are the result of years of testing and field proven experience. They are built of the finest materials and expert workmanship to provide you with years of reliable service. The Nurse Trailers are available with 300 to 2,010 gallon tanks and a choice of frame styles -- gooseneck or tag.
- Page 14 Make a visual inspection to assure that nothing was damaged in shipping. Report any problems to your dealer or to Wylie Manufacturing. Attaching Gooseneck Trailer To Truck All Wylie gooseneck trailers require a 2 5/16” ball mounted in the bed of the truck.
- Page 15 Hi-Rise trailers can be equipped with a ground drive pump, The Wylie tag trailer is equipped with a height adjustable but can also be configured to supply the pump mounted hitch. The trailer should travel level. To level the hitch, on the toolbar.
- Page 16 Inspection & Setup Steerable Trailer The Hi-Rise pump cylinder is equipped with a pressure relief valve to prevent excess force between the drive wheel and the ground wheel. The drive wheel should The 1,250 / 1,600 gallon Steerable Trailer is usually trans- engage the ground wheel with enough force to drive the ported with the rear axle locked in the road position.
- Page 17 Many times, the source has sufficient pressure that The Wylie Nurse Trailers can perform a wide variety of requires the fill hose be held in place to prevent the fill hose jobs.
- Page 18 Operation Controlling Surge Wylie polyethylene tanks have a partial baffle molded into the tank to help control surge or movement of the fluid dur- ing transport. If additional surge control is needed, Surge Buster™ inserts are available from Wylie Spray Centers.
- Page 19 Operation Cone Trailers * Push the transport locks “in” on both sides of the trailer to disengage the locks. Lowering the trailer with only one transport lock disengaged will cause equipment Cone Trailers are designed to be transported empty. To damage.
- Page 20 Operation Figure B16 Figure B14 Open 3” Valve and Tank Valves Lowered Cone Trailer Fill the tanks to the desired level. Close the 3” valve, then close the tank valves. Filling through the Quick Fill coupler: Load fluid into the cone trailer tanks only when the Some Cone Trailers are also equipped with a 2”...
- Page 21 Operation Unloading Cone Tanks Transporting Cone Trailer The cone tanks can be unloaded with a pump on the receiving vehicle or by an optional pump mounted on the Cone Trailer. Do not raise or transport the Cone Trailer with any fluid in the cone tank.
- Page 22 Operation Hi-Rise Trailers Fill with fluid to the top of the reservoir. Replace the plug. Note: Filling the reservoir when the trailer is in the raised Filling the Tank position will overfill the system and will cause an overflow Connect the 2” quick couple fitting at the rear of the trailer when the trailer is lowered.
- Page 23 Operation Steerable Trailer Operating Hi-Rise Trailer With Pump Connect the ¾” hose (not included) from the pump dis- charge fitting to the toolbar (Figure B24). Open the supply Filling ball valve to allow the flow of fluid to the pump. Refer to Remove the Quick-Couple cap and attach a 2”...
- Page 24 Operation Steerable Trailer Discharge (w/ pump) wise (loosen) to reduce the pressure. Once the pressure Attach the supply line from the planter or strip-till bar to is set, tighten the jam nut and replace the cap. Make sure the 2” coupler on the trailer tongue (Figure B27). Open the that the washer is in place between the cap and jam nut.
- Page 25 Operation Tilt Trailers Back up slowly until the tank is vertical. The trailer tongue Tilt trailers are available for 3,000 gallon and 6,000 gallon can now be unhitched from the tow vehicle. vertical tanks. The tilt trailers are designed to be transported empty to the desired location and stood up on end before loading any fluid.
- Page 26 Wylie polyethylene tanks are designed to hold a wide vari- ety of fluids, but are not compatible with some fluids. Wylie polyethylene tanks are not designed to hold petroleum based chemicals or petroleum fuels.
- Page 27 Maintenance & Lube Maintenance & Lubrication Freeze Protection Lubrication The tank and fittings are susceptible to rupture in freez- The wheel bearings should be packed every 6 months ing conditions if water or some other fluids are left in the or every 6,000 miles (whichever comes first).
- Page 28 Lubrication Recommended Lubrication Hi-Rise Trailer Hi-Rise Trailer Lower 5th Wheel Upper 5th Wheel (2 grease zerts) (3 grease zerts) Grease daily Grease daily Folding Chains Oil every week Cone Trailer Axle, Cone Trailer Axle, Pump Side Cylinder Side (1 grease zert)
- Page 29 (3) Clean strainer screen (3) Plugged strainer move solution (4) See pump owners manual or contact (4) Malfunctioning pump Wylie Spray Center (1) Fill tank (2) Open ball valve (3) Clean strainer screen (1) Spray tank low; air getting in pump...
- Page 30 (3) Clean strainer screen (3) Plugged strainer move solution (4) See pump owners manual or contact (4) Malfunctioning pump Wylie Spray Center (5) Discharge valve not open (5) Open discharge valve (1) Fill tank (2) Open ball valve (1) Spray tank low; air getting in pump...
- Page 31 (3) Clean strainer screen (3) Plugged strainer move solution (4) See pump owners manual or contact (4) Malfunctioning pump Wylie Spray Center (1) Fill tank (2) Open ball valve (3) Clean strainer screen (1) Tank low; air getting in pump...
- Page 32 (3) Clean strainer screen (3) Plugged strainer move solution (4) See pump owners manual or contact (4) Malfunctioning pump Wylie Spray Center (5) Discharge valve not open (5) Open discharge valve (1) Fill tank (2) Open ball valve (1) Cone tank low; air getting in pump...
