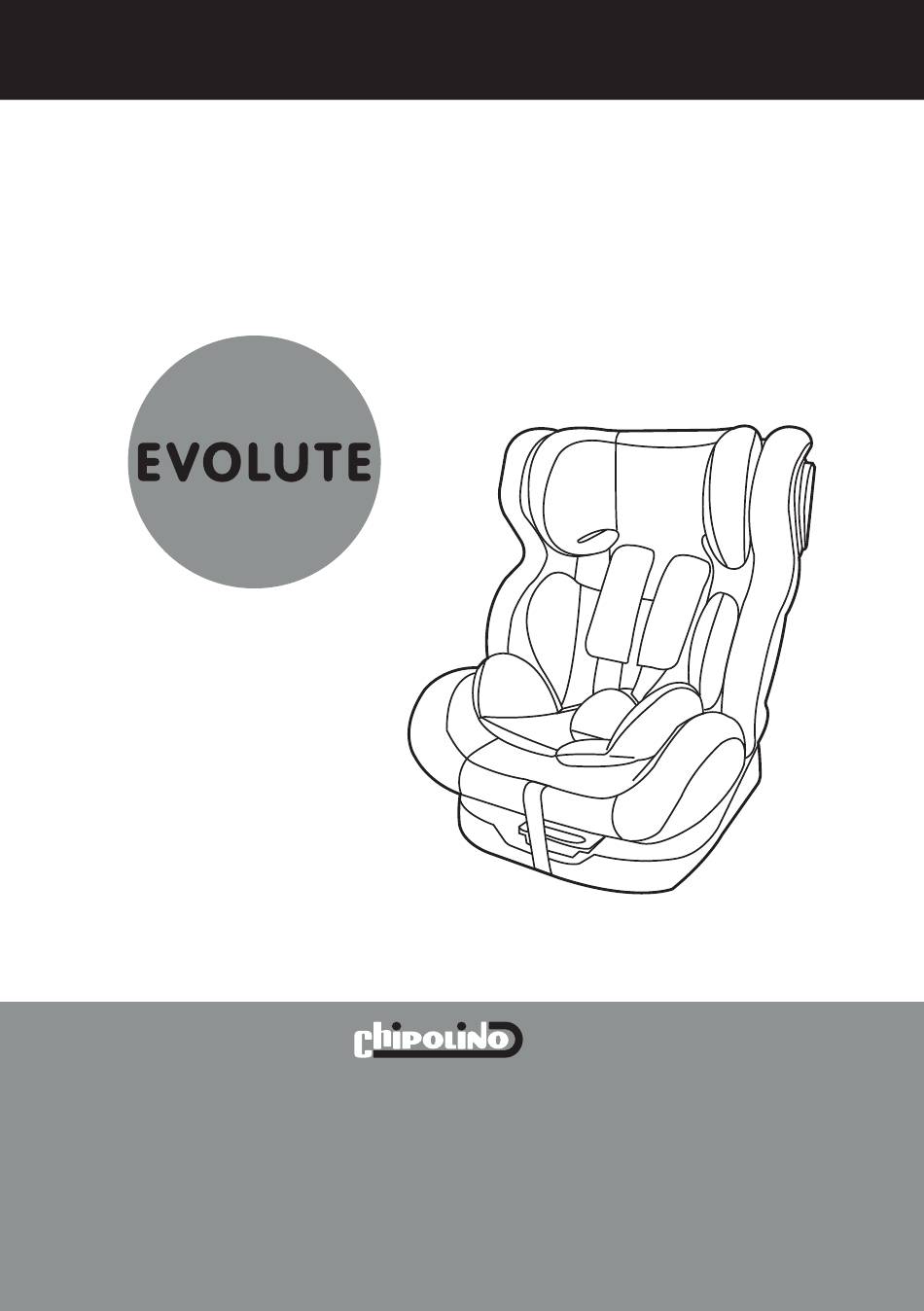

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE
INSTRUCTION MANUAL FOR USE
OF CHILD RESTRAINT SYSTEM
„EVOLUTE"
This child restraint system
is designed and manufactured
in compliance with the requirements of Regulation 44 of the United Nations
Economic Commission for Europe concerning the safe transportation of
children, the provisions of the Product safety Directive 2001/95/EU of the
European Parliament and The Council as well as the Consumer Protection Law
of Bulgarian Legislation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chipolino EVOLUTE
Summary of Contents for Chipolino EVOLUTE
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „EVOLUTE” This child restraint system is designed and manufactured in compliance with the requirements of Regulation 44 of the United Nations Economic Commission for Europe concerning the safe transportation of...
- Page 2 N O T I C E for semi-universal child restraint, groups 0+ and I 1. This is an ISOFIX CHILD RESTRAINT. It is approved to Regulation No 44, 04 series of amendments, for general use in vehicles fitted with ISOFIX anchorages systems. 2.
- Page 3 “ FORWARD FACING”. Do not install on side facing or rearward facing vehicle seat. If any doubt about installation, please check your vehicle user manual, or contact the vehicle supplier. Child restraint EVOLUTE Group Method of installation in the vehicle...
- Page 4 CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM ! CAUTION! NEVER INSTALL THE CHILD RESTRAINT IN THE DIRECTION OF VEHICLE MOVEMENT AND FACING FORWARD BEFORE THE CHILD WEIGHT REACHES 9kg! ...
-
Page 5: Product Features
PRODUCT FEATURES Child restraint restraint while traveling in a vehicle designed for children weighing from 0 to 36 kg, classified in weight groups: • 0+ and I (0-18 kg): semi-universal integral ISOFIX child restraint, ISOFIX class D. The restraint system is installed in direction opposite to the direction of the vehicle and the child is "rearward facing"... -
Page 6: Check After Installation
INSTALLATION OF THE CAR SEAT WITH ISOFIX ATTACHMENTS click Release button shake 1. RELEASE OF THE ISOFIX ATTACHMENTS Press the button to release the ISOFIX attachments, then push the ISOFIX connector firmly back. 2. INSTALLATION OF ISOFIX ATTACHMENTS Press the ISOFIX attachment to attachment points in the vehicle, until you hear “click” sound. 3. - Page 7 INSTALLATION OF THE CAR SEAT WITH ISOFIX AND TOP TETHER shake the car seat “REARWARD FACING” car seat tighten upper anchor point Install the ISOFIX connectors Note: The upper anchor point is fixed device on the trunk or the floor of the vehicle. IMPORTANT! Tighten the belt of the top tether, until the indicator of top tether adjuster show „green color”...
- Page 8 INSTALLATION OF THE CAR SEAT GROUP I (9-18 kg) Age of the child from birth to 4 years (“FORWARD FACING”) with ISOFIX attachments and 3-point safety belt of the vehicle 1. PLACING THE CAR SEAT ON THE VEHICLE SEAT Rotate the car seat, so it is ”FORWARD FACING”, adjust the recline of the car seat in position „1”...
- Page 9 5-POINT SAFETY HARNESS OF THE CAR SEAT. USE FOR GROUPS 0+ and I Press Pull IMPORTANT! Connect the two metal tongues together DO NOT INSERT THE METAL TONGUES ONE BY ONE “click” pull the belt After placing the child in the car seat and fastening the belt, pull the adjusting strap to secure the belt (6). The seat belts should be adjusted according to the body and size of the child , snug well against baby’s body and not loose (7).
- Page 10 UNLOCKING OF ISOFIX CONNECTORS AND TOP TETHER 1-press loosen 2-pull the button backwards release the hook press Top tether 3-release the ISOFIX connectors CAUTION! Do not unlock or remove parts of the ISOFIX system applying strength! If the ISOFIX system is not unlocked, please repeat the steps shown in the figure INSTALLATION OF THE CAR SEAT GROUPS II and III (15-36 kg) Age of the child from 3 to 12 years (“FORWARD FACING”)
-
Page 11: Adjusting The Height Of The Headrest
ADJUSTING THE HEIGHT OF THE HEADREST DOWN Suitable headrest height The diagonal belt must pass through the child’s collarbone Moving the headrest to a higher position (up) 1. Pull the height adjustment handle. 2. Pull hard up to move the headrest to a higher position. Moving the headrest to a lower position (down) Pull the adjusting handle and hold. - Page 12 STORING THE 5-POINT HARNESS OF THE CAR SEAT for groups II and III “click” Metal buckle of the belts of the soft pads clcik 1. Unfasten the buckle of the 5-point harness. 2. Remove the crotch belt soft pad and pass the buckle through the hole, under the upholstery. 3.
- Page 13 ADJUSTING THE RECLINE OF THE CAR SEAT Recline adjustment lever Pull the lever up and move - Positions for car seat “REARWARD FACING” - Positon of the car seat „FORWARD FACING” Note: At fixing of the chosen position, you will heat “click”sound.
-
Page 14: Care And Maintenance
REMOVAL OF THE FABRIC COVER OF THE CAR SEAT CAUTION! DO NOT USE THE CAR SEAT WITHOUT ITS FABRIC COVER! 1. Remove the soft pads of the shoulder belts. 2. Remove the crotch belt soft pad and insert the buckle in the whole of the upholstery. 3. - Page 15 List of vehicles, suitable for fixing of semi-universal child restraint system, model „EVOLUTE”...
- Page 17 There may be other vehicles where there are suitable places to install this child restraint system If in doubt, consult the manufacturer of the security system or retailer.
- Page 18 Bulgaria, Plovdiv, Golyamokonarsko shosse Str. № 1 www.chipolino.com...
